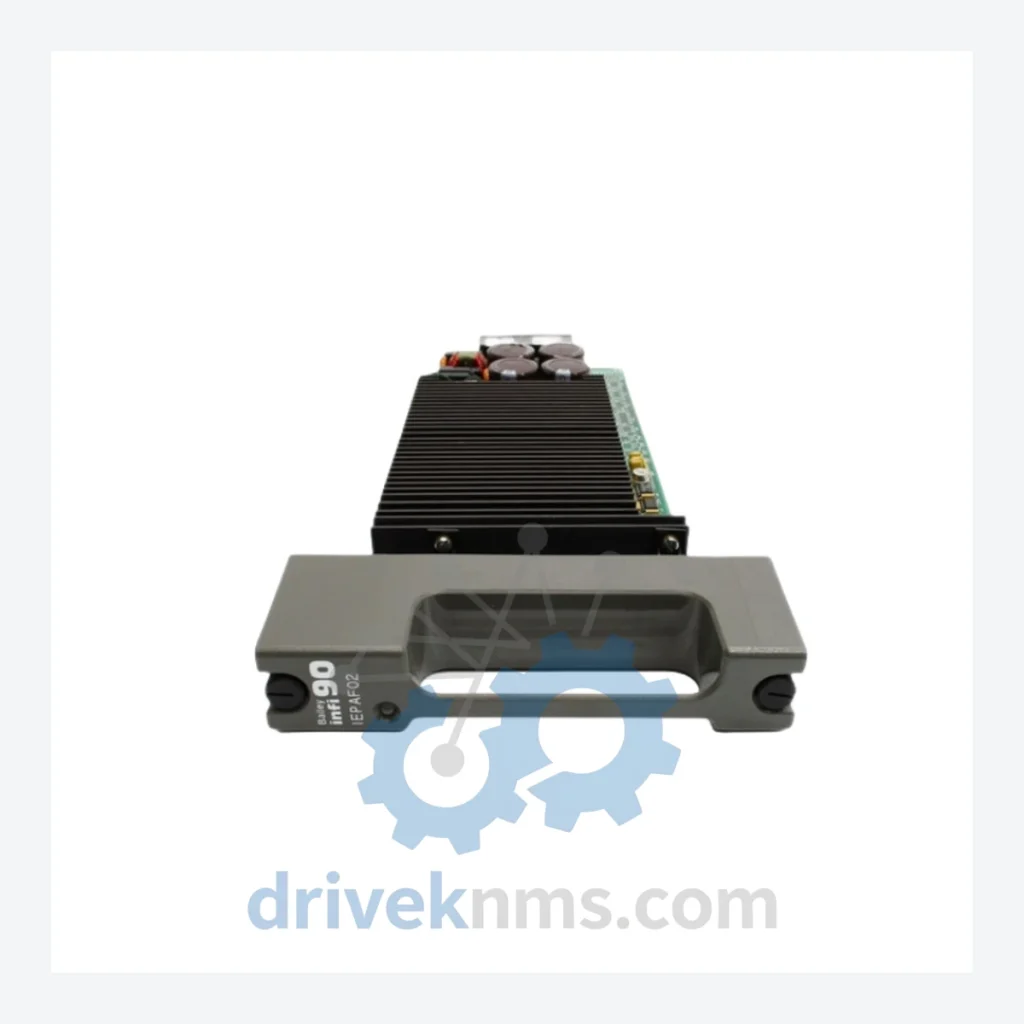

ABB IEPAF02 Power Supply Module – Obsolete Advant OCS Spare Part

Technical Dossier

Product Details And Specifications

ABB IEPAF02 Power Supply Module – Obsolete Advant OCS Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters vary by hardware revision. DriveKNMS will confirm exact specifications against your system revision upon inquiry. No parameters are published here that cannot be verified against physical hardware — accuracy on discontinued power supply modules is a safety matter, not a marketing one.

Solving the Discontinued Hardware Crisis

The ABB Advant OCS platform was deployed extensively across process industries throughout the 1990s and early 2000s. Many of these installations remain operational today because the cost and risk of migration outweigh the theoretical benefits of modernization. The IEPAF02 power supply sits at the foundation of the Advant OCS rack architecture. It is not a peripheral card that can be bypassed or emulated — it provides regulated DC power to the processor and I/O modules in the rack. Without a functional IEPAF02, the entire controller node is inoperable.

Facilities running Advant OCS or MasterPiece 200 systems should treat the IEPAF02 as a critical long-lead item and maintain at least one cold spare on-site. The module's failure mode is typically gradual — output voltage drift, intermittent resets — but the window between first symptom and full failure can be short. Procurement from the secondary market takes time. Waiting until failure to begin sourcing is the highest-cost strategy available.

How to Extend Automation Asset Life by 5–10 Years Through Strategic Spare Parts Management

Plant managers facing pressure to retire legacy ABB Advant OCS systems often underestimate how much operational life remains in the installed base when critical spare parts are available. The following approach has allowed facilities to defer multi-million-dollar migration projects by five to ten years without compromising process reliability:

1. Conduct a single-point-of-failure audit. Map every module in the Advant OCS rack that has no installed spare and no modern equivalent. Power supply modules, processor cards, and communication interfaces are the highest-risk categories. The IEPAF02 belongs in this group.

4. Document hardware revisions. Advant OCS modules were produced across multiple hardware revisions. Maintaining records of the exact revision installed in each rack prevents compatibility errors when installing replacement units.

5. Negotiate a maintenance contract that includes spare parts sourcing. Facilities that treat spare parts procurement as a reactive activity consistently pay more and wait longer than those with proactive sourcing agreements in place.

The IEPAF02 is one module. But the discipline of managing it correctly is the same discipline that keeps an entire legacy automation platform running reliably for another decade.

Condition & Reliability Assurance

Every IEPAF02 unit shipped by DriveKNMS passes a five-stage inspection protocol before it leaves our facility. This process was developed specifically for discontinued power supply modules, where age-related degradation follows predictable failure patterns:

Step 1 – Electrolytic Capacitor Assessment. Electrolytic capacitors are the primary age-related failure point in power supply modules of this era. Each unit is inspected for capacitor bulging, leakage, and ESR deviation. Units with capacitors outside acceptable ESR tolerance are reconditioned or rejected.

Step 2 – Firmware and Hardware Revision Verification. The hardware revision marking is documented and cross-referenced against the customer's installed system revision to confirm compatibility before dispatch review.

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

Step 4 – Functional Power-On Test. Each unit is powered and output rails are measured under load conditions. Voltage regulation and ripple are recorded.

Step 5 – Packaging for Long-Term Storage. Units are packaged in anti-static bags with desiccant and sealed for storage, whether the customer intends to install immediately or hold as a cold spare.

Key Features for System Maintenance

The IEPAF02 is a direct hardware replacement for the original module installed in ABB Advant OCS and MasterPiece 200 racks. There is no firmware to load, no configuration to transfer, and no engineering work required beyond physical installation:

Drop-in replacement. The module seats into the existing rack backplane. No rack modification, no wiring change.

No reprogramming required. Controller configuration, application logic, and I/O assignments are held in the processor module, not the power supply. Replacing the IEPAF02 does not affect the control program.

No engineering engagement required. A qualified maintenance technician can complete the replacement. There is no requirement for a controls engineer, a system integrator, or an ABB service visit.

Q: How do I know whether I am receiving a new surplus unit or a refurbished unit?
A: Unit condition is declared on the quotation and confirmed on the shipping documentation. DriveKNMS does not mix condition grades within a single order without explicit customer agreement.

Q: Should I buy more than one unit?
A: For any facility running Advant OCS or MasterPiece 200 systems without a planned migration date, holding a minimum of one cold spare IEPAF02 per controller node is a reasonable risk management position. Global secondary market inventory of this module is finite and decreasing.

Q: Can DriveKNMS source other ABB Advant OCS modules?
A: Yes. DriveKNMS specializes in hard-to-find and discontinued industrial automation components across multiple platforms. Contact us with your full bill of materials for a consolidated sourcing assessment.
