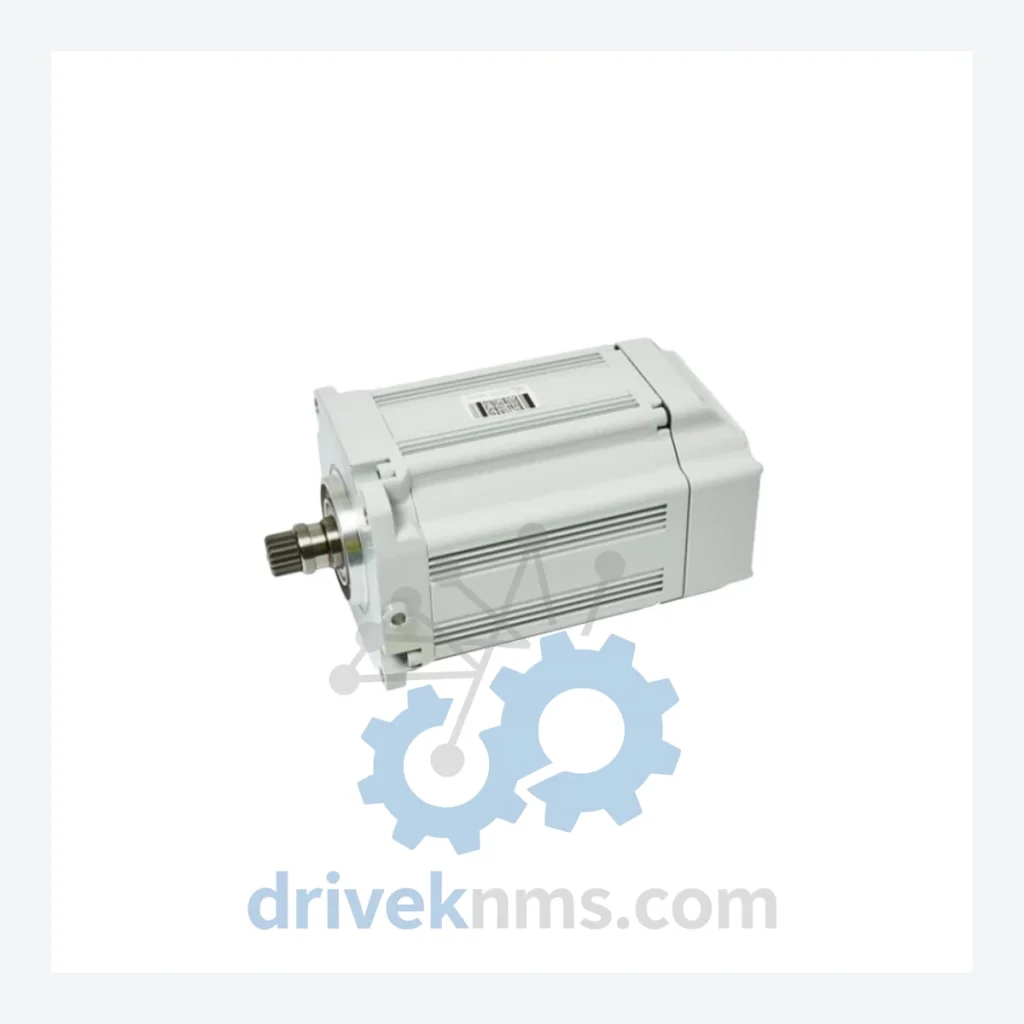

ABB 3HAC043569-004 Servo Motor with Pinion – Obsolete IRB4600 Spare Part

When an ABB IRB4600 robot goes down due to a failed axis motor, the clock starts running — not just on production loss, but on a far more expensive decision: whether to repair or replace the entire robot cell. A full robotic cell replacement, including re-integration, re-programming, safety re-certification, and production re-qualification, routinely exceeds $500,000 USD. For multi-robot lines, that figure multiplies accordingly.

The 3HAC043569-004 is the Type C axis servo motor with pinion used in the ABB IRB4600 series — a robot platform that has been in widespread deployment across automotive, metal fabrication, and general manufacturing since its introduction. ABB has progressively phased out direct support and spare parts supply for earlier IRB4600 configurations. Sourcing this motor through standard channels is no longer straightforward. DriveKNMS maintains RFQ-reviewed sourcing status of this unit. This is not a listing for a part that can be ordered on demand — inventory is finite and not replenishable through normal distribution.

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters specific to this motor variant are not published here to prevent misapplication. Contact us for full technical documentation prior to ordering.

Solving the Discontinued Hardware Crisis

For plant engineering teams managing aging IRB4600 fleets, the practical strategy is not replacement — it is controlled life extension through verified spare parts. A single 3HAC043569-004 motor, sourced and held as a critical spare, eliminates the single-point-of-failure risk that would otherwise force an unplanned shutdown decision. Facilities that maintain a structured spare parts buffer for their robot axes routinely extend operational asset life by 5 to 10 years beyond the manufacturer's support window, at a fraction of the cost of new equipment procurement.

The axis motor is one of the highest-wear components in any articulated robot. Bearing fatigue, encoder degradation, and winding insulation breakdown are predictable failure modes over time. Having a verified replacement unit on the shelf converts a potential multi-week production crisis into a same-shift repair.

Condition & Reliability Assurance

Every 3HAC043569-004 unit processed by DriveKNMS goes through a structured 5-step inspection protocol before it is offered for sale:

• Step 1 – Electrolytic Capacitor Assessment: Age-related capacitor degradation is the leading cause of latent failure in stored servo drives and motors. Each unit is inspected for capacitor condition, with ESR testing where applicable.
• Step 2 – Encoder & Feedback Integrity Check: The resolver or encoder assembly is verified for signal integrity. Damaged feedback devices cause immediate axis faults on power-up and are a common failure point in stored units.
• Step 3 – Pinion and Gear Interface Inspection: The pinion is inspected for tooth wear, chipping, and dimensional conformance. A worn pinion transferred to a healthy gearbox accelerates gearbox wear.
• Step 4 – Pin and Connector Corrosion Audit: All electrical connectors are inspected under magnification for oxidation, pin retraction, and contact resistance. Corroded connectors are cleaned or replaced before dispatch.
• Step 5 – Firmware and Label Verification: Part number, revision label, and where applicable, firmware version are cross-referenced against ABB documentation to confirm the unit matches the 3HAC043569-004 specification exactly.

Key Features for System Maintenance

Q: How do I know the unit is genuine ABB and not a counterfeit?
A: All units are sourced through verified industrial channels. Part number labels, serial number formats, and physical construction are cross-checked against ABB documentation. We do not source from unverified secondary markets.

Q: Do you provide documentation with the part?
A: Available documentation, including inspection records and part number verification, is provided with each shipment on request.
