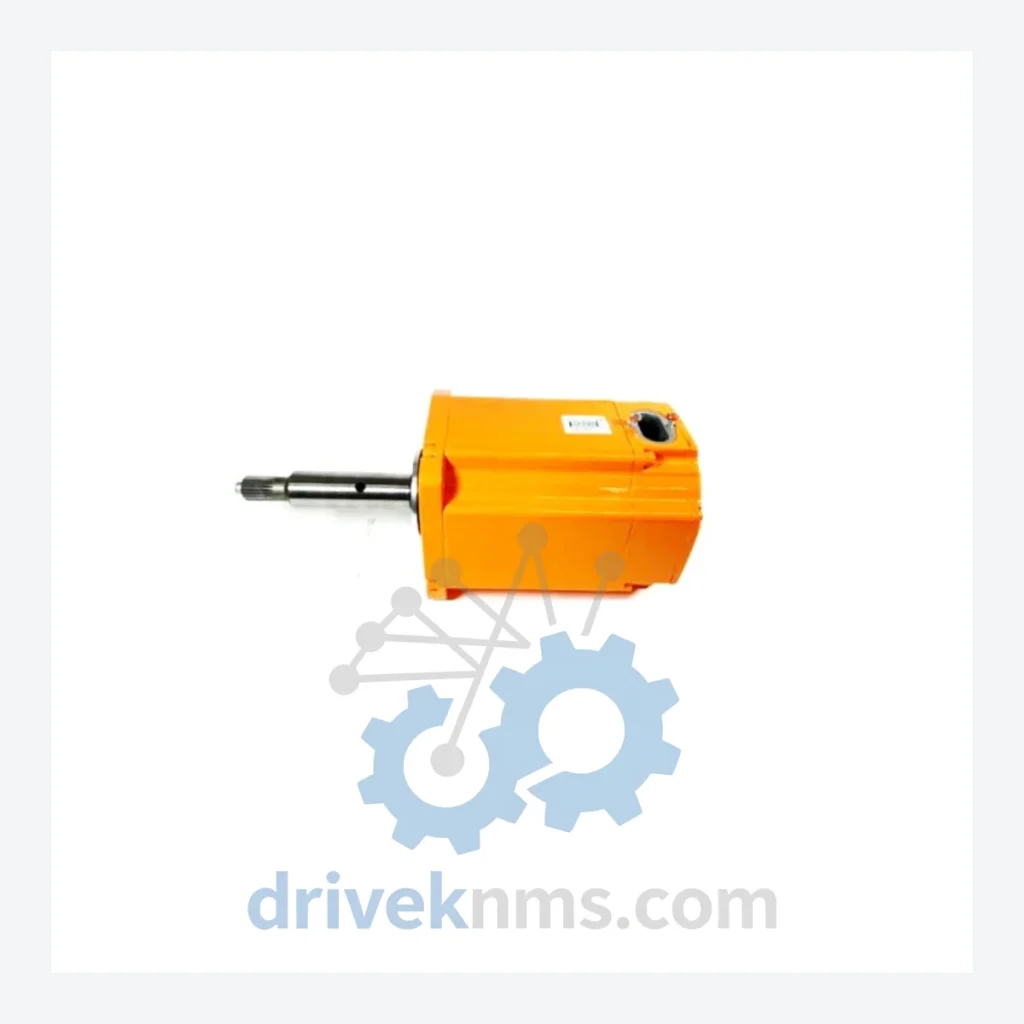

ABB IRB 6600 Robot Arm Modules

Technical Dossier

Product Details And Specifications

ABB IRB 6600 Series: Comprehensive Module Range and Technical Overview

The ABB IRB 6600 is a heavy-duty industrial robot platform engineered for high-payload applications across global process industries including petrochemical refineries, nuclear power plant maintenance, automotive body-in-white assembly, and offshore oil & gas facilities. With a payload capacity ranging from 175 kg to 500 kg and a reach envelope of up to 2.55 m, the IRB 6600 occupies a critical position in ABB's large-robot portfolio. Installed base figures place this series among the most widely deployed heavy robots in continuous-process manufacturing environments, where mean-time-between-failure (MTBF) requirements exceed 50,000 operating hours. The series operates under ABB's IRC5 controller architecture and is compatible with RobotWare 5.x and 6.x software stacks, making it a long-lifecycle platform with an extensive global spare parts ecosystem.

The Evolution of IRB 6600 Architecture

The IRB 6600 platform was introduced in the early 2000s as a successor to ABB's IRB 6400 series, addressing the demand for higher payload density and improved path accuracy in heavy manufacturing. The original IRB 6600-175/2.55 established the baseline kinematic structure: a 6-axis serial-link manipulator with a hollow wrist design to route process media (welding cables, paint hoses, sensor harnesses) internally, reducing external cable wear in high-cycle applications.

Subsequent variants introduced the IRB 6600-500/2.55 for foundry and press-tending duties, incorporating IP67-rated axis seals and a corrosion-resistant surface treatment (Foundry Plus 2 option). The IRB 6650S variant extended the series into shelf-mounted and inverted configurations, expanding the usable work envelope without increasing floor footprint — a critical constraint in brownfield plant retrofits.

The IRC5 controller transition (circa 2004–2006) unified the motion control architecture across the IRB 6600 family, introducing RAPID programming language enhancements, SafeMove functional safety modules, and Ethernet-based fieldbus integration (DeviceNet, PROFIBUS, EtherNet/IP). This transition created a compatibility boundary: pre-IRC5 (S4C+) drive units and I/O modules are not interchangeable with IRC5 hardware without a full controller migration. Sourcing teams must verify controller generation before ordering replacement modules.

As of 2026, the IRB 6600 series is in the mature/end-of-active-production phase, with ABB having transitioned primary development resources to the IRB 6700 and IRB 6790 platforms. However, the installed base remains substantial, and ABB's Extended Lifecycle Support (ELS) program covers critical spare parts through at least 2030. Third-party MRO suppliers such as DriveKNMS provide an additional sourcing layer for obsolete and long-lead-time components.

IRB 6600 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified components within the ABB IRB 6600 ecosystem, classified by functional category. All part numbers reference ABB's standard HAC (Hardware Article Code) nomenclature.

Mechanical & Structural Assemblies

• IRB66003HAC021541-001: Complete robot arm mechanical unit, IRB 6600-175/2.55, standard configuration, IRC5-compatible
• 3HAC025338-001: Lower arm assembly, IRB 6600/6650, includes axis 2–3 gearbox interface flanges
• 3HAC025339-001: Upper arm assembly, IRB 6600, hollow wrist variant, axis 4–6 housing
• 3HAC021452-001: Wrist unit complete, IRB 6600-175, axes 4/5/6, IP67 rated
• 3HAC026510-001: Balancing cylinder assembly, IRB 6600, nitrogen-charged, axis 2 counterbalance

Drive & Motor Units

• 3HAC17484-1: Axis 1 drive motor, IRB 6600, 3-phase AC servo, 11 kW continuous
• 3HAC17484-2: Axis 2 drive motor, IRB 6600, 3-phase AC servo, 15 kW continuous
• 3HAC17484-3: Axis 3 drive motor, IRB 6600, 3-phase AC servo, 11 kW continuous
• 3HAC025562-001: Axis 4/5/6 wrist motor set, IRB 6600, matched trio for wrist kinematics
• 3HAC026254-001: Drive unit DSQC 661, IRC5 main drive module, 400 V AC input

Controller & I/O Modules (IRC5)

• 3HAC025917-001: IRC5 main computer unit DSQC 639, CPU board, RobotWare 5.x/6.x
• 3HAC026254-002: DSQC 662 drive unit, axis computer interface, IRC5 single cabinet
• 3HAC025338-003: DSQC 643 I/O module, 16 DI / 16 DO, 24 V DC, DeviceNet node
• 3HAC025917-003: DSQC 652 digital I/O board, 16 DI / 16 DO, IRC5 panel-mount
• 3HAC026510-003: DSQC 679 teach pendant (FlexPendant), IRC5, color touchscreen, 10 m cable

Gearboxes & Transmission

• 3HAC021452-003: Axis 1 gearbox, IRB 6600, Nabtesco RV series, ratio 1:105
• 3HAC025338-005: Axis 2 gearbox, IRB 6600, Nabtesco RV series, ratio 1:128
• 3HAC025339-005: Axis 3 gearbox, IRB 6600, Nabtesco RV series, ratio 1:100

Power Supply & Safety

• 3HAC025917-005: IRC5 power supply unit DSQC 661, 24 V DC regulated, 10 A
• 3HAC026254-005: SafeMove safety module DSQC 647, IRC5, EN ISO 13849-1 PLd

Sourcing Hard-to-Find & Obsolete IRB 6600 Parts

With the IRB 6600 series in its mature lifecycle phase, procurement teams face three recurring challenges: extended lead times from OEM channels (12–52 weeks for gearbox assemblies), minimum order quantity constraints on low-volume mechanical sub-assemblies, and the complete discontinuation of select S4C+-era components with no direct OEM replacement path.

DriveKNMS maintains a dedicated inventory buffer for IRB 6600 series components sourced through authorized surplus channels, factory-refurbished units, and cross-referenced equivalents. Our sourcing protocol covers: (1) direct OEM new-old-stock (NOS) where available; (2) factory-reconditioned units with full dimensional inspection reports; (3) cross-referenced third-party equivalents for mechanical components where OEM supply has been formally discontinued. All sourced units are traceable to batch documentation and are supplied with a 12-month functional warranty. For plant operators running IRB 6600 fleets beyond 2028, DriveKNMS recommends establishing a consignment stock agreement to eliminate unplanned downtime risk on long-lead gearbox and drive motor items.

Quality Control for the IRB 6600 Range

The IRB 6600's mechanical complexity — six-axis serial kinematics, hollow wrist routing, and high-torque gearbox interfaces — requires a structured incoming inspection protocol that goes beyond standard electrical continuity checks.

DriveKNMS applies the following test sequence to all IRB 6600 components: Mechanical inspection covers dimensional verification of flange interfaces (ISO 9283 reference points), backlash measurement on all gearbox output stages (acceptance threshold: ≤ 0.02° at rated load), and surface integrity assessment of bearing races and seal seats. Electrical verification covers motor winding resistance balance (phase-to-phase tolerance: ±2%), insulation resistance (≥ 100 MΩ at 500 V DC), and resolver/encoder signal integrity under simulated load. Controller module testing covers DSQC board functional verification using ABB RobotStudio simulation environment, I/O channel scan (all 16 DI / 16 DO channels exercised at rated voltage), and fieldbus node address confirmation. Final documentation includes a test report with serial number, inspection date, technician ID, and pass/fail criteria for each parameter — supplied with every shipment.
