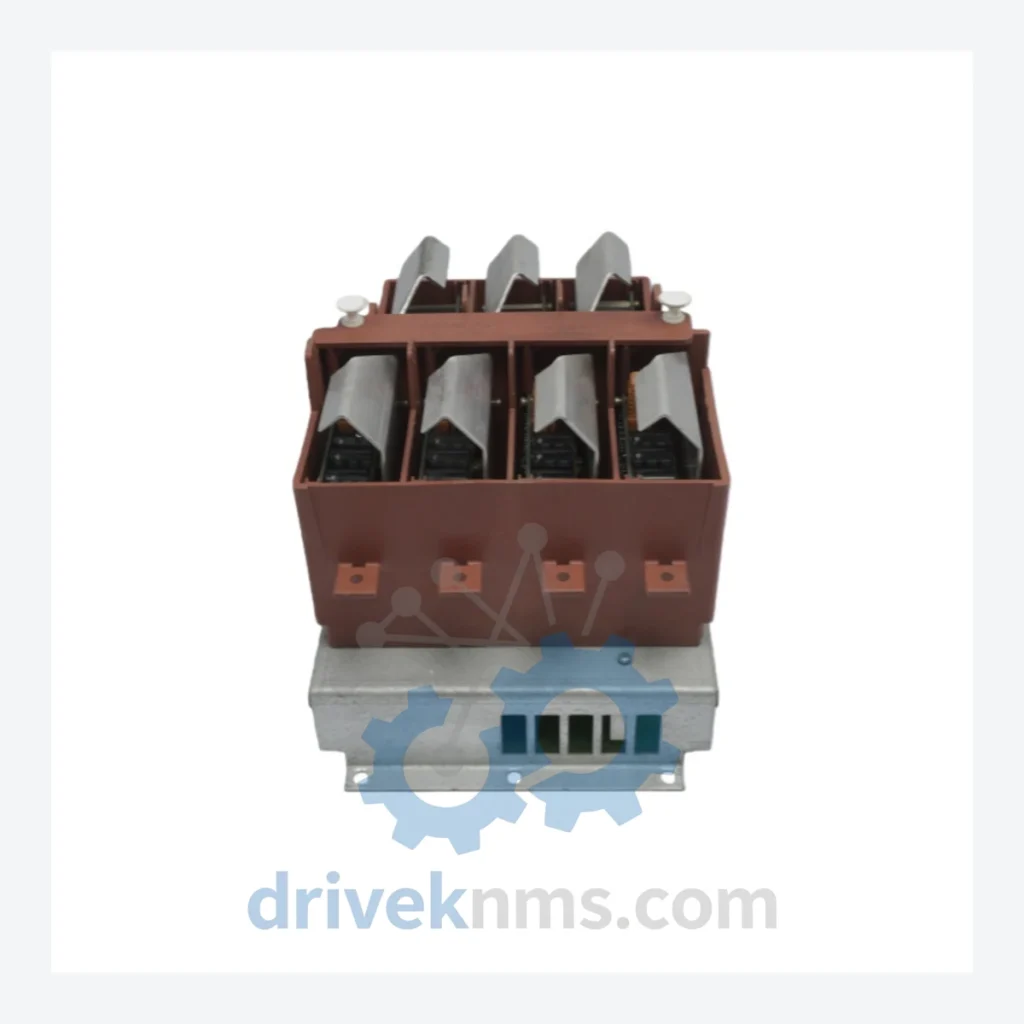

ABB KUC711AE01 Gate Power Supply Modules

Technical Dossier

Product Details And Specifications

ABB KUC711AE01 Series: Comprehensive Module Range and Technical Overview

The ABB KUC711AE01 is a Gate Power Supply Unit designed for use within ABB's drive and excitation control platforms, including the UNITROL and ACS/DCS series drive systems. This module is deployed in high-criticality industrial environments including petrochemical refineries, nuclear power auxiliary systems, offshore platforms, and large-scale steel and aluminum smelting facilities. Its primary function is to supply regulated gate drive power to IGBT or GTO thyristor firing circuits, ensuring precise switching control under continuous heavy-load conditions.

Part numbers 3BHB004661R0001 and 3BHB004791R0001 are the registered ABB catalog identifiers for this unit, with KUC711AE01 serving as the functional board designation. These identifiers are used interchangeably across ABB service documentation, spare parts databases, and OEM procurement channels.

The Evolution of KUC711AE01 Architecture

The KUC711AE01 belongs to ABB's second-generation gate driver power supply lineage, succeeding earlier discrete-component designs used in the ACS600 and DCS500 platforms. The board architecture integrates isolated DC/DC conversion stages with onboard diagnostics for gate voltage monitoring, fault signaling, and thermal protection. Compatibility spans ABB drive cabinets using the RDCU, RINT, and RONI interface boards, as well as UNITROL 5000 and UNITROL 6000 excitation controllers.

As ABB has progressively migrated its drive portfolio toward the ACS880 and DCS880 platforms, the KUC711AE01 has entered a mature/end-of-active-production lifecycle. Field-installed units in legacy ACS800, ACS600, and DCS600 systems continue to require this module for maintenance and emergency replacement. ABB no longer lists this part as a standard catalog item in all regions, making third-party MRO sourcing the primary procurement channel for most end users.

KUC711AE01 Full Catalog & Functionalities (SKU List)

The following SKUs represent the verified range of ABB gate driver, power supply, and associated control modules compatible with or directly related to the KUC711AE01 platform. Each entry reflects a distinct functional role within the drive or excitation control cabinet:

3BHB004661R0001: KUC711AE01 gate power supply unit, primary catalog reference, ACS/DCS drive systems
3BHB004791R0001: KUC711AE01 alternate assembly reference, functionally equivalent gate PSU variant
KUC711AE01: Board-level designation for ABB gate power supply, IGBT firing circuit supply
3BHB013088R0001 (KUC755AE01): Gate unit power supply, ACS800 high-power cabinet variant
3BHB016138R0001 (KUC710AE01): Gate driver power supply, predecessor series, DCS600 compatibility
3BHB004662R0001 (KUC712AE01): Dual-channel gate power supply, parallel inverter configurations
3BHB013087R0001 (KUC754AE01): Gate PSU with extended voltage range, offshore/marine variant
3BHB016139R0001 (KUC720AE01): Gate power supply, UNITROL 5000 excitation controller interface
3BHB024932R0001 (KUC730AE01): Gate driver supply, UNITROL 6000 series, enhanced diagnostics
3BHB004663R0001 (KUC713AE01): Gate PSU, three-level NPC inverter topology support
3BHB013089R0001 (KUC756AE01): Redundant gate power supply, critical process applications
3BHB016140R0001 (KUC721AE01): Gate supply module, ACS1000 medium-voltage drive platform
3BHB024933R0001 (KUC731AE01): Gate PSU, ACS2000 MV drive, isolated output stage
3BHB004664R0001 (KUC714AE01): Gate power supply, DCS800 DC drive retrofit applications
3BHB013090R0001 (KUC757AE01): Gate driver PSU, high-frequency switching, ACS800-37 wind converter
3BHB024934R0001 (KUC732AE01): Gate supply, ACS6000 high-power MV drive, water-cooled cabinet
3BHB016141R0001 (KUC722AE01): Gate PSU, IGCT-based drive systems, ABB PCS6000 platform

Sourcing Hard-to-Find & Obsolete KUC711AE01 Parts

DriveKNMS maintains a dedicated inventory of ABB gate power supply modules including the KUC711AE01 and its functional equivalents. As ABB has discontinued active production of this module in standard channels, procurement through authorized MRO distributors and specialist spare parts suppliers is the standard industry practice for facilities operating legacy ACS600, ACS800, and DCS600 drive systems.

DriveKNMS sources KUC711AE01 units from decommissioned drive cabinets, OEM overstock, and verified refurbishment pipelines. All units are cataloged by part number, revision level, and manufacturing date code. For facilities requiring long-term maintenance agreements (LTMAs) or multi-year spare parts reservations for critical process lines, DriveKNMS offers consignment stock arrangements and priority allocation programs. Inquiries for bulk quantities, emergency same-day dispatch, or cross-reference verification (e.g., confirming 3BHB004661R0001 vs. 3BHB004791R0001 interchangeability) are handled directly by the technical sales team.

Quality Control for the KUC711AE01 Range

Each KUC711AE01 unit processed by DriveKNMS undergoes a structured inspection and functional verification protocol specific to gate driver power supply boards. The procedure includes: incoming visual inspection for PCB damage, capacitor bulge, and solder joint integrity; isolated DC/DC output voltage measurement across all gate supply rails (typically ±15V and +24V); gate signal propagation testing using a drive-compatible pulse generator; insulation resistance testing between primary and secondary circuits; and thermal cycling to verify component stability under operating temperature range (typically -10°C to +55°C per ABB specification).

Backplane connector pins are inspected for fretting corrosion, a common failure mode in modules removed from high-vibration environments. Firmware or EEPROM configuration states are not applicable to this hardware-only PSU board. Units that pass all test stages are labeled with a DriveKNMS QC pass tag, serialized, and stored in ESD-safe packaging with desiccant.
