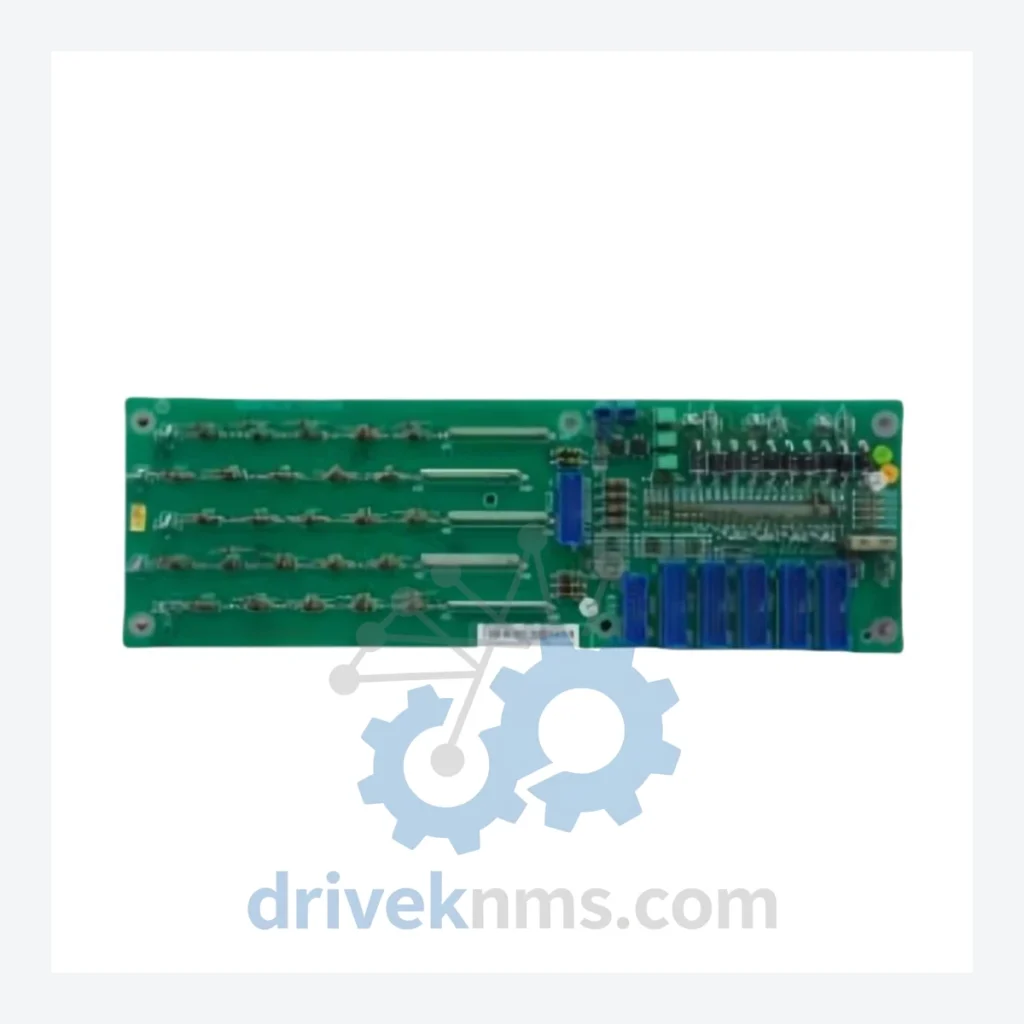

ABB LD LPTR-01 Pulse Transformer – Obsolete LD Series Spare Part

When an ABB LD LPTR-01 pulse transformer fails in a legacy drive system, the consequences extend far beyond a single component. This module sits at the heart of gate firing circuits in ABB's LD-series DC drives and converter units. Its failure disables the entire drive, halting production lines that may have operated continuously for 15 to 25 years. Replacing the surrounding system — drives, cabinets, cabling, PLC integration, and recommissioning — routinely costs manufacturers between USD 200,000 and USD 1,500,000, depending on system complexity and production downtime. A verified spare LD LPTR-01 on hand eliminates that risk entirely.

DriveKNMS maintains sourced inventory of discontinued ABB components specifically for facilities that cannot afford unplanned capital expenditure on system upgrades. The LD LPTR-01 is confirmed discontinued by ABB. New old stock and professionally refurbished units are available while supplies last.

Technical Specifications

Note: Electrical parameters such as turns ratio, inductance, and insulation voltage are board-specific. DriveKNMS technical staff will confirm compatibility with your exact board revision upon inquiry. No parameters are published here that cannot be independently verified.

Solving the Discontinued Hardware Crisis

ABB's LD-series DC drive platforms were deployed extensively across steel mills, paper mills, mining hoists, and heavy process industries from the 1980s through the early 2000s. Many of these installations remain in active production service today — not because operators are unaware of their age, but because the cost and risk of replacing a functioning, tuned drive system with modern alternatives is prohibitive.

The LD LPTR-01 pulse transformer is a board-level component responsible for isolating and transmitting gate trigger pulses to thyristor (SCR) stacks. Without it, the converter cannot fire, and the drive produces no output. Because this component is embedded within the firing board assembly, there is no field workaround — the part must be replaced like-for-like.

ABB ceased production of LD-series components years ago. Authorized service channels no longer carry this part number. The only viable procurement path is the secondary market, where verified inventory is finite and diminishing. Facilities that have not yet secured a spare unit are operating with a single point of failure that carries no recovery path through standard channels.

How to extend your ABB LD-series drive asset life by 5 to 10 years — without a capital project:

• Identify your critical single-point-of-failure components. The LD LPTR-01 is one of them. Audit your firing boards and identify every component that is both discontinued and non-substitutable. Prioritize procurement accordingly.
• Maintain a minimum of two spare units per drive. One spare covers an immediate failure. A second covers the repair cycle time for the first. For drives running critical production assets, this is not overcautious — it is standard asset protection practice.
• Document your board revision and firmware version now. Compatibility between spare components and installed boards depends on revision matching. This documentation is frequently lost when original commissioning engineers leave the facility. Capture it while the system is running.
• Negotiate long-term supply agreements with secondary market specialists. Spot-buying obsolete parts during a breakdown is the most expensive procurement strategy available. Planned procurement at non-emergency pricing, with verified stock held in reserve, reduces total cost of ownership substantially.
• Schedule proactive board-level inspection every 3 to 5 years. Electrolytic capacitor degradation, PCB trace corrosion, and connector oxidation are the primary failure modes in legacy drive electronics. Catching these during planned maintenance windows avoids unplanned outages.

A single avoided production stoppage on a high-throughput line typically recovers the cost of a multi-year spare parts program many times over. The LD LPTR-01 is not a consumable — it is insurance against a capital event.

Condition & Reliability Assurance

DriveKNMS applies a 5-step quality assurance process to all refurbished obsolete components before dispatch:

1. Visual and mechanical inspection: Full examination of PCB surface, solder joints, component seating, and connector pin condition. Units with physical damage, burn marks, or corrosion beyond recoverable limits are rejected at this stage.
2. Electrolytic capacitor assessment: Capacitors are among the first components to degrade in aged electronics. Each unit is assessed for capacitance drift, ESR (equivalent series resistance), and leakage. Out-of-tolerance capacitors are replaced with rated equivalents before the unit proceeds.
3. Firmware and configuration verification: Where applicable, firmware versions are confirmed against known compatible revisions for the target drive platform. Units with unknown or mismatched firmware states are flagged and disclosed to the buyer prior to shipment.
4. Pin and connector integrity check: All connector pins are inspected for oxidation, deformation, and contact resistance. Corroded contacts are treated or replaced. This step directly addresses the most common cause of intermittent faults in legacy drive components.
5. Functional bench test: Where test fixtures are available for the specific component type, units undergo powered functional verification. Test results are documented and available upon request.

New old stock (NOS) units undergo steps 1, 3, and 4 as a minimum. Full test reports are available for units where bench testing was performed.

Key Features for System Maintenance

• Drop-in replacement: The LD LPTR-01 is a direct form-fit-function replacement for the original installed component. No board modifications, no firmware changes, no re-engineering.
• No reprogramming required: Unlike modern drive retrofit solutions, installing a like-for-like spare requires no PLC parameter migration, no control loop retuning, and no recommissioning by a drive specialist. Maintenance staff familiar with the existing system can execute the replacement.
• Avoids engineering project costs: A system upgrade triggered by component unavailability typically requires engineering design, procurement lead times of 6 to 18 months for new drive systems, installation downtime, and reintegration with existing process control infrastructure. A verified spare eliminates all of these costs for the duration of the asset's remaining service life.
• Supports phased modernization planning: Securing critical spares buys facilities the time to plan system upgrades on their own schedule — during planned shutdowns, at favorable capital budget cycles — rather than under emergency conditions.

FAQ

What warranty applies to obsolete parts?
DriveKNMS provides a 90-day warranty against defects in materials and workmanship on all refurbished units. New old stock units carry a 30-day warranty. Warranty terms are confirmed in writing at the time of order.

How do I know the unit is genuine and not counterfeit?
All units sourced by DriveKNMS are inspected for authenticity markers including manufacturer markings, date codes, and construction characteristics consistent with genuine ABB production. We do not knowingly source from markets with documented counterfeit activity. Provenance documentation is provided where available.

Should I buy more than one unit?
For any drive controlling a critical production asset, holding a minimum of two spare units is advisable. The LD LPTR-01 is confirmed discontinued. Once current secondary market inventory is exhausted, no further supply can be guaranteed at any price. Procurement now, at planned cost, is materially less expensive than emergency procurement — if stock can be located at all — during a production stoppage.

Can you hold stock for future delivery?
Yes. DriveKNMS can arrange reserved inventory agreements for customers requiring guaranteed future access to specific part numbers. Contact us to discuss terms.

What information do I need to provide when ordering?
Please provide your drive model number, board part number, and board revision if visible. This allows our technical team to confirm compatibility before shipment and reduces the risk of a mismatch.
