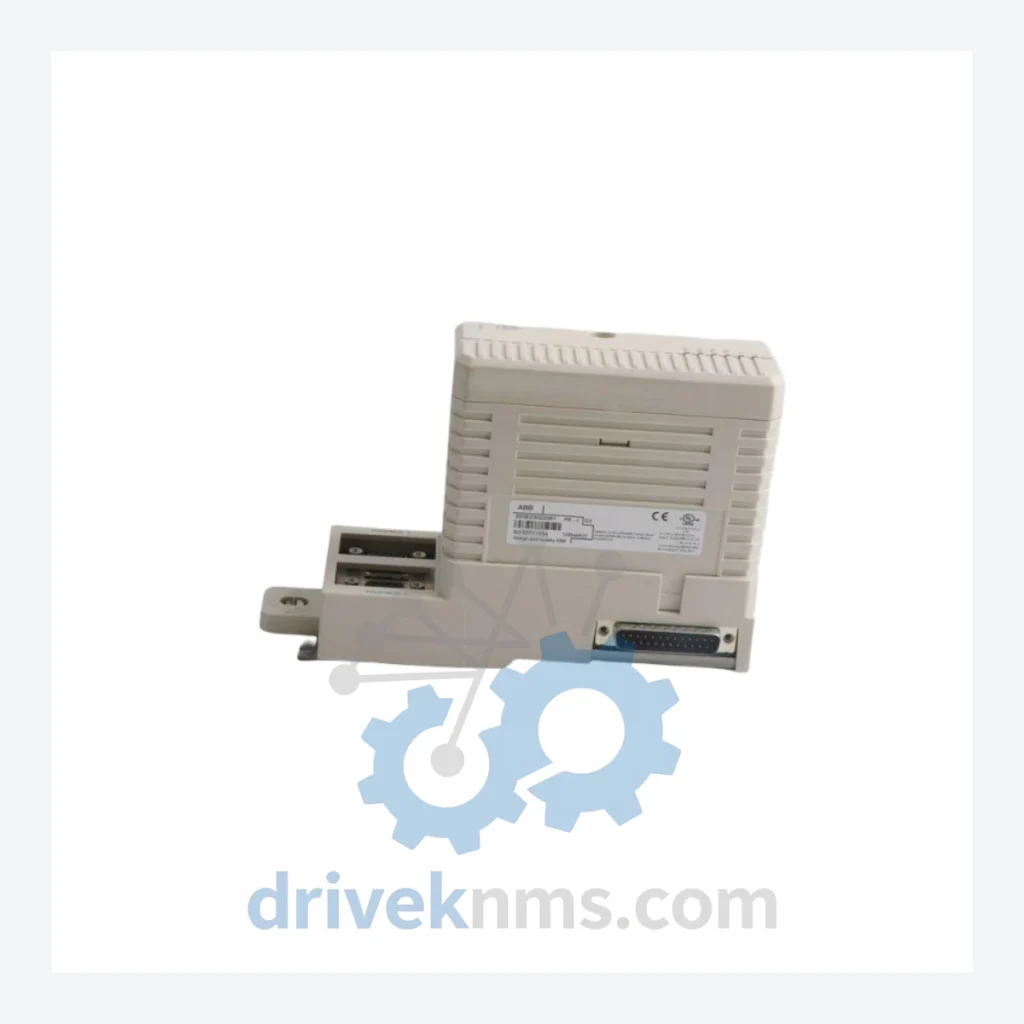

ABB LD800HSE Series Modules — LD800HSE EX Foundation Fieldbus Linking Device

Technical Dossier

Product Details And Specifications

ABB LD800HSE Series: Comprehensive Module Range and Technical Overview

The ABB LD800HSE series represents ABB's dedicated product line for Foundation Fieldbus High Speed Ethernet (FF-HSE) linking devices, designed to bridge H1 fieldbus segments with HSE backbone networks in process automation environments. These devices are deployed extensively in heavy industrial sectors including petrochemical refineries, offshore oil & gas platforms, nuclear power generation facilities, pulp and paper mills, and large-scale chemical processing plants. The LD800HSE family integrates directly with ABB's System 800xA Distributed Control System (DCS) architecture, providing deterministic communication between field instruments and the control layer. Their role as protocol gateways makes them critical single points of integration; a failed linking device can isolate entire H1 segments, making spare parts availability a primary operational concern for plant maintenance teams.

The Evolution of LD800HSE Architecture

The LD800HSE product line was developed in alignment with the Fieldbus Foundation FF-HSE specification, which standardized the use of 100 Mbit/s Ethernet as the backbone for linking multiple H1 segments (31.25 kbit/s) into a unified process network. Early revisions of the LD800HSE supported a limited number of H1 ports (typically 2–4 per device) and required manual configuration via proprietary ABB tools. Subsequent hardware revisions introduced expanded port counts (up to 8 H1 ports per unit), improved redundancy options, and tighter integration with the System 800xA engineering environment through OPC and FOUNDATION Fieldbus Device Description (DD) libraries.

The EX-rated variant — designated LD800HSE EX — was developed for installation in hazardous area classifications (ATEX/IECEx Zone 1/Zone 2), incorporating intrinsically safe barriers and explosion-proof enclosure ratings. This variant is mechanically and electrically distinct from the standard LD800HSE and is not interchangeable without engineering review. As the broader FF-HSE standard has matured and some plants have migrated toward PROFINET or EtherNet/IP architectures, the LD800HSE series has entered a maintenance and lifecycle support phase. ABB continues to supply replacement units and spare modules, but new greenfield deployments increasingly use successor platforms. For existing installations, the installed base remains large, and sourcing certified replacement units is the primary procurement challenge.

LD800HSE Full Catalog & Functionalities (SKU List)

The following SKUs represent the documented LD800HSE series product range. Each unit is classified by its primary function within the FF-HSE network architecture:

Foundation Fieldbus Linking Devices — Standard (Safe Area)

• LD800HSE: Base HSE linking device, 4× H1 ports, DIN rail mount, 24 VDC supply.
• LD800HSE-2: 2-port H1 variant for smaller segment configurations, reduced footprint.
• LD800HSE-4: 4-port H1 linking device, standard rack-mount form factor, System 800xA native.
• LD800HSE-8: 8-port H1 high-density linking device for large segment architectures.
• LD800HSE R: Redundant HSE linking device with dual Ethernet ports for ring/redundant HSE topologies.
• LD800HSE-4R: 4-port H1 redundant variant with dual HSE uplinks and automatic failover.
• LD800HSE-8R: 8-port H1 fully redundant linking device, highest-density safe-area model.

Foundation Fieldbus Linking Devices — Hazardous Area (EX-Rated)

• LD800HSE EX: ATEX/IECEx-rated HSE linking device for Zone 1/Zone 2 hazardous areas, intrinsically safe H1 outputs.
• LD800HSE EX-2: 2-port EX variant for Zone 1 installations with limited segment count.
• LD800HSE EX-4: 4-port EX linking device, standard hazardous area configuration.
• LD800HSE EX-4R: 4-port redundant EX variant with dual HSE uplinks, Zone 1 rated.
• LD800HSE EX-8: 8-port EX high-density linking device for large hazardous area installations.

Associated Power Supply & Termination Modules

• LD800HSE PS: Dedicated 24 VDC power supply module for LD800HSE rack assemblies.
• LD800HSE TB: H1 segment termination board, passive terminator for fieldbus segment integrity.
• LD800HSE CBL: Shielded H1 segment cable assembly, pre-terminated, for LD800HSE port connections.
• LD800HSE CFG: Configuration and diagnostic software license for LD800HSE device management under System 800xA.

Sourcing Hard-to-Find & Obsolete LD800HSE Parts

DriveKNMS maintains a dedicated inventory program for ABB LD800HSE series components, with particular focus on EX-rated variants and redundant configurations that are no longer available through standard ABB distribution channels. For plants operating System 800xA with legacy FF-HSE infrastructure, the inability to source a replacement LD800HSE unit can result in extended unplanned downtime affecting entire H1 fieldbus segments — potentially dozens of field instruments per segment.

DriveKNMS sources LD800HSE units through certified secondary market channels, performs incoming inspection against ABB hardware revision documentation, and maintains traceability records for each unit. For end-of-life models where ABB has issued a product discontinuation notice, DriveKNMS provides lifecycle extension support including cross-reference to compatible successor models and engineering consultation on migration paths. Customers operating in regulated industries (nuclear, pharmaceutical) are provided with full documentation packages to support their internal qualification processes.

Quality Control for the LD800HSE Range

The LD800HSE series presents specific quality control requirements due to its role as a network gateway device. Each unit processed by DriveKNMS undergoes the following verification steps:

• Physical inspection: Verification of hardware revision label, port count, EX certification markings (where applicable), and absence of physical damage to H1 port connectors and HSE RJ45 interfaces.
• Power-on functional test: Unit is powered at rated 24 VDC and boot sequence is verified. LED status indicators are checked against ABB diagnostic documentation.
• HSE network enumeration: Unit is connected to a test HSE network and verified to enumerate correctly as an HSE linking device. IP address assignment and device identity are confirmed.
• H1 segment simulation: Each H1 port is tested with a simulated H1 segment load to verify port-level functionality and termination integrity.
• Firmware revision check: Installed firmware version is documented and compared against ABB's published revision history. Units with outdated firmware are flagged for customer notification.
• EX certification verification: For LD800HSE EX variants, ATEX/IECEx certification plate data is cross-referenced against the original certificate of conformity.
