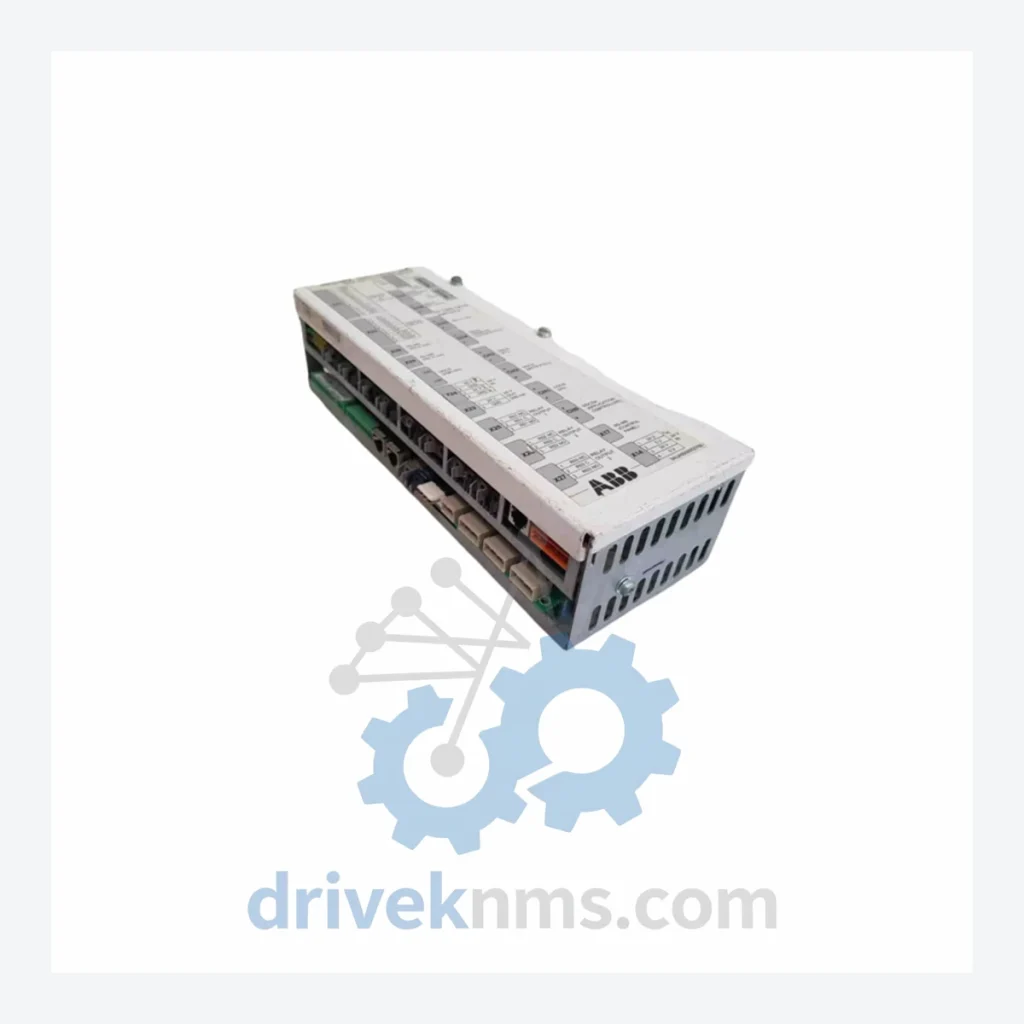

ABB NDCU-33CX 3AUA0000052751 Communication Board – Obsolete NDCU Series Spare Part

Technical Dossier

Product Details And Specifications

ABB NDCU-33CX 3AUA0000052751 Communication Board – Obsolete NDCU Series Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters not listed here are drive-configuration dependent. DriveKNMS does not publish unverified specifications. Contact our technical team for application-specific confirmation.

Solving the Discontinued Hardware Crisis

The ABB ACS800 platform was deployed extensively across pulp and paper mills, water treatment facilities, mining operations, and heavy manufacturing lines throughout the 1990s and 2000s. The NDCU-33CX served as the primary control and communication interface in these drives, handling DDCS fiber-optic communication, I/O management, and drive parameter storage. ABB has since migrated its drive portfolio to the ACS880 platform, and the NDCU-33CX is no longer produced.

For facilities still operating ACS800 drives — which remain mechanically sound and process-proven — the discontinuation of this board creates a specific and serious risk. The drive hardware itself may have decades of service life remaining. The control board is the single point of failure that can render the entire unit non-functional. Replacing the drive system to address a board-level failure is an engineering decision that cannot be justified on technical grounds alone; it is a cost decision driven by parts unavailability.

Facilities that have secured NDCU-33CX spares have effectively extended the viable service life of their ACS800 installations by 5 to 10 years. The cost of one spare board is a fraction of the capital expenditure required for a drive replacement program. For plant managers operating under capital budget constraints, this is the most defensible maintenance strategy available.

Condition & Reliability Assurance

Every NDCU-33CX unit processed by DriveKNMS passes a structured 5-stage inspection protocol before it is offered for sale. This protocol was developed specifically for legacy industrial electronics where age-related degradation follows predictable failure patterns.

• Stage 1 – Electrolytic Capacitor Assessment: Capacitors are inspected for bulging, electrolyte leakage, and ESR deviation. Aged capacitors are the leading cause of latent failure in boards of this generation.
• Stage 2 – Firmware Version Verification: The firmware revision is confirmed and documented. Compatibility with the target drive configuration is verified prior to dispatch.
• Stage 3 – Pin and Connector Inspection: All edge connectors and pin headers are examined under magnification for oxidation, corrosion, and mechanical deformation. Affected contacts are treated or flagged for disclosure.
• Stage 4 – PCB Surface Inspection: The board surface is inspected for cracked solder joints, trace damage, and contamination consistent with long-term storage or prior installation in harsh environments.
• Stage 5 – Functional Verification: Where test equipment permits, boards are powered and basic communication functions are confirmed before packaging.

Condition grade and any findings from the above process are disclosed in writing at the time of quotation.

Key Features for System Maintenance

• Drop-in replacement: The NDCU-33CX installs directly into the existing ACS800 drive slot without mechanical modification.
• No reprogramming required: Drive parameters are stored in the drive's memory unit (RMIO/RDCO), not on the NDCU board itself. Board replacement does not require parameter re-entry in standard configurations.
• No engineering redesign: Substituting this board avoids the control system revalidation, safety re-certification, and process retuning that accompany a full drive replacement.
• Immediate operational restoration: Facilities with a spare NDCU-33CX on the shelf can restore drive operation within hours of a board failure, rather than weeks or months waiting for system replacement procurement.

How do I know the unit is genuine and not counterfeit?
All units are sourced through documented industrial channels. Physical markings, board revision codes, and component dates are cross-referenced against known genuine production references. Any unit that cannot be positively verified is not offered for sale.
