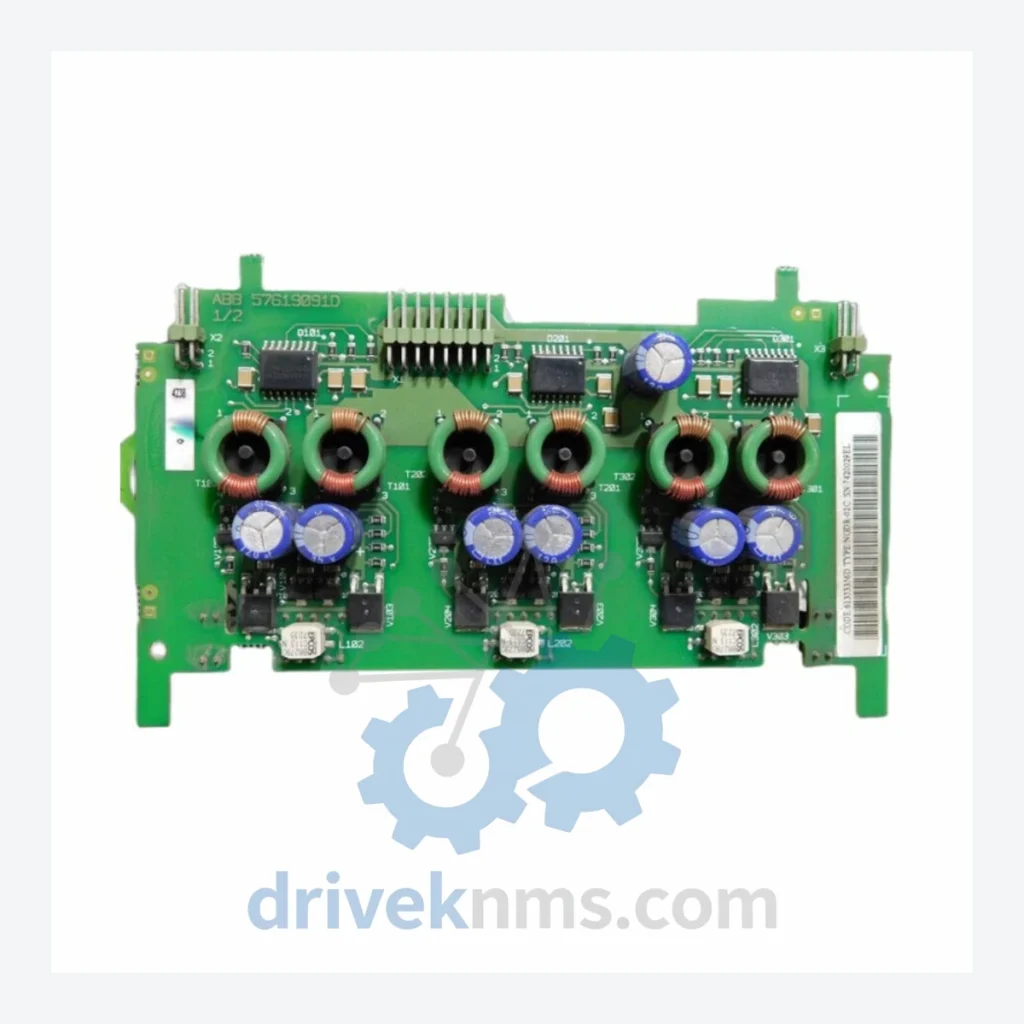

ABB NGDR Series Modules

Technical Dossier

Product Details And Specifications

ABB NGDR Series: Comprehensive Module Range and Technical Overview

The ABB NGDR series represents a critical family of gate driver and interface circuit boards deployed across global heavy industries, including petrochemical refineries, nuclear power generation facilities, offshore oil platforms, and large-scale chemical processing plants. These modules serve as the interface layer between ABB's drive control systems and IGBT/thyristor power stacks, making them indispensable components in ABB ACS and DCS drive architectures. The NGDR series is embedded in thousands of installed base units worldwide, with replacement demand driven by aging infrastructure and the extended operational lifecycles common in regulated industries.

The Evolution of NGDR Architecture

The NGDR series was developed as part of ABB's modular drive control philosophy, designed to standardize gate signal conditioning and fault isolation across multiple drive platforms. Early NGDR variants were engineered for compatibility with ABB's ACS600 and ACS800 medium-voltage drive families, providing optically isolated gate pulse transmission to protect control electronics from high-voltage transients. As ABB transitioned drive platforms toward the ACS880 and ACS580 generations, the NGDR series was refined to support higher switching frequencies, improved EMI shielding, and tighter fault detection thresholds. Compatibility between NGDR generations is not guaranteed; backplane connector pinouts and firmware handshake protocols differ between early and late revisions. Engineers maintaining legacy ACS600 installations must verify NGDR revision codes before substitution. The series has entered a mature-to-declining lifecycle phase, meaning new production runs are limited and long-term maintenance support is increasingly dependent on aftermarket spare parts suppliers.

NGDR Full Catalog & Functionalities (SKU List)

The following SKUs represent verified models within the ABB NGDR gate driver and interface board series, categorized by primary function:

Gate Driver & Interface Boards

NGDR-02C: Interface gate circuit driver board for ABB drive IGBT stack control
NGDR-01C: First-generation gate driver board, ACS600 platform compatible
NGDR-03C: Enhanced gate driver with improved fault latch circuitry
NGDR-04C: High-frequency gate driver for ACS800 IGBT modules
NGDR-05C: Dual-channel gate driver board for parallel IGBT configurations
NGDR-02D: Revised NGDR-02C with updated optocoupler specification
NGDR-01D: Updated first-generation board with RoHS-compliant components
NGDR-03D: Third-generation driver with extended temperature range rating

Fiber Optic Interface Variants

NGDR-02CF: Fiber optic input variant of NGDR-02C for noise-immune signal transmission
NGDR-04CF: Fiber optic high-frequency gate driver for ACS800 series
NGDR-01CF: Fiber optic first-generation interface board

Power Supply & Auxiliary Boards

NGDR-02CP: Gate driver board with integrated isolated power supply section
NGDR-03CP: Enhanced driver with onboard DC/DC converter for gate bias supply
NGDR-04CP: High-frequency driver with auxiliary power conditioning stage

Replacement & Cross-Reference Models

NGDR-02C/R: Factory-refurbished NGDR-02C with updated component revision
NGDR-05CF: Fiber optic dual-channel driver for parallel stack configurations

Sourcing Hard-to-Find & Obsolete NGDR Parts

As the NGDR series has entered its mature and declining production phase, OEM availability through standard ABB distribution channels has become increasingly constrained. DriveKNMS maintains a dedicated inventory of NGDR series boards sourced through authorized aftermarket channels, decommissioned equipment recovery, and verified surplus stock. For facilities operating legacy ACS600 or ACS800 drives with no planned upgrade path, DriveKNMS provides lifecycle extension support including cross-reference verification, revision compatibility assessment, and functional testing prior to shipment. All NGDR units in DriveKNMS inventory are catalogued by revision code and manufacturing date to ensure accurate substitution. Emergency same-day quotation is available for critical plant maintenance scenarios.

Quality Control for the NGDR Range

ABB NGDR gate driver boards present specific quality control challenges due to their role in high-voltage switching circuits. DriveKNMS applies a dedicated test protocol for all NGDR series units that includes: optocoupler isolation integrity verification using high-potential (hipot) testing; gate pulse output waveform analysis under simulated load conditions; DC/DC converter output voltage and ripple measurement; fault latch and reset circuit functional verification; visual inspection of solder joints, conformal coating integrity, and component condition; and backplane connector pin continuity and contact resistance measurement. Units that fail any test parameter are quarantined and not offered for sale. Test records are retained and available upon request for regulated industry procurement requirements.
