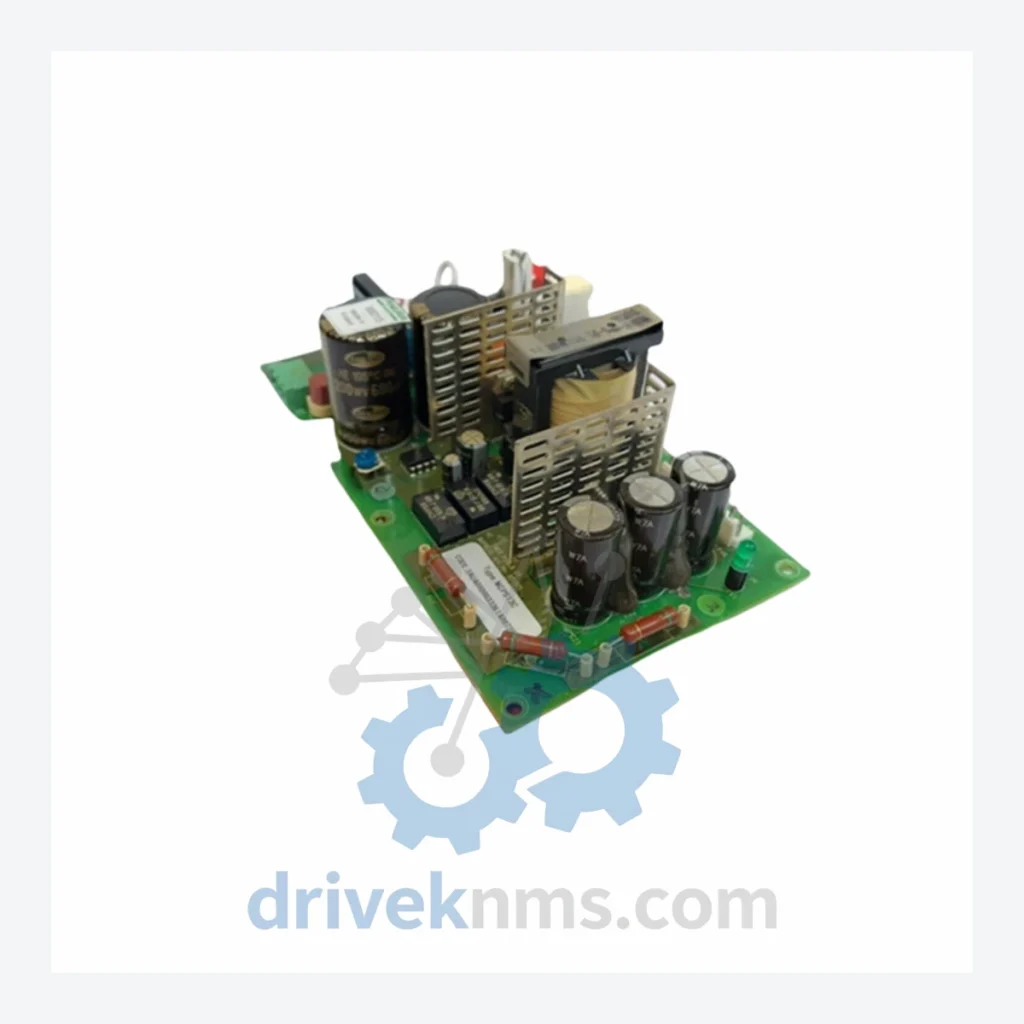

ABB NGPS13C Circuit Board – Obsolete AC500 Spare Part

Technical Dossier

Product Details And Specifications

ABB NGPS13C Circuit Board – Obsolete AC500 Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Specific electrical parameters (voltage ratings, current draw, bus interface specs) are verified during our QA process and disclosed upon request. We do not publish unverified figures.

Solving the Discontinued Hardware Crisis

Sourcing this board through standard distribution channels is no longer possible. The secondary market carries significant risk of counterfeit or end-of-life units with degraded capacitors and corroded contacts. DriveKNMS specializes in verified sourcing and pre-shipment qualification of exactly these components.

Extending Asset Life by 5–10 Years: A Maintenance Strategy for Plant Management

The decision to retire a legacy automation system is rarely driven by technical necessity alone — it is driven by the inability to source critical spare parts. When a single obsolete board becomes unavailable, the entire platform becomes a liability. The following approach has allowed facilities to extend the operational life of legacy ABB and similar PLC systems by a decade or more without major capital expenditure:

1. Identify single-point-of-failure components. Boards like the NGPS13C, which sit in the power or communication backbone of the rack, carry disproportionate risk. Map these components first.

3. Source from qualified secondary market suppliers, not open marketplaces. Unverified boards from auction platforms carry real risk of latent failure. A board that passes visual inspection but has aged electrolytic capacitors will fail within months of installation — often at the worst possible moment.

4. Document firmware versions and hardware revisions. Compatibility between hardware revisions of the NGPS13C and the host rack backplane must be confirmed before installation. DriveKNMS provides revision documentation with each unit.

Condition & Reliability Assurance

Every NGPS13C unit shipped by DriveKNMS passes a five-stage qualification process before it leaves our facility:

Stage 1 – Visual and Mechanical Inspection: Full board surface examination for physical damage, burn marks, cracked solder joints, and pin corrosion. Any unit with visible contact oxidation on edge connectors is rejected at this stage.

Stage 2 – Electrolytic Capacitor Assessment: Capacitor aging is the primary failure mode in boards of this generation. We use ESR measurement to identify capacitors that are within specification visually but have degraded internally. Units with out-of-tolerance capacitors are either recapped or rejected.

Stage 3 – Firmware Version Verification: Where applicable, firmware revision is confirmed and documented. Mismatched firmware between the NGPS13C and the host system is a known source of intermittent faults that are difficult to diagnose in the field.

Stage 4 – Functional Bench Test: The board is powered and tested under controlled conditions to confirm basic operational integrity before packaging.

Stage 5 – Anti-Static Packaging and Documentation: Units are packaged in ESD-safe materials with a condition report and revision record included in the shipment.

Key Features for System Maintenance

The NGPS13C is a direct drop-in replacement for the original board position within the ABB AC500 rack. No hardware modification to the rack is required. No PLC software changes are needed. No re-engineering of the I/O configuration is involved. Installation is a board swap, executable by a qualified maintenance technician during a planned or emergency shutdown window.

This matters because the alternative — migrating to a current-generation ABB PLC platform or a competitor system — requires software redevelopment, I/O mapping, loop tuning, and commissioning. The engineering cost alone typically exceeds the cost of maintaining the legacy system with verified spare parts for five or more additional years. For plant management facing capital budget constraints, the arithmetic is straightforward.

Frequently Asked Questions

How do I confirm the unit is genuine ABB and not a counterfeit?
Each unit is inspected against known-good reference boards. ABB part markings, PCB revision codes, and component date codes are verified. Documentation is provided with each shipment. We do not source from unverified brokers or open auction platforms.
