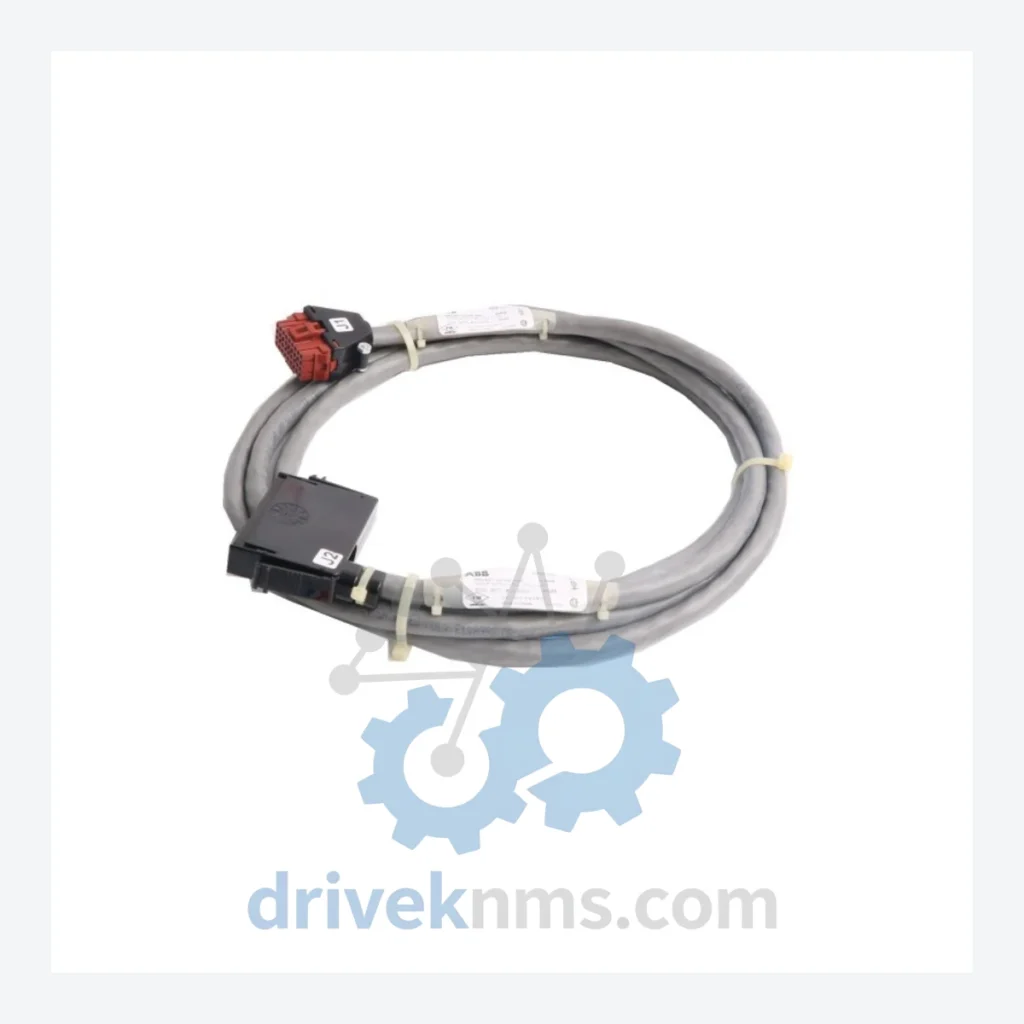

ABB NKLS01-10 Communications Cable – Obsolete MasterPiece/INSUM Spare Part

Technical Dossier

Product Details And Specifications

ABB NKLS01-10 Communications Cable – Obsolete MasterPiece/INSUM Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Solving the Discontinued Hardware Crisis

The ABB MasterPiece 200/1 and INSUM motor management systems were deployed extensively in heavy industry — pulp and paper, water treatment, mining, and marine applications — throughout the 1990s and early 2000s. Many of these installations remain operational today because the cost of full system replacement is prohibitive. A single MasterPiece-based control loop may govern dozens of motors and field instruments. Replacing the entire architecture requires not just new hardware, but new software, new engineering drawings, new operator training, and a planned production outage that most facilities cannot afford.

The NKLS01-10 cable is a critical physical link in this architecture. It carries the serial communication signal between the INSUM intelligent motor starters and the MasterPiece controller. Without it, the controller loses visibility of motor status, current draw, and fault conditions. There is no modern drop-in substitute that does not require hardware reconfiguration. Holding a verified spare of this cable is, in practical terms, the lowest-cost insurance policy available to any plant still running this platform.

Industry data consistently shows that extending the life of a functioning automation asset by 5 to 10 years — through targeted spare parts management — costs between 3% and 8% of the capital expenditure required for full system replacement. For a MasterPiece installation valued at USD 500,000 in replacement cost, that means a maintenance budget of USD 15,000 to 40,000 over a decade can defer a half-million-dollar project. A single cable like the NKLS01-10, secured before a failure event, is the difference between a 30-minute swap and a 3-week engineering crisis.

Condition & Reliability Assurance

All NKLS01-10 units supplied by DriveKNMS pass a structured 5-step inspection protocol before dispatch:

• Step 1 – Visual Inspection: Full examination of connector housings, strain relief, and cable jacket for mechanical damage, UV degradation, or rodent damage.
• Step 2 – Pin Integrity Check: Each connector pin is inspected under magnification for corrosion, bending, or oxidation that would cause intermittent contact faults.
• Step 3 – Continuity & Insulation Test: End-to-end continuity verified on all conductors; insulation resistance tested to confirm no cross-talk or short-circuit conditions.
• Step 4 – Connector Seating Test: Connectors are mated and de-mated with reference hardware to confirm correct locking engagement and extraction force.
• Step 5 – Packaging & ESD Protection: Units are repackaged in anti-static bags with desiccant and labeled with inspection date and technician ID before dispatch review.

Key Features for System Maintenance

• Drop-in Replacement: The NKLS01-10 is a direct physical replacement. No firmware changes, no parameter re-entry, no PLC reprogramming required.
• Zero Engineering Overhead: Swap time is measured in minutes, not days. Maintenance personnel familiar with the MasterPiece/INSUM platform can execute the replacement without specialist support.
• Avoids Costly System Redesign: Sourcing this cable eliminates the trigger event that forces a full migration project. One spare part, correctly stored, can protect years of planned production.
• Long-Term Storage Guidance: DriveKNMS recommends storing spare cables in a climate-controlled environment (15–25°C, <60% RH) in original anti-static packaging to preserve connector integrity for 10+ years.

Q: Can you supply other ABB MasterPiece or INSUM spare parts?
A: Yes. DriveKNMS specializes in hard-to-find ABB legacy components. Contact us with your full BOM or part number list for availability and pricing.
