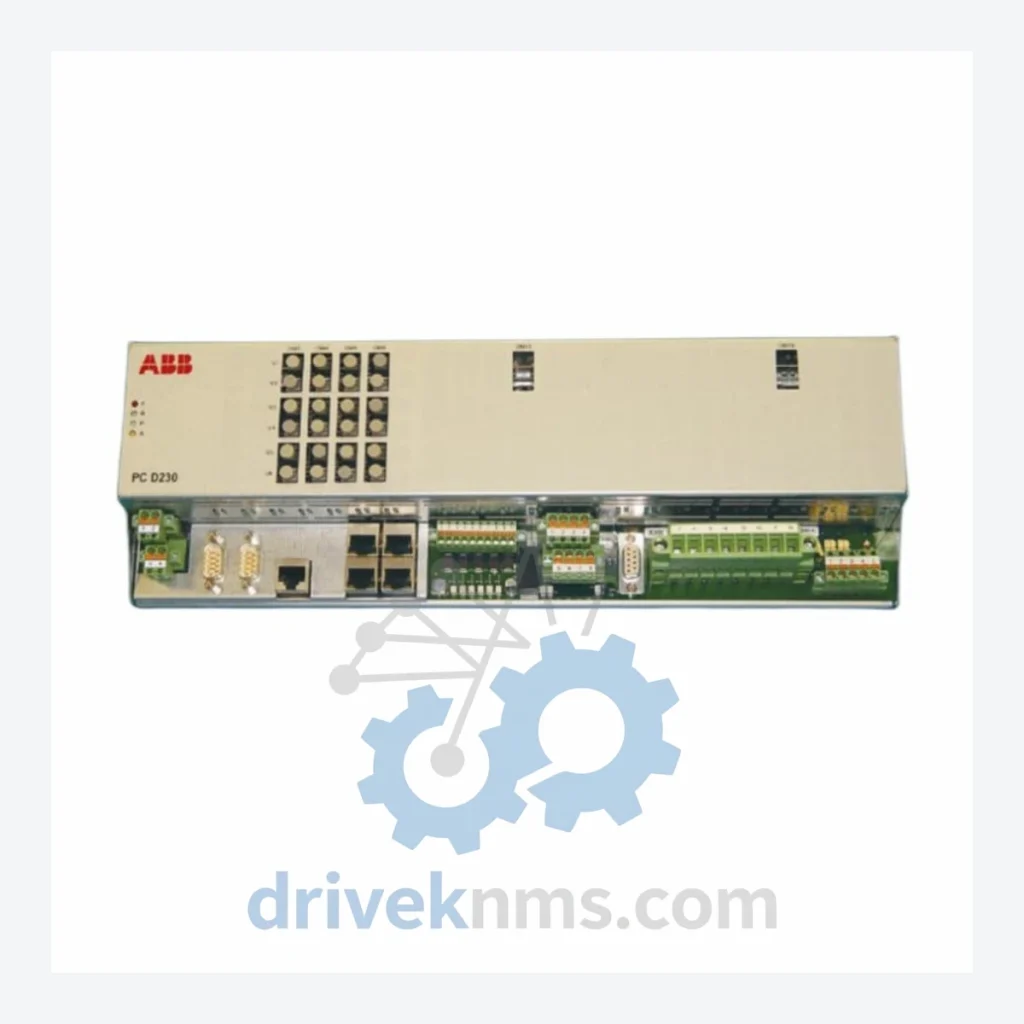

ABB 3BHE022291R0101 Communications I/O Module – Obsolete AC800PEC Spare Part

Technical Dossier

Product Details And Specifications

ABB 3BHE022291R0101 Communications I/O Module – Obsolete AC800PEC Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters such as voltage ratings and communication bus specifications are not published here to prevent misapplication. Please contact us with your system configuration for technical verification before ordering.

Solving the Discontinued Hardware Crisis

The ABB AC800PEC platform was engineered for demanding, safety-critical environments where reliability over decades — not years — is the baseline expectation. Many installations commissioned in the 2000s and early 2010s remain fully operational and are not candidates for near-term replacement. The problem is not the controller itself. The problem is that ABB's support lifecycle for this series has ended, leaving plant operators exposed to a single point of failure: the unavailability of key modules like the PC D230 A.

The communications I/O module is not a peripheral component. It handles the data exchange layer between the controller and field devices or supervisory systems. A failure here does not degrade performance — it stops the system. In a gas turbine or hydro generation context, that means unplanned outage, regulatory reporting obligations, and the immediate pressure to justify a full system replacement to management and insurers.

The economic case for maintaining a spare inventory of modules like the 3BHE022291R0101 is straightforward. A single module, sourced now at current market rates, costs a fraction of one day of lost generation capacity. Extending the operational life of an AC800PEC installation by five to ten years through strategic spare parts management — rather than committing to a full DCS migration — can defer capital expenditure of several million dollars per unit. That deferral funds other priorities: safety upgrades, efficiency projects, workforce development. The module is the lever. The savings are structural.

Condition & Reliability Assurance

Sourcing discontinued industrial electronics carries inherent risk. DriveKNMS applies a five-stage inspection protocol to every unit before it is offered for sale:

• Visual and mechanical inspection: Enclosure integrity, connector pin condition, corrosion assessment on all contact surfaces and PCB traces.
• Electrolytic capacitor evaluation: Aging electrolytic capacitors are the primary failure mode in stored industrial electronics. Each unit is assessed for capacitor condition; units with visible bulging, leakage, or measured ESR deviation are rejected.
• Firmware version verification: Where accessible, firmware revision is documented and cross-referenced against known compatible versions for the AC800PEC platform.
• Functional power-on test: Units are powered and observed for correct initialization behavior and absence of fault indicators.
• Final documentation: Each unit is logged with inspection date, technician ID, and test results. This record accompanies the shipment.

Units that do not pass all five stages are not sold. There is no grading system that allows a marginal unit to be offered at a discount. The standard is binary: the unit meets the criteria, or it does not ship.

Key Features for System Maintenance

• Drop-in replacement: The 3BHE022291R0101 is a direct hardware replacement for the same part number within the AC800PEC rack. No mechanical modification is required.
• No reprogramming required: Configuration and application logic reside in the controller, not the I/O module. Replacement does not require re-engineering of the control application.
• Avoids engineering reconstruction costs: A full AC800PEC migration involves control system engineering, FAT/SAT testing, and commissioning — typically 6 to 18 months of project time. A spare module eliminates that timeline for a single-module failure event.
• Long-term asset protection: Holding two to three units of this module in bonded storage converts a potential catastrophic failure into a scheduled maintenance event.

How do I know the unit is genuine and not counterfeit?
All units sourced by DriveKNMS are traceable to documented supply chains. We do not purchase from anonymous secondary markets. Physical markings, label formats, and PCB characteristics are verified against known-good reference units during inspection. If a unit cannot be authenticated, it is not offered for sale.
