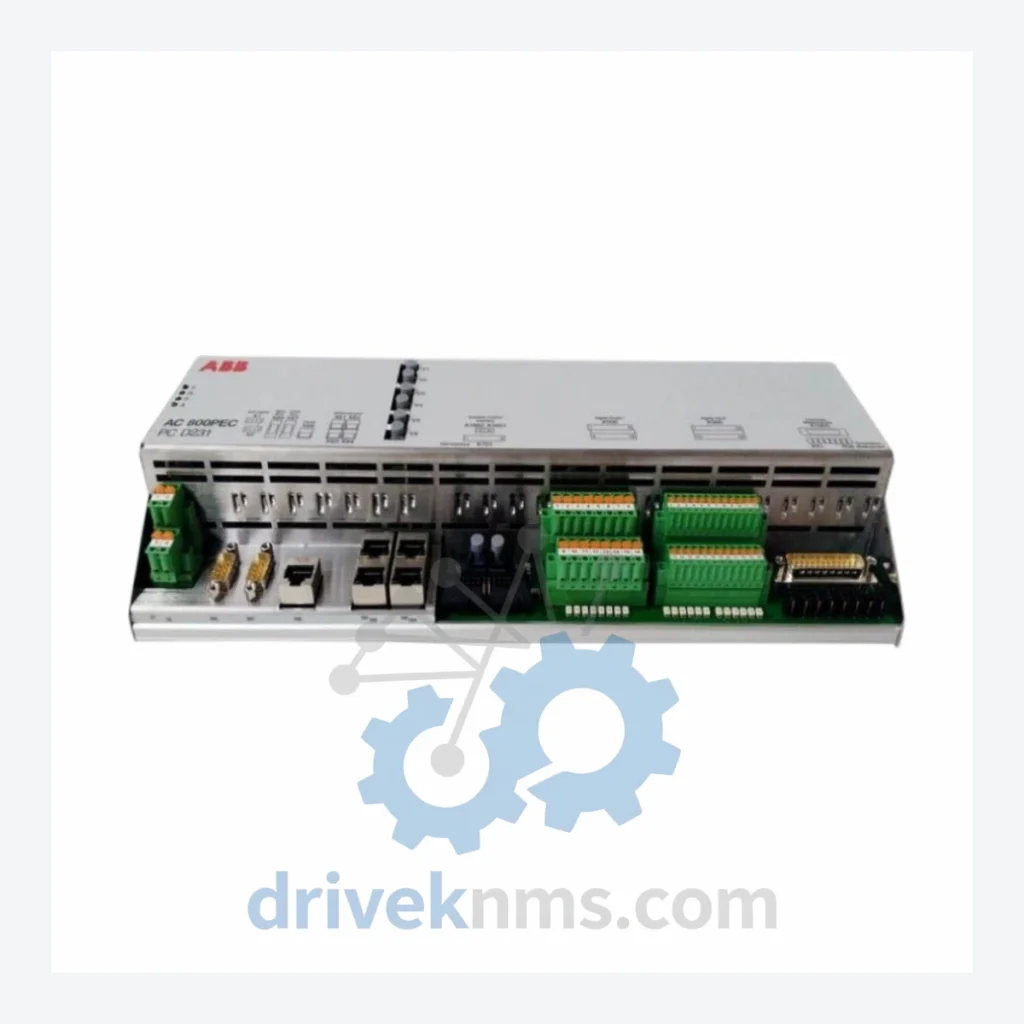

ABB PCD231B101 3BHE025541R0101 Excitation Control Module

Technical Dossier

Product Details And Specifications

ABB PCD231 Series: Comprehensive Module Range and Technical Overview

The ABB PCD231 series is a family of excitation control modules deployed within ABB's UNITROL and AC800PEC-based excitation systems. These modules are installed across heavy industrial sectors including petrochemical refineries, nuclear power stations, hydroelectric generation facilities, and large-scale chemical processing plants. The PCD231 platform serves as the digital excitation controller backbone in synchronous generator applications, providing closed-loop AVR (Automatic Voltage Regulation), PSS (Power System Stabilizer) functions, and field current regulation. Its modular architecture allows integration into both new installations and retrofit projects replacing legacy analog excitation systems. Global installed base spans ABB's UNITROL 5000, UNITROL 6000, and UNITROL 6080 product lines.

The Evolution of PCD231 Architecture

The PCD231 module line traces its origins to ABB's transition from analog thyristor-based excitation controllers to fully digital, microprocessor-driven platforms in the mid-1990s. Early-generation excitation boards relied on discrete analog circuitry with limited diagnostic capability. The PCD231 generation introduced DSP-based control loops, enabling sub-millisecond AVR response times and deterministic field current regulation.

The first-generation PCD231 modules were designed for compatibility with ABB's UNITROL 5000 excitation system, operating on a proprietary backplane bus. Subsequent revisions introduced compatibility with the AC800PEC controller platform, enabling IEC 61850 communication and GOOSE messaging for substation automation integration. Hardware revisions across the PCD231 lifecycle addressed EMC compliance updates (CE marking per EN 61800-3), expanded operating temperature ranges, and improved IGBT gate driver isolation. Modules produced after 2010 carry RoHS-compliant component sets. The PCD231 series is now in the mature/end-of-active-production phase; ABB's current excitation platform is the UNITROL 6800 with the PCD235 and PCD240 module families. However, the PCD231 remains in active service at thousands of global sites, making long-term spare parts availability a critical operational requirement for plant maintenance teams.

PCD231 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly sourced modules within the ABB PCD231 excitation control series. Each entry includes the primary functional description.

PCD231B101 / 3BHE025541R0101: Digital excitation control board, AVR/PSS primary processing unit, UNITROL 5000/6000 compatible.
PCD231B102 / 3BHE025541R0102: Excitation control module, revision B102, enhanced EMC filtering, field current regulation.
PCD231A101 / 3BHE004012R0101: First-generation excitation controller board, UNITROL 5000 base platform.
PCD231A102 / 3BHE004012R0102: Revised A-series board with updated DSP firmware support and expanded I/O mapping.
PCD231C101 / 3BHE035697R0101: C-series excitation control module, RoHS-compliant, extended temperature range (-20°C to +70°C).
PCD231C102 / 3BHE035697R0102: C-series variant with dual-channel redundancy support for critical generator applications.
PCD231D101 / 3BHE048762R0101: D-series module, AC800PEC bus interface, IEC 61850 GOOSE messaging support.
PCD231D102 / 3BHE048762R0102: D-series with expanded PSS (Power System Stabilizer) parameter set and adaptive gain scheduling.
PCD231E101 / 3BHE056231R0101: E-series excitation board, integrated field suppression logic, UNITROL 6000/6080 platform.
PCD231E102 / 3BHE056231R0102: E-series variant with enhanced fault diagnostics and PROFIBUS DP communication adapter support.
PCD231F101 / 3BHE063410R0101: F-series module, last active production revision, dual-port Ethernet, IEC 61850 Ed.2 compliant.
PCD231F102 / 3BHE063410R0102: F-series with extended memory for large PSS model storage and event logging (10,000 event buffer).
PCD231G101 / 3BHE071205R0101: G-series transitional module, bridge compatibility between UNITROL 6000 and UNITROL 6800 backplane.
PCD231G102 / 3BHE071205R0102: G-series with integrated cybersecurity hardening per IEC 62443-3-3 requirements.
PCD231H101 / 3BHE079334R0101: H-series final revision, designed as direct replacement for A/B/C-series in retrofit applications, backward-compatible firmware.

Sourcing Hard-to-Find & Obsolete PCD231 Parts

DriveKNMS maintains a dedicated inventory program for ABB PCD231 series modules, with particular focus on early-generation A-series and B-series boards that have been discontinued from ABB's active production catalog. For plant operators running UNITROL 5000 and UNITROL 6000 systems beyond their original design life, sourcing replacement PCD231 modules through standard distribution channels is no longer reliable.

DriveKNMS sources PCD231 modules through decommissioned plant asset recovery, authorized surplus channels, and direct procurement from facilities undergoing control system upgrades. All units are cataloged by hardware revision, firmware version, and physical condition grade prior to listing. For emergency breakdown situations, DriveKNMS maintains an expedited dispatch program with same-day shipping capability for in-stock units. Long-term maintenance contracts are available for operators requiring guaranteed annual allocation of PCD231 spare modules across multi-year maintenance windows.

Quality Control for the PCD231 Range

The PCD231 module's backplane interface and high-speed DSP bus require specialized test procedures that differ from standard I/O module verification. DriveKNMS applies the following quality control protocol to all PCD231 units processed through its facility:

Each module undergoes visual inspection for capacitor ESR degradation, IGBT gate driver trace integrity, and backplane connector pin condition. Functional testing is performed on a dedicated UNITROL 5000/6000 test rig, verifying AVR closed-loop response, field current regulation accuracy (±0.1% setpoint deviation), and PSS signal chain continuity. Communication bus integrity is verified via protocol analyzer for both proprietary ABB backplane signals and any fitted PROFIBUS or Ethernet adapter ports. Firmware version is read and documented; modules with outdated firmware are flagged and updated where applicable. Final burn-in testing runs each module under rated load conditions for a minimum of 48 hours before release. All test records are retained and provided with each shipped unit upon request.
