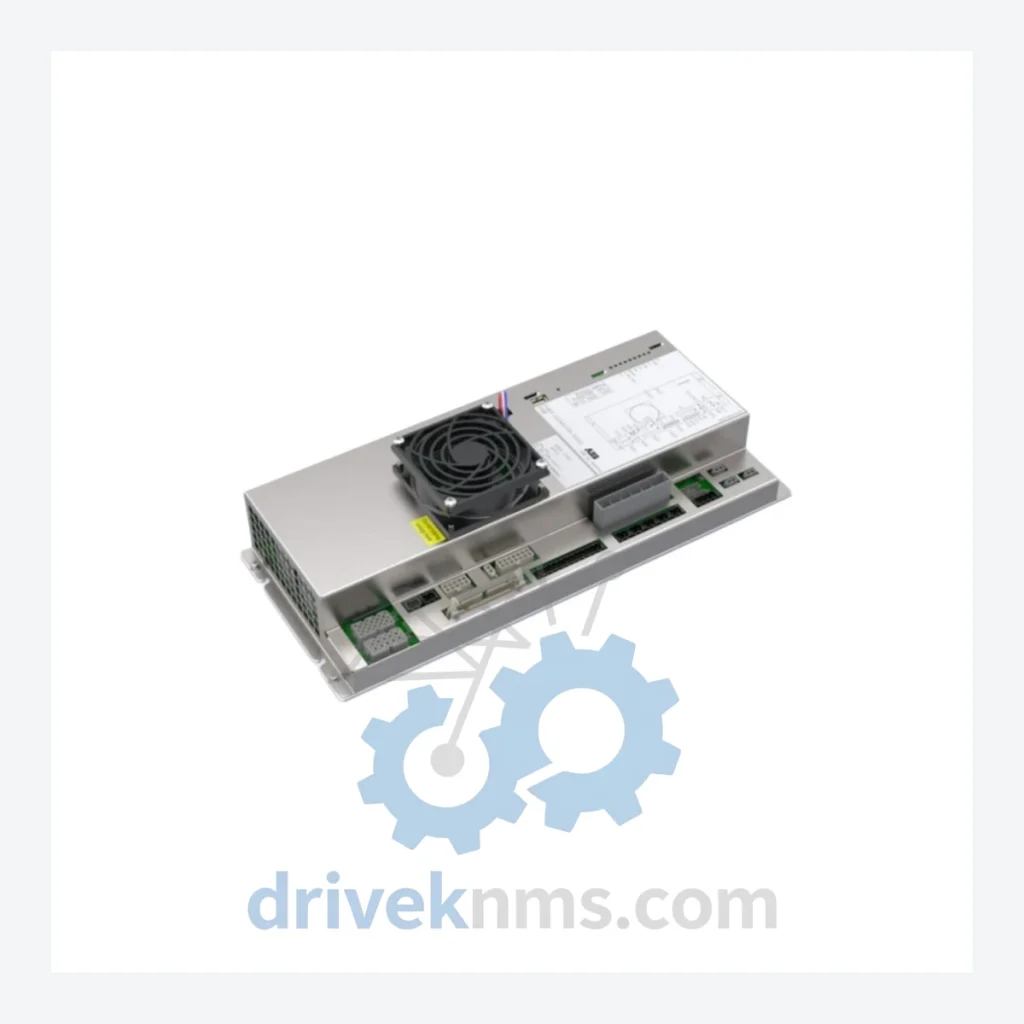

ABB PDB-02 3HNA023093-001 3HNA006147-001 Power Supply Unit – IRC5 Spray Cabinet

Technical Dossier

Product Details And Specifications

ABB PDB-02 3HNA023093-001 3HNA006147-001 – Power Supply for IRC5 Spray Painting Cabinets: Sourcing Strategy & Asset ROI in a Constrained Supply Environment

The ABB PDB-02 power supply board (cross-referenced as 3HNA023093-001 and 3HNA006147-001) is a dedicated DC power distribution unit designed for ABB IRC5 spray painting robot control cabinets. This component is no longer in active production by ABB, placing it firmly in the scarce legacy spare category. For procurement managers operating automotive paint shops, appliance coating lines, or general industrial spray automation, unplanned downtime caused by a failed PDB-02 can cost tens of thousands of dollars per hour in lost throughput.

DriveKNMS maintains a verified global sourcing network specifically for discontinued ABB robotics components. Our inventory of the PDB-02 is sourced from decommissioned systems, authorized channel partners, and bonded warehouses — each unit tested and documented before shipment.

Procurement Specifications

Cost Optimization & TCO Analysis

Spare Parts Turnover Rate: The PDB-02 is a low-frequency failure component, but when it fails, it is a single point of failure for the entire spray cabinet. Procurement teams that carry zero buffer stock of this board face a binary choice: pay spot-market premiums (often 3–5× list price) or accept extended downtime. Holding even one unit as a cold spare typically delivers a payback period under 30 days when measured against a single unplanned stoppage event.

Total Cost of Ownership (TCO): The true cost of this component is not its purchase price — it is the cost of not having it. A conservative estimate for a single 8-hour production stoppage in an automotive paint line runs USD $15,000–$80,000 in lost output, rework, and labor. Sourcing the PDB-02 through DriveKNMS at a competitive price, with a 12-month warranty, eliminates the risk premium associated with unverified grey-market sources.

Supply Chain Stability: Because ABB has discontinued this board, the secondary market is the only viable supply channel. Prices will trend upward as remaining stock depletes globally. Procurement managers who lock in pricing now — or negotiate a small buffer stock agreement — protect their maintenance budgets from future spot-market volatility. DriveKNMS offers blanket order arrangements for facilities managing multiple IRC5 spray systems.

Quality Compliance & Logistics

• 12-Month Warranty: All units carry a 12-month warranty covering functional defects. Warranty claims are processed with full documentation and replacement or refund options.
• Export Documentation: Full commercial invoice, packing list, certificate of origin, and customs declaration provided for every shipment. Compliant with EU, US, and ASEAN import requirements.
• Multi-Currency Payment: USD, EUR, CNY, HKD accepted. T/T bank transfer, PayPal, and trade finance arrangements available for qualified buyers.
• Global Logistics: DHL Express, FedEx International Priority, and UPS available. Standard transit: 3–5 business days to Europe/North America; 2–4 days to Southeast Asia. Air freight tracking provided at shipment.
• Packaging: Anti-static ESD packaging with foam cushioning. Suitable for air freight and long-term storage.

Why Procurement Managers Choose DriveKNMS

Global Sourcing Network: We maintain active relationships with ABB authorized service partners, decommissioning contractors, and bonded spare parts warehouses across Europe, North America, and Asia. When a part is not in our primary stock, our sourcing team can typically locate verified units within 5–10 business days.

Part Number Cross-Reference & Selection Correction: The PDB-02 is referenced under multiple ABB part numbers (3HNA023093-001, 3HNA006147-001). Our technical team verifies compatibility with your specific IRC5 cabinet revision before shipment, preventing costly mis-shipment errors that are common with generic distributors.

Financial Compliance: All transactions are issued with formal VAT invoices (中国增值税专用发票 available for domestic CN buyers), SWIFT-compatible bank transfers, and full audit trail documentation — meeting the procurement compliance requirements of publicly listed companies and government-linked enterprises.

Vendor Qualification Support: We provide company registration documents, business license, ISO compliance references, and bank reference letters to support your internal vendor onboarding process.

FAQ

Q: What are your payment terms?
A: Standard terms are 100% T/T in advance for first orders. For repeat customers or orders above USD $5,000, we offer 30% deposit / 70% before shipment. Letter of Credit (L/C) accepted for orders above USD $20,000.

Q: What does the 12-month warranty cover?
A: The warranty covers functional failure under normal operating conditions. It does not cover physical damage caused by incorrect installation, overvoltage, or environmental contamination. Warranty claims require a failure report and return of the defective unit (freight prepaid by buyer).

Q: Can I get a volume discount for multiple units?
A: Yes. Quantity pricing is available for orders of 3+ units. Contact us with your annual requirement forecast for a blanket order quotation with price protection.

Q: What is your return policy?
A: Units that are DOA (dead on arrival) or incorrectly shipped are eligible for full replacement or refund within 30 days of receipt. Returns require prior authorization (RMA number) and original packaging.

Q: How do I verify this part is compatible with my robot cabinet?
A: Provide your IRC5 cabinet serial number or robot model (e.g., IRB 5500, IRB 5400) and we will confirm compatibility before invoicing. Our technical team can also cross-reference your existing board's label markings.

Q: Do you provide test reports?
A: Yes. Refurbished units are supplied with a functional test report. New old stock (NOS) units are supplied with original ABB packaging where available.
