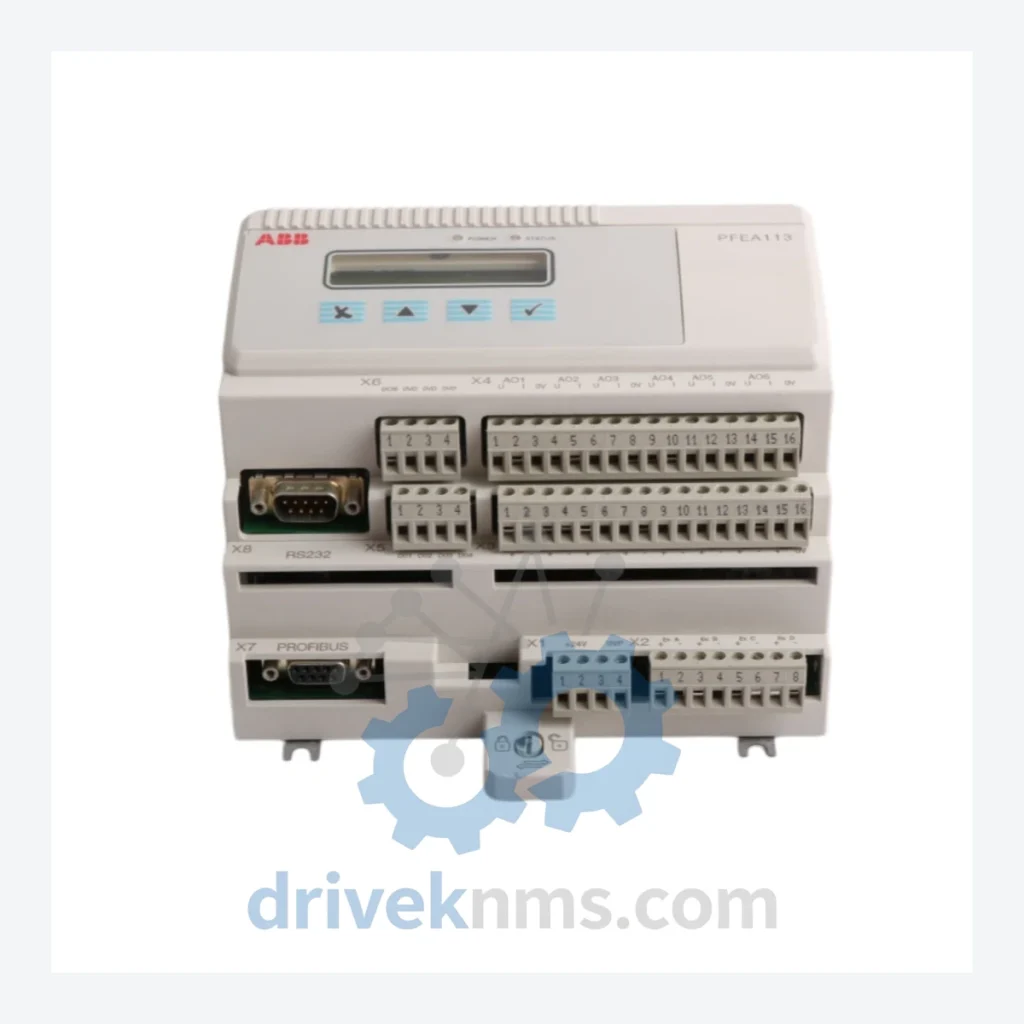

ABB PFEA113 3BSE028144R0020 Tension Control Module – Redundant PFEA Series

Technical Dossier

Product Details And Specifications

ABB PFEA113 3BSE028144R0020 Tension Control Module – Redundant PFEA Series Platform

The ABB PFEA113 (part number 3BSE028144R0020) is a dedicated tension control module engineered for high-precision web and strip tension regulation within ABB's PFEA Series industrial automation platform. Operating as the core signal-processing unit in closed-loop tension control architectures, the PFEA113 acquires analog force signals from load cells or tension transducers, executes real-time PID (Proportional-Integral-Derivative) control algorithms, and outputs corrective drive commands to maintain material tension within tightly defined setpoints. In safety-instrumented environments, this module contributes to the overall functional safety chain by providing deterministic response times and reliable signal conditioning, positioning it within SIL-capable system architectures compliant with IEC 61508 principles.

Within the PFEA Series ecosystem, the PFEA113 3BSE028144R0020 operates in close coordination with companion modules including power supply units, communication interface cards, and operator panel assemblies. Its modular design philosophy aligns with IEC 61511 requirements for process sector safety instrumented systems (SIS), enabling system integrators to achieve the necessary diagnostic coverage (DC) and safe failure fraction (SFF) targets when the module is deployed as part of a validated safety loop. The PFEA113's architecture supports redundant configurations, reducing the probability of dangerous failure on demand (PFDavg) and extending mean time between failures (MTBF) to meet the availability requirements of continuous industrial processes.

Technical Specifications

Specifications are for reference only, subject to official datasheet. Please verify parameters against your system documentation before installation.

Technical Architecture & Design Principles

The PFEA113 3BSE028144R0020 employs a redundant signal-processing architecture designed to maximize system availability in continuous web-handling and strip-processing applications. While the PFEA Series does not implement a full Triple Modular Redundancy (TMR) 2oo3 voting topology by default, the module supports dual-channel redundant configurations where two independent signal paths are continuously cross-monitored. Any discrepancy exceeding defined thresholds triggers an automatic fault isolation sequence, transferring control authority to the healthy channel without process interruption — a mechanism analogous to the Fault Detection and Isolation (FDI) principles mandated in IEC 61508 functional safety frameworks.

Online Diagnostics & Self-Test: The PFEA113 executes continuous background self-diagnostics, monitoring internal reference voltages, A/D converter linearity, and communication link integrity. Detected faults are classified by severity and reported via the module's status LEDs and fieldbus diagnostic registers, enabling maintenance teams to perform condition-based maintenance without unplanned shutdowns.

SIS Integration: When integrated into a Safety Instrumented System (SIS) architecture, the PFEA113 functions as a final element controller within the safety loop. Its deterministic scan cycle and hardware-enforced output limits ensure that tension setpoint deviations beyond safe operating ranges trigger defined safe-state outputs, contributing to the overall SIL 2 integrity of the safety instrumented function (SIF) per IEC 61511 Layer of Protection Analysis (LOPA) methodology.

MTBF & System Availability: With an estimated MTBF exceeding 100,000 hours (ref.), the PFEA113 supports high system availability targets (> 99.9% uptime) required in continuous process industries. In redundant configurations, the module's mean time to repair (MTTR) impact on overall system availability is further mitigated by hot-swap capability (verify with system documentation).

Industrial Applications & System Context

The ABB PFEA113 is deployed across a broad spectrum of industrial environments where precise material tension control is critical to product quality and process safety:

• DCS Architecture Integration: In Distributed Control System (DCS) architectures, the PFEA113 operates as a field-level controller node, receiving setpoint commands from the DCS supervisory layer via fieldbus and returning real-time tension feedback data for historian logging and advanced process control (APC) algorithms.
• ESD / F&G System Context: In Emergency Shutdown (ESD) and Fire & Gas (F&G) system environments, the PFEA113 can be configured to respond to safety system interlock signals, executing controlled tension ramp-down sequences to prevent material breakage or mechanical damage during emergency de-energization events.
• SCADA Communication: The module's Modbus RTU interface enables direct integration with SCADA (Supervisory Control and Data Acquisition) systems, providing real-time tension data visualization, alarm management, and remote setpoint adjustment capabilities.
• Web & Strip Processing: Paper mills, steel strip processing lines, textile manufacturing, and film extrusion plants rely on the PFEA113 for real-time tension regulation, where response times under 10 ms are essential to prevent web breaks and material waste.
• Typical Project Environments: Pulp & paper mills, steel rolling mills, aluminum foil processing, plastics film lines, printing & converting facilities, and offshore platform material handling systems.
• Functional Safety Compliance: Deployments requiring compliance with IEC 61511 (Functional Safety – Safety Instrumented Systems for the Process Industry Sector) and IEC 61508 (Functional Safety of E/E/PE Safety-Related Systems) benefit from the PFEA113's validated diagnostic architecture.

System Integration & Compatible Parts

The PFEA113 3BSE028144R0020 is designed for seamless integration within the ABB PFEA Series modular platform. Engineers should verify the following compatibility parameters before system commissioning:

• Backplane / Rack Compatibility: Compatible with ABB PFEA Series backplane assemblies (verify specific rack model against system BOM)
• Power Supply Modules: Requires 24 VDC regulated power supply; compatible with ABB PFEA Series PSU modules (ref.)
• Communication Modules: Interfaces with ABB PFEA Series fieldbus communication cards supporting Modbus RTU and proprietary ABB protocols
• Firmware Compatibility: Confirm firmware revision and system software version compatibility with your existing PFEA Series controller before replacement — contact DriveKNMS for cross-reference verification
• System Configuration: For complex multi-axis tension control systems, please submit your complete system configuration list (BOM) to [email protected] for compatibility verification

➡️ Browse all ABB modules available at DriveKNMS

Every ABB PFEA113 3BSE028144R0020 unit processed by DriveKNMS undergoes a rigorous 5-step quality assurance protocol before dispatch:

1. Visual Inspection: Physical damage assessment, corrosion check, connector pin integrity verification, and anti-counterfeiting label authentication against known genuine ABB part markings.
2. Power-On Functional Test: Module energized and signal behavior verified — I/O channel response, analog output accuracy, and status LED diagnostics confirmed against reference specifications.
3. Part Number & Revision Verification: Hardware revision code and firmware version confirmed against the ordered part number (3BSE028144R0020) to ensure exact specification match.
4. ESD-Safe Packaging: Module packed in anti-static (ESD) shielding bags with shock-absorbing foam inserts, compliant with ANSI/ESD S20.20 handling standards.
5. 12-Month Functional Warranty: All units carry a 12-month warranty covering functional defects under normal operating conditions.

Global Logistics: Worldwide express shipping via FedEx / DHL / UPS with real-time tracking numbers provided upon dispatch. Export documentation and customs declarations prepared for international shipments.

Technical Support from DriveKNMS

• 🔧 Selection & Compatibility Verification: Our engineering team provides part selection guidance and system compatibility cross-checks for ABB PFEA Series applications
• 🔄 Cross-Reference Service: Identify equivalent or replacement modules across ABB product generations and compatible third-party alternatives
• 📋 Firmware & Revision Confirmation: Verify firmware version and hardware revision compatibility with your existing system configuration
• 📄 Test Reports & Inspection Certificates: Available upon request for quality-critical procurement processes
• 🔁 Obsolete Part Replacement: Technical evaluation and recommendation of validated replacement solutions for discontinued ABB modules
• 💬 24/7 WhatsApp Technical Support: Real-time engineering consultation via WhatsApp: +86 18359293191

Frequently Asked Questions

Q1: What communication protocols does the PFEA113 3BSE028144R0020 support?
The PFEA113 supports Modbus RTU and ABB's proprietary PFEA Series fieldbus protocol. Compatibility with PROFIBUS or HART interfaces should be verified against your specific system revision. Contact us for protocol compatibility confirmation.

Q3: Have refurbished units undergone SIL-related functional testing?
All units undergo our 5-step QA protocol including power-on functional testing and I/O verification. For SIL-critical applications requiring formal validation documentation, please request a test report and inspection certificate at the time of inquiry.
