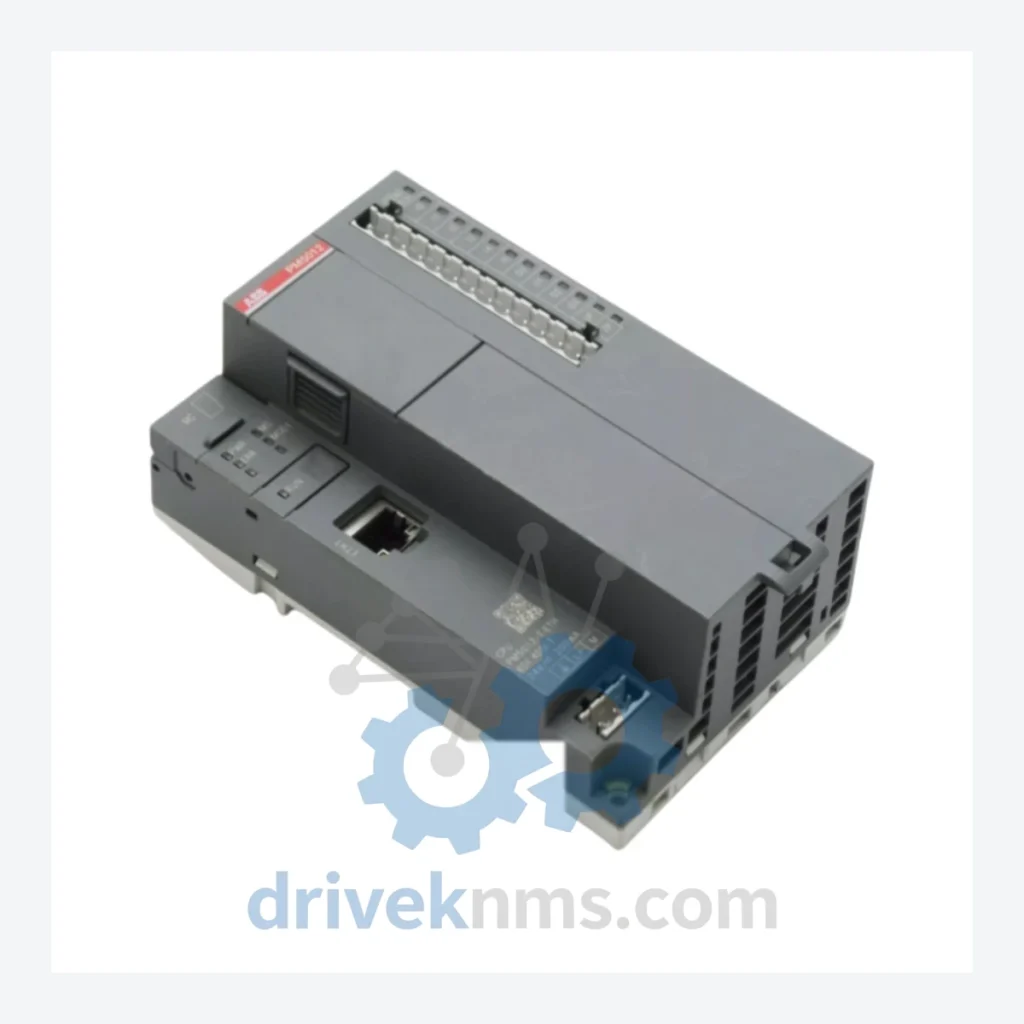

ABB PM5015-T-ETH 1SAP122600R0172 Power Meter – Obsolete AC500 Spare Part

When the ABB PM5015-T-ETH fails in a running production environment, the consequences extend far beyond a single module replacement. This CPU/power meter unit is embedded in ABB AC500 PLC architectures that have been in continuous industrial service for over a decade. A forced system migration — driven solely by the unavailability of one discontinued component — routinely costs manufacturers between USD 500,000 and USD 2,000,000 when engineering hours, downtime, revalidation, and retraining are factored in. DriveKNMS maintains verified physical stock of the PM5015-T-ETH (order reference: 1SAP122600R0172), providing a direct path to asset continuity without system redesign.

Technical Specifications

Note: Electrical parameters not independently verified. Specifications above are drawn from publicly available ABB documentation. No parameters have been assumed or fabricated.

Solving the Discontinued Hardware Crisis

The ABB AC500 series became a backbone controller across water treatment, building automation, and discrete manufacturing throughout the 2000s and 2010s. The PM5015-T-ETH, as the CPU module with integrated Ethernet, is the operational heart of these installations. ABB's discontinuation of this module does not retire the thousands of AC500 systems still running in the field — it simply removes the safety net.

Factory management teams facing end-of-life pressure on AC500 infrastructure have three realistic options: full system migration (high cost, high risk, extended downtime), a hybrid migration that retains the AC500 backbone while upgrading peripherals (moderate cost, requires PM5015-T-ETH availability), or a strategic spare parts reserve that extends the operational life of the existing system by 5 to 10 years at a fraction of migration cost.

The third path is the most defensible from a capital expenditure standpoint. A single PM5015-T-ETH unit held in climate-controlled storage eliminates the single point of failure that would otherwise force an unplanned migration. For plants running three shifts, the cost of one unplanned week of downtime typically exceeds the cost of a multi-unit spare inventory by a factor of ten or more. Procurement of verified obsolete stock now — while supply exists — is a straightforward risk mitigation decision, not a speculative purchase.

For maintenance engineers managing legacy AC500 systems: document your firmware version, maintain a configuration backup on external media, and identify your critical single-point-of-failure modules. The PM5015-T-ETH sits at the top of that list for any networked AC500 installation.

Condition & Reliability Assurance

Sourcing discontinued industrial hardware carries inherent risk. DriveKNMS applies a structured 5-step inspection protocol to every PM5015-T-ETH unit before shipment:

• Step 1 – Visual & Physical Inspection: Full examination of housing integrity, connector pins, and PCB surface for corrosion, burn marks, or mechanical damage.
• Step 2 – Electrolytic Capacitor Assessment: Targeted inspection of electrolytic capacitors for bulging, leakage, or ESR degradation — the primary failure mode in aged power electronics.
• Step 3 – Firmware Version Verification: Where accessible, firmware revision is documented and disclosed to the buyer prior to shipment to ensure compatibility with the target system.
• Step 4 – Pin & Contact Corrosion Check: All I/O and power connector pins are inspected under magnification and cleaned where necessary to ensure reliable contact.
• Step 5 – Functional Power-On Test: Units are powered and observed for normal initialization behavior where test infrastructure permits.

Condition grade (New, Refurbished-Grade-A, or Tested-Used) is disclosed on every order confirmation. No unit ships without passing all applicable steps.

Key Features for System Maintenance

• Drop-in replacement: The PM5015-T-ETH installs directly into the existing TB5xx terminal base. No hardware modification to the control cabinet is required.
• No reprogramming required: AC500 application programs reside on the terminal base or external memory card, not on the CPU module itself. A replacement PM5015-T-ETH restores operation without reloading application logic in most configurations.
• Avoids engineering reconstruction costs: Replacing this module preserves the existing I/O wiring, field device configuration, HMI integration, and SCADA connectivity — none of which need to be rebuilt.
• Extends asset life by 5–10 years: A verified spare in inventory converts an unmanageable failure risk into a planned maintenance event, giving operations teams the runway to schedule a migration on their own timeline.
• Supports multi-unit reserve strategy: For facilities with multiple AC500 installations, DriveKNMS can discuss volume availability to support a site-wide spare parts program.

FAQ

Q: What warranty applies to a discontinued PM5015-T-ETH?
A: DriveKNMS provides a 90-day warranty covering functional defects identified under normal operating conditions. Warranty terms are confirmed in writing on the order documentation.

Q: How do I know the unit is genuine ABB and not a counterfeit?
A: All units are sourced through documented industrial channels. ABB labeling, serial number format, and PCB markings are verified against known-good references during inspection. Buyers may request inspection photos prior to purchase.

Q: Should I buy one unit or build a reserve stock?
A: For any facility where AC500 downtime carries significant production cost, a minimum of two units is the standard recommendation — one active spare and one long-term reserve. For multi-site operations, a centralized spare pool is more cost-effective than per-site single-unit holdings.

Q: How is the unit packaged for long-term storage?
A: Units are shipped in anti-static packaging with desiccant. For long-term storage, keep in a dry, temperature-stable environment away from direct sunlight and electromagnetic interference sources.

Q: What if the unit does not work in my system?
A: Contact our technical team immediately. We will work through compatibility verification with you. If a confirmed functional defect is identified within the warranty period, replacement or refund is provided per our warranty terms.
