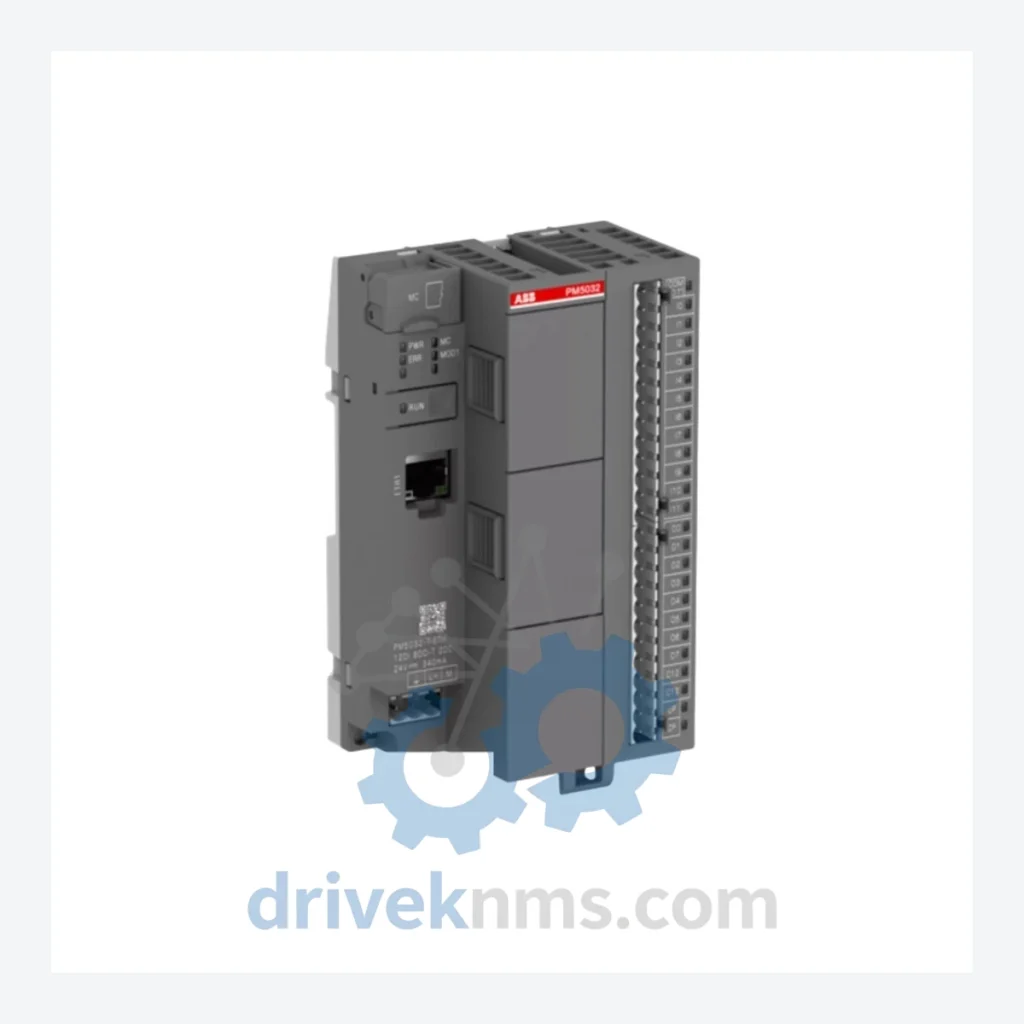

ABB PM5032-T-ETH 1SAP123400R0072 CPU Module – Obsolete AC500 Spare Part

DriveKNMS maintains a carefully managed inventory of hard-to-source industrial automation components. The PM5032-T-ETH (order reference 1SAP123400R0072) is one of those components. If you are reading this, your window to secure a replacement before the next failure event is now.

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Solving the Discontinued Hardware Crisis

The ABB AC500 series established itself as a workhorse across process industries, water treatment, building automation, and discrete manufacturing throughout the 2000s and 2010s. The PM5032-T-ETH, with its integrated Ethernet port and IEC 61131-3 programming environment, became a standard CPU selection for mid-range automation projects that required network connectivity without the cost of a high-end controller.

ABB's transition to the AC500 V3 platform has left a significant installed base of PM5032-T-ETH systems without a direct, drop-in upgrade path. Replacing the CPU alone does not resolve the incompatibility cascade: I/O modules, field bus configurations, and existing control programs written in CoDeSys-based environments may require partial or complete re-engineering when migrating to a new platform generation.

How to extend your AC500 system life by 5 to 10 years — without a platform migration:

• Secure a cold spare CPU now. The PM5032-T-ETH is the highest-criticality single point of failure in any AC500 rack. One verified spare unit, stored correctly, eliminates the most catastrophic failure scenario.
• Back up your control program to offline media. Retain a verified copy of the CoDeSys project file, including all hardware configuration settings, in a location independent of the PLC itself.
• Audit your S500 I/O modules. Identify any I/O modules approaching end of service life and source spares proactively. The cost of a planned spare purchase is a fraction of an emergency procurement under production pressure.
• Document your Ethernet network topology. The PM5032-T-ETH's integrated Ethernet port is central to SCADA and HMI connectivity. Maintain current network diagrams and IP configuration records to accelerate recovery time in a failure event.
• Establish a scheduled inspection interval. Annual inspection of the CPU rack, including visual checks for capacitor bulging, connector corrosion, and firmware version verification, allows planned intervention before unplanned failure.

These five measures, implemented together, represent a low-cost asset protection strategy that extends the productive life of an AC500 installation by a realistic 5 to 10 years — deferring a capital-intensive platform migration until it is financially planned, not operationally forced.

Condition & Reliability Assurance

Sourcing a discontinued CPU module from the secondary market carries legitimate risk. DriveKNMS applies a structured 5-step quality process to every PM5032-T-ETH unit before it is offered for sale.

1. Visual and mechanical inspection. Full external examination for physical damage, connector pin condition, and PCB integrity. Units with evidence of field damage, burn marks, or corrosion are rejected at this stage.
2. Electrolytic capacitor assessment. Aged electrolytic capacitors are the primary failure mode in legacy CPU modules. Each unit is inspected for capacitor bulging, leakage, and ESR degradation. Units with suspect capacitors are not offered as-is.
3. Firmware version verification. The installed firmware version is recorded and cross-referenced against known stable releases for the PM5032-T-ETH. Firmware anomalies are documented and disclosed.
4. Connector and pin corrosion check. Backplane connectors and I/O interface pins are inspected under magnification for oxidation and contact degradation that could cause intermittent faults in service.
5. Functional power-on test. Where test infrastructure permits, units are powered and basic communication functionality is verified prior to packaging.

Units are packaged in anti-static materials with desiccant and stored in a climate-controlled environment prior to shipment.

Key Features for System Maintenance

• Drop-in replacement. The PM5032-T-ETH installs directly into an existing AC500 rack without mechanical modification. No new mounting hardware or rack reconfiguration is required.
• No reprogramming required. Control programs stored on the existing memory card or restored from backup load directly onto a replacement PM5032-T-ETH. There is no requirement to rewrite or re-engineer existing control logic.
• No engineering reconstruction costs. Unlike a platform migration, a like-for-like CPU replacement eliminates consultant fees, system integrator costs, and the extended commissioning periods associated with new platform deployments.
• Ethernet connectivity preserved. The integrated ETH port maintains existing SCADA, HMI, and network connections without reconfiguration of upstream network infrastructure.
• S500 I/O compatibility maintained. All existing S500 expansion modules remain fully operational with a replacement PM5032-T-ETH, protecting the full installed I/O investment.

How do I know the unit is genuine and not counterfeit?
All units sourced by DriveKNMS are inspected for manufacturer markings, label authenticity, and PCB construction consistent with genuine ABB production. We do not offer units where authenticity cannot be verified to our internal standard.

Should I buy more than one unit?
For any facility operating more than one AC500 rack using the PM5032-T-ETH, holding a minimum of one spare per site is a defensible maintenance position. Given declining secondary market availability, procurement decisions deferred beyond the current period carry increasing price and availability risk.

Can you source other AC500 components?
Yes. DriveKNMS specializes in hard-to-find and discontinued industrial automation components across multiple platforms. Contact us with your full bill of materials for a consolidated sourcing assessment.
