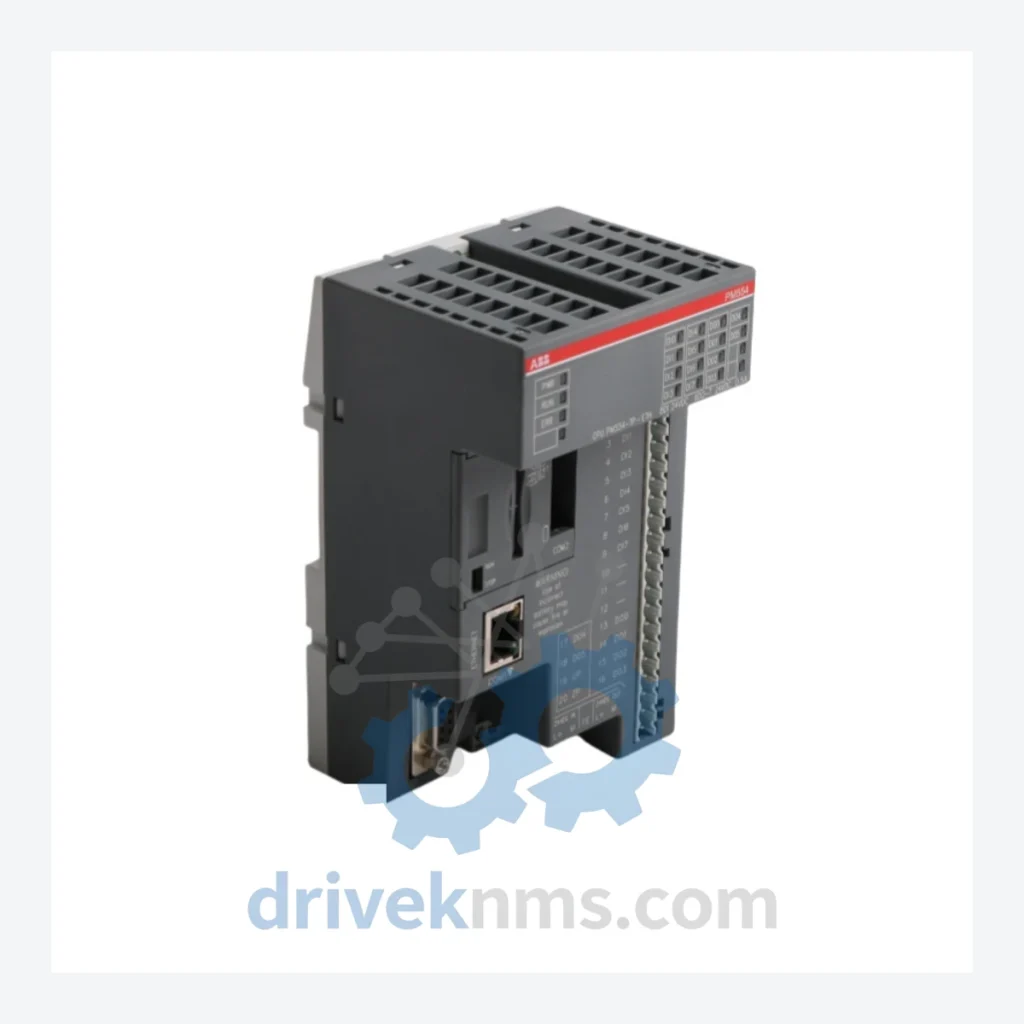

ABB AC500 PM554-TP-ETH 1SAP120600R0071 PLC Processor Module

Name: ABB AC500 PM554-TP-ETH 1SAP120600R0071 PLC Processor Module
Brand: ABB

Model: PM554-TP-ETH 1SAP120600R0071

Brand ABB

Series AC500 PM554-TP-ETH 1SAP120600R0071 Processor

Model PM554-TP-ETH 1SAP120600R0071

RFQ-ready model route Obsolete and surplus sourcing Export follow-up by model list

Product Overview

Commercial availability is handled through direct RFQ, model verification and export-oriented follow-up rather than public cart checkout.

Submit RFQ Email This Model

Datasheet Preview

Use attached product manuals when available. If the manual is not public yet, request the full file directly through RFQ.

Request Full Manual

Commercial Path

Use This Page To Confirm The Model, Then Move To RFQ

Product pages on DRIVEKNMS are designed to verify model, brand and series first, then move the buyer into one clean quotation path.

Technical Dossier

Product Details And Specifications

ABB AC500 Series Technical Notes

The ABB AC500 is a modular programmable logic controller platform deployed across heavy industrial sectors including petrochemical refineries, nuclear power auxiliary systems, offshore oil & gas platforms, pulp & paper mills, and water treatment infrastructure. With installations spanning more than 25 countries, the AC500 holds a significant share of the mid-to-high-end PLC market in process automation and machine control. The PM554-TP-ETH (order number 1SAP120600R0071) is a CPU module within the AC500 V2 generation, featuring an integrated Ethernet port, onboard SD card slot, and support for up to 512 I/O points via the S500 I/O bus. It executes IEC 61131-3 languages and is programmed via ABB Automation Builder.

The Evolution of AC500 Architecture

The AC500 platform was introduced in the early 2000s as a successor to ABB's CS31 and Advant Controller 31 (AC31) families. The original V1 generation (PM5xx first release) established the S500 I/O bus standard and the TB5xx terminal base concept, which physically separates the CPU from its mounting base — a design that allows in-field CPU replacement without rewiring. The V2 generation (circa 2012–2016) introduced faster processors, expanded memory, onboard Ethernet on select CPUs, and SD card-based program storage. The V3 generation (AC500-S for safety, AC500-eCo for cost-optimized applications) extended the platform into functional safety (IEC 62061, PLe/SIL3) and IoT-ready architectures with MQTT and OPC UA support. Backward compatibility across generations is maintained at the I/O bus level: S500 I/O modules from V1 installations can be reused on V2/V3 CPU platforms, which is a critical factor for brownfield plant upgrades. The PM554-TP-ETH belongs to the V2 mid-range tier, positioned between the entry-level PM554-T and the high-end PM595-4ETH-F.

AC500 Full Catalog & Functionalities (SKU List)

CPU / Processor Modules

PM554-T 1SAP120400R0001: AC500 V2 CPU, 512KB RAM, no onboard Ethernet, SD slot
PM554-TP-ETH 1SAP120600R0071: AC500 V2 CPU, 512KB RAM, 1x Ethernet RJ45, SD slot, 512 I/O max
PM556-T 1SAP130000R0001: AC500 V2 CPU, 1MB RAM, extended instruction set, SD slot
PM556-TP-ETH 1SAP130200R0071: AC500 V2 CPU, 1MB RAM, 1x Ethernet, SD slot
PM564-T 1SAP140000R0001: AC500 V2 CPU, 2MB RAM, high-speed counters, SD slot
PM564-TP-ETH 1SAP140200R0071: AC500 V2 CPU, 2MB RAM, 1x Ethernet, SD slot
PM566-ETH 1SAP150200R0001: AC500 V2 CPU, 4MB RAM, 1x Ethernet, extended I/O capacity
PM573-ETH 1SAP130300R0271: AC500 V2 CPU, 1MB RAM, 1x Ethernet, compact form factor
PM591-2ETH 1SAP140100R0271: AC500 V2 CPU, 2MB RAM, 2x Ethernet, dual-port switch
PM595-4ETH-F 1SAP195100R0001: AC500-S safety CPU, 4x Ethernet, SIL3/PLe certified

Digital Input / Output Modules (S500 I/O)

DC532 1SAP220200R0001: 16x DI 24VDC, 8x DO 24VDC 0.5A, combined I/O module
DC551-CS31 1SAP250000R0001: 16x DI / 16x DO, CS31 bus interface for legacy integration
DI524 1SAP240000R0001: 16x DI 24VDC, standard digital input module
DO526 1SAP240200R0001: 16x DO 24VDC 0.5A, standard digital output module

Analog Modules

AI523 1SAP250100R0001: 8x AI, 0–10V / 4–20mA / Pt100 configurable per channel
AO523 1SAP250300R0001: 4x AO, 0–10V / 4–20mA configurable per channel

Communication Adapters

CM572-DP 1SAP170010R0001: PROFIBUS DP master/slave adapter for AC500 CPU
CM575-DN 1SAP170110R0001: DeviceNet master/slave communication module
CM577-ETH 1SAP170200R0001: Additional Ethernet adapter, Modbus TCP / EtherNet/IP

Terminal Bases

TB521-ETH 1SAP111100R0271: Terminal base for PM5xx CPUs, 1x Ethernet port passthrough
TB541-ETH 1SAP111300R0271: Terminal base for PM5xx CPUs, 2x Ethernet, extended I/O slots

Continue The Model Path

Use system, brand and series routes to compare related published models.

Move from this exact model into the matching system hub, brand archive, model-family archive or lifecycle sourcing route before sending a final RFQ list.
