ABB PPC902AE Modules

Technical Dossier

Product Details And Specifications

ABB PPC902AE Series: Comprehensive Module Range and Technical Overview

The ABB PPC902AE series is a family of processor and power supply control boards deployed within ABB's AC800PEC high-performance controller platform, which forms the computational backbone of the Symphony Plus Distributed Control System (DCS). This series holds a significant installed base across global heavy industries including petrochemical refineries, nuclear power generation facilities, offshore oil & gas platforms, and large-scale chemical processing plants. The AC800PEC controller — of which PPC902AE modules are a core component — is engineered for deterministic real-time control with cycle times down to 1 ms, making it the preferred choice for safety-critical and high-availability process automation environments. Plants running ABB Extended Automation System 800xA rely on PPC902AE-class boards for continuous, uninterrupted process execution. Given the 20–30 year operational lifespan typical of DCS installations in these industries, the PPC902AE series has entered a mature lifecycle phase, and long-term maintenance support is a primary procurement driver for end users.

The Evolution of PPC902AE Architecture

The PPC902AE designation identifies processor and power control boards within the AC800PEC controller rack architecture. Early iterations of the AC800PEC platform used predecessor board sets under the PPCxxx naming convention, designed for VME-bus backplane communication. As ABB transitioned from the Advant OCS and MOD 300 legacy platforms toward the 800xA ecosystem in the early 2000s, the PPC902AE series was introduced to provide higher computational throughput, improved memory capacity, and native support for IEC 61131-3 programming environments.

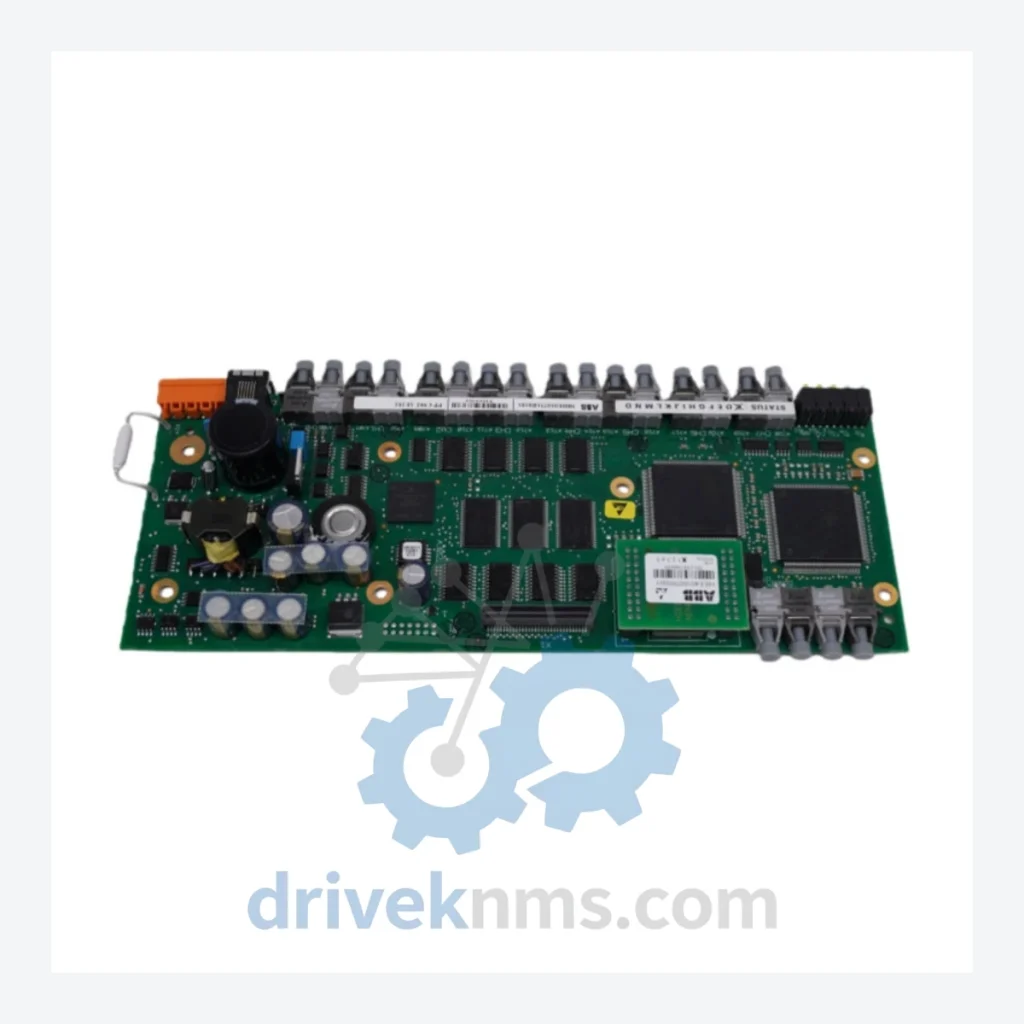

The PPC902AE101 (part number 3BHE010751R0101) represents a specific hardware revision of this board, integrating power supply regulation and drive control logic on a single PCB. Compatibility constraints are strict: these boards are backplane-specific and cannot be interchanged with AC800M or AC800F controller families without a full rack redesign. As ABB has progressively migrated customers toward the Symphony Plus S+ platform and newer AC800PEC hardware revisions, the PPC902AE101 has transitioned to a spare-parts-only procurement model, with no new production runs confirmed after 2018. Plants operating this hardware must source replacement boards from certified secondary-market suppliers to avoid forced system migrations.

PPC902AE Full Catalog & Functionalities (SKU List)

The following SKUs represent verified modules within the ABB AC800PEC / PPC902AE ecosystem. Each entry reflects a distinct hardware function within the controller rack:

3BHE010751R0101 (PPC902AE101): Power supply and drives control board, AC800PEC rack, primary revision.
3BHE004573R0001 (PPC902AE): Processor board, AC800PEC, base hardware variant.
3BHE006784R0001 (UFC760BE101): IGBT gate driver interface board, AC800PEC drive control.
3BHE009681R0001 (PPC905AE101): Upgraded processor board, extended memory, AC800PEC.
3BHE013561R0001 (UFC718AE01): Fiber optic communication interface, drive-to-controller link.
3BHE022294R0001 (APBB-01C): Auxiliary power backplane board, AC800PEC rack supply.
3BHE024577R0001 (PPC907AE101): High-performance processor board, AC800PEC, latest revision.
3BHE028964R0001 (UFC760BE102): Enhanced IGBT gate driver board, second hardware revision.
3BHE033489R0001 (SDCS-CON-2B): DCS control board, DC drive interface, AC800PEC compatible.
3BHE036738R0001 (UFC760BE103): Gate driver board, third revision, improved thermal rating.
3BHE041488R0001 (PPC902CE101): Successor processor board, PPC902AE form-factor compatible.
3BHE046966R0001 (UFC760BE104): Gate driver board, fourth revision, extended voltage range.
3BHE052062R0001 (APBB-02C): Dual-channel auxiliary power backplane, high-availability rack config.
3BHE057543R0001 (PPC907CE101): Latest-generation processor board, Symphony Plus S+ compatible.
3BHE062318R0001 (UFC760BE105): Gate driver board, fifth revision, SiC IGBT support.
3BHE004573R0002 (PPC902AE102): Processor board, second hardware revision, expanded I/O addressing.

Sourcing Hard-to-Find & Obsolete PPC902AE Parts

DriveKNMS maintains a dedicated inventory program for ABB AC800PEC and PPC902AE series components that have been discontinued or placed on restricted allocation by ABB's official distribution network. The PPC902AE101 (3BHE010751R0101) is a primary example: with no active production, procurement lead times through OEM channels can exceed 26 weeks or result in outright unavailability. DriveKNMS sources these boards through a verified global network of decommissioned plant equipment, certified refurbishers, and bonded warehouse stock. All units are serialized, cross-referenced against ABB's hardware revision database, and supplied with full traceability documentation. For plants operating under IEC 61511 functional safety requirements, DriveKNMS can provide board-level test reports and configuration records to support safety case documentation. Lifecycle extension contracts are available for facilities requiring guaranteed spare availability over a defined operational horizon (typically 5–10 years).

Quality Control for the PPC902AE Range

PPC902AE series boards present specific test challenges due to their integrated backplane communication logic and multi-rail power supply architecture. DriveKNMS applies a structured test protocol for each unit processed:

1. Visual and physical inspection: PCB layer delamination check, capacitor ESR measurement, connector pin integrity verification.
2. Power rail validation: All DC output rails (typically +5 V, ±15 V, +24 V) measured under load against ABB factory tolerance specifications.
3. Backplane bus communication test: Board seated in a reference AC800PEC rack; VME-bus arbitration and data transfer verified using ABB Control Builder M diagnostic tools.
4. Drive control output verification: PWM signal generation and IGBT gate drive outputs tested against reference waveform parameters.
5. Thermal cycling: Board subjected to operational temperature range (0°C to +55°C) to identify latent component failures.
6. Firmware revision check: Onboard firmware version logged and compared against ABB's recommended revision matrix for the target application.

Each board is issued a DriveKNMS test certificate with pass/fail data for all test stages prior to shipment.
