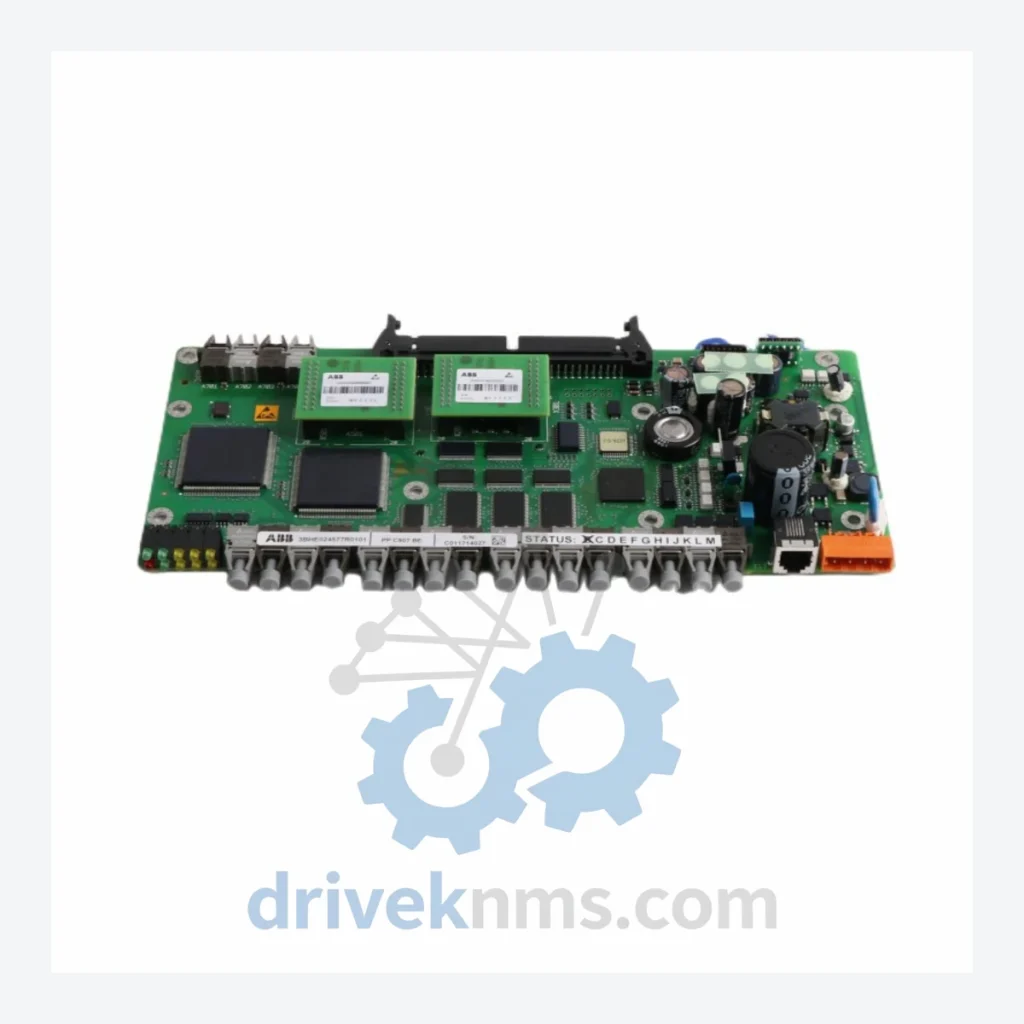

ABB PPC907BE 3BHE024577R0101

Technical Dossier

Product Details And Specifications

ABB PPC907BE Series Technical Notes

The Evolution of PPC907BE Architecture

The PPC907BE board was introduced as part of ABB's second-generation ACS6000 control architecture, succeeding earlier PPC boards that relied on discrete DSP chipsets with limited onboard diagnostics. The 907BE revision integrated a more capable FPGA-based firing logic engine, enabling faster fault response times and improved compatibility with ABB's DriveMonitor and DriveWindow commissioning tools over the DDCS fiber-optic communication backbone.

Early ACS6000 installations (pre-2005) used predecessor variants with different firmware baselines, creating compatibility constraints when retrofitting. The PPC907BE standardized the control interface across the ACS6000 medium-voltage range (3 kV to 6.9 kV output), allowing a single board type to serve multiple drive ratings when paired with the correct application firmware loaded via the AMC (Application Module Controller). Sites running legacy firmware versions must verify firmware compatibility before substituting boards across drive units of differing power ratings.

PPC907BE Full Catalog & Functionalities (SKU List)

The following SKUs represent verified part numbers within the ABB PPC907BE control board family and associated ACS6000 drive control ecosystem. Each entry reflects a distinct hardware revision, rating, or functional role within the drive control architecture.

PPC907BE 3BHE024577R0101: Pulse pattern controller board, ACS6000 primary firing logic, IGCT gate drive interface, DDCS fiber I/O.
PPC907BE 3BHE024577R0001: Earlier hardware revision of PPC907BE; functionally equivalent with firmware dependency differences.
PPC907BE 3BHE024577R0201: Revised PCB layout variant; improved EMC shielding on FPGA clock lines.
AMC800BE 3BHE003855R0001: Application Module Controller; hosts drive application software and interfaces to PPC907BE via DDCS.
AMC800BE 3BHE003855R0002: Second hardware revision of AMC800BE; extended onboard RAM for advanced application packages.
APBU-44C 3AFE68573708: DDCS branching unit; distributes fiber-optic DDCS links between PPC907BE and I/O boards.
AINT-02C 3BHE006387R0001: Analog input board; 8-channel ±10 V / 4–20 mA process signal acquisition for ACS6000.
AINT-02C 3BHE006387R0002: Revised analog input board with improved channel isolation rating.
ADIO-01C 3BHE006388R0001: Combined analog/digital I/O board; 4 AO + 8 DI + 8 DO channels, DIN rail mount.
RDCO-03C 3AFE68382500: DDCS communication option board; enables external PLC/DCS integration via fiber DDCS protocol.
RDCO-04C 3AFE68390259: Enhanced DDCS option board; supports higher baud rate DDCS channels for multi-drive configurations.
IOEC-04 3BHE009681R0001: I/O extension board; 16 DI + 8 DO; mounts on ACS6000 control cubicle backplane.
IOEC-04 3BHE009681R0002: Revised IOEC-04 with conformal coating for high-humidity environments.
SDCS-CON-4 3ADT220090R0001: DC drive control board used in parallel ACS6000 DC-side configurations; interfaces with PPC layer.
NPOW-41C 3BHE014070R0001: Control section power supply board; provides regulated 24 VDC and ±15 VDC rails to PPC907BE and I/O boards.
NPOW-41C 3BHE014070R0002: Revised power supply board; improved inrush current limiting on 24 V rail.
NINT-73C 3BHE021686R0001: Inverter control interface board; bridges PPC907BE firing commands to IGCT gate units.
NINT-73C 3BHE021686R0002: Revised NINT-73C with updated gate drive timing parameters for higher switching frequency operation.

Quality Control for the PPC907BE Range

PPC907BE boards undergo a structured functional test protocol before dispatch. The test sequence addresses the specific failure modes documented in ABB's ACS6000 service bulletins, including FPGA configuration memory corruption, DDCS fiber transceiver degradation, and gate drive output signal timing drift.

Each board is powered via a calibrated bench supply replicating the NPOW-41C output rails (24 VDC ±1%, ±15 VDC ±2%). DDCS communication integrity is verified using a loopback fiber test fixture at the rated baud rate. Gate drive output channels are loaded with a resistive dummy load and firing pulse timing is measured against ABB's published specification window using a digital oscilloscope. Boards exhibiting timing deviation outside tolerance are quarantined for component-level repair before re-test.
