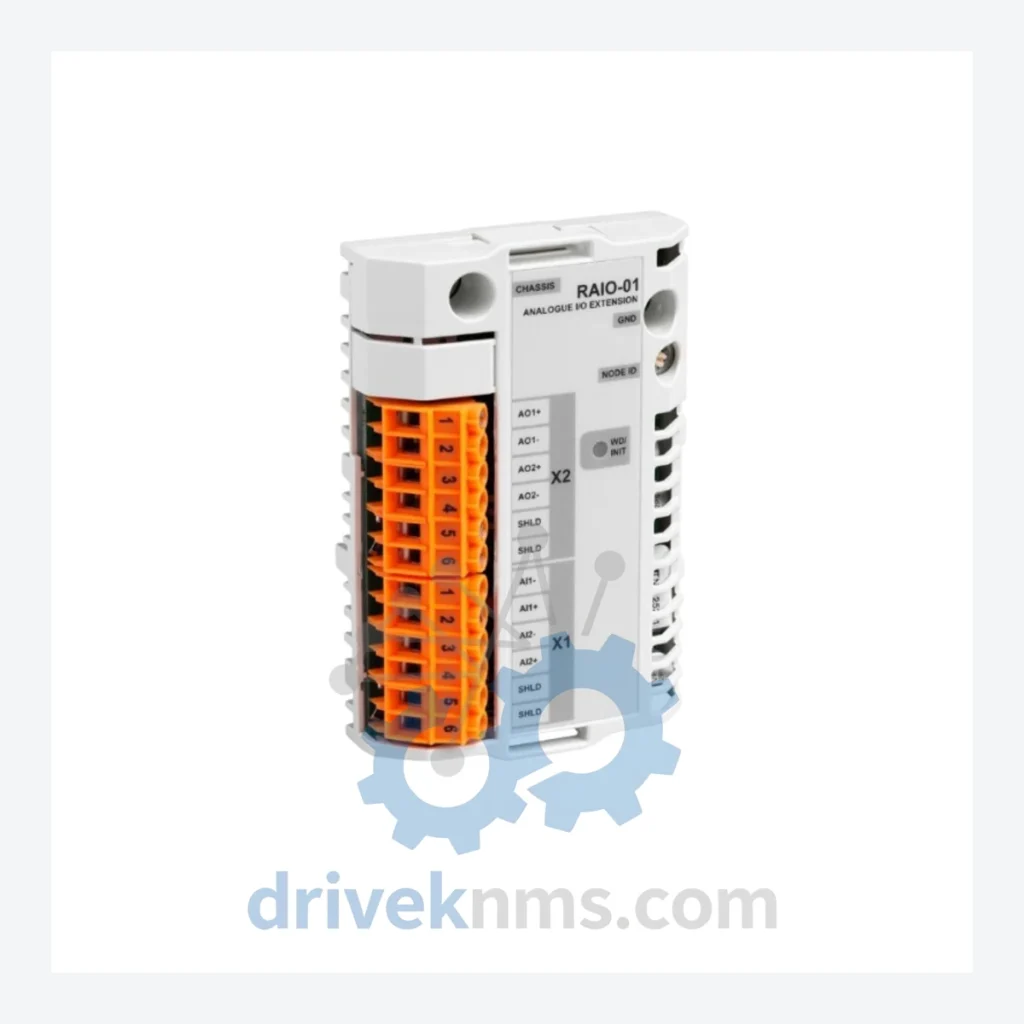

ABB RAIO-01 Analog I/O Extension Module – Obsolete ACS/DCS Series Spare Part

Technical Dossier

Product Details And Specifications

ABB RAIO-01 Analog I/O Extension Module – Obsolete ACS/DCS Series Spare Part

When the RAIO-01 analog I/O extension module fails in a running ABB drive system, the consequences are not limited to a single axis or loop. This board is the signal bridge between your process instrumentation and the drive's control logic. Its failure means loss of analog reference inputs and feedback channels — and in most legacy ACS/DCS installations, there is no software workaround. The production line stops.

Replacing an ABB ACS or DCS drive system today — including engineering, procurement, installation, commissioning, and retraining — routinely costs between USD 150,000 and USD 800,000 per drive cabinet, depending on system complexity. A single RAIO-01 module, sourced in time, eliminates that exposure entirely. DriveKNMS maintains verified stock of this discontinued component specifically for facilities that cannot afford unplanned capital expenditure.

Technical Specifications

Note: Electrical parameters such as channel count, voltage/current ranges, and resolution are not published here to avoid inaccuracy. Confirmed specifications are provided upon request with reference to the original ABB hardware manual.

Solving the Discontinued Hardware Crisis

The RAIO-01 was designed as an option board for ABB's ACS and DCS series variable speed drives — platforms that remain in active service across pulp and paper mills, water treatment facilities, mining operations, and heavy process industries worldwide. ABB has discontinued this module, and no direct OEM replacement exists that fits the original slot without hardware modification.

Facilities running these drives face a structural problem: the drives themselves are mechanically sound and correctly sized for the application, but the control electronics — particularly option boards like the RAIO-01 — are aging out of the supply chain. A failed option board that cannot be sourced forces a binary choice: accept extended downtime while engineering a retrofit, or execute an unbudgeted full drive replacement.

Neither outcome is acceptable in a production environment operating on thin maintenance budgets. The only rational strategy is to secure verified spare RAIO-01 modules before failure occurs — not after. DriveKNMS sources these components through established industrial surplus and decommissioning channels, with each unit subjected to functional verification before dispatch.

How to extend your ABB drive asset life by 5–10 years:

• Audit your option board population now. Identify every RAIO-01 and similar analog I/O boards installed across your drive fleet. Cross-reference against your spare parts inventory. Any gap is a single-point failure risk.
• Hold a minimum of one verified spare per critical drive. For drives controlling primary process loops — compressors, main pumps, kiln drives — hold two. The cost of a spare board is a fraction of one hour of unplanned downtime.
• Do not wait for failure to source obsolete boards. Available stock of discontinued ABB option boards decreases permanently over time. Units sourced today from verified suppliers will not be available at any price in three to five years.
• Maintain firmware version records. When replacing an option board, confirm the firmware version on the replacement matches the host drive's parameter set. Mismatched firmware can cause parameter loss or drive fault on first power-up.
• Establish a condition-monitoring interval for aging option boards. Electrolytic capacitor degradation and connector oxidation are the primary failure modes in boards of this age. A scheduled inspection every 18–24 months allows proactive replacement before in-service failure.

Condition & Reliability Assurance

Every RAIO-01 unit dispatched by DriveKNMS passes a structured 5-step verification process before it leaves our facility:

1. Visual and mechanical inspection: Board surface, connector pins, and PCB traces are examined for physical damage, corrosion, and solder joint integrity. Units with pin oxidation or trace damage are rejected at this stage.
2. Electrolytic capacitor assessment: Capacitors are the primary aging component in boards of this vintage. Each unit is assessed for capacitor bulge, leakage, and ESR deviation. Boards with degraded capacitors are either recapped or rejected.
3. Firmware version verification: Where readable, firmware version is documented and disclosed to the buyer prior to shipment. This allows the receiving engineer to confirm compatibility with the target drive before installation.
4. Connector and pin integrity check: All edge connectors and option slot contacts are cleaned and inspected for corrosion, bent pins, and contact resistance. Boards failing contact resistance thresholds are not dispatched.
5. Functional power-on test (where applicable): Units are powered and checked for basic operational response where test fixtures permit. Results are documented and available upon request.

Key Features for System Maintenance

• Drop-in replacement: The RAIO-01 installs directly into the original option slot of compatible ABB drives. No hardware modification, no rewiring, no mechanical adaptation required.
• No reprogramming required: Drive parameters stored in the control unit are not affected by option board replacement. The drive reads the new board on power-up without requiring a full parameter restore, provided firmware versions are compatible.
• Avoids engineering retrofit costs: A verified replacement board eliminates the need for a drive retrofit or system redesign. Engineering hours for a retrofit on a legacy ABB drive system typically run between 40 and 200 hours depending on system integration complexity.
• Preserves existing process tuning: PID loops, ramp settings, and analog scaling configured in the drive remain intact. Production restart after board replacement is measured in hours, not weeks.

FAQ

What warranty applies to a discontinued part like the RAIO-01?
DriveKNMS provides a 90-day warranty covering functional defects identified under normal operating conditions. Given the obsolete status of this component, warranty terms are confirmed in writing at the time of order.

How do I know the unit is genuine and not counterfeit?
All units are sourced from decommissioned ABB systems or verified industrial surplus channels. ABB part markings, board revision labels, and serial number formats are cross-checked during intake inspection. We do not source from unverified grey-market aggregators.

Should I buy more than one unit?
For any drive controlling a critical process, yes. Available stock of discontinued ABB option boards is finite and decreasing. Purchasing two to three units now establishes a long-term maintenance buffer at a cost that is negligible relative to the downtime exposure of a single unplanned failure.

Can you confirm compatibility with my specific drive model before I order?
Yes. Provide your drive model number and existing option board configuration, and our technical team will confirm compatibility before the order is placed.
