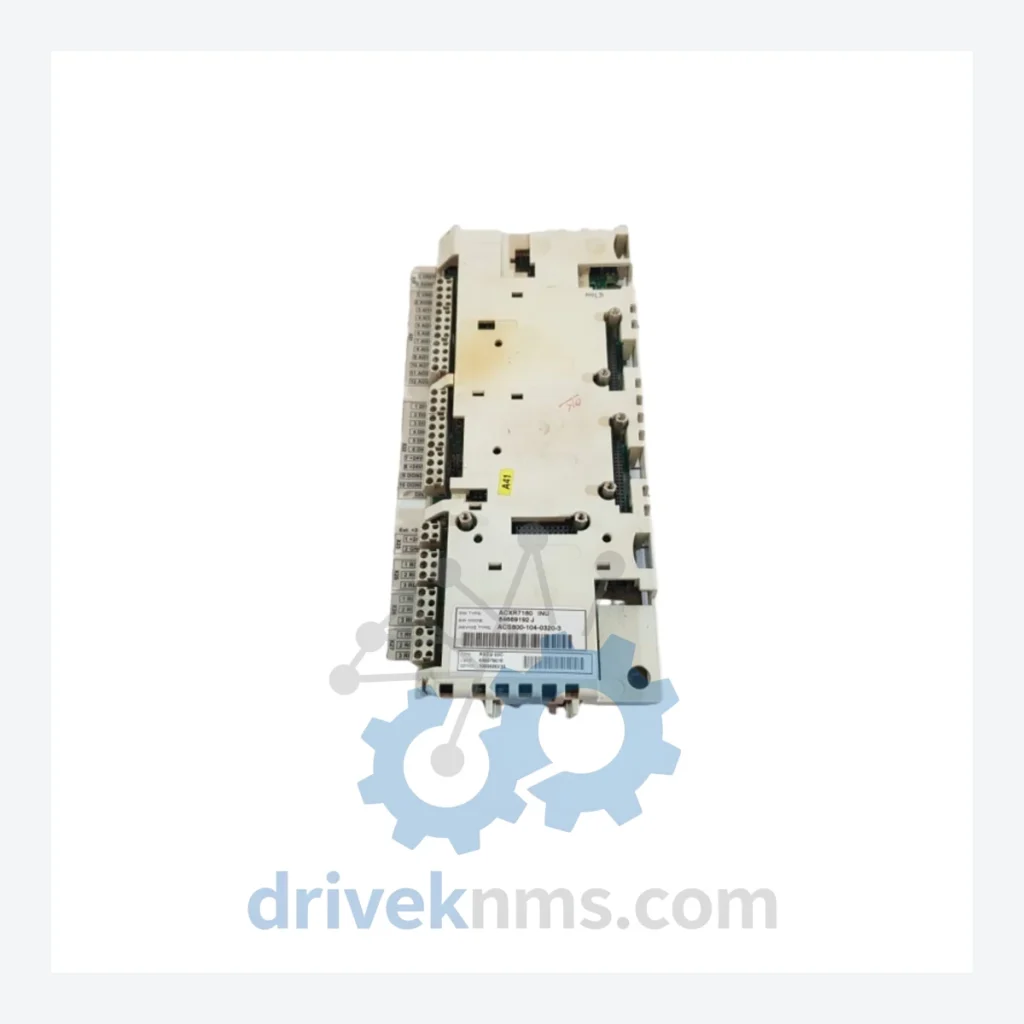

ABB RDCU-02C 64607901E Drive Control Unit – Obsolete ACS800 Spare Part

When the RDCU-02C control unit on your ABB ACS800 drive fails, the consequences extend far beyond a single component. The ACS800 series drives are deeply embedded in process-critical applications — paper mills, cement plants, marine propulsion systems, and heavy industrial lines built in the late 1990s through the 2010s. A forced migration away from this platform does not mean purchasing a new drive. It means re-engineering motor control architecture, rewriting PLC logic, requalifying safety interlocks, and retraining maintenance personnel. Conservative estimates place full-line upgrade costs in the range of several hundred thousand to several million USD per production unit. The RDCU-02C is the nerve center of the ACS800 rectifier section. Without it, the drive does not run. DriveKNMS holds verified physical stock of this discontinued board — sourced, inspected, and held specifically for facilities that cannot afford unplanned downtime or premature capital expenditure.

Technical Specifications

Note: Electrical parameters specific to individual drive configurations are not published here to prevent misapplication. Contact our technical team for compatibility verification before ordering.

Solving the Discontinued Hardware Crisis

The ABB ACS800 platform was engineered for longevity, and many facilities built their entire motor control infrastructure around it. The RDCU-02C is not a peripheral accessory — it is the primary control intelligence for the rectifier stage. When ABB discontinued this board, it did not provide a plug-compatible successor. Facilities running ACS800 multi-drive systems, common DC bus configurations, or regenerative rectifier setups have no straightforward upgrade path. The engineering hours required to migrate to a current-generation drive platform — including new cabling, updated DDCS fiber optic communication topology, and revalidation of application programs — represent a capital commitment that most maintenance budgets cannot absorb on short notice. Holding a verified spare RDCU-02C on the shelf is not a luxury. It is the difference between a two-hour board swap and a six-month capital project triggered by an unplanned failure. For facilities operating multiple ACS800 units, the risk compounds with each passing year as the secondary market for this board contracts.

Condition & Reliability Assurance

DriveKNMS applies a structured 5-step inspection protocol to all obsolete control boards before they are offered for sale:

• Step 1 – Visual & Mechanical Inspection: Full board examination for physical damage, cracked solder joints, burnt traces, and connector pin integrity.
• Step 2 – Electrolytic Capacitor Assessment: Electrolytic capacitors are the primary failure point on aged PCBs. Each capacitor is checked for bulging, leakage, and ESR deviation. Boards with degraded capacitors are either reconditioned or rejected.
• Step 3 – Firmware Version Verification: The RDCU-02C firmware version is documented and cross-referenced against known compatible ACS800 system software revisions to prevent version mismatch faults.
• Step 4 – Pin & Connector Corrosion Check: All edge connectors, DDCS fiber ports, and I/O terminals are inspected for oxidation and contact resistance. Corroded contacts are cleaned or the board is rejected.
• Step 5 – Functional Bench Test: Where test infrastructure permits, boards undergo powered functional verification prior to packaging.

Boards that do not pass all five stages are not sold. Condition is disclosed accurately — new old stock (NOS), tested surplus, or professionally refurbished — with no ambiguity.

Key Features for System Maintenance

• Drop-in Replacement: The RDCU-02C installs directly into the existing ACS800 rectifier unit mounting position. No mechanical modification required.
• No Reprogramming Required: Drive application parameters and motor data are stored in the drive's memory unit (RMIO), not on the RDCU board. Swapping the RDCU-02C does not erase drive configuration.
• No Engineering Rework: Fiber optic DDCS connections, I/O wiring, and fieldbus adapters remain undisturbed. Maintenance technicians familiar with ACS800 hardware can complete the replacement without specialist contractor involvement.
• Immediate Availability: Stock is held in-warehouse. No lead time associated with OEM procurement channels or broker sourcing delays.
• Asset Life Extension: A single RDCU-02C spare, properly stored, can extend the operational life of an ACS800 drive system by 5 to 10 years — deferring a capital replacement project that would otherwise be forced by a single component failure.

Extending Automation Asset Life: A Maintenance Strategy for ACS800 Operators

Factory management teams operating legacy ABB ACS800 installations face a structural problem: the drives themselves remain mechanically and electrically sound, but the control electronics are aging out of the secondary market. The RDCU-02C is among the boards that have become genuinely difficult to source. The following approach has proven effective for facilities committed to maximizing return on existing automation capital:

1. Criticality-Based Spare Holding: Identify every ACS800 unit in your facility that is single-point-of-failure for a production line. For each, hold a minimum of one verified RDCU-02C spare. The cost of the spare is a fraction of one hour of unplanned downtime on a continuous process line.

2. Condition-Based Monitoring: ACS800 drives generate fault history logs accessible via the drive panel or DriveWindow software. Periodic review of fault codes — particularly DC bus voltage irregularities or rectifier-side faults — provides early warning of RDCU degradation before catastrophic failure.

3. Controlled Storage Protocol: Spare PCBs should be stored in anti-static packaging, in a climate-controlled environment (15–25°C, <60% RH). Electrolytic capacitors on stored boards benefit from periodic re-forming — applying rated voltage for a controlled period every 12–18 months to prevent dielectric degradation.

4. Documented Replacement Procedures: Maintain site-specific RDCU-02C swap procedures in your maintenance management system. When a failure occurs, the replacement should be executable by in-house technicians within two hours, not dependent on OEM field service availability.

5. Procurement Timing: The secondary market for obsolete ABB control boards tightens each year. Facilities that defer procurement until a failure occurs frequently encounter extended lead times or inflated spot pricing. Securing stock during planned maintenance windows — not during emergency shutdowns — is the operationally sound approach.

FAQ

Q: What warranty applies to an obsolete RDCU-02C?
A: DriveKNMS provides a 90-day warranty covering functional defects identified under normal operating conditions. Warranty terms are confirmed in writing at the time of sale.

Q: How do I confirm the board is new or quality-refurbished — not a failed return?
A: Each board sold by DriveKNMS is accompanied by an inspection record documenting its condition classification and the steps completed in our QA process. We do not sell boards that have failed our inspection protocol.

Q: Can I order multiple units for long-term spares holding?
A: Yes. For facilities managing multiple ACS800 installations, we recommend discussing a reserved allocation. Contact us directly to discuss quantity availability and storage lead times.

Q: Will the RDCU-02C work with all ACS800 variants?
A: The RDCU-02C is specific to the ACS800 rectifier unit. Compatibility depends on your specific ACS800 system configuration and firmware revision. Contact our technical team with your drive type code before ordering.

Q: What is the lead time?
A: In-stock units ship within 1–3 business days. Contact us to confirm current availability before placing an order.
