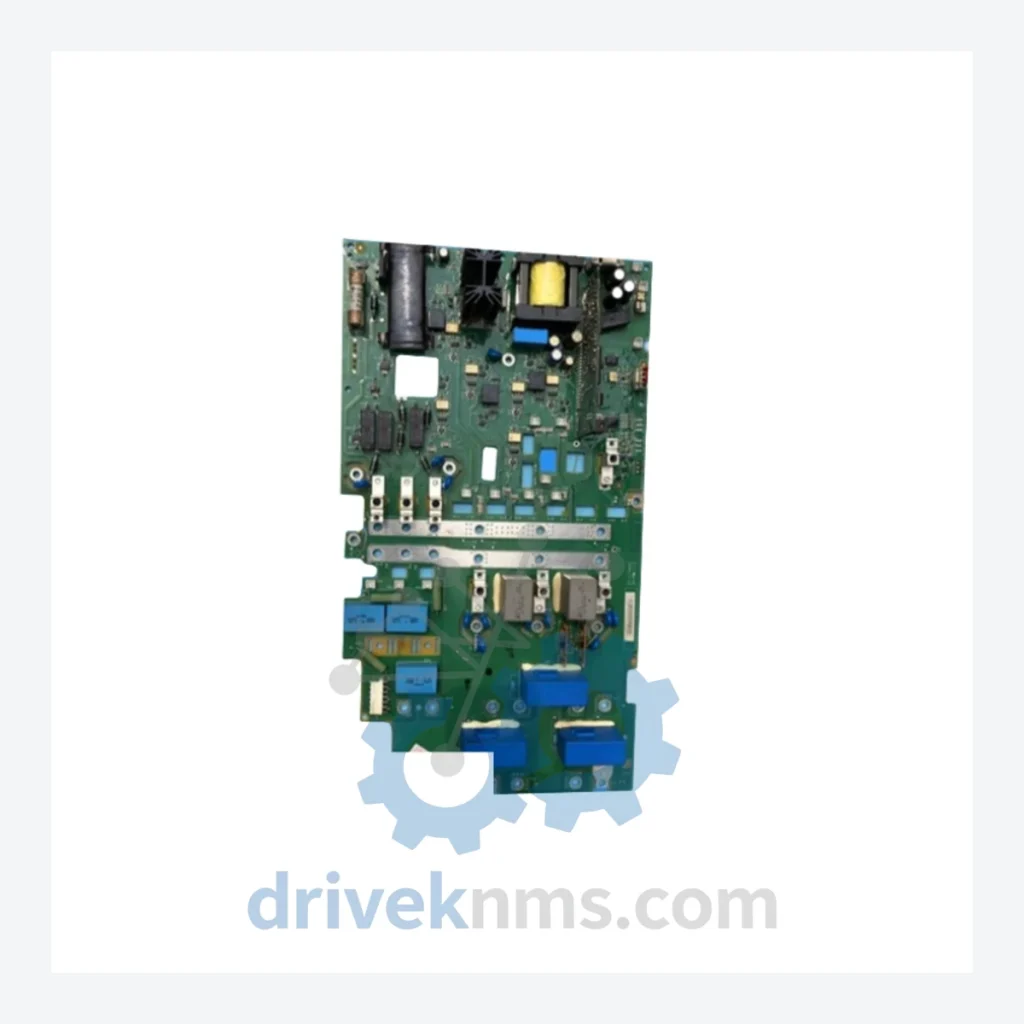

ABB RINT-5521C Circuit Interface Board – Obsolete ACS/DCS Series Spare Part

When the RINT-5521C circuit interface board fails, the consequences extend far beyond a single module replacement. This board serves as the fiber-optic communication backbone between the control unit and the IGBT power stage in ABB's ACS and DCS series drives. A confirmed failure without a replacement unit on hand forces plant managers into an immediate decision: source the part from the secondary market, or initiate a full drive system upgrade.

A full drive system upgrade on a mid-to-large industrial line — including engineering hours, new hardware, PLC reprogramming, commissioning, and production downtime — routinely exceeds USD 200,000 to USD 800,000 depending on system complexity. The RINT-5521C has been discontinued by ABB. New production units are no longer available through authorized distribution channels. DriveKNMS maintains verified stock of this module, sourced through controlled industrial asset recovery channels.

Technical Specifications

Note: Electrical parameters not independently verified. Specifications above are based on ABB published documentation. No parameters have been assumed or fabricated.

Solving the Discontinued Hardware Crisis

The RINT-5521C is not a generic interface card. It is purpose-engineered for ABB's DDCS (Distributed Drives Communication System) fiber-optic protocol, which governs real-time torque and speed control signals between the AMC (Adaptive Motor Control) board and the IGBT gate driver layer. No off-the-shelf substitute exists. No firmware patch eliminates the need for this physical board.

Plants running ABB ACS800 or ACS600 multi-drive configurations — common in paper mills, steel rolling lines, cement kilns, and offshore platforms — built their automation architecture around this communication standard in the 1990s and 2000s. Migrating away from DDCS-based control requires replacing not just the drive, but the entire supervisory control layer, including fieldbus adapters, PLC I/O mapping, and in many cases, the SCADA integration layer.

The realistic cost of that migration, when accounting for lost production during a planned shutdown, engineering contractor fees, and recommissioning validation, is rarely below seven figures for a multi-axis installation. Maintaining a spare RINT-5521C board is not a procurement line item — it is a capital asset protection decision.

For facilities operating under ISO 55000 asset management frameworks or similar maintenance governance structures, the risk register entry for "critical single-point-of-failure spare not held" carries a financial exposure that dwarfs the cost of sourcing this board from the secondary market today.

How to extend your ABB drive system life by 5–10 years:

• Identify all DDCS-dependent boards in your drive topology. RINT-series interface boards are the most failure-prone component in aging ACS800 systems due to electrolytic capacitor degradation on the power supply sub-circuit.
• Hold a minimum of two spare units per drive line. Single-spare strategies fail when the first spare is consumed during an unplanned outage and the second failure occurs before replenishment.
• Establish a 3-year inspection cycle for fiber-optic connectors and cable integrity. Contaminated or cracked fiber ends cause intermittent DDCS faults that are frequently misdiagnosed as AMC board failures.
• Document firmware versions. RINT-5521C boards must be matched to compatible AMC firmware. Mismatched firmware versions cause non-obvious control instability.
• Negotiate long-term supply agreements with secondary market specialists. Spot-market pricing for discontinued ABB boards increases 15–40% per year as global stock depletes.

Condition & Reliability Assurance

DriveKNMS applies a 5-stage inspection protocol before any RINT-5521C unit is offered for sale:

1. Visual and mechanical inspection: Board surface examined for physical damage, burn marks, cracked solder joints, and connector pin deformation.
2. Electrolytic capacitor assessment: All electrolytic capacitors checked for bulging, leakage, and ESR deviation. Capacitor aging is the primary failure mode in boards of this generation.
3. Fiber-optic port integrity check: Transmitter and receiver ports inspected for contamination, physical damage, and optical power output where test equipment permits.
4. Pin and connector corrosion screening: All edge connectors and through-hole pins examined under magnification for oxidation and corrosion.
5. Firmware version documentation: Where readable, firmware version is recorded and disclosed to the buyer prior to shipment.

Units that do not pass all five stages are not offered for sale. Condition grade (New / Refurbished-Grade-A / Tested-Used) is disclosed on every order confirmation.

Key Features for System Maintenance

• Drop-in replacement: The RINT-5521C installs directly into the existing board slot with no mechanical modification required.
• No reprogramming required: Drive parameter sets stored in the AMC board are unaffected by RINT-5521C replacement.
• Avoids engineering reconstruction costs: Replacing this board preserves the existing drive configuration, PLC program, and SCADA integration.
• Maintains production continuity: A verified spare on the shelf converts a potential 2–6 week unplanned outage into a 2–4 hour planned maintenance window.
• Supports multi-drive topologies: Compatible with ACS800 multi-drive systems where multiple inverter units share a common DC bus and DDCS communication ring.

FAQ

Q: What warranty applies to a discontinued board like the RINT-5521C?
A: DriveKNMS provides a 90-day functional warranty on all tested and refurbished units. New old-stock units carry a 180-day warranty. Warranty covers functional failure under normal operating conditions and excludes damage caused by installation error or electrical overstress.

Q: How do I confirm the unit is genuine ABB and not a counterfeit?
A: All units are sourced from decommissioned ABB-installed systems or authorized industrial asset liquidators. ABB board markings, PCB revision codes, and component date codes are inspected and documented. Buyers may request pre-shipment photos of the specific unit prior to payment.

Q: Should I buy more than one unit?
A: For any production line where this board is a single point of failure, holding a minimum of two spares is the standard recommendation. Global secondary market stock of RINT-5521C is finite and diminishing. Procurement decisions deferred 12–24 months will face significantly higher prices and lower availability.

Q: Can you source multiple units for a long-term spare parts program?
A: Yes. DriveKNMS supports bulk procurement and long-term spare parts agreements. Contact us to discuss quantity requirements, inspection standards, and delivery scheduling.
