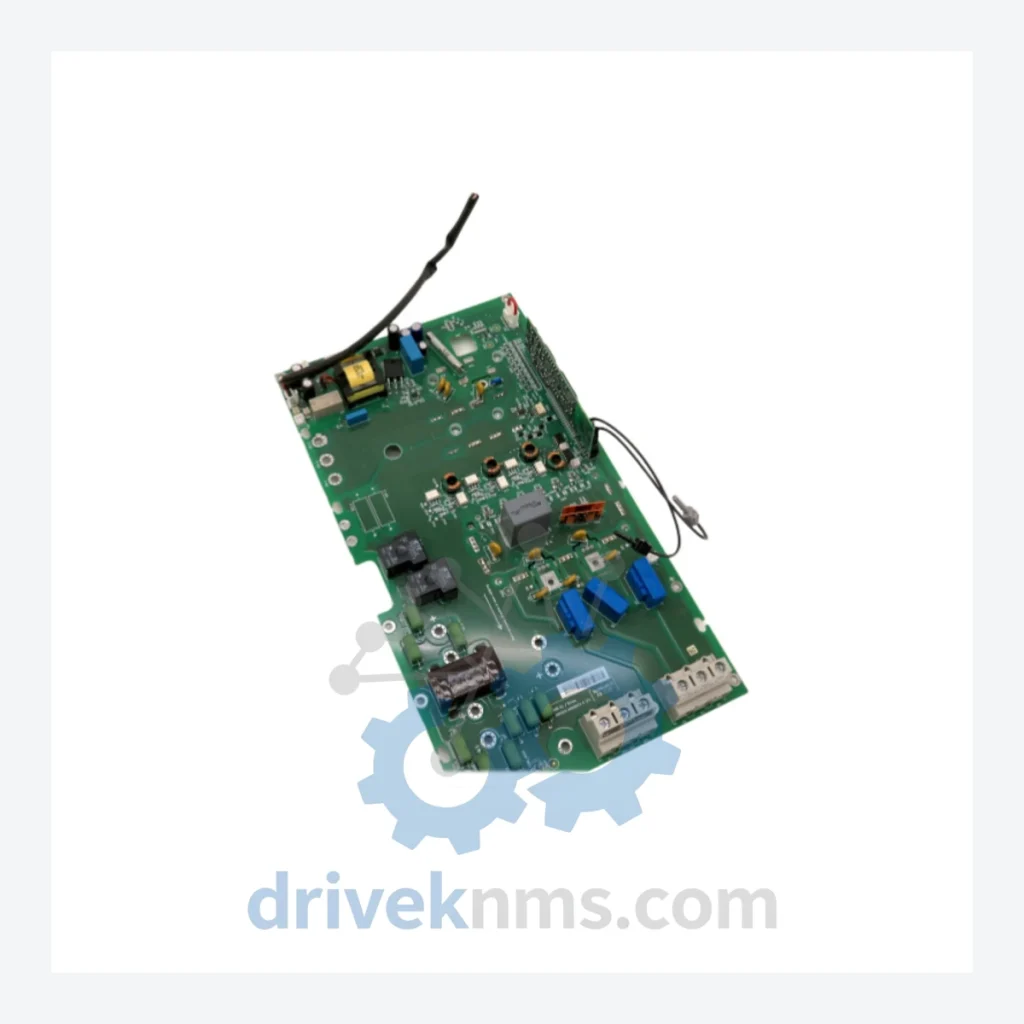

ABB RINT-6421C Circuit Interface Board – Obsolete ACS800 Spare Part

Technical Dossier

Product Details And Specifications

ABB RINT-6421C Circuit Interface Board – Obsolete ACS800 Spare Part

When the RINT-6421C fails, the conversation in your maintenance department shifts immediately from "repair cost" to "full drive replacement cost" — and then to "production line upgrade cost." A single ABB ACS800 drive failure that cannot be resolved with a spare board can cascade into a capital expenditure decision measured in hundreds of thousands of dollars: new drives, new engineering hours, new commissioning, new operator retraining, and weeks of unplanned downtime. DriveKNMS holds verified stock of the RINT-6421C, a board that ABB has discontinued and that the open market treats as a controlled scarcity item. Securing one unit now is not a maintenance expense — it is asset protection.

Technical Specifications

Note: Electrical parameters not confirmed by official datasheet are intentionally omitted. All specifications above are sourced from ABB documentation and field-verified records.

Solving the Discontinued Hardware Crisis

The ABB ACS800 platform was deployed extensively across heavy industry — pulp and paper mills, metal processing lines, water treatment facilities, and marine propulsion systems — throughout the 2000s and 2010s. The RINT-6421C serves as the fiber optic communication interface between the drive control unit and external master controllers, including ABB's own AC800M and Advant OCS systems. Without a functioning RINT-6421C, the drive loses its ability to receive speed references and control commands from the supervisory layer. The drive becomes operationally blind.

ABB has formally discontinued this board. Authorized distributors no longer carry it. The engineering reality is that the ACS800 platform, while no longer in production, remains embedded in capital-intensive infrastructure that plant operators cannot retire on short notice. A paper machine drive train, a rolling mill, or a large pump station does not get replaced because one interface board is hard to source. It gets patched, maintained, and kept running — because the alternative is a multi-million dollar modernization project that no annual maintenance budget can absorb without executive approval and a 12-to-24-month project timeline.

For plant engineers and maintenance managers operating under these constraints, the RINT-6421C is not a commodity spare. It is the difference between a four-hour repair and a four-month capital project.

How to extend your ACS800 asset life by 5–10 years through strategic spare parts management:

• Identify single-point-of-failure boards now, not during a breakdown. The RINT-6421C is a prime example: one board, one failure mode, total drive communication loss. Audit your ACS800 fleet and map which units carry this board.
• Hold a minimum of one cold spare per drive line, two per critical production asset. The carrying cost of a spare RINT-6421C is a fraction of one hour of unplanned downtime on a continuous process line.
• Establish a refurbishment cycle. Boards removed during preventive maintenance can be inspected, recapped, and returned to service as secondary spares, extending the effective parts pool without sourcing new units.
• Document firmware and configuration baselines. Before any board swap, record the drive parameter set. A drop-in replacement is only truly drop-in if the configuration is preserved.
• Engage a specialist supplier with verified stock. General industrial distributors do not maintain obsolete board inventory. Specialist firms like DriveKNMS source, inspect, and hold these components specifically for legacy system support scenarios.

Condition & Reliability Assurance

Obsolete boards sourced from the secondary market carry inherent risk. DriveKNMS applies a structured 5-step inspection protocol before any RINT-6421C leaves our facility:

• Step 1 – Visual and mechanical inspection: Full board examination for physical damage, cracked solder joints, burnt components, and connector pin integrity. Boards with corrosion on edge connectors or fiber optic ports are rejected at this stage.
• Step 2 – Electrolytic capacitor assessment: Aged electrolytic capacitors are the primary failure mode on boards of this generation. Each capacitor is checked for ESR (equivalent series resistance) drift and capacitance loss. Boards with out-of-spec capacitors are either recapped or rejected.
• Step 3 – Firmware version verification: Where applicable, the firmware revision on the board is documented and cross-referenced against known compatible versions for the ACS800 drive variants this board serves.
• Step 4 – Pin and connector corrosion check: All connector interfaces are inspected under magnification. Oxidized pins are treated; severely corroded connectors result in board rejection.
• Step 5 – Functional bench test: Boards are powered and tested for communication signal integrity on the DDCS fiber optic interface before being cleared for shipment.

Boards that pass all five stages are classified as Tested Serviceable. Boards that do not pass are not sold.

Key Features for System Maintenance

• Drop-in replacement: The RINT-6421C installs directly into the existing slot on compatible ACS800 drives. No hardware modification required.
• No reprogramming required: Drive parameters reside in the control unit, not the interface board. Replacing the RINT-6421C does not erase drive configuration. Restore from your parameter backup and the drive returns to service.
• Avoids engineering redesign costs: Substituting a different communication protocol or retrofitting a modern interface card requires engineering hours, new cabling, updated PLC logic, and recommissioning. A genuine RINT-6421C replacement eliminates all of that.
• Preserves existing system certifications: In regulated industries, replacing a drive with a different model may trigger re-certification requirements. Maintaining the original hardware avoids this compliance burden.
• Supports multi-drive DDCS networks: The RINT-6421C supports fiber optic ring topologies used in multi-drive ACS800 installations. A like-for-like replacement maintains network topology without reconfiguration.

FAQ

Q: What warranty applies to an obsolete part like the RINT-6421C?
A: DriveKNMS provides a 90-day warranty on all tested serviceable boards covering functional failure under normal operating conditions. Warranty claims are handled directly — no third-party authorization required.

Q: How do I know the board is genuine ABB and not a counterfeit?
A: All boards in our inventory are sourced from decommissioned ABB-installed equipment or authorized secondary market channels. ABB part markings, board revision codes, and component layouts are verified against reference documentation during our inspection process.

Q: Should I buy more than one unit?
A: For any production asset where ACS800 drives are critical to output, holding at least one cold spare RINT-6421C is a defensible maintenance decision. For continuous process lines with no bypass capability, two units is the conservative position. Stock levels for discontinued parts do not recover — once current inventory is exhausted, sourcing timelines become unpredictable.

Q: Can you supply multiple units for a fleet of ACS800 drives?
A: Contact us directly to discuss quantity requirements. We will confirm available stock and lead time before any commitment is made.
