ABB RTAC-01 Encoder Interface – Obsolete ACS/DCS Drive Spare Part

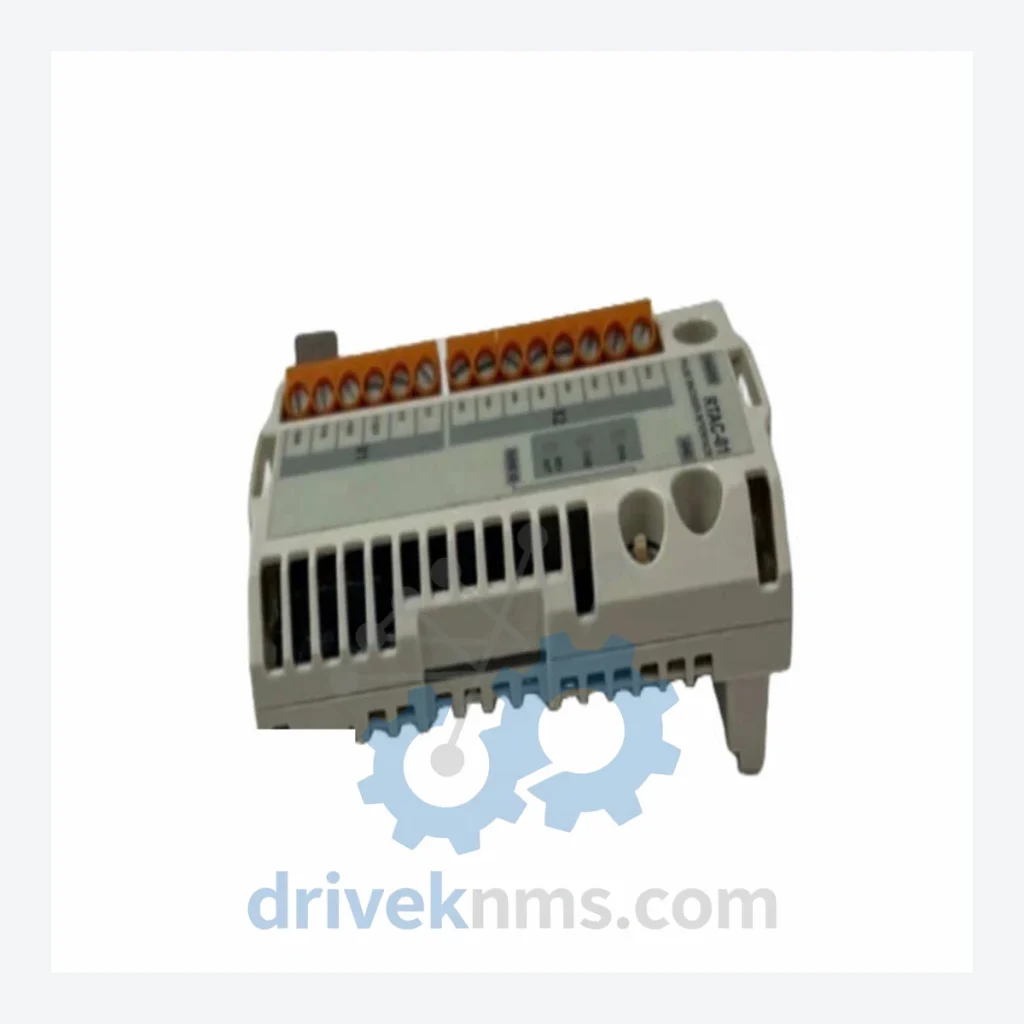

The ABB RTAC-01 is a resolver-to-digital encoder interface module designed for use with ABB ACS and DCS series variable speed drives. This module provides closed-loop speed and position feedback by converting resolver signals into digital pulse-train data compatible with the drive's control board. It is a hardware-level component embedded in the drive's option slot architecture.

When an RTAC-01 fails in a production environment, the drive loses its ability to perform closed-loop vector control. The result is an immediate forced shutdown of the motor axis. In process industries — petrochemical, pulp and paper, metals — a single unplanned axis failure can halt an entire production line. Replacing the drive system outright, including engineering, rewiring, recommissioning, and retraining, routinely costs between USD 80,000 and USD 400,000 per installation. Sourcing a functional RTAC-01 spare eliminates that exposure entirely.

DriveKNMS maintains a limited inventory of RTAC-01 units sourced from decommissioned installations and verified against original ABB specifications. This is not a commodity item. Availability is finite and not guaranteed to be replenished.

Technical Specifications

Solving the Discontinued Hardware Crisis

The RTAC-01 was produced during ABB's ACS 600 and ACS 800 drive generation, a platform that remains operational in thousands of industrial facilities worldwide. ABB officially discontinued this module as part of its transition to newer drive architectures. No direct OEM replacement exists that is pin-compatible and firmware-transparent with the original installation.

Facilities running ACS 600 or ACS 800 drives in closed-loop resolver mode face a binary choice when the RTAC-01 fails: source a functional spare, or commit to a full drive replacement project. The latter requires not only capital expenditure on new hardware but also engineering hours to redesign the motor feedback circuit, update PLC or DCS configurations, and validate the new system under production conditions. In regulated industries such as nuclear, pharmaceutical, or food processing, this validation process alone can take months.

The strategic case for maintaining RTAC-01 spares in stock is straightforward. A single unit held in a climate-controlled spare parts cabinet costs a fraction of one hour of unplanned downtime. For facilities with multiple ACS 600 or ACS 800 axes in resolver feedback mode, a minimum stock of two units per site is a defensible maintenance policy. This approach extends the operational life of the existing drive infrastructure by 5 to 10 years without requiring any changes to the motor, cabling, or control system architecture.

DriveKNMS specializes in sourcing exactly this category of component — modules that OEMs no longer produce, that distributors no longer stock, and that are not available through standard procurement channels. Our network covers decommissioned plant inventories across Europe and Asia, giving us access to units that are otherwise unavailable in the open market.

Condition & Reliability Assurance

Every RTAC-01 unit processed by DriveKNMS passes a structured five-step inspection protocol before it is offered for sale:

• Step 1 – Visual and Mechanical Inspection: Board surface examined for physical damage, burn marks, cracked solder joints, and connector pin deformation. Units with any structural compromise are rejected at this stage.
• Step 2 – Electrolytic Capacitor Assessment: All electrolytic capacitors are checked for bulging, leakage, and ESR deviation. Capacitor aging is the primary failure mode in legacy power electronics. Units with degraded capacitors are either recapped or rejected.
• Step 3 – Connector and Pin Corrosion Check: All edge connectors and option slot pins are inspected under magnification for oxidation and corrosion. Affected contacts are cleaned using industry-standard contact restoration procedures.
• Step 4 – Firmware and Configuration Verification: Where applicable, the module's firmware version is identified and documented. Compatibility with the target drive firmware revision is confirmed prior to shipment.
• Step 5 – Functional Bench Test: The unit is powered and tested for resolver signal processing function. Output signal integrity is verified against documented ABB performance parameters.

Units that pass all five steps are classified as Tested Functional. Units that pass visual and mechanical inspection but cannot be bench-tested due to equipment constraints are classified as Inspected – Untested and are offered at a corresponding price point with full disclosure.

Key Features for System Maintenance

• Drop-in replacement: The RTAC-01 installs directly into the original option slot without modification to the drive chassis, motor wiring, or resolver cable.
• No reprogramming required: The drive's existing parameter set, including speed controller tuning, encoder pulse configuration, and feedback scaling, remains valid after module replacement. No recommissioning of the control loop is necessary.
• No engineering redesign: Unlike a drive replacement project, swapping the RTAC-01 does not trigger a change management process under ISO 9001, IEC 61511, or equivalent plant safety management systems. The scope of work is a like-for-like hardware replacement.
• Preserves existing motor and cabling investment: The resolver motor and its dedicated shielded cable remain in service. There is no need to replace or re-terminate field wiring.
• Minimizes downtime window: A trained maintenance technician can complete the module swap in under two hours, including drive power-down, module exchange, and restart verification.

FAQ

Q: What warranty applies to a used or refurbished RTAC-01?
A: DriveKNMS provides a 90-day functional warranty on all Tested Functional units. If the unit fails under normal operating conditions within this period, we will replace it or issue a full refund. Inspected – Untested units carry a 30-day DOA (Dead on Arrival) guarantee.

Q: How do I confirm the unit is genuine ABB and not a counterfeit?
A: All units are sourced from documented decommissioned installations or verified surplus inventories. ABB part markings, board revision codes, and manufacturing date codes are photographed and provided with each shipment upon request. We do not source from unverified secondary markets.

Q: Should I purchase more than one unit?
A: For any facility operating more than two ACS 600 or ACS 800 drives in closed-loop resolver mode, holding a minimum of two RTAC-01 spares is a standard risk mitigation practice. Given that this module is discontinued and our inventory is finite, procurement of multiple units in a single order is advisable. There is no price penalty for multi-unit orders; contact us for volume pricing.

Q: Can the RTAC-01 be repaired if it fails again after installation?
A: Component-level repair is possible for certain failure modes, particularly capacitor degradation and connector corrosion. DriveKNMS offers a board-level repair assessment service. Contact us with the failure symptom and drive fault code for an evaluation.
