ABB RUSB-02 Series: Comprehensive Module Range and Technical Overview

The ABB RUSB-02 (order code 3AUA0000040000) is a USB-to-DDCS (Distributed Drive Control System) communication adapter designed to connect a PC running ABB DriveWindow or DriveWindow Light software directly to ABB AC drives via the drive's optical DDCS fiber-optic channel. It is deployed across heavy industrial sectors including petrochemical refineries, pulp and paper mills, offshore platforms, nuclear auxiliary systems, and steel rolling mills — environments where reliable drive parameterization, commissioning, and fault diagnostics are non-negotiable operational requirements.

The RUSB-02 occupies a critical position in ABB's drive maintenance ecosystem. It replaces the legacy NDPA-02 and NPBA-12 serial-port adapters, eliminating the RS-232 dependency that became a bottleneck as modern industrial PCs phased out COM ports. Its installed base spans ACS800, ACS600, ACS550, DCS800, and DCS600 drive families — platforms that collectively represent hundreds of thousands of units still in active service globally.

The Evolution of RUSB-02 Architecture

ABB's drive communication interface architecture has progressed through three distinct generations. The first generation relied on RS-232 serial adapters (NDPA-02, NPBA-12) interfacing with proprietary DDCS fiber-optic rings at 1 Mbit/s. These required dedicated COM ports and were incompatible with USB-only workstations, creating a growing maintenance gap as legacy hardware was retired.

The second generation introduced the RUSB-02, which bridges USB 1.1/2.0 (Full Speed, 12 Mbit/s) on the PC side to the DDCS optical protocol on the drive side. The adapter is powered entirely from the USB bus — no external supply required — and presents itself to Windows as a virtual COM port via a FTDI-based driver stack. This design decision preserved backward compatibility with DriveWindow 2.x software without requiring protocol-layer changes.

The current generation for new installations has shifted toward Ethernet-based tools (DriveWindow 3.x with FENA-21 or FENA-11 Ethernet adapters), which support simultaneous multi-drive monitoring and integration with plant-level SCADA. However, the RUSB-02 remains the only viable single-point commissioning tool for ACS600 and DCS600 drives, which do not support Ethernet fieldbus adapters natively. For these legacy platforms — many of which carry 20+ year operational lifespans in capital-intensive facilities — the RUSB-02 is effectively irreplaceable without a full drive cabinet retrofit.

RUSB-02 Full Catalog & Functionalities (SKU List)

The RUSB-02 product line is a focused adapter family. The following represents the complete verified SKU range and associated accessories within the RUSB-02 ecosystem and its direct operational context:

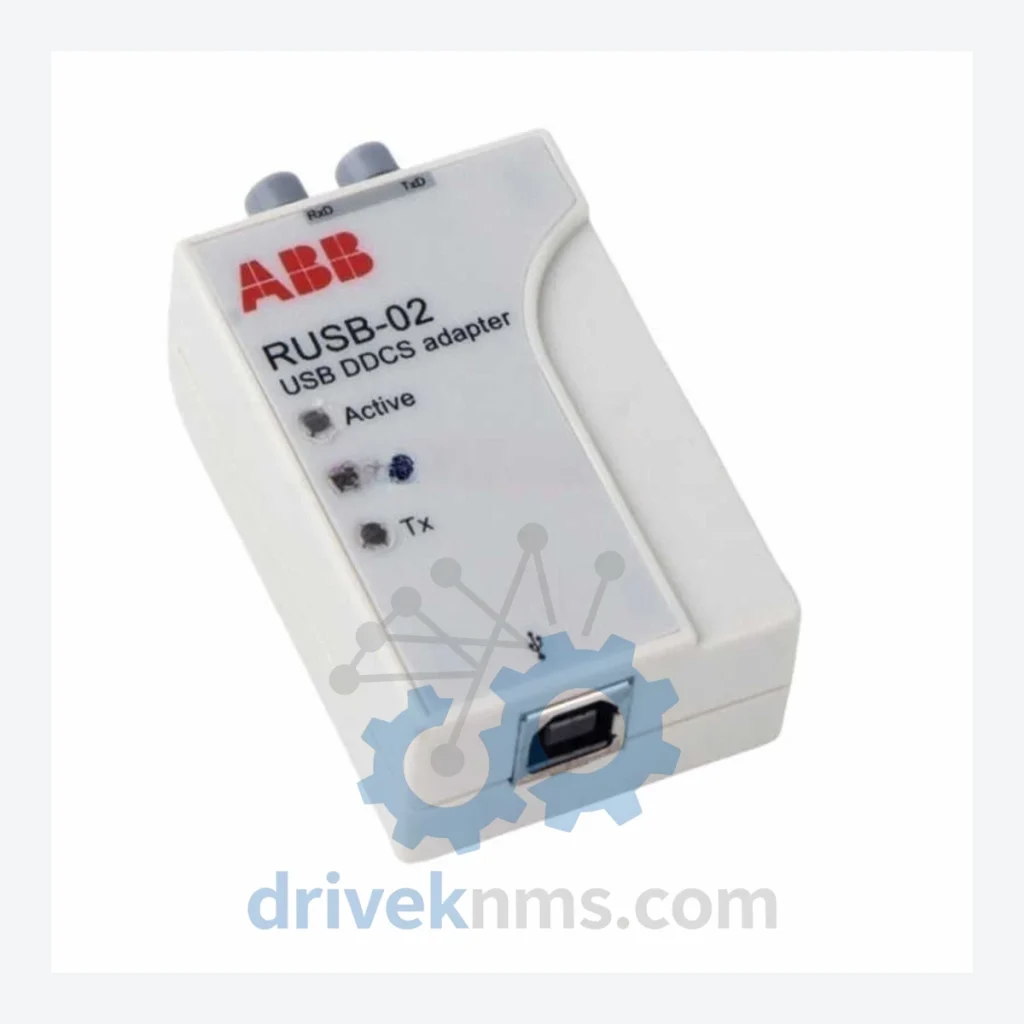

RUSB-02 / 3AUA0000040000: USB-to-DDCS optical adapter, primary unit, bus-powered, FTDI chipset, compatible with DriveWindow 2.x and DriveWindow Light.

3AUA0000040000 R0001: Revision R0001 hardware variant; identical function, updated PCB layout for improved EMC compliance in high-interference environments.

3AUA0000040000 R0002: Revision R0002; updated FTDI firmware pre-loaded, resolves USB enumeration delay on Windows 10/11 hosts.

NDPA-02: Legacy RS-232-to-DDCS predecessor adapter; direct functional predecessor to RUSB-02, now discontinued, no longer manufactured.

NPBA-12: RS-232 DDCS panel bus adapter; predecessor for ACS600 panel-mount commissioning; superseded by RUSB-02.

FENA-21: Ethernet/IP and Modbus TCP adapter for ACS880/ACS580; next-generation replacement path for new drive installations.

FENA-11: Ethernet adapter for ACS800 series; parallel migration path for sites standardizing on Ethernet-based drive tools.

FDNA-01: DeviceNet adapter for ACS800; used alongside RUSB-02 in mixed-protocol drive panels.

FPBA-01: PROFIBUS DP adapter for ACS800/ACS550; common co-installation with RUSB-02 in European process plants.

FCAN-01: CANopen adapter for ACS800; used in mobile machinery and crane applications alongside RUSB-02 for local commissioning.

FMBA-01: Modbus RTU adapter for ACS800; deployed in water treatment and HVAC applications.

RDCO-01: DDCS fiber-optic communication module for ACS800 master/follower configurations; shares the same DDCS bus accessed by RUSB-02.

RDCO-02: Extended DDCS module with additional channel capacity; used in multi-drive master/follower systems where RUSB-02 connects for system-level diagnostics.

RDCO-03: DDCS module variant for DCS800 DC drives; RUSB-02 connects to the same optical port for parameter access.

RUSB-02 Optical Cable Set: Factory-supplied 1m POF (Plastic Optical Fiber) cable pair (TX/RX); replacement consumable for damaged fiber leads.

DriveWindow 2.7: PC software suite; the primary application layer that the RUSB-02 serves as hardware interface for — required for full parameter read/write on ACS600/DCS600.

DriveWindow Light 2.x: Reduced-feature free software variant; compatible with RUSB-02 for basic parameter monitoring and fault log retrieval.

Sourcing Hard-to-Find & Obsolete RUSB-02 Parts

The RUSB-02 (3AUA0000040000) has entered the mature/end-of-active-production phase of its lifecycle. ABB no longer lists it as a standard catalog item through primary distribution channels in most regions. This creates a sourcing gap for maintenance teams operating ACS600, ACS800, and DCS600 fleets where the adapter is the sole available commissioning interface.

DriveKNMS maintains a dedicated inventory of RUSB-02 units sourced through verified secondary market channels, including decommissioned plant equipment, authorized surplus distributors, and factory-refurbished stock. Each unit is individually tested prior to dispatch. We support the following sourcing scenarios: emergency replacement for failed units with same-day quotation, bulk procurement for maintenance contractors managing multi-site drive fleets, and long-term supply agreements for facilities with extended planned maintenance cycles (5–10 year horizons).

For sites where RUSB-02 availability is a recurring constraint, DriveKNMS can also advise on migration pathways to FENA-21/FENA-11 Ethernet adapters for compatible drive types, reducing long-term dependency on the RUSB-02 supply chain.

Quality Control for the RUSB-02 Range

The RUSB-02 presents specific test challenges due to its dual-interface nature: USB enumeration on the host side and DDCS optical signal integrity on the drive side. DriveKNMS applies the following test protocol to every unit processed:

USB Enumeration Test: Unit is connected to a Windows 10/11 test host. FTDI driver installation is verified. Device Manager confirmation of virtual COM port assignment is logged. Enumeration time is recorded; units exceeding 8 seconds are flagged for FTDI chip inspection.

DDCS Optical Power Output Test: TX optical output power is measured using a calibrated POF optical power meter. Acceptable range per ABB specification: −10 dBm to −6 dBm at 650 nm. Units below −12 dBm are rejected.

DDCS Loopback Communication Test: A loopback fiber connector is used to verify full-duplex DDCS frame transmission and reception. DriveWindow Light is used to initiate a parameter read cycle; successful completion confirms end-to-end data path integrity.

Cable and Connector Inspection: POF cable connectors are inspected under 10x magnification for end-face contamination, cracking, or deformation. Damaged cables are replaced with new factory-spec POF assemblies.

Firmware Version Verification: FTDI chip firmware version is read and logged. Units with outdated firmware are reflashed to the current ABB-qualified version prior to dispatch.
