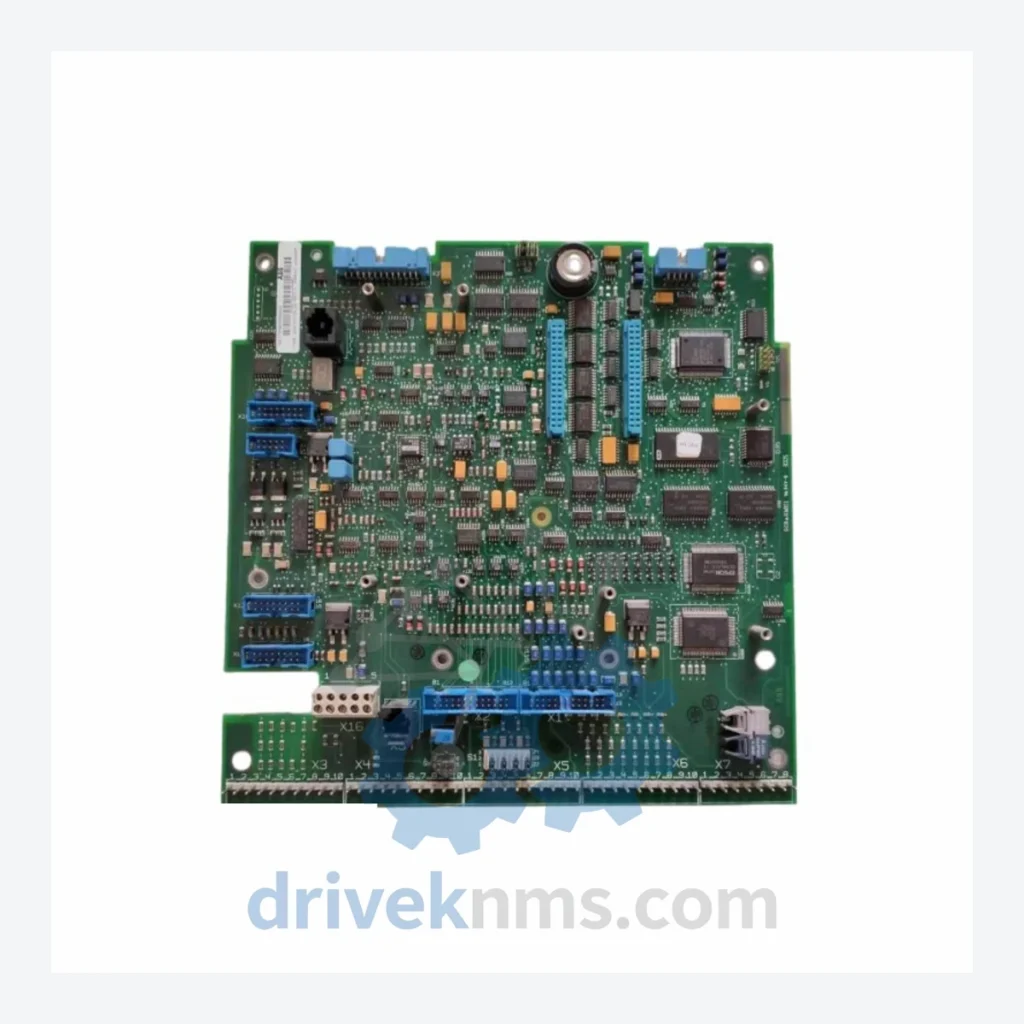

ABB SDCS Series: Comprehensive Module Range and Technical Overview

The ABB SDCS (Signal and Drive Control System) series represents ABB's core DC drive control platform, deployed across heavy industrial sectors including petrochemical refineries, nuclear power auxiliary systems, steel rolling mills, paper mills, and offshore platforms. The SDCS architecture underpins ABB's DCS 400, DCS 500, and DCS 600 DC drive families, providing the control intelligence for armature current regulation, field excitation, speed feedback processing, and serial communications. Installed base spans multiple continents, with active units still operating in facilities commissioned in the 1990s through the 2010s. The longevity of this platform creates sustained demand for replacement boards, particularly for facilities operating under long-term maintenance contracts where drive replacement is not economically viable.

The Evolution of SDCS Architecture

The SDCS series was introduced as the control backbone for ABB's second-generation DC drive platforms. Early variants such as the SDCS-CON-1 and SDCS-CON-2 used parallel backplane communication with discrete analog signal conditioning. The SDCS-CON-2A (3BHE004059R0001) introduced revised firmware compatibility and improved EMC filtering, making it the dominant replacement unit for DCS 400/500 installations. Subsequent revisions addressed IGBT gate driver compatibility and expanded the operating temperature range for high-ambient environments. The SDCS-CON-3 and SDCS-CON-4 variants introduced DDCS (Distributed Drive Control System) fiber-optic communication, enabling integration with ABB's AC800M and Advant OCS control platforms. As of 2026, the SDCS series is in the mature/end-of-life phase. ABB has transitioned new projects to the DCS880 platform. However, the installed base of SDCS-based drives remains extensive, and ABB's official spare parts availability for early SDCS variants is increasingly constrained, making third-party MRO sourcing essential for plant continuity.

SDCS Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly deployed modules within the ABB SDCS series. Each entry reflects the module's primary functional role within the drive system.

SDCS-CON-2A (3BHE004059R0001): Main control board for DCS 400/500; armature current and speed regulation.
SDCS-CON-2 (3BSE003827R1): Earlier revision control board; compatible with DCS 500B base drives.
SDCS-CON-1 (3BSE003825R1): First-generation SDCS control board; analog speed reference input.
SDCS-CON-3 (3BSE012489R1): Enhanced control board with DDCS fiber-optic port for fieldbus integration.
SDCS-CON-4 (3BSE014227R1): High-performance control board; supports encoder and resolver feedback simultaneously.
SDCS-IOB-1 (3BSE003832R1): I/O expansion board; 8 DI, 4 DO, 4 AI, 2 AO for auxiliary control signals.
SDCS-IOB-2 (3BSE003833R1): Extended I/O board; adds relay outputs and additional analog channels.
SDCS-IOB-3 (3BSE014228R1): High-density I/O board; 16 DI, 8 DO for complex interlock wiring.
SDCS-FEX-1 (3BSE003834R1): Field excitation board; controls DC motor field current via thyristor bridge.
SDCS-FEX-2 (3BSE003835R1): Dual-bridge field excitation board; supports reversible field weakening.
SDCS-PIN-11 (3BSE003836R1): Power interface board; interfaces control section to thyristor firing circuits.
SDCS-PIN-21 (3BSE003837R1): Power interface board for larger frame sizes; 6-pulse bridge synchronization.
SDCS-DSL-1 (3BSE003838R1): Drive serial link board; RS-485 Modbus RTU communication adapter.
SDCS-COM-1 (3BSE003839R1): PROFIBUS DP communication adapter; slave mode, 12 Mbit/s.
SDCS-COM-5 (3BSE014229R1): DeviceNet communication adapter; supports explicit and implicit messaging.
SDCS-COM-8 (3BSE014230R1): Ethernet/IP adapter; enables integration with Rockwell and Siemens SCADA systems.
SDCS-MEM-8 (3BSE003840R1): Memory expansion module; stores drive parameter sets and fault logs.
SDCS-PSU-1 (3BSE003841R1): Internal 24 VDC power supply board; feeds control electronics from AC mains.
SDCS-PSU-2 (3BSE014231R1): Redundant power supply board; hot-swap capable for critical process applications.

Sourcing Hard-to-Find & Obsolete SDCS Parts

DriveKNMS maintains a dedicated inventory program for end-of-life ABB SDCS components. As ABB progressively withdraws SDCS spare parts from its standard catalog, facilities operating DCS 400, DCS 500, and DCS 600 drives face increasing lead times through OEM channels — often 16 to 52 weeks for boards such as the SDCS-CON-2A (3BHE004059R0001) and SDCS-FEX-1. DriveKNMS sources verified surplus stock from decommissioned plant equipment, factory overstock, and authorized distributor liquidations. All units are cataloged by part number, revision level, and date code prior to listing. For obsolete variants such as SDCS-CON-1 and SDCS-PIN-11, DriveKNMS provides cross-reference analysis to identify compatible replacement revisions where direct substitution is not possible. Emergency same-day dispatch is available for in-stock items to minimize unplanned downtime costs.

Quality Control for the SDCS Range

SDCS control and I/O boards undergo a structured inspection and functional verification process at DriveKNMS. Each board is visually inspected under magnification for capacitor bulge, PCB delamination, solder joint fatigue, and corrosion on backplane connectors — failure modes common in boards recovered from high-humidity or high-vibration environments. Functional testing is performed using ABB-compatible drive test rigs that replicate the SDCS backplane bus signals, allowing verification of analog input scaling, digital I/O response, DDCS fiber-optic link integrity, and field excitation output regulation. SDCS-CON boards are tested for correct firmware version identification and parameter memory read/write cycles. SDCS-FEX boards are load-tested against a resistive field winding simulator to verify thyristor firing angle accuracy across the full output range. Test records are retained per unit and available upon request.
