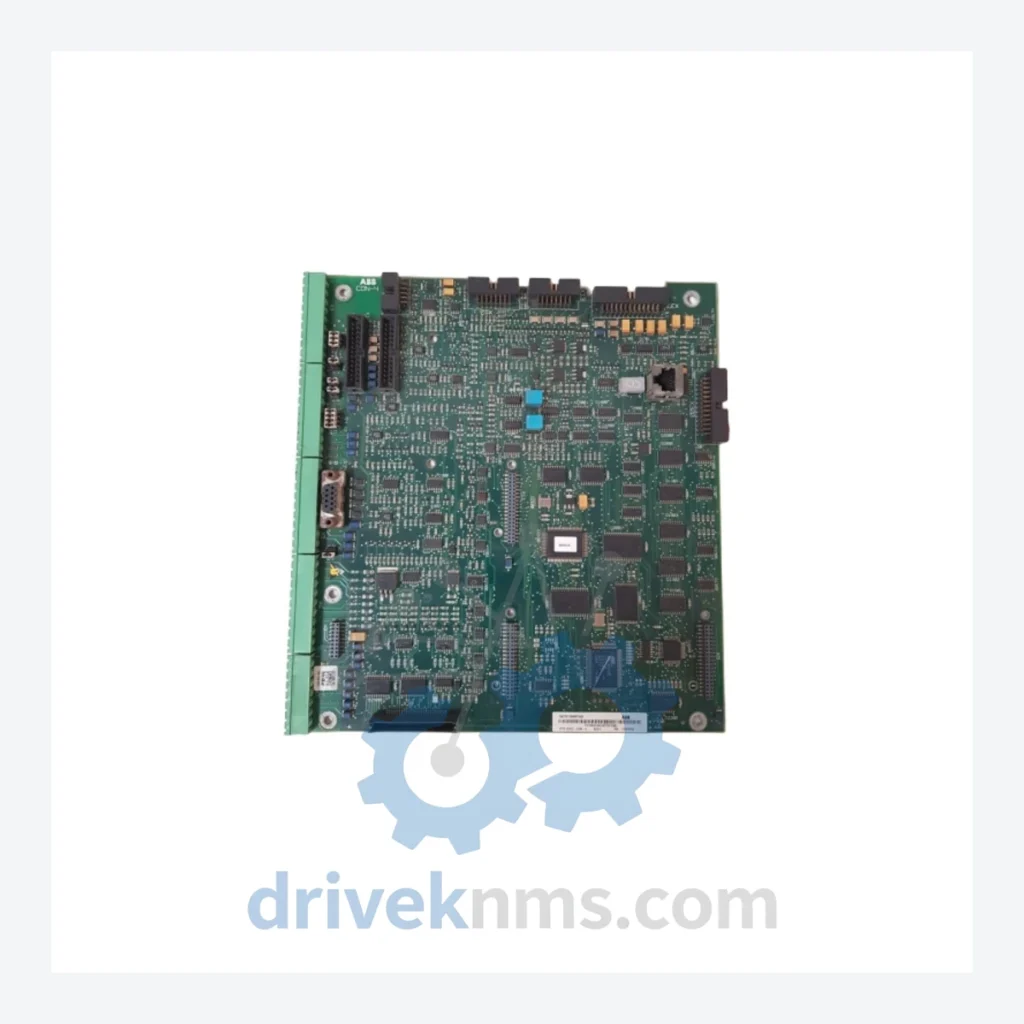

ABB SDCS Series Modules: SDCS-CON-4 3ADT313900R1001 Control Board

Name: ABB SDCS Series Modules: SDCS-CON-4 3ADT313900R1001 Control Board
Brand: ABB

Model: SDCS-CON-4 3ADT313900R1001

Brand ABB

Series Pending

Model SDCS-CON-4 3ADT313900R1001

RFQ-ready model route Obsolete and surplus sourcing Export follow-up by model list

Product Overview

Commercial availability is handled through direct RFQ, model verification and export-oriented follow-up rather than public cart checkout.

Submit RFQ Email This Model

Datasheet Preview

Use attached product manuals when available. If the manual is not public yet, request the full file directly through RFQ.

Request Full Manual

Commercial Path

Use This Page To Confirm The Model, Then Move To RFQ

Product pages on DRIVEKNMS are designed to verify model, brand and series first, then move the buyer into one clean quotation path.

Technical Dossier

Product Details And Specifications

ABB SDCS Series Technical Notes

The Evolution of SDCS Architecture

The SDCS platform was introduced in the early 1990s as ABB consolidated its DC drive control electronics under a unified modular standard. The first-generation SDCS-CON-1 and SDCS-CON-2 boards established the core armature current regulation loop using analog signal processing with limited digital supervision. By the mid-1990s, the SDCS-CON-3 introduced full digital current and speed regulation, enabling integration with PROFIBUS-DP fieldbus networks via the SDCS-COM-1 adapter.

Compatibility note: SDCS-CON-4 boards are not interchangeable with SDCS-CON-2 without backplane adapter modification. Field engineers must verify the drive chassis revision (DCS 400 Rev D or later; DCS 500 Rev B or later) before substitution.

SDCS Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly stocked modules within the ABB SDCS ecosystem. Each entry reflects the module's primary function within the drive control architecture.

Control Boards

SDCS-CON-4 (3ADT313900R1001): 4th-gen DSP-based main control board for DCS 400/500 drives
SDCS-CON-3 (3ADT309600R0001): 3rd-gen digital control board; PROFIBUS-DP capable predecessor
SDCS-CON-2 (3ADT220090R0001): 2nd-gen analog/digital hybrid control board for early DCS 500
SDCS-CON-2B (3ADT220090R0002): Revised CON-2 with improved EMC filtering on analog inputs

I/O Expansion Modules

SDCS-IOB-1 (3ADT220080R0001): Basic I/O board; 8 DI, 4 DO, 4 AI, 2 AO for drive interfacing
SDCS-IOB-2 (3ADT220080R0002): Extended I/O board; adds encoder feedback input channel
SDCS-IOB-3 (3ADT309700R0001): High-speed I/O board for pulse encoder and tachometer inputs
SDCS-IOB-4 (3ADT313800R0001): I/O expansion compatible with SDCS-CON-4; supports 24 VDC logic

Communication Adapters

SDCS-COM-1 (3ADT220070R0001): PROFIBUS-DP adapter; 12 Mbit/s, slave mode operation
SDCS-COM-5 (3ADT309500R0001): Modbus RTU / ASCII serial communication adapter
SDCS-COM-8 (3ADT313700R0001): PROFIBUS-DP V1 adapter for SDCS-CON-4; supports acyclic data
SDCS-COM-9 (3ADT313700R0002): DeviceNet adapter for SDCS-CON-4 platform

Power Supply Boards

SDCS-POW-1 (3ADT220060R0001): Internal 24 VDC auxiliary power supply board for DCS 500 chassis
SDCS-POW-4 (3ADT313600R0001): Regulated power supply board for SDCS-CON-4 and I/O stack

Feedback & Measurement Modules

SDCS-FEX-1 (3ADT220050R0001): Field excitation board; controls DC motor field current via thyristor bridge
SDCS-FEX-2 (3ADT309400R0001): Enhanced field excitation board with digital field current regulation
SDCS-MEM-1 (3ADT220040R0001): Parameter memory module; stores drive configuration for CON-2/CON-3

Sourcing Hard-to-Find & Obsolete SDCS Parts

The SDCS series entered end-of-life status for new production between 2015 and 2020 depending on the specific module. ABB's official spare parts availability for SDCS-CON-2, SDCS-CON-3, SDCS-IOB-1, SDCS-IOB-2, SDCS-COM-1, and SDCS-POW-1 is now classified as limited or exhausted through standard distribution channels.

Quality Control for the SDCS Range

SDCS control boards present specific test challenges due to their multi-layer PCB construction, DSP firmware dependencies, and backplane bus communication requirements. DriveKNMS applies the following verification protocol to all SDCS modules prior to dispatch:

Visual inspection: Component-level examination for capacitor bulge, trace corrosion, solder joint fatigue, and connector pin damage under 10x magnification.
Firmware version verification: SDCS-CON-4 boards are checked for firmware revision compatibility against the target drive chassis type (DCS 400 / DCS 500 / DCS 600).
Backplane bus communication test: The board is installed in a reference DCS 500 chassis and DDCS (Drive Data Communication System) fiber-optic link integrity is confirmed.
Analog I/O calibration check: All analog input and output channels are verified against reference signals within ±0.5% tolerance.
Field excitation interface test: Where applicable, the FEX interface is tested for correct thyristor firing pulse generation.
48-hour burn-in: Boards are operated under load in a controlled thermal environment to screen for early-life component failures.
