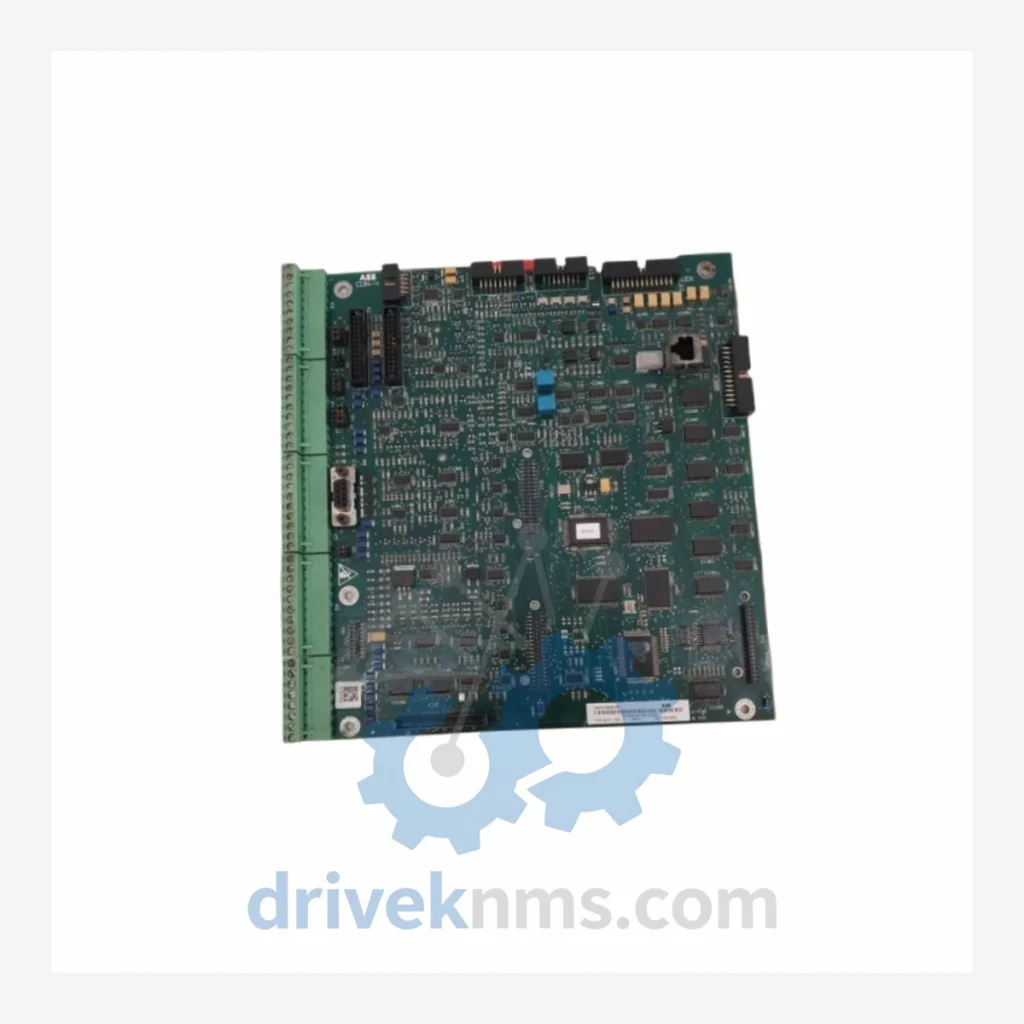

ABB SDCS-CON-4 Control Card – Obsolete DCS Series Spare Part

When the SDCS-CON-4 control card fails in a running DC drive system, the choice facing plant management is rarely simple. A like-for-like replacement sourced from the open market costs a fraction of what a full drive system upgrade demands — yet the pressure to retire aging infrastructure often leads facilities down a path of unnecessary capital expenditure. A full DCS400, DCS500, or DCS600 series drive replacement, including engineering, rewiring, recommissioning, and production downtime, routinely exceeds six figures. In multi-drive installations, that figure multiplies. DriveKNMS holds verified stock of the SDCS-CON-4 — a component that has been discontinued by ABB but remains the functional core of thousands of DC drive systems still operating in steel mills, paper plants, marine propulsion systems, and heavy process industries worldwide.

Technical Specifications

Solving the Discontinued Hardware Crisis

The SDCS-CON-4 is the processing core of ABB's DCS-series DC drives. It handles speed regulation, current loop control, field weakening, and serial communication with supervisory systems — functions that cannot be replicated by a generic substitute without full drive replacement and control system reconfiguration. In facilities where DCS-series drives are integrated into legacy PLC architectures — including Siemens S5, Allen-Bradley PLC-5, or older Modbus RTU networks — the cost of drive replacement extends well beyond the hardware itself. Engineering hours for rewiring, updated HMI programming, safety recertification, and production loss during commissioning represent the true cost of not maintaining a spare SDCS-CON-4 on the shelf.

Plant managers operating equipment on 15–25 year depreciation cycles understand that the economics of asset preservation are straightforward: a verified spare control card at a few hundred dollars protects a drive asset worth tens of thousands, which in turn protects a production line worth far more. The SDCS-CON-4 is not a consumable — it is an insurance policy against unplanned downtime in systems that were never designed for rapid component substitution.

For facilities running ABB DCS600 MultiDrive configurations or DCS500 regenerative drives in reversing applications, the SDCS-CON-4 is particularly difficult to substitute. The firmware embedded in this card is version-specific to the drive's parameter set. Replacing it with a card from a different firmware revision requires parameter re-entry and functional testing — work that demands qualified drive commissioning engineers and scheduled downtime. Maintaining a matched spare eliminates this risk entirely.

Condition & Reliability Assurance

Discontinued components sourced from the secondary market carry inherent risk. DriveKNMS applies a structured 5-step inspection protocol to every SDCS-CON-4 unit before it leaves our facility:

• Step 1 – Visual and Physical Inspection: Board examined for mechanical damage, burn marks, cracked solder joints, and connector pin integrity. Units with any physical compromise are rejected at this stage.
• Step 2 – Electrolytic Capacitor Assessment: All electrolytic capacitors are checked for bulging, leakage, and ESR deviation. Capacitor degradation is the primary failure mode in aged control electronics — this step is non-negotiable.
• Step 3 – Firmware Version Verification: The firmware revision is documented and disclosed to the buyer prior to shipment. Mismatched firmware between a replacement card and the host drive is a known cause of commissioning failure.
• Step 4 – Pin and Connector Corrosion Check: All edge connectors and terminal pins are inspected under magnification for oxidation and corrosion. Affected contacts are cleaned to IPC-610 standards where applicable.
• Step 5 – Functional Power-On Test: Where test fixtures are available, units are powered and basic communication functions are verified before dispatch.

Key Features for System Maintenance

• Drop-in replacement: The SDCS-CON-4 installs directly into the existing drive chassis without mechanical modification. No new mounting hardware, no enclosure rework.
• No reprogramming required (matched firmware): When the replacement card carries the same firmware revision as the original, the drive's existing parameter set remains intact. The system returns to service without re-commissioning.
• Avoids engineering reconstruction costs: Retaining the existing drive platform eliminates the need for new drive sizing calculations, cable replacement, transformer matching, and control system interface redesign.
• Preserves existing safety certifications: In regulated industries, replacing a drive with a new model may trigger mandatory safety re-evaluation. A like-for-like control card replacement does not alter the drive's certified configuration.
• Extends asset life by 5–10 years: A functioning SDCS-CON-4 spare, combined with a basic preventive maintenance schedule, is a documented strategy for extending the operational life of DCS-series drives well beyond the point at which OEM support has ended. Facilities that maintain a small inventory of critical control cards routinely defer capital replacement projects by a decade or more.

FAQ

Q: What warranty applies to a discontinued SDCS-CON-4?
A: DriveKNMS provides a 90-day warranty on all tested and refurbished units covering functional failure under normal operating conditions. New surplus units carry a 180-day warranty. Warranty terms are confirmed in writing at the time of sale.

Q: How do I confirm the unit is genuine ABB and not a counterfeit?
A: Each unit is inspected for ABB part markings, PCB revision codes, and component date codes consistent with known genuine production batches. We provide photographic documentation of the unit's markings upon request before purchase.

Q: Should I buy more than one unit?
A: For any facility operating more than one DCS-series drive, holding a minimum of two SDCS-CON-4 cards is a defensible maintenance strategy. Stock availability on discontinued components is not predictable — once current market supply is exhausted, lead times for sourcing additional units extend significantly. Procurement of a small strategic reserve now is materially cheaper than emergency sourcing during an unplanned outage.

Q: Can this card be used in both DCS500 and DCS600 platforms?
A: Compatibility depends on the specific drive type code and firmware revision. Contact us with your drive's full type designation and we will confirm compatibility before shipment.
