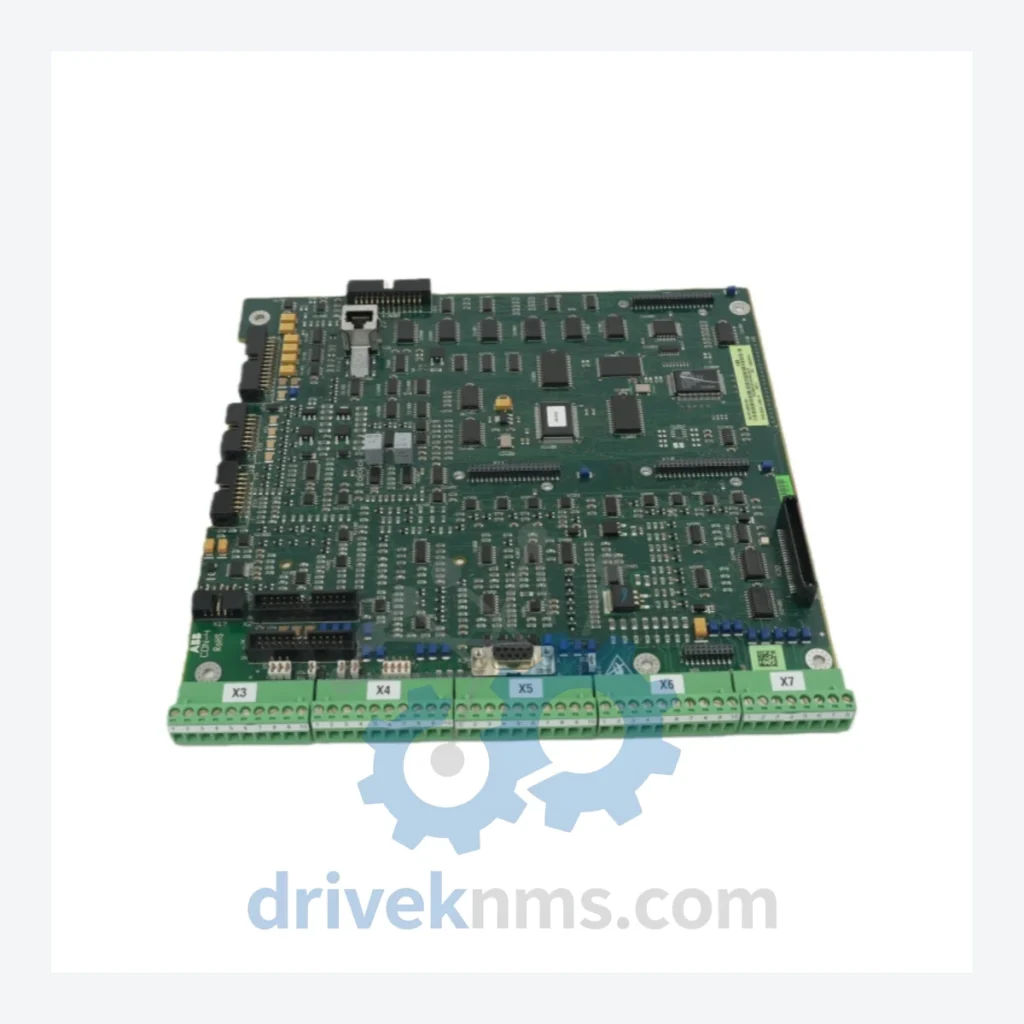

ABB SDCS-CON-4 Control Board – Obsolete DCS800 Series Spare Part

Technical Dossier

Product Details And Specifications

ABB SDCS-CON-4 Control Board – Obsolete DCS800 Series Spare Part

When the SDCS-CON-4 control board fails in a DCS800 DC drive system, the production line does not pause politely. It stops. For facilities running ABB DCS800, DCS400, or legacy DCS500 series DC drives, this board is the nerve center of speed regulation, field excitation control, and serial communication with the host PLC. There is no software patch for a failed board. There is no firmware workaround. The only path back to production is a physical replacement — and ABB discontinued this part years ago.

A full drive system upgrade to replace a DCS800 installation typically involves new drive cabinets, motor re-commissioning, PLC reprogramming, and engineering hours that routinely exceed $200,000–$500,000 USD per line. DriveKNMS holds verified physical stock of the SDCS-CON-4 (Part No. 3ADT313900R1501). This is not a catalog listing. This is confirmed inventory.

Technical Specifications

Note: Electrical parameters not independently verified by DriveKNMS are intentionally omitted. All specifications above are sourced from ABB documentation or physical inspection.

Solving the Discontinued Hardware Crisis

The ABB DCS800 platform was the industry standard for high-power DC motor control across steel mills, paper lines, mining hoists, and marine propulsion systems throughout the 1990s and 2000s. The SDCS-CON-4 board sits at the core of this architecture — it handles the closed-loop speed regulation algorithm, manages the field weakening curve, and maintains the communication link to the supervisory control layer.

ABB's official end-of-life notice for DCS800 spare parts has left thousands of facilities in a difficult position. The installed base of DCS800 drives globally is substantial, and the motors they control — often 200kW to several megawatts — are deeply embedded in civil and mechanical infrastructure that cannot be economically replaced on a short timeline.

Facilities that have not pre-positioned critical spare boards face a binary choice when failure occurs: source the part from the secondary market, or commit to a capital project that will consume engineering resources, production downtime, and budget that was never planned for. The SDCS-CON-4 is consistently one of the most requested obsolete ABB drive components because its failure mode is often sudden and its replacement lead time — when sourced reactively — can stretch to 8–16 weeks even through specialist distributors.

DriveKNMS operates specifically within this secondary market, maintaining physical inventory of discontinued industrial control components for customers who cannot afford unplanned downtime.

Extending Asset Life 5–10 Years: A Maintenance Strategy for DCS800 Operators

For plant managers and maintenance engineers responsible for DCS800 installations, the following approach has been used successfully by facilities to defer capital replacement projects by a decade or more:

1. Identify your single points of failure. The SDCS-CON-4 is one of them. The SDCS-POW-4 power supply board and the SDCS-PIN-4 pulse encoder interface board are others. A failure in any of these three modules will take the drive offline. Map your critical boards now, before a failure forces the decision under pressure.

2. Pre-position at least one cold spare per critical board type. The cost of holding a spare SDCS-CON-4 in a climate-controlled cabinet is a fraction of one day of unplanned production loss. For high-utilization lines, two spares is the defensible standard.

3. Establish a periodic inspection cycle. DC drive control boards are vulnerable to electrolytic capacitor degradation, particularly in high-ambient-temperature environments. A visual inspection every 12–18 months, combined with capacitance measurement on the main filter capacitors, can identify boards approaching end-of-life before they fail in service.

4. Document your firmware version. The SDCS-CON-4 carries firmware that must match the drive's parameter set. Before installing a replacement board, confirm the firmware version on the failed unit and ensure the replacement carries the same version — or arrange for a firmware update before commissioning. DriveKNMS can advise on this process.

5. Negotiate a long-term supply agreement. If your facility operates multiple DCS800 drives, contact DriveKNMS to discuss a reserved inventory arrangement. We can hold allocated stock against your facility's specific part numbers, ensuring availability when you need it rather than when the open market happens to have it.

This approach does not require capital expenditure approval. It requires a maintenance budget line and a procurement decision. For most facilities, the math is straightforward: the cost of a spare board program is measured in thousands of dollars. The cost of a reactive drive replacement project is measured in hundreds of thousands.

Condition & Reliability Assurance

Every SDCS-CON-4 unit shipped by DriveKNMS passes a structured 5-step inspection protocol before dispatch:

Step 1 – Visual and Physical Inspection: Full board examination for mechanical damage, burn marks, cracked solder joints, and corrosion on connector pins and edge contacts. Any unit with visible pin corrosion is rejected at this stage.

Step 2 – Electrolytic Capacitor Assessment: Electrolytic capacitors are the primary age-related failure point on control boards of this generation. Each capacitor is checked for bulging, electrolyte leakage, and where equipment permits, capacitance and ESR measurement against rated values.

Step 3 – Firmware Version Verification: The firmware version is read and recorded. This information is provided to the customer with the shipment to support commissioning.

Step 4 – Functional Bench Test (where applicable): Units are tested on compatible drive hardware where test equipment is available. Test results are documented.

Step 5 – Packaging and ESD Protection: Boards are packed in anti-static bags with foam cushioning. Shipment method is selected based on destination and urgency.

Units are classified and priced according to condition: New Old Stock (factory-sealed), Tested Surplus (removed from service, tested functional), or Professionally Refurbished (inspected, reconditioned, tested). Condition is disclosed in full before purchase.

Key Features for System Maintenance

Drop-in replacement: The SDCS-CON-4 is a direct hardware replacement for the same board in DCS800 and compatible drive frames. No mechanical modification is required.

No PLC reprogramming required: Replacing the control board does not alter the drive's interface to the host PLC or DCS. The drive's parameter set is stored separately and can be reloaded from a backup or re-entered from the commissioning record. This is a board swap, not a system integration project.

Avoids engineering reconstruction costs: A drive replacement project requires mechanical installation, power cabling, control wiring, PLC I/O mapping, and commissioning by a qualified drive engineer. A board replacement requires a maintenance technician and a documented parameter backup. The difference in cost and downtime duration is significant.

Supports phased asset retirement planning: Holding spare boards allows facilities to retire DCS800 drives on a planned schedule — aligned with capital budget cycles — rather than on an emergency basis driven by component failure.
