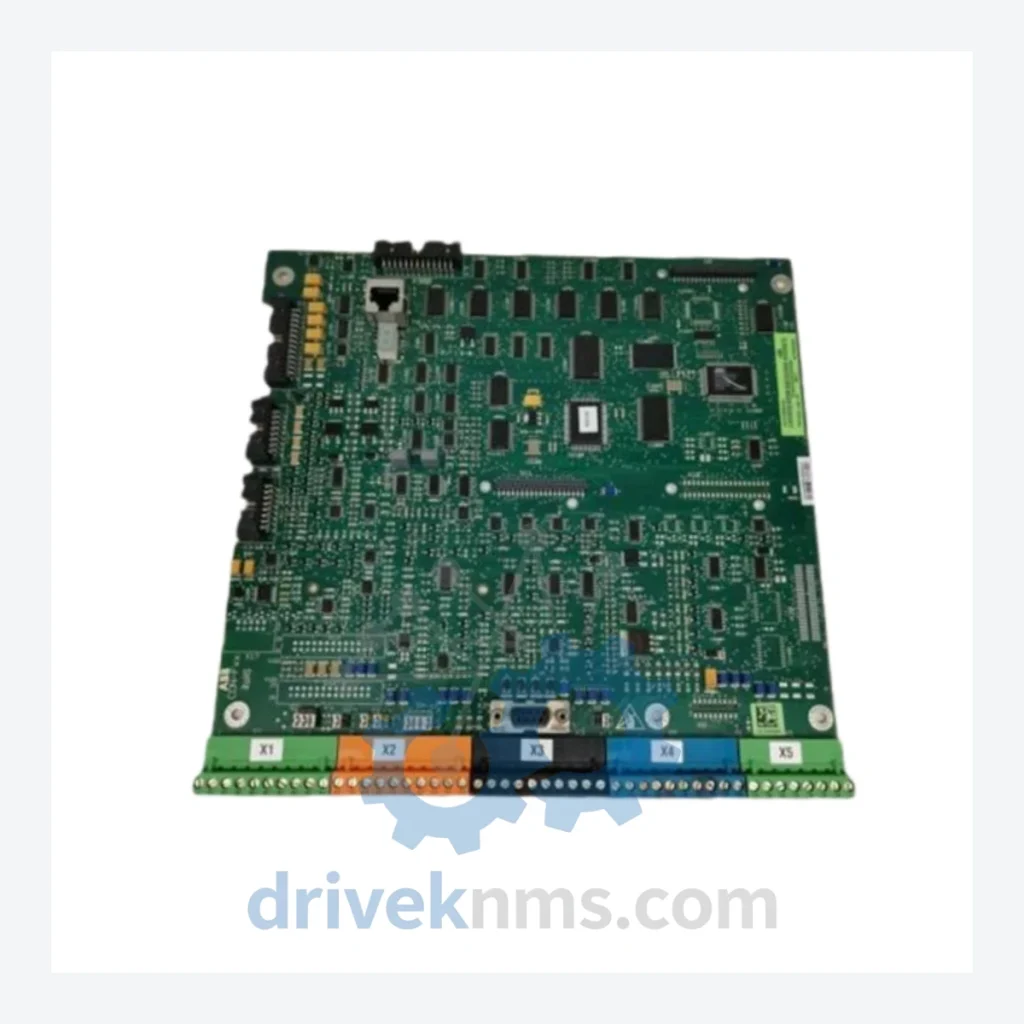

ABB SDCS-CON-F01 Control Board – Obsolete DCS800 Series Spare Part

When the SDCS-CON-F01 control board fails, the consequences extend far beyond a single drive. The ABB DCS800 series DC drive platform — deployed across steel mills, paper machines, marine propulsion systems, and heavy process lines worldwide — was engineered for decades of service. But ABB has discontinued this platform, and with it, the SDCS-CON-F01 control board (part number 3ADT316500R1501) is no longer available through standard distribution channels.

A single unplanned production stoppage caused by a failed control board can cost a facility tens of thousands of dollars per hour. A forced system upgrade — replacing an entire DCS800 drive line with modern AC drive infrastructure — routinely runs into the hundreds of thousands, sometimes millions, of dollars when engineering, rewiring, motor replacement, and recommissioning are factored in. Against that backdrop, securing a verified replacement SDCS-CON-F01 board is not a maintenance decision. It is an asset protection decision.

DriveKNMS reviews sourcing options for this model through RFQ handling before quotation.

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Solving the Discontinued Hardware Crisis

The SDCS-CON-F01 is the operational core of the DCS800 drive. It manages firing angle control for the thyristor bridge, handles field current regulation, processes encoder feedback, and serves as the communication gateway between the drive and plant-level control systems such as ABB AC800M, Siemens S7 PLCs, or legacy DCS platforms including Honeywell TDC3000 and Foxboro I/A Series.

There is no direct plug-in replacement from ABB's current product line. Migrating to a modern AC drive system requires motor assessment, potential rewinding or replacement, full electrical panel redesign, and — critically — control system reprogramming and recommissioning. In facilities where the DCS800 drives are integrated into coordinated multi-drive systems (rolling mills, winders, extruders), the engineering scope of a forced migration is substantial.

Facilities that have adopted a structured critical-spare strategy for discontinued DCS800 components — including the SDCS-CON-F01, SDCS-PIN-F01 power interface board, and SDCS-FEX-2 field exciter — report drive system operational continuity extending 8 to 12 years beyond the original OEM end-of-life date. The investment in verified spare boards is a fraction of the cost of a single unplanned outage, let alone a full system replacement.

Condition & Reliability Assurance

Discontinued components sourced outside the OEM channel require rigorous incoming inspection. DriveKNMS applies a 5-stage quality assurance protocol to every SDCS-CON-F01 unit before it is offered for sale:

• Stage 1 – Visual & Mechanical Inspection: Full board examination for physical damage, pin corrosion, solder joint integrity, and connector condition. Corroded or oxidized edge connectors are flagged and addressed before any electrical testing.
• Stage 2 – Electrolytic Capacitor Assessment: Electrolytic capacitors are the primary age-related failure point on control boards stored for extended periods. Each capacitor is tested for capacitance value, ESR (equivalent series resistance), and leakage. Units with out-of-specification capacitors are either recapped or rejected.
• Stage 3 – Firmware Version Verification: The SDCS-CON-F01 firmware version is documented and confirmed compatible with the target DCS800 drive firmware. Mismatched firmware versions are a known source of post-installation faults.
• Stage 4 – Functional Bench Test: Where test infrastructure permits, boards are powered and subjected to functional verification against known-good reference parameters.
• Stage 5 – ESD-Safe Packaging & Documentation: Units are packaged in anti-static bags with desiccant, and shipped with inspection records and part traceability documentation.

Key Features for System Maintenance

Can this board be used in DCS500 series drives?
The SDCS-CON-F01 is designed for the DCS800 platform. Cross-series compatibility with DCS500 hardware is not confirmed and should not be assumed without engineering review.
