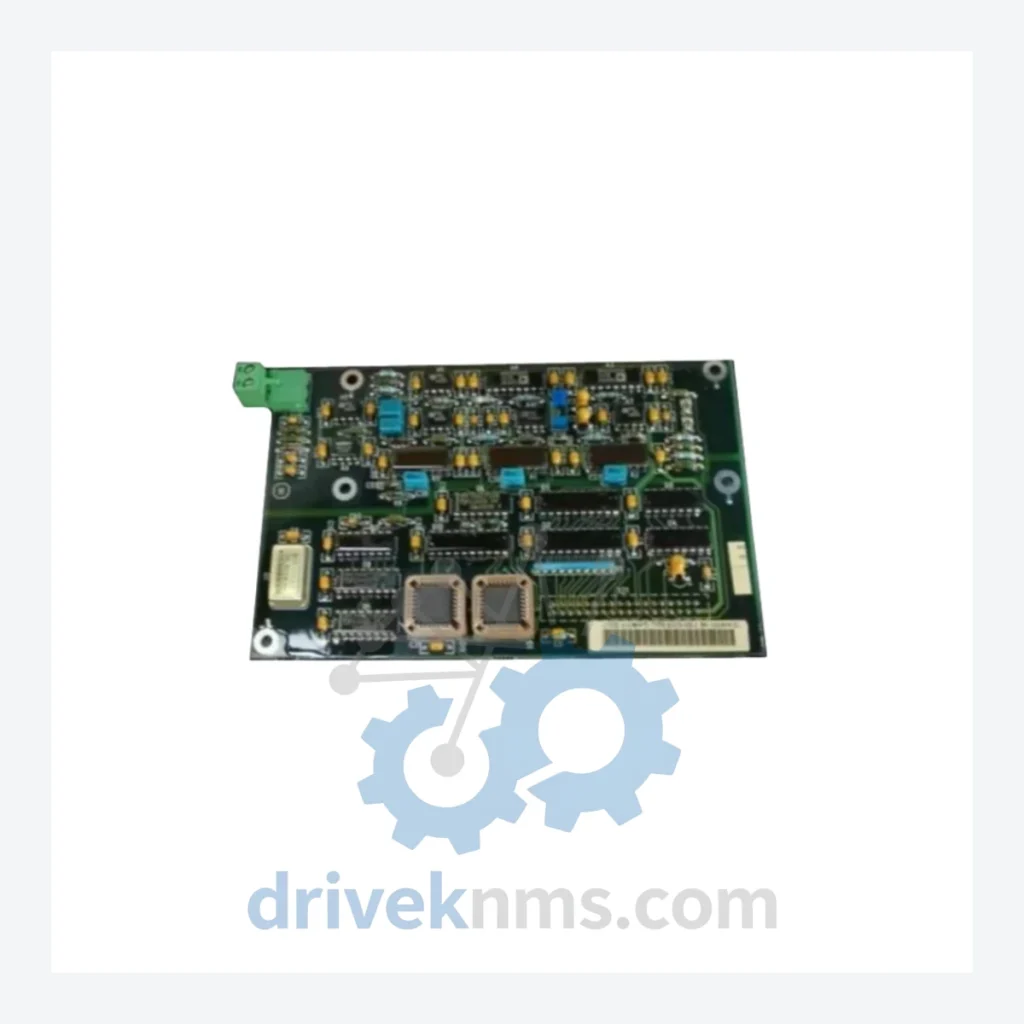

ABB SDCS Series Modules: SDCS-IOE-2-COAT Counter Board

Technical Dossier

Product Details And Specifications

ABB SDCS Series Technical Notes

The ABB SDCS (Signal and Drive Control System) module family is the core control electronics platform for ABB's DCS400, DCS500, and DCS800 series DC drive systems. These drives are deployed at scale in heavy industrial environments including petrochemical refineries, nuclear power auxiliary systems, pulp and paper mills, steel rolling mills, and offshore platforms. The SDCS architecture provides modular, field-replaceable control boards that separate the signal processing, I/O expansion, power interface, and communication functions — enabling targeted component-level maintenance without full drive replacement. The SDCS-IOE-2-COAT is a conformal-coated variant of the SDCS-IOE-2 pulse counter and digital I/O expansion board, designed for operation in environments with elevated humidity, condensation, or airborne contaminants.

The Evolution of SDCS Architecture

The SDCS module family was introduced alongside the DCS500 platform in the mid-1990s as ABB's standardized modular control board architecture for DC drives. The original DCS500 used a first-generation SDCS-CON-1 and SDCS-POW-1 pairing, establishing the separation of control logic from power supply functions that defines the entire series. With the DCS800 platform (introduced circa 2003–2005), ABB migrated to the second-generation SDCS-CON-2 and SDCS-POW-4 boards, incorporating faster DSP processing, expanded fieldbus support, and improved EMC performance. The SDCS-IOE-2 and its conformal-coated variant SDCS-IOE-2-COAT were introduced as I/O expansion modules compatible across both DCS500 and DCS800 generations, providing pulse counting, encoder interface, and additional digital I/O channels. The SDCS-FEX series (field excitation boards) and SDCS-COM communication adapters were added progressively to support PROFIBUS, DeviceNet, and Modbus RTU integration. As of 2026, the DCS500 platform is fully discontinued and the DCS800 is in mature/end-of-active-production phase. ABB's current DC drive platform is the DCS880, which uses a distinct control architecture (SDCS-CON-F) and is not backward-compatible with legacy SDCS modules. This lifecycle status makes original SDCS spare parts critical for operators maintaining existing DCS500/DCS800 installations.

SDCS Full Catalog & Functionalities (SKU List)

Control Boards

• SDCS-CON-2: Main control board for DCS800; DSP-based speed/current regulation core
• SDCS-CON-2B: Enhanced variant of CON-2 with extended memory and improved diagnostics
• SDCS-CON-3: Control board for DCS800 with integrated encoder interface
• SDCS-CON-F: Control board for DCS880 platform; not compatible with DCS800 hardware
• SDCS-CON-1: First-generation control board for DCS500; discontinued, long-lead spare

I/O Expansion Modules

• SDCS-IOE-1: Basic digital and analog I/O expansion board for DCS500/DCS800
• SDCS-IOE-2: Pulse counter and encoder I/O expansion; supports HTL/TTL encoder signals
• SDCS-IOE-2-COAT: Conformal-coated variant of SDCS-IOE-2 for harsh/humid environments
• SDCS-IOE-3: Extended I/O expansion with additional relay outputs for DCS800

Power Supply Boards

• SDCS-POW-1: Internal power supply board for DCS500 series drives
• SDCS-POW-4: Internal power supply board for DCS800; provides +24V, +5V, ±15V rails
• SDCS-POW-4B: Revised POW-4 with improved inrush current limiting

Field Excitation Boards

• SDCS-FEX-1: Field excitation control board; single-phase thyristor bridge for motor field supply
• SDCS-FEX-2: Field excitation board with extended current range for larger DC motors
• SDCS-FEX-2-COAT: Conformal-coated variant of SDCS-FEX-2 for corrosive environments

Communication Adapters

• SDCS-COM-1: Serial communication adapter; RS-232/RS-485 Modbus RTU interface
• SDCS-COM-8: PROFIBUS DP adapter for DCS800 fieldbus integration

Quality Control for the SDCS Range

SDCS boards present specific test challenges due to their multi-layer PCB construction, high-density SMD components, and backplane bus communication architecture. DriveKNMS applies a structured inspection and functional verification protocol to all SDCS modules prior to dispatch. Visual inspection covers solder joint integrity, capacitor condition (ESR measurement for electrolytic capacitors), conformal coating continuity on COAT variants, and connector pin condition on the 64-pin and 96-pin DIN 41612 backplane connectors. Functional testing is performed using ABB DCS800 test rigs with known-good drive configurations, verifying encoder signal processing on IOE-2 boards, field current regulation accuracy on FEX boards, and communication handshake integrity on COM adapters. SDCS-CON boards are tested for full parameter set read/write, speed loop response, and fault log integrity. All tested units are issued a test record with revision identification and pass/fail criteria documentation.
