ABB SDCS-PIN-205 3ADT310500R1

Technical Dossier

Product Details And Specifications

ABB SDCS Series Technical Notes

The Evolution of SDCS Architecture

The SDCS platform was introduced by ABB in the early 1990s as a modular successor to proprietary single-board DC drive controllers. The first-generation SDCS boards (circa 1992–1998) used parallel backplane communication with discrete analog signal conditioning. The second generation (1998–2006) introduced SDCS-CON-2 and SDCS-CON-4 controller boards with onboard DSP processing, enabling closed-loop current and speed regulation at higher bandwidths. The third generation integrated fieldbus adapters (SDCS-FEX, SDCS-AMC) and expanded I/O density via the SDCS-IOB range.

SDCS Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly stocked modules within the ABB SDCS platform. Each entry reflects the module's primary functional role within the drive control architecture.

Controller Boards

• SDCS-CON-2: Main control board for DCS 400/500; DSP-based speed and current regulation.
• SDCS-CON-2B: Revised CON-2 with enhanced EMC filtering and extended temperature range.
• SDCS-CON-4: Advanced controller for DCS 600; dual-axis capability, expanded memory.
• SDCS-CON-4B: CON-4 variant with updated firmware support for DDCS fiber-optic communication.

Power Interface Boards

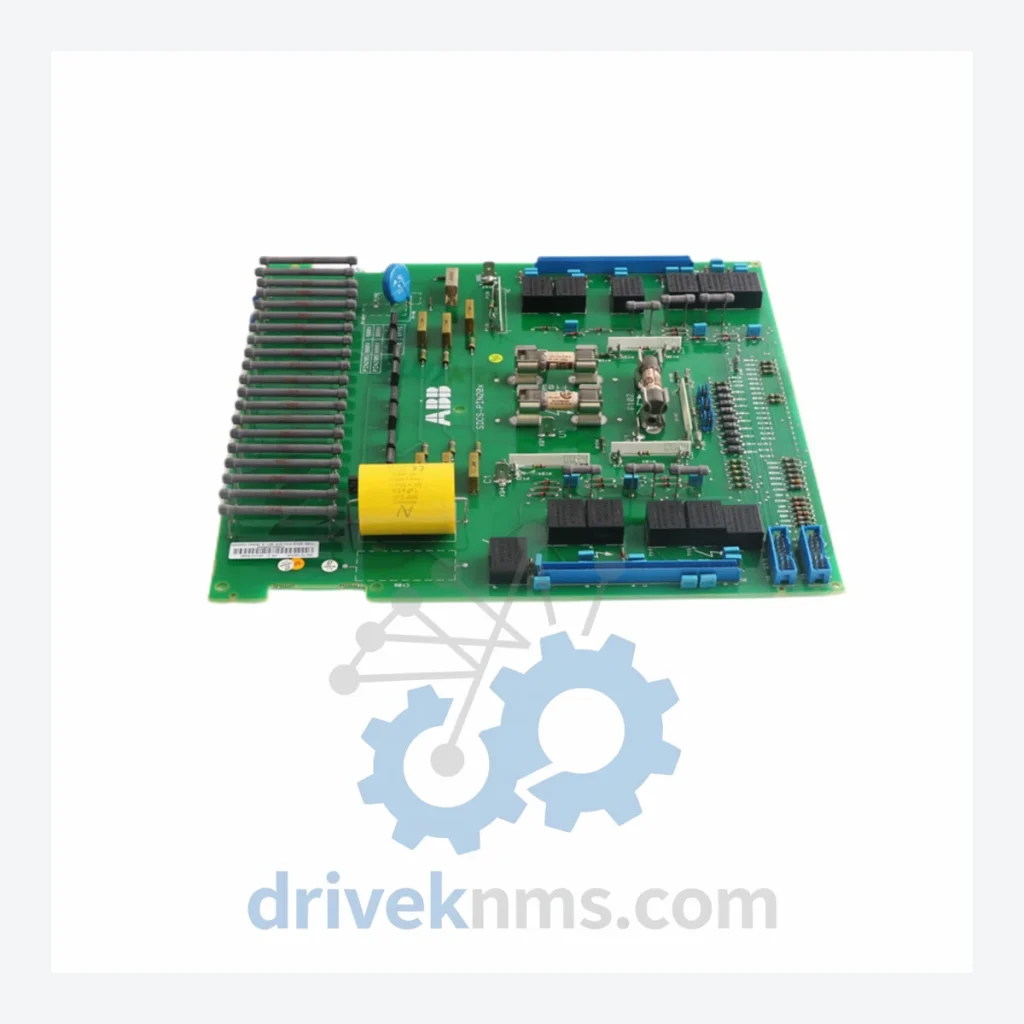

• SDCS-PIN-205 3ADT310500R1: Power interface board for DCS 500B; interfaces thyristor gate drive signals to CON board.
• SDCS-PIN-41: Power interface for 4-quadrant DCS 400 drives up to 420 A.
• SDCS-PIN-51: Power interface for DCS 500 series; supports 6-pulse bridge configurations.
• SDCS-PIN-205B: Updated PIN-205 with revised gate pulse timing for improved commutation margin.

I/O Expansion Boards

• SDCS-IOB-1: Basic I/O board; 8 DI, 4 DO, 4 AI, 2 AO for auxiliary control signals.
• SDCS-IOB-3: Extended I/O board; adds encoder feedback interface and additional relay outputs.
• SDCS-IOB-21: High-density I/O module for multi-drive panel configurations.

Fieldbus & Communication Adapters

• SDCS-AMC-DC: DDCS fiber-optic master adapter; links drive to ABB AC800M or Advant OCS.
• SDCS-FEX-1: Field excitation board; controls separately excited DC motor field current.
• SDCS-FEX-2: Dual-channel field excitation for reversing field applications.

Power Supply & Auxiliary Boards

• SDCS-DSL-4: Diagnostic and signal level board; used for commissioning and fault isolation.
• SDCS-MEM-8: Memory expansion module; extends parameter storage for multi-motor configurations.
• SDCS-POW-4: Internal 24 VDC power supply board for SDCS control section.

Quality Control for the SDCS Range

SDCS modules present specific test challenges due to their mixed analog/digital architecture and backplane-dependent signal routing. DriveKNMS applies the following test protocol to all SDCS units prior to dispatch:

• Visual inspection: PCB examination for capacitor bulge, trace corrosion, solder joint fatigue, and connector pin damage — common failure modes in boards with 15+ years of service.
• Powered bench test: Each board is energized on a dedicated SDCS test rig replicating the original backplane voltage rails (±15 V, +5 V, +24 V) and communication bus signals.
• Functional verification: CON boards are tested for closed-loop speed regulation response; PIN boards are tested for gate pulse generation accuracy and isolation resistance to thyristor gate circuits.
• Firmware version check: Controller boards are verified for firmware revision compatibility with the customer's declared drive software version.
• Burn-in cycle: Boards are subjected to a minimum 4-hour thermal cycle at operating temperature before final inspection and packaging.
