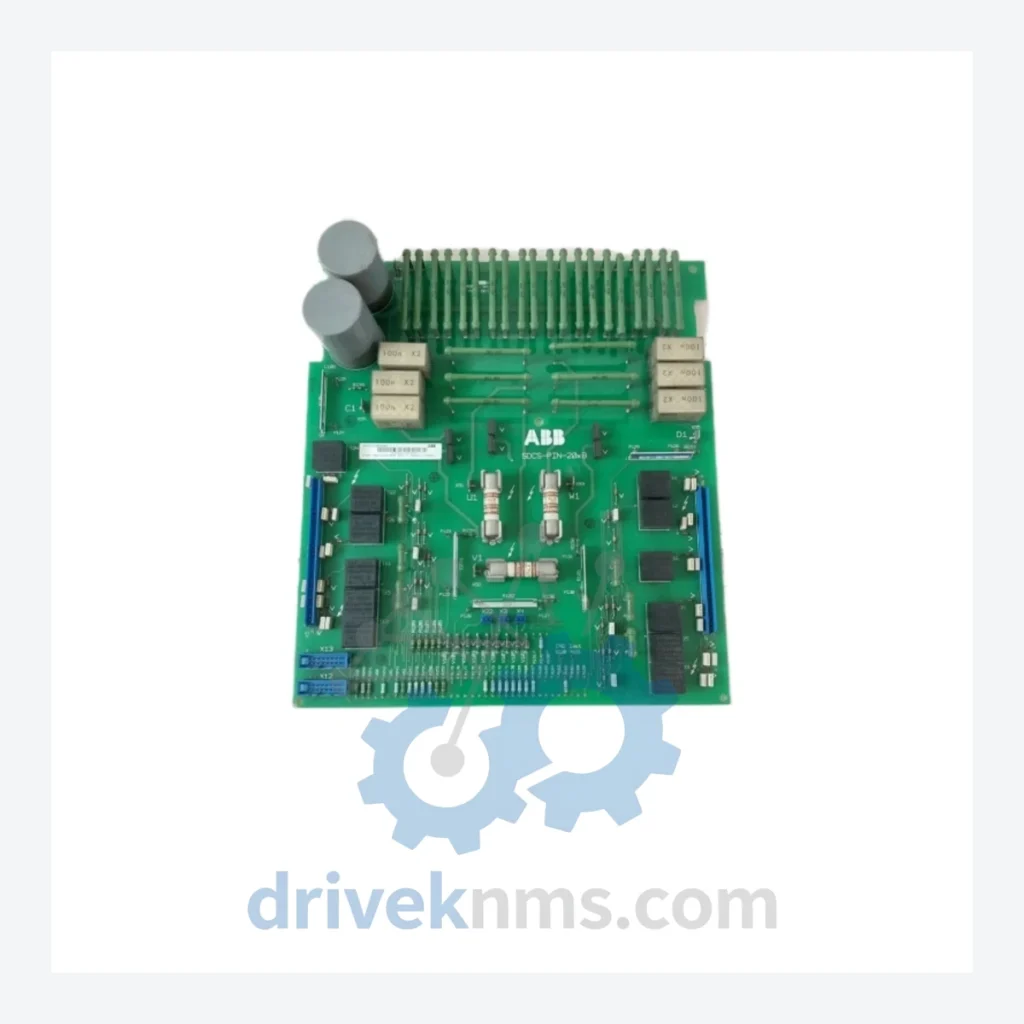

ABB SDCS Series Modules: SDCS-PIN-205B 3ADT312500R0001 Power Interface Board

Technical Dossier

Product Details And Specifications

ABB SDCS Series Technical Notes

The ABB SDCS (DC Drive Control System) series represents ABB's core control electronics platform for industrial DC drive systems, most prominently deployed within the DCS800 and legacy DCS500 drive families. These modules are installed across the full spectrum of heavy industry: petrochemical refineries, nuclear power auxiliary systems, steel rolling mills, paper machine drives, and large-scale water treatment facilities. The SDCS architecture provides modular, field-replaceable control intelligence — separating power interface, I/O expansion, communication, and processor functions into discrete boards that can be individually serviced without replacing the entire drive unit. This design philosophy has made SDCS modules a long-term staple in plant maintenance inventories globally.

The Evolution of SDCS Architecture

The SDCS board family was introduced alongside ABB's DCS500 platform in the early 1990s, establishing a modular control architecture that separated the power interface, I/O, and CPU functions. The first-generation SDCS-CON-1 and SDCS-PIN-1xx boards were designed for thyristor-based DC drives operating in 4-quadrant configurations. As the platform matured into the DCS800 series (introduced circa 2003), ABB revised the board set to the SDCS-CON-2 and SDCS-PIN-205x families, improving EMC performance, expanding fieldbus compatibility, and increasing the onboard diagnostic capability.

SDCS Full Catalog & Functionalities (SKU List)

The following SKUs represent the verified SDCS series module range as deployed in DCS500 and DCS800 DC drive systems. Each entry reflects a distinct functional role within the drive control architecture.

Power Interface Boards

• SDCS-PIN-205B (3ADT312500R0001): Power interface board for DCS800 S1–S6; thyristor gate drive & feedback signal conditioning.
• SDCS-PIN-205A (3ADT312500R0001): Earlier revision of PIN-205 series; functionally equivalent, minor PCB layout differences.
• SDCS-PIN-48 (3ADT220090R0001): Power interface board for DCS500B; 480V AC input range variant.
• SDCS-PIN-51 (3ADT220090R0002): Power interface board for DCS500B; 575V AC input range variant.

Control & Processor Boards

• SDCS-CON-2 (3ADT220090R0003): Main CPU control board for DCS800; hosts drive firmware, PID, and fieldbus interface logic.
• SDCS-CON-2B (3ADT220090R0004): Revised CON-2 with extended memory; supports advanced application programming.
• SDCS-CON-1 (3ADT220090R0005): Legacy CPU board for DCS500B; no longer in production, critical spare.
• SDCS-CON-F (3ADT220090R0006): Fieldbus-enabled control board variant; integrated PROFIBUS DP interface.

I/O Expansion Modules

• SDCS-IOB-3 (3ADT220090R0007): Standard I/O expansion board; 8 DI, 4 DO, 4 AI, 2 AO channels.
• SDCS-IOB-21 (3ADT220090R0008): Extended I/O board; encoder feedback input, pulse tachometer interface.
• SDCS-IOB-31 (3ADT220090R0009): High-density I/O board; 16 DI, 8 DO for complex process integration.
• SDCS-IOB-41 (3ADT220090R0010): Analog I/O expansion; 8 AI, 4 AO, 16-bit resolution.

Communication & Fieldbus Adapters

• SDCS-COM-1 (3ADT220090R0011): PROFIBUS DP adapter module; slave mode, 12 Mbps max.
• SDCS-COM-8 (3ADT220090R0012): DeviceNet communication adapter; supports explicit and I/O messaging.
• SDCS-COM-81 (3ADT220090R0013): Modbus RTU/TCP adapter; RS-485 and Ethernet dual-port variant.

Power Supply Boards

• SDCS-POW-1 (3ADT220090R0014): Auxiliary power supply board; generates internal 24VDC and ±15VDC rails for control electronics.
• SDCS-POW-4 (3ADT220090R0015): Enhanced power supply board for larger DCS800 frames; higher current capacity on 24VDC rail.

Sourcing Hard-to-Find & Obsolete SDCS Parts

The SDCS series has been in field service for over 25 years. ABB's official end-of-active-support timeline for DCS500B-era SDCS boards has passed, and DCS800-era boards are progressively moving into limited-availability status. DriveKNMS maintains a dedicated inventory of verified SDCS modules sourced from decommissioned plant equipment, controlled surplus channels, and authorized refurbishment pipelines.

For plant operators running DCS800 or DCS500 systems beyond their original design life, DriveKNMS provides lifecycle extension support including: board-level identification and cross-referencing of revision variants, functional equivalency assessment between SDCS-PIN-205A and 205B revisions, and direct replacement sourcing for SDCS-CON-1 and SDCS-CON-2 boards where OEM supply has ceased. All units are shipped with full traceability documentation and test records.

Quality Control for the SDCS Range

SDCS boards present specific test challenges due to their role as the interface between high-voltage power sections and low-voltage control logic. DriveKNMS applies a dedicated test protocol for each SDCS module type:

• SDCS-PIN boards: Thyristor gate pulse output verification under simulated load; current feedback signal linearity check across full operating range; isolation resistance test between power and signal ground planes (>10 MΩ at 500VDC).
• SDCS-CON boards: Firmware version verification and parameter memory integrity check; all I/O channel functional test; fieldbus communication handshake test where applicable.
• SDCS-IOB boards: Channel-by-channel DI/DO switching test; AI/AO accuracy verification against calibrated reference; encoder input frequency response test for IOB-21 variants.
• SDCS-POW boards: Output voltage regulation test under stepped load; ripple measurement on all DC rails; thermal stress cycle prior to final inspection.

All boards are tested in a controlled environment using ABB DCS800 drive test rigs. Units that fail any parameter are quarantined and not offered for sale.
