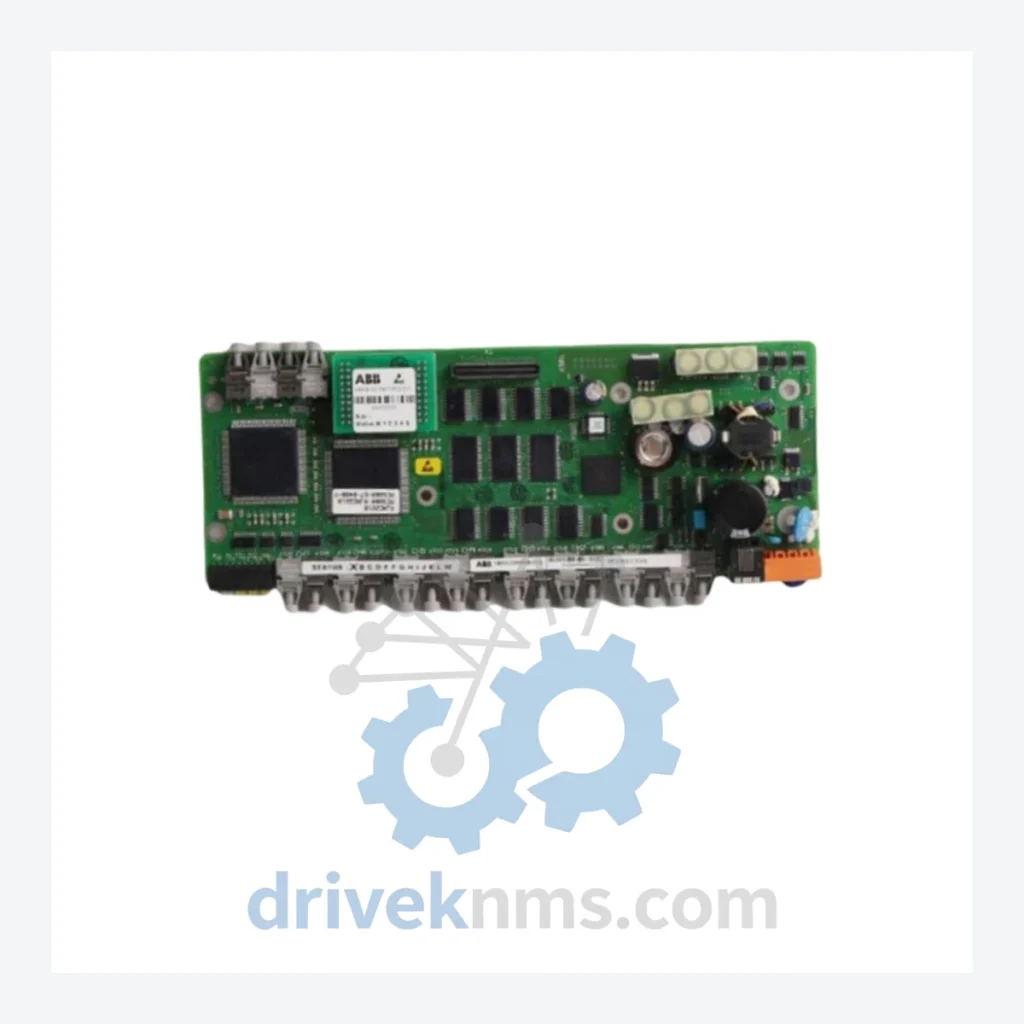

ABB SDCS Series Modules: SDCS-PIN-205B-COAT 3ADT220090R0035 Power Interface Board

Technical Dossier

Product Details And Specifications

ABB SDCS Series Technical Notes

The ABB SDCS (Scalable DC Drive Control System) board series forms the core control and interface architecture of the ABB DCS800 family of DC drives — one of the most widely deployed DC drive platforms in global heavy industry. Installed across petrochemical refineries, nuclear power auxiliary systems, pulp and paper mills, steel rolling lines, and offshore platforms, the SDCS board set provides modular, field-replaceable control intelligence for drives rated from 20 A to over 5200 A. The DCS800 platform, and by extension the SDCS board family, represents ABB's consolidation of the earlier DCS500B and Mentor II-era architectures into a unified, scalable control layer. These boards are not interchangeable across all drive generations; compatibility is determined by firmware revision, hardware revision suffix (e.g., -COAT for conformal coating), and drive frame size.

The Evolution of SDCS Architecture

The SDCS board family was introduced alongside the DCS800 platform in the early 2000s as a direct successor to the SDCS boards used in the DCS500B series. The first-generation SDCS-CON-2 and SDCS-PIN-205 boards established the baseline control and power interface topology. Subsequent hardware revisions introduced conformal coating variants (suffix -COAT) for harsh environments with high humidity, corrosive atmospheres, or significant thermal cycling — conditions common in coastal chemical plants and offshore installations.

By the mid-2010s, ABB released updated firmware packages (e.g., DCS800 firmware 5.x and 6.x) that required corresponding hardware revisions on the SDCS-CON-4 and SDCS-IOE-01 boards. Older SDCS-CON-2 boards are not firmware-compatible with DCS800 drives configured for fieldbus communication via SDCS-COM-8 or SDCS-COM-81 adapters without hardware modification. As of 2024, the DCS800 platform has entered the mature/end-of-active-development phase; ABB continues to supply spare boards through its service network, but new production runs are limited. This makes third-party MRO sourcing critical for operators committed to long-term DCS800 fleet maintenance.

SDCS Full Catalog & Functionalities (SKU List)

Control Boards (CON)

• SDCS-CON-2: Main control board, DCS800 base firmware, analog/digital I/O interface
• SDCS-CON-2B: Revised CON-2 with enhanced EMC filtering, drop-in replacement
• SDCS-CON-4: Advanced control board, supports fieldbus and extended I/O expansion
• SDCS-CON-4B: CON-4 with conformal coating, for corrosive/humid environments

Power Interface Boards (PIN)

• SDCS-PIN-205B-COAT 3ADT220090R0035: Power interface board, conformal-coated, DCS800 frame D5–D7, thyristor gate drive and feedback
• SDCS-PIN-205: Standard (non-coated) power interface board, DCS800 mid-frame drives
• SDCS-PIN-41: Power interface board for DCS800 large-frame (D8) drives, 4-quadrant capable
• SDCS-PIN-48: High-current power interface board, DCS800 frame D8/D9, regenerative braking support
• SDCS-PIN-51: Power interface board for DCS800 D5 frame, single-quadrant configuration

I/O Expansion Boards (IOE)

• SDCS-IOE-01: Digital and analog I/O expansion, 8DI/6DO/4AI/2AO, DIN rail mount
• SDCS-IOE-02: Extended I/O board, adds encoder feedback and pulse train input channels

Communication Adapter Boards (COM)

• SDCS-COM-8: PROFIBUS-DP adapter, supports DPV0/DPV1, up to 12 Mbps
• SDCS-COM-81: PROFIBUS-DP adapter, enhanced diagnostics, replaces COM-8 in later builds
• SDCS-COM-9: DeviceNet adapter, Group 2 slave, 125/250/500 kbps
• SDCS-COM-10: Modbus RTU/TCP adapter, RS-485 and Ethernet dual-port

Auxiliary / Feedback Boards

• SDCS-FEX-2: Field excitation board, separate field current control up to 16 A
• SDCS-FEX-425: High-current field excitation board, up to 25 A, for large DC motors
