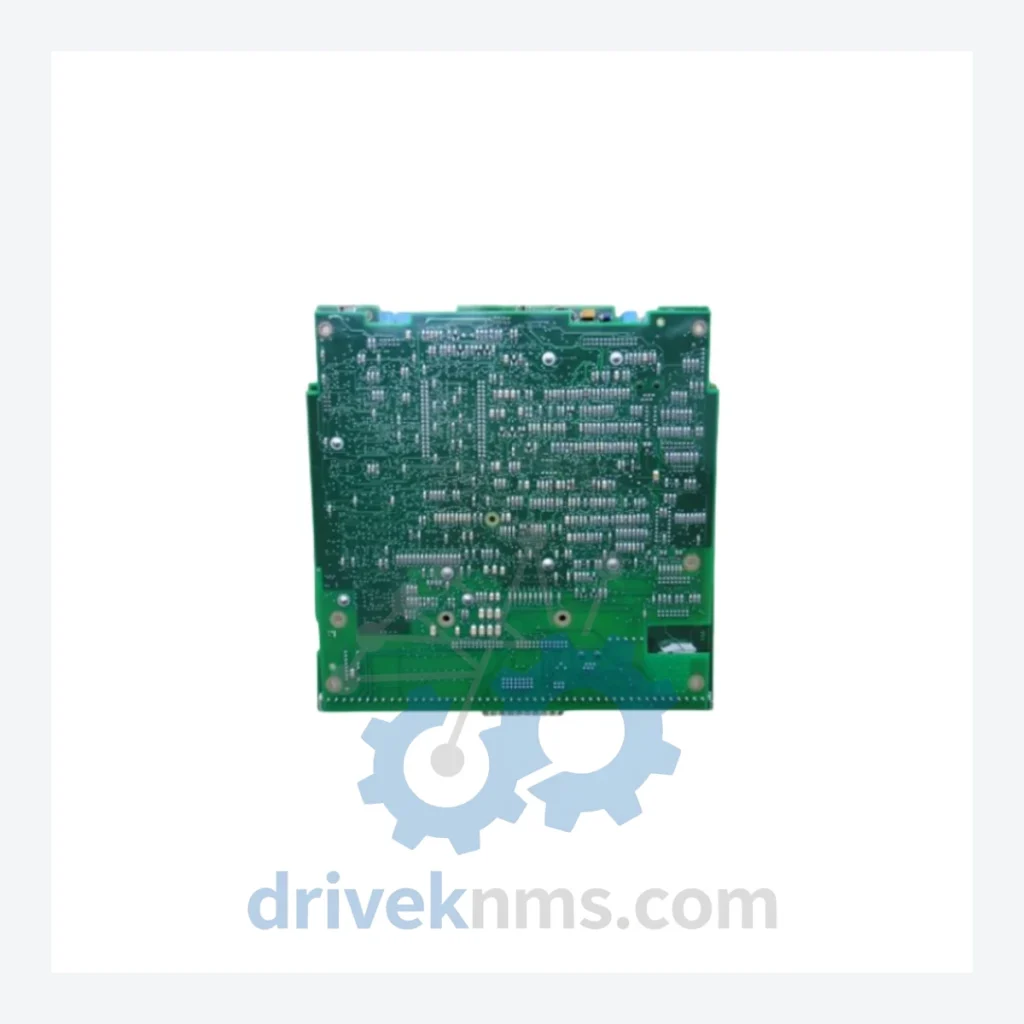

ABB SDCS-PIN-3A COAT 3ADT220120R0002 Power Interface Board – Obsolete SDCS Spare Part

Technical Dossier

Product Details And Specifications

ABB SDCS-PIN-3A COAT 3ADT220120R0002 Power Interface Board – Obsolete SDCS Spare Part

When the SDCS-PIN-3A fails, the consequences extend far beyond a single board replacement. The ABB DCS800 and DCS400 DC drive platforms that depend on this power interface board are deeply embedded in steel mills, paper machines, marine propulsion systems, and heavy process lines built to run for decades. A single unplanned shutdown on such a line can cost tens of thousands of dollars per hour. A forced migration to a modern drive architecture — with new engineering, rewiring, PLC reprogramming, and commissioning — routinely runs into the hundreds of thousands, sometimes millions, of dollars. DriveKNMS holds verified stock of the SDCS-PIN-3A COAT (3ADT220120R0002). This is not a commodity item. Treat it accordingly.

Technical Specifications

Note: Electrical parameters such as voltage ratings and current thresholds are board-specific and vary by drive configuration. Contact us with your full drive nameplate data for compatibility confirmation before ordering.

Solving the Discontinued Hardware Crisis

The SDCS-PIN-3A sits at the intersection of the control and power sections of ABB's DC drive architecture. It translates firing commands from the control board into gate pulses for the thyristor bridge — a function that cannot be replicated by a generic substitute or bridged with a software patch. When ABB discontinued the SDCS series, they did not provide a drop-in successor for this board. Facilities running DCS800 or DCS400 drives face a hard choice: source original spare boards from the secondary market, or commit to a full drive replacement program.

For plant managers operating aging DC drive infrastructure, the calculus is straightforward. A full drive replacement on a large process line involves not just the drive cabinet, but motor re-evaluation, cable sizing, control system integration, and operator retraining. Engineering costs alone frequently exceed $150,000 USD per drive. Maintaining a strategic inventory of SDCS-PIN-3A boards extends the operational life of each drive by 5 to 10 years at a fraction of that cost. The board is the weak link in the chain — protect it, and the rest of the system follows.

Industries where this board remains in active service include: pulp and paper (winder and rewinder drives), metals processing (rolling mill main drives), marine (shaft generator and thruster drives), and water treatment (large pump drives). In each of these environments, the cost of unplanned downtime dwarfs the cost of maintaining a spare parts buffer.

Condition & Reliability Assurance

Every SDCS-PIN-3A COAT unit that leaves DriveKNMS undergoes a structured 5-step inspection protocol before shipment:

Step 1 – Visual and Mechanical Inspection: Full board examination for physical damage, cracked solder joints, burnt traces, and component displacement. Conformal coating integrity is verified under UV light.

Step 2 – Electrolytic Capacitor Assessment: Capacitors are the primary failure point in aged power electronics. Each electrolytic capacitor is checked for bulging, leakage, and ESR deviation. Boards with suspect capacitors are either recapped or quarantined.

Step 3 – Pin and Connector Inspection: All edge connectors and pin headers are examined for oxidation, corrosion, and mechanical deformation. Corroded contacts are cleaned and treated; boards with structural pin damage are rejected.

Step 4 – Firmware and Label Verification: The hardware revision and reference number (3ADT220120R0002) are cross-checked against ABB documentation to confirm the board matches the declared specification. No substitutions or undisclosed revisions are accepted.

Step 5 – Functional Bench Test (where applicable): Units are powered and tested against known-good reference parameters where test fixtures are available. Test results are documented and available upon request.

Units are classified as New Old Stock (NOS), Tested Surplus, or Professionally Refurbished. Classification is disclosed on the invoice. We do not sell untested or uninspected boards.

Key Features for System Maintenance

Drop-in replacement: The SDCS-PIN-3A COAT is a direct hardware replacement for the same part number in any DCS800 or DCS400 drive. No firmware changes, no parameter re-entry, no control system modifications are required. The drive recognizes the board on power-up without intervention.

No re-engineering required: Unlike a drive platform migration, swapping this board does not require an ABB service engineer, a new drive commissioning report, or updates to your safety documentation. Maintenance staff familiar with the DCS800 platform can complete the replacement during a scheduled maintenance window.

Cost containment: The cost of a single SDCS-PIN-3A board — even at secondary market pricing — represents less than 1% of the cost of a full drive replacement project. For facilities with multiple DCS800 drives, maintaining two to three spare boards per site is a defensible capital expenditure that eliminates the single largest risk to production continuity.

Long-term asset protection: Automation assets of this class are designed for 20 to 30-year service lives. The drive itself is not the constraint — component availability is. Securing critical interface boards now, while stock exists in the secondary market, is the only reliable strategy for extending asset life beyond the manufacturer's support window.

FAQ

Q: What warranty applies to discontinued parts?
A: All units carry a 90-day warranty against defects in materials and workmanship under normal operating conditions. Warranty terms are confirmed in writing at the time of sale. Extended warranty arrangements are available for volume orders — contact us to discuss.

Q: How do I know the board is genuine ABB and not a counterfeit?
A: Every board is inspected against ABB's published part number and revision documentation. Reference number 3ADT220120R0002 is verified on the board label and cross-checked against the physical hardware revision. We do not source from unverified channels. Provenance documentation is available upon request for critical applications.

Q: Should I buy more than one unit?
A: For any facility operating more than two DCS800 or DCS400 drives, holding a minimum of two SDCS-PIN-3A boards in local stores is standard practice. Secondary market availability of this part is finite and declining. Once current stock is exhausted globally, lead times become unpredictable. Procurement decisions made under emergency conditions — after a failure — consistently result in higher costs and longer downtime than planned strategic purchasing.

Q: Can you source this part if you are currently out of stock?
A: Yes. DriveKNMS maintains an active sourcing network for obsolete ABB components. If current inventory is depleted, contact us with your timeline and quantity requirements. We will provide a sourcing assessment within 48 hours.

© 2026 DriveKNMS. Status: DRAFT
