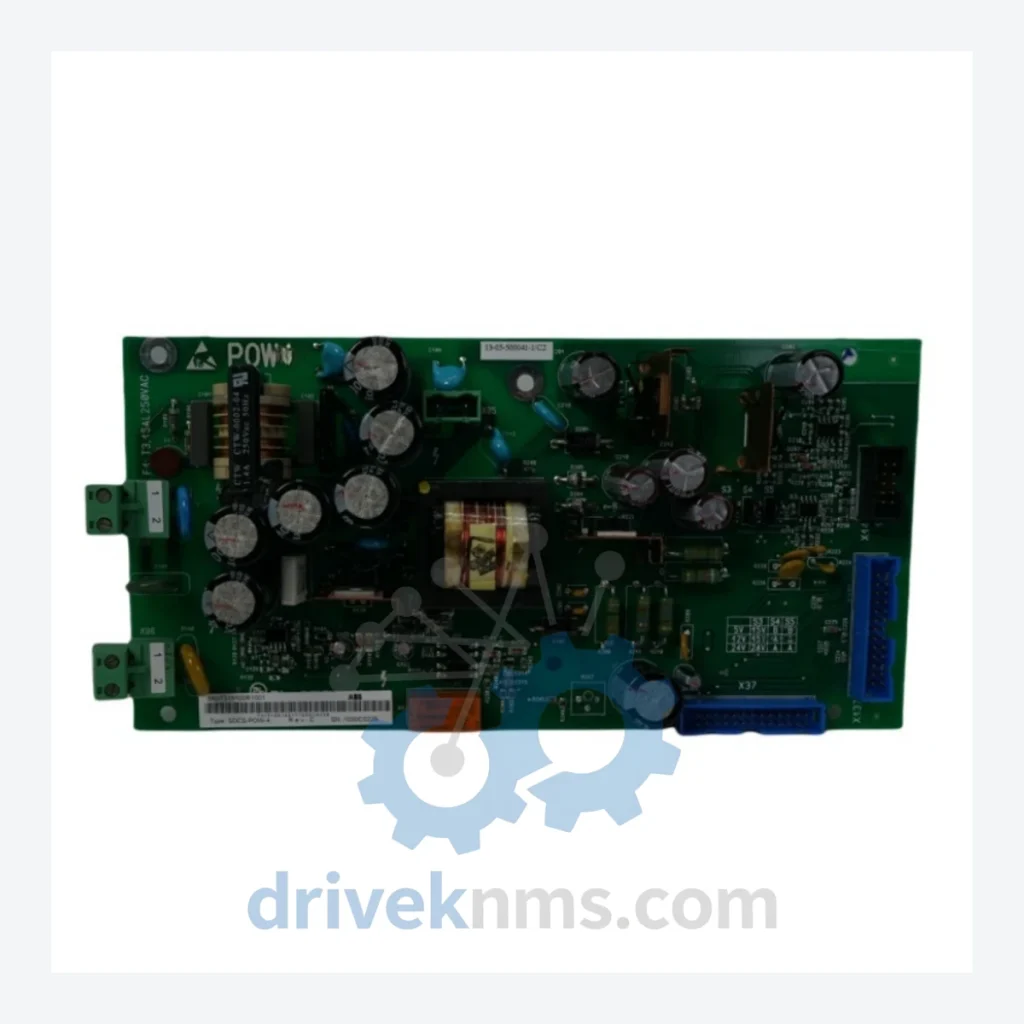

ABB SDCS-POW-H01 Power Supply Board – Obsolete DCS800 Series Spare Part

Technical Dossier

Product Details And Specifications

ABB SDCS-POW-H01 Power Supply Board – Obsolete DCS800 Series Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters beyond those listed above are not published here to prevent misapplication. Confirm compatibility with your drive's serial number and firmware revision before ordering.

Solving the Discontinued Hardware Crisis

The ABB DCS800 and DCS550 series DC drives were deployed extensively across heavy industry from the 1990s through the 2010s — in rolling mills, extruders, winders, hoists, and marine propulsion systems. Many of these installations remain in active production today, anchored by the drive's proven torque control performance and deep integration with plant-level SCADA and DCS architectures such as ABB Advant, Siemens SIMATIC, or Honeywell Experion.

For plant managers operating aging DC drive infrastructure, the strategic calculus is straightforward: the cost of one spare SDCS-POW-H01 board is a fraction of one hour of unplanned line stoppage. Facilities that maintain a documented critical spares inventory for legacy drive systems consistently achieve 5 to 10 additional years of productive asset life before a capital replacement project becomes unavoidable — and they do so on their own schedule, not in response to an emergency.

Condition & Reliability Assurance

DriveKNMS applies a structured 5-step inspection protocol to all obsolete power supply boards before dispatch review:

• Step 1 – Electrolytic Capacitor Assessment: All electrolytic capacitors are inspected for bulging, leakage, and ESR degradation. Aged capacitors are the primary failure mode in boards of this vintage and are flagged or replaced as required.
• Step 2 – Firmware & Revision Verification: The board's hardware revision marking is cross-referenced against known compatible firmware versions for the DCS800 and DCS550 control platforms to confirm drop-in compatibility.
• Step 3 – Pin and Connector Inspection: All edge connectors and board-to-board interface pins are examined under magnification for oxidation, corrosion, and mechanical deformation. Contact surfaces are cleaned where necessary.
• Step 4 – Visual PCB Inspection: The board is inspected for cracked solder joints, burnt traces, and component displacement resulting from thermal cycling or improper handling during prior storage.
• Step 5 – Functional Continuity Check: Key power rails and signal paths are verified for continuity prior to packaging.

Key Features for System Maintenance

• Drop-in Replacement: The SDCS-POW-H01 installs directly into the existing drive chassis using the original mounting points and connectors. No mechanical modification is required.
• No Reprogramming Required: Drive parameters stored in the control board (SDCS-CON) are unaffected by a power supply board replacement. The drive resumes operation with existing configuration intact.
• Avoids Engineering Reconstruction Costs: Replacing this board eliminates the need for drive system re-engineering, motor re-commissioning, and control loop re-tuning — costs that routinely reach tens of thousands of dollars when a full drive replacement is undertaken.
• Preserves System Integration: Existing fieldbus connections, speed references, and interlocks remain undisturbed, protecting the investment in plant-level integration work.

How do I confirm this is a genuine or quality-refurbished unit?
Each unit ships with an inspection report documenting its condition classification (NOS or TSU), the results of the 5-step QA process, and the technician sign-off. We do not ship units that fail any inspection step.

Can you source other SDCS series boards?
Yes. DriveKNMS specializes in the full SDCS board family and broader ABB DC drive spare parts. Contact us with your specific part numbers.
