ABB SDCS Series: Comprehensive Module Range and Technical Overview

The ABB SDCS (Scalable DC Drive Control System) series represents one of the most widely deployed DC drive control platforms in global heavy industry. Installed across petrochemical complexes, nuclear power auxiliary systems, offshore drilling platforms, steel rolling mills, and large-scale water treatment facilities, the SDCS architecture underpins mission-critical motor control applications where unplanned downtime carries six-figure hourly cost implications. The series is the control backbone of ABB's DCS 400, DCS 500, and DCS 600 DC drive families, which collectively account for tens of thousands of installed units across Europe, Asia-Pacific, and the Americas. Its modular design—separating control logic, power supply, I/O, and field excitation into discrete, field-replaceable boards—has made it the reference architecture for DC drive maintainability in industries where equipment replacement cycles span 20–30 years.

The Evolution of SDCS Architecture

The SDCS platform was introduced in the mid-1990s as ABB rationalized its DC drive control electronics across the DCS product family. The first-generation SDCS-CON-1 and SDCS-CON-2 boards established the core architecture: a dedicated microprocessor-based control board communicating with I/O expansion, power supply, and field excitation modules via a proprietary backplane bus. These early boards used EPROM-based firmware and supported serial communication via RS-232/RS-485 interfaces.

The second generation, represented by the SDCS-CON-3 and SDCS-CON-4, introduced expanded memory, faster processing cycles (critical for high-performance torque control applications), and native support for fieldbus adapters including Profibus-DP, DeviceNet, and Modbus RTU via the SDCS-COM adapter slot. The SDCS-IOB-3 and SDCS-IOB-21 I/O boards were introduced in this period to expand analog and digital I/O capacity for complex multi-drive configurations.

The third generation consolidated the architecture around the SDCS-CON-H01 (3ADT220166R0002) and related variants, incorporating surface-mount component technology, improved EMC shielding, and compatibility with ABB's DriveWindow PC tool for parameter management and diagnostics. Field excitation control was refined through the SDCS-FEX-2 and SDCS-FEX-3 modules, supporting both single-phase and three-phase field supply configurations.

As of 2024, the SDCS series has entered the mature/end-of-life phase. ABB has formally discontinued several SDCS module variants and transitioned new drive projects to the DCS880 platform. However, the installed base of DCS 400/500/600 drives remains substantial, and the SDCS module ecosystem will require active spare parts support through at least 2035 based on typical industrial equipment lifecycle patterns. Compatibility between SDCS generations is not universal—firmware version, backplane revision, and drive type must be verified before substituting modules.

SDCS Full Catalog & Functionalities (SKU List)

Control Boards (CON)

• SDCS-CON-1: First-generation DC drive control board for DCS 400/500; EPROM firmware; RS-232 comms
• SDCS-CON-2: Enhanced CON-1 variant with expanded parameter set; supports DCS 500B drives
• SDCS-CON-3: Third-generation control board; fieldbus adapter slot; improved torque control algorithm
• SDCS-CON-4: High-performance control board for DCS 600 series; dual encoder input; fast current loop

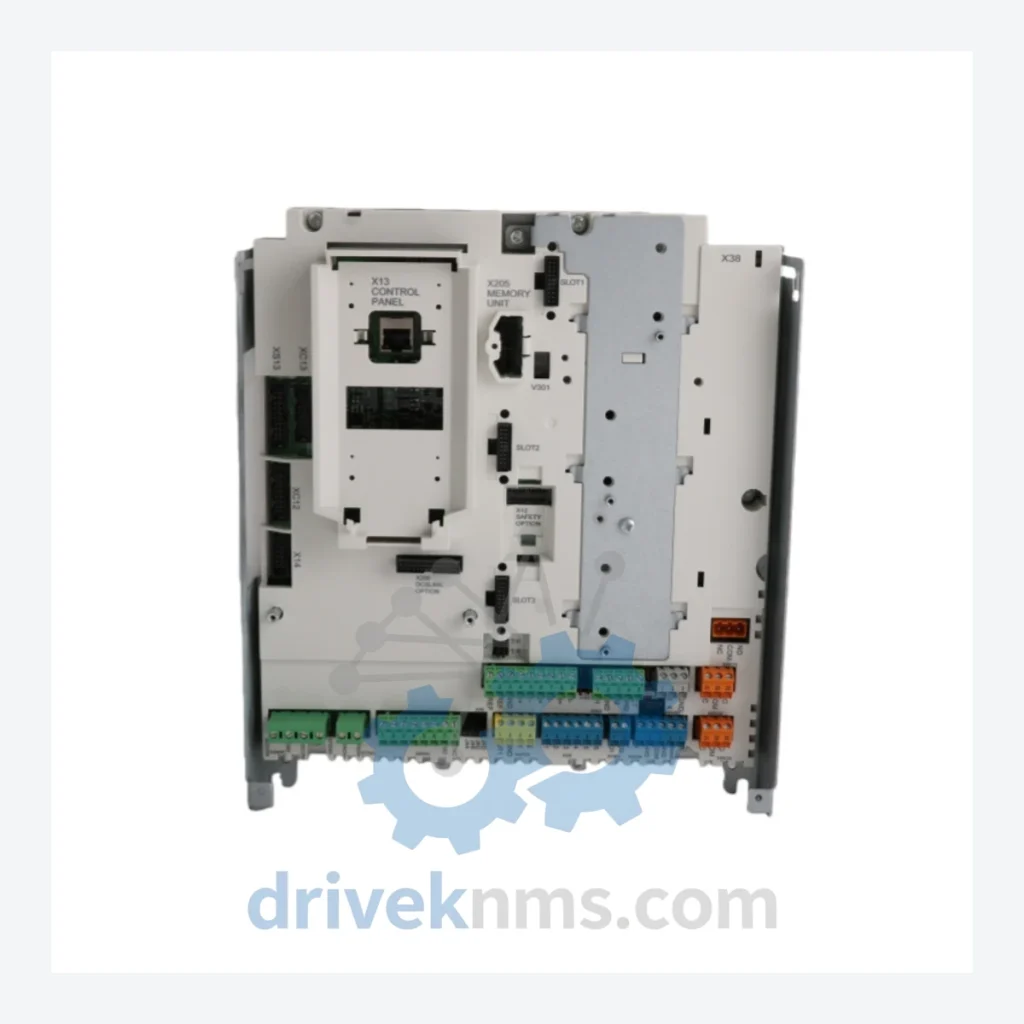

• SDCS-CON-H01 (3ADT220166R0002): Current-generation control circuit board; SMT design; DriveWindow compatible; DCS 600 MultiDrive

Power Supply Boards (POW)

• SDCS-POW-1: Internal 24 VDC auxiliary power supply board for DCS 400/500 control section
• SDCS-POW-2: Enhanced power supply with improved ripple rejection; DCS 500B/600 compatible
• SDCS-POW-4: High-capacity power supply board for MultiDrive cabinet configurations; redundant rail output

I/O Expansion Boards (IOB)

• SDCS-IOB-3: Analog and digital I/O expansion; 4 AI, 4 AO, 8 DI, 6 DO; DIN rail mountable
• SDCS-IOB-21: Extended I/O board; 8 DI, 8 DO; used in multi-axis and process line configurations
• SDCS-IOB-31: High-density I/O expansion for DCS 600 MultiDrive; supports encoder feedback routing

Field Excitation Boards (FEX)

• SDCS-FEX-2: Single-phase field excitation controller; 0–20 A field current range; integrated field economy mode
• SDCS-FEX-3: Three-phase field excitation controller; up to 50 A; for large DC motors with high field current demand

Communication Adapter Boards (COM / AMC)

• SDCS-COM-1: Profibus-DP adapter for SDCS-CON-3/4; supports DPV0 and DPV1 services
• SDCS-AMC-DC: Application and motion control board; used in DCS 600 MultiDrive for coordinated axis control

Pulse Encoder Interface

• SDCS-PEI-1: Pulse encoder interface board; HTL/TTL encoder input; speed feedback for closed-loop control

Sourcing Hard-to-Find & Obsolete SDCS Parts

DriveKNMS maintains a dedicated inventory program for the SDCS module range, with particular focus on variants that ABB has formally discontinued or placed on limited-availability status. Our sourcing network spans authorized surplus channels, decommissioned plant equipment, and verified third-party refurbishment partners across China, Germany, and the United States.

For obsolete SDCS variants—including early SDCS-CON-1, SDCS-CON-2, and first-generation SDCS-POW-1 boards—DriveKNMS provides lifecycle extension support including: cross-reference verification against drive serial number and firmware version, functional equivalence assessment for substitute modules, and documented test reports accompanying each shipment. We maintain traceability records for all SDCS modules sourced through our inventory, including original manufacturer date codes where available.

Customers operating DCS 400, DCS 500, DCS 500B, DCS 600, and DCS 600 MultiDrive installations are encouraged to submit their complete spare parts requirements list for batch quotation. Volume procurement of SDCS modules for planned maintenance shutdowns is a core service offering.

Quality Control for the SDCS Range

SDCS modules present specific quality control challenges due to their backplane bus architecture and the sensitivity of the control board's analog signal conditioning circuits. DriveKNMS applies the following test protocol to all SDCS modules processed through our facility:

• Visual inspection: Component-level examination under magnification for solder joint integrity, capacitor condition, and trace damage on multilayer PCBs
• Powered bench test: Each SDCS-CON board is powered via a calibrated bench supply and verified for correct auxiliary voltage rail outputs (±15 V, +5 V, +24 V) before connection to a drive backplane
• Backplane communication verification: SDCS-CON boards are tested in a reference DCS 600 drive chassis to verify correct parameter read/write via DriveWindow and fault-free initialization sequence
• I/O functional test: SDCS-IOB boards are tested for all analog input/output channels (accuracy within ±0.1% of full scale) and all digital I/O channels under load
• Field excitation test: SDCS-FEX boards are tested under resistive load to verify current regulation accuracy and field economy mode switching
• Burn-in: All repaired or refurbished boards undergo a minimum 48-hour powered burn-in at ambient temperature before shipment

Test results are documented and available to customers upon request. All SDCS modules are shipped in anti-static packaging with desiccant.
