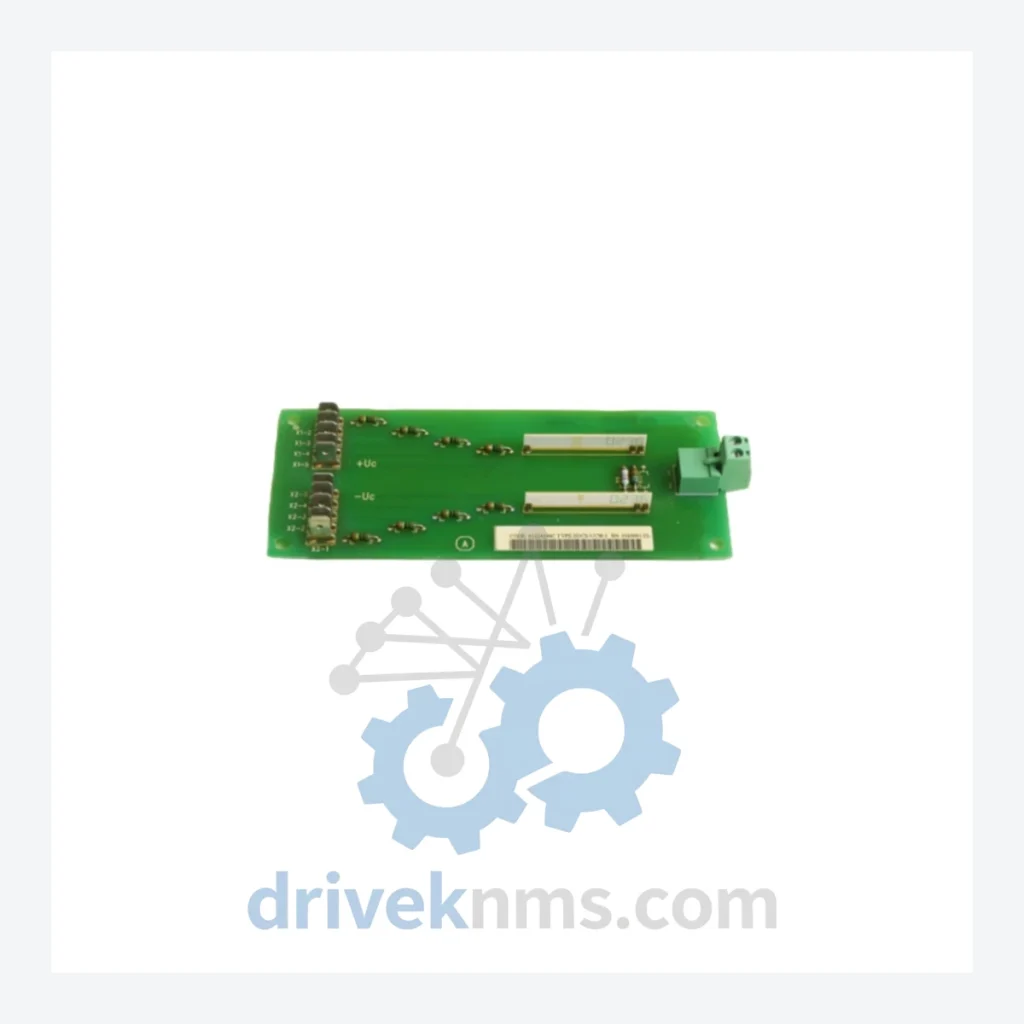

ABB SDCS Series Modules: ABB SDCS-UCM-1 3ADT220090R0008 Excitation Board

Name: ABB SDCS Series Modules: ABB SDCS-UCM-1 3ADT220090R0008 Excitation Board
Brand: ABB

Model: SDCS-UCM-1 3ADT220090R0008

Brand ABB

Series Pending

Model SDCS-UCM-1 3ADT220090R0008

RFQ-ready model route Obsolete and surplus sourcing Export follow-up by model list

Product Overview

Commercial availability is handled through direct RFQ, model verification and export-oriented follow-up rather than public cart checkout.

Submit RFQ Email This Model

Datasheet Preview

Use attached product manuals when available. If the manual is not public yet, request the full file directly through RFQ.

Request Full Manual

Commercial Path

Use This Page To Confirm The Model, Then Move To RFQ

Product pages on DRIVEKNMS are designed to verify model, brand and series first, then move the buyer into one clean quotation path.

Technical Dossier

Product Details And Specifications

ABB SDCS Series Technical Notes

The Evolution of SDCS Architecture

The SDCS board architecture was introduced alongside the DCS400 compact DC drive platform in the mid-1990s, providing a modular approach to drive control that separated the power electronics from the signal-level control logic. The first-generation SDCS boards — including the SDCS-CON-1 and SDCS-POW-1 — established the physical form factor and backplane connector standard that persisted through subsequent hardware revisions.

With the launch of the DCS800 platform (successor to the DCS500), ABB introduced revised SDCS board variants (SDCS-CON-2, SDCS-CON-4) with expanded memory, enhanced fieldbus support, and compatibility with the DriveWindow 2 commissioning tool. The SDCS-UCM-1 (Universal Control Module) represents a later-generation board within this lineage, carrying part number 3ADT220090R0008, and is responsible for field excitation regulation — a function critical to maintaining motor flux stability under variable load conditions.

Compatibility between board generations is not universal. SDCS-CON-1 and SDCS-CON-2 are not interchangeable without firmware and parameter migration. Integrators maintaining mixed-generation DCS400/DCS800 fleets must verify board revision levels against drive firmware versions before substitution. ABB's official end-of-life notices for several first-generation SDCS variants have been issued, making third-party RFQ-reviewed sourcing status the primary sourcing channel for maintenance operations.

SDCS Full Catalog & Functionalities (SKU List)

The following SKUs represent verified components within the ABB SDCS control board ecosystem, classified by functional role:

Control & Processor Boards

SDCS-CON-1: First-generation main control board for DCS400; handles armature current loop and speed regulation.
SDCS-CON-2: Revised main control board for DCS800; expanded RAM, dual encoder input, DriveWindow 2 compatible.
SDCS-CON-2B: Hardware revision B of CON-2; corrected EMC filtering on analog input stage.
SDCS-CON-4: High-specification control board for DCS800; supports advanced application programming via DriveSPC tool.
SDCS-UCM-1 3ADT220090R0008: Universal Control Module; manages field excitation output regulation for DCS800 series drives.

Power Supply Boards

SDCS-POW-1: Internal SMPS board for DCS400; generates ±15 V, +5 V, and +24 V logic rails from DC bus.
SDCS-POW-4: Power supply board for DCS800 frame sizes D4–D7; higher current capacity on auxiliary rails.

I/O Expansion Modules

SDCS-IOB-1: Basic I/O extension board; adds 8 DI, 4 DO, 4 AI, 2 AO to the DCS400 control platform.
SDCS-IOB-3: Extended I/O board for DCS800; supports 16 DI, 8 DO, configurable analog channels.
SDCS-IOB-21: Resolver interface I/O board; used in applications requiring high-resolution shaft position feedback.

Communication & Fieldbus Adapters

SDCS-COM-1: Serial RS-485 communication adapter; supports Modbus RTU protocol for legacy SCADA integration.
SDCS-COM-8: PROFIBUS-DP adapter module; enables DCS800 integration into Siemens S7 and ABB 800xA DCS networks.
SDCS-COM-81: PROFIBUS-DP V1 adapter with acyclic data channel support; required for PROFIdrive profile compliance.

Encoder & Feedback Boards

SDCS-FEX-1: Field excitation board for external field supply; used in DCS400 configurations with separate field converter.
SDCS-FEX-2: Enhanced field excitation module; supports programmable field weakening curves for high-speed motor operation.
SDCS-PIN-11: Pulse encoder interface board; accepts HTL/TTL incremental encoders up to 500 kHz input frequency.

Sourcing Hard-to-Find & Obsolete SDCS Parts

ABB has issued end-of-active-production notices for multiple first-generation SDCS variants, including the SDCS-CON-1, SDCS-POW-1, and SDCS-IOB-1. For plant operators running DCS400 or early DCS800 installations, this creates a sourcing gap that OEM channels cannot fill. DriveKNMS maintains a dedicated inventory of tested SDCS boards sourced from decommissioned drive units, controlled factory overstock, and verified distributor liquidations.

Quality Control for the SDCS Range

SDCS boards present specific test challenges due to their mixed-signal architecture: digital processor logic, high-resolution analog measurement circuits, and galvanically isolated gate drive outputs coexist on a single PCB. DriveKNMS applies a structured test protocol to each SDCS board prior to dispatch:
