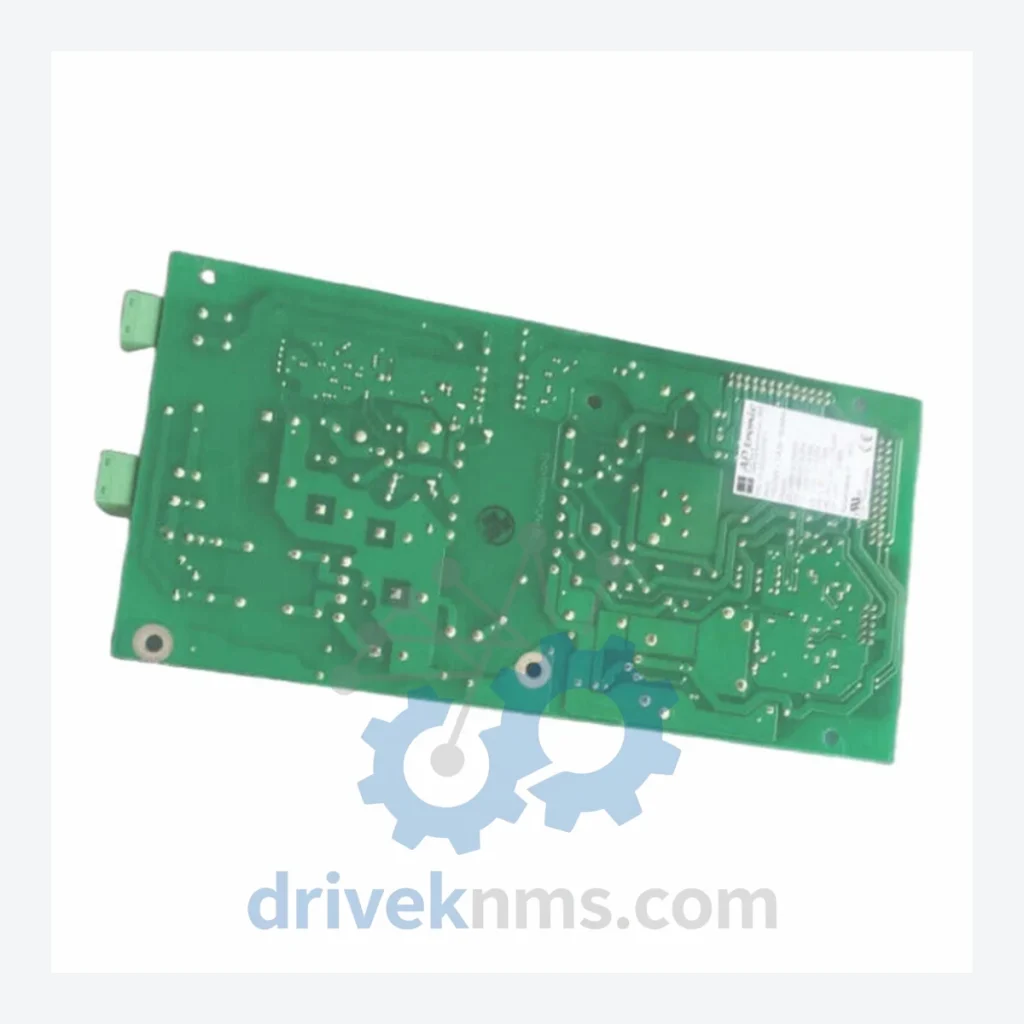

ABB SDCS Series Modules

Technical Dossier

Product Details And Specifications

ABB SDCS Series: Comprehensive Module Range and Technical Overview

The ABB SDCS (DC Drive Control System) series represents ABB's core platform for digital DC drive control, deployed across heavy industrial sectors including petrochemical refineries, nuclear power auxiliary systems, pulp and paper mills, steel rolling lines, and offshore platforms. Built around the DCS 400/500/600 drive families, SDCS modules serve as the intelligence layer — handling current regulation, field excitation, I/O interfacing, encoder feedback, and fieldbus communication. Installed base spans hundreds of thousands of drive axes globally, making SDCS one of the most widely maintained DC drive control architectures in service today.

The Evolution of SDCS Architecture

The SDCS platform was introduced in the early 1990s as ABB transitioned from analog thyristor control boards to fully digital drive control. The first-generation modules (SDCS-CON-1, SDCS-POW-1) established the modular backplane architecture that persists across all subsequent revisions. The second generation introduced enhanced field bus support (SDCS-COM-1 for PROFIBUS, SDCS-COM-3 for DeviceNet), responding to the shift toward plant-wide DCS integration in the late 1990s.

By the mid-2000s, ABB released revised hardware variants (suffix -2, -3) with improved EMC compliance and extended temperature tolerance for harsh environments. The SDCS-UCM-1C specifically addresses unified control and memory functions within the DCS 400 platform, consolidating parameter storage and control execution on a single board. As of 2020, the broader SDCS platform has entered the mature/end-of-active-production phase. ABB continues to supply select modules through its spare parts program, but lead times are extended and many variants are sourced exclusively from the secondary market. Long-term maintenance planning is essential for any facility with SDCS-based drives.

SDCS Full Catalog & Functionalities (SKU List)

Controllers & CPU Modules

• SDCS-CON-1: Main control board, DCS 400/500, current & speed regulation core
• SDCS-CON-2: Enhanced control board with extended memory and faster scan cycle
• SDCS-CON-3: Third-generation controller with improved EMC shielding and diagnostics
• SDCS-UCM-1C: Unified control & memory module, DCS 400 platform, parameter storage + execution
• SDCS-UCM-2: Upgraded unified control module with extended flash memory capacity

Power Supply Modules

• SDCS-POW-1: Internal 24 VDC power supply board for DCS 400/500 control section
• SDCS-POW-2: Revised power supply with improved ripple rejection and thermal protection
• SDCS-POW-4: High-capacity power board for DCS 600 MultiDrive configurations

I/O Modules

• SDCS-IOB-1: Standard I/O board, 8 DI / 4 DO / 4 AI / 2 AO, DCS 400/500
• SDCS-IOB-2: Extended I/O board with additional analog channels for process feedback
• SDCS-IOB-3: High-density I/O module for multi-axis DCS 600 installations
• SDCS-IOB-21: Isolated analog I/O board for high-noise industrial environments

Communication & Fieldbus Adapters

• SDCS-COM-1: PROFIBUS-DP adapter module, slave mode, up to 12 Mbit/s
• SDCS-COM-3: DeviceNet communication adapter, Group 2 slave, 125–500 kbit/s
• SDCS-COM-5: Modbus RTU/TCP adapter for legacy SCADA integration
• SDCS-COM-8: PROFINET IO adapter, real-time class B, DCS 600 MultiDrive

Encoder & Feedback Modules

• SDCS-FEX-1: Field excitation board, single-phase, for separately excited DC motors
• SDCS-FEX-2: Dual-channel field excitation module for reversing drive configurations

Sourcing Hard-to-Find & Obsolete SDCS Parts

With the SDCS platform in its mature lifecycle phase, procurement of specific board revisions — particularly early-suffix variants (SDCS-CON-1, SDCS-POW-1, SDCS-IOB-1) — requires access to verified secondary market inventory. DriveKNMS maintains a dedicated stock of SDCS modules sourced from decommissioned drive cabinets, OEM overstock, and controlled factory pulls. Each unit is catalogued by hardware revision, firmware version where applicable, and physical condition grade.

For facilities operating DCS 400/500/600 drives under long-term maintenance contracts, DriveKNMS offers consignment stocking arrangements and priority reservation for critical spare modules. Customers in the petrochemical and power generation sectors with multi-year turnaround cycles are encouraged to establish a standing spare parts agreement to mitigate lead time risk on obsolete SDCS variants.

Quality Control for the SDCS Range

SDCS modules present specific test challenges due to their integrated backplane bus architecture and mixed analog/digital signal paths. DriveKNMS applies a structured inspection and functional test protocol for all SDCS inventory:

• Visual inspection: PCB layer delamination check, capacitor ESR measurement, solder joint integrity under 10× magnification
• Power-on test: Regulated bench supply at rated voltage, inrush current monitoring, supply rail verification (±15 V, +5 V, +24 V)
• Functional bus test: Backplane communication verification using ABB DCS 400/500 test rig with known-good controller reference
• I/O channel verification: All digital and analog channels exercised against calibrated signal source; results logged per channel
• Communication adapter test: Fieldbus adapters (COM-1, COM-3, COM-8) tested on live PROFIBUS/DeviceNet/PROFINET segments with master simulator
• Burn-in: 48-hour thermal soak at 45°C ambient prior to release for critical control boards (CON, UCM series)

Test records are retained per serial number and available to customers on request.
