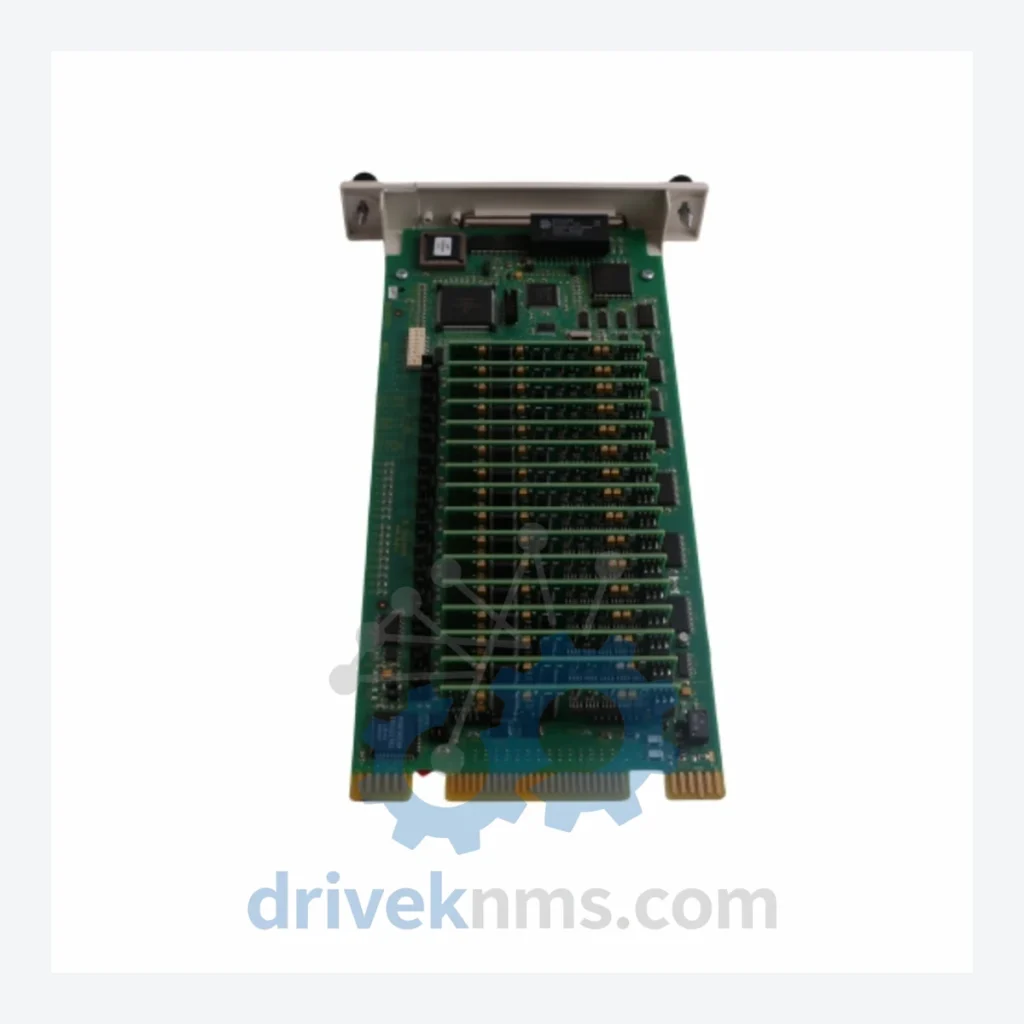

ABB SPAS Series Modules SPASI23

Technical Dossier

Product Details And Specifications

ABB SPAS Series Technical Notes

The ABB SPAS series represents a core family of I/O and signal processing modules deployed within ABB's Advant Controller (AC) and AC800M distributed control system (DCS) platforms. These modules are installed across global heavy industry sectors including petrochemical refineries, nuclear power stations, offshore platforms, pulp and paper mills, and large-scale chemical processing facilities. The SPAS designation covers analog signal handling modules — specifically analog input (AI) cards — that interface field instrumentation (4–20 mA transmitters, thermocouples, RTDs) with the controller backplane. Due to the long operational lifecycles typical of DCS infrastructure (15–30 years), SPAS series modules remain in active service at thousands of sites worldwide, making spare parts availability a critical operational concern for plant maintenance engineers and procurement teams.

The Evolution of SPAS Series Architecture

The SPAS module family originated within ABB's Advant OCS (Open Control System) architecture, introduced in the late 1980s and refined through the 1990s. Early SPAS modules were designed for the Advant Controller 110 (AC110) and AC160 platforms, operating over the Advant Fieldbus (AF100) and MasterBus 300 communication infrastructure. These early-generation cards used parallel backplane communication and were not hot-swappable in all configurations.

With the transition to the AC800M platform (introduced circa 2000), ABB maintained backward compatibility for many SPAS I/O modules through the use of S800 I/O interface modules and TB820/TB840 termination units, allowing legacy SPAS cards to coexist with newer S800 I/O in hybrid DCS architectures. This compatibility layer extended the operational life of SPAS hardware significantly, but also introduced integration constraints — particularly around firmware versioning and ModuleBus addressing — that maintenance teams must account for during system upgrades.

By the 2010s, ABB formally transitioned new installations to the S800 I/O and S900 remote I/O families. The SPAS series entered its end-of-active-production phase, though ABB continued to supply spare parts through its service channels. As of 2026, the majority of SPAS modules are classified as obsolete or RFQ availability review by ABB, making third-party certified spare parts suppliers a primary sourcing channel for plant operators requiring like-for-like replacements.

SPAS Series Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly referenced modules within the ABB SPAS and closely associated Advant/AC800M I/O module families. Each module is listed with its primary functional classification and a concise technical descriptor.

Analog Input (AI) Modules

• SPASI23: 8-channel analog input module, 4–20 mA / 0–10 V, 12-bit resolution, for Advant AC series backplane
• SPASI21: 4-channel analog input, high-accuracy RTD/thermocouple measurement, Advant OCS compatible
• SPASI22: 8-channel analog input, voltage/current selectable, with HART pass-through capability
• SPASI25: 16-channel analog input, multiplexed, 4–20 mA, compact form factor for high-density I/O racks
• SPASI26: 8-channel analog input with galvanic isolation per channel, for high-noise industrial environments

Analog Output (AO) Modules

• SPASO21: 4-channel analog output, 4–20 mA, 12-bit DAC, for control valve and actuator interfacing
• SPASO22: 8-channel analog output, 0–20 mA / 0–10 V selectable, Advant backplane compatible
• SPASO25: 4-channel analog output with loop diagnostics and open-circuit detection

Digital Input (DI) Modules

• SPDSI21: 16-channel digital input, 24 VDC, for discrete field device status monitoring
• SPDSI22: 32-channel digital input, 24 VDC, high-density, for large I/O count applications
• SPDSI23: 16-channel digital input, 120 VAC, for legacy field wiring compatibility

Digital Output (DO) Modules

• SPDSO21: 16-channel digital output, 24 VDC, 0.5 A per channel, transistor output
• SPDSO22: 8-channel relay output, SPDT contacts, 250 VAC / 2 A, for high-voltage switching
• SPDSO23: 16-channel digital output, 24 VDC, with short-circuit protection and diagnostics

Communication & CPU Modules

• SPBRC410: Advant Controller bus repeater/coupler for extending ModuleBus segments in large rack configurations
• SPFEC11: Field Excitation Card for powering 2-wire transmitters directly from the I/O backplane

Quality Control for the SPAS Series Range

SPAS series modules present specific quality control challenges due to their backplane-dependent communication architecture and age-related component degradation. DriveKNMS applies the following verification procedures to all SPAS series units prior to sale:

• Backplane Interface Test: Each module is seated in a compatible Advant or AC800M test rack and powered through a verified S100 or S800 I/O bus interface to confirm correct backplane communication handshake.
• Channel-Level Signal Verification: For analog input modules such as the SPASI23, each of the 8 input channels is individually stimulated with a calibrated 4–20 mA source and the digitized output is compared against factory specification tolerances (typically ±0.1% full scale).
• Isolation Resistance Check: Inter-channel and channel-to-ground isolation is measured to confirm galvanic integrity, particularly important for modules deployed in environments with high common-mode noise.
• Firmware & Configuration Retention: Where applicable, module configuration parameters and firmware version are read and documented. Modules with corrupted or missing firmware are reflashed using verified ABB firmware images prior to sale.
• Visual and Component Inspection: PCB inspection for electrolytic capacitor degradation, relay contact wear (on DO modules), and connector pin integrity is performed under magnification.
• Burn-In Cycle: Selected modules undergo a 24-hour powered burn-in cycle to screen for early-life failures prior to dispatch.
