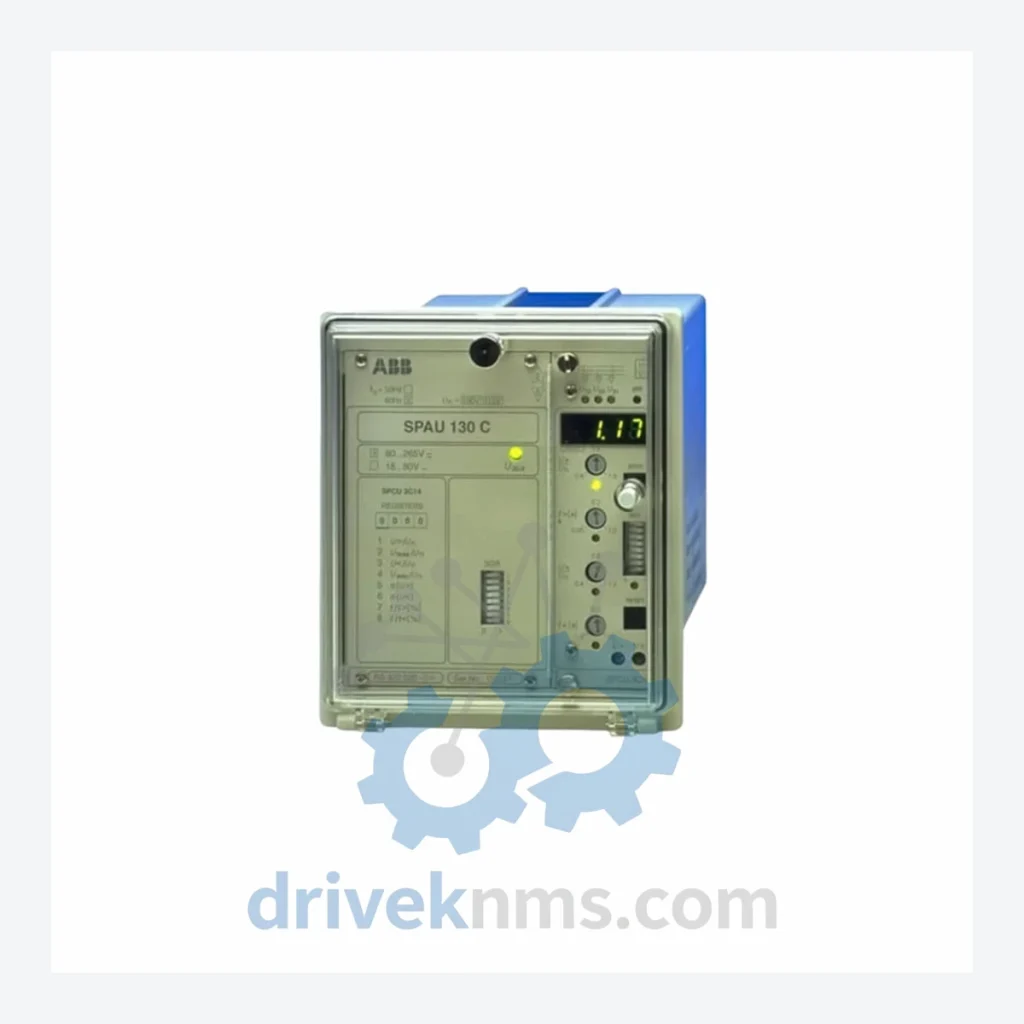

ABB SPAU130C-AA Voltage Relay – Obsolete SPAU Series Spare Part

Technical Dossier

Product Details And Specifications

ABB SPAU130C-AA Voltage Relay – Obsolete SPAU Series Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters such as rated voltage, frequency range, and I/O configuration vary by sub-variant and firmware revision. DriveKNMS will confirm exact specifications against your system documentation prior to shipment. No parameters are assumed or fabricated.

Solving the Discontinued Hardware Crisis

The ABB SPAU series was engineered for deterministic protection performance in an era when relay reliability was measured in decades, not product cycles. Substations and industrial plants that commissioned SPAU-based protection schemes in the 1990s built their entire protection philosophy — zone definitions, intertripping logic, SCADA integration — around these relays. The SPAU130C-AA specifically handles voltage supervision functions that are deeply embedded in protection coordination studies already approved by grid operators and safety authorities.

Replacing this relay with a modern IED is not a plug-and-play exercise. It requires new protection settings calculations, updated single-line diagrams, revised relay coordination studies, re-approval from the relevant grid authority or safety body, and a planned outage window that may span days. For a facility running continuous production — a refinery, a steel mill, a data center substation — that outage window alone carries a cost that dwarfs the price of sourcing a verified spare.

How to Extend Automation Asset Life by 5–10 Years with Critical Spare Parts

Plant managers facing pressure to retire legacy protection systems before capital budgets are available have a documented, low-cost alternative: structured spare parts provisioning combined with periodic condition assessment. The following strategy has been applied successfully across power utilities and heavy industry to defer system retirement by 5 to 10 years without compromising protection integrity.

1. Criticality mapping: Identify every SPAU-series relay in the protection scheme. Classify each by consequence of failure — loss of protection, production shutdown, or safety system impairment. The SPAU130C-AA, as a voltage supervision relay, typically sits in the highest criticality tier.

3. Controlled storage: Electromechanical and early numerical relays are sensitive to humidity and electrostatic discharge. Store spares in anti-static packaging, in a climate-controlled environment, with annual inspection records.

4. Firmware and configuration documentation: Archive the relay's current settings file, firmware version, and protection coordination study. This eliminates re-commissioning uncertainty when a spare is installed.

5. Planned replacement windows: Schedule spare installation during planned maintenance outages, not emergency conditions. Emergency relay replacement under time pressure is the primary cause of commissioning errors in protection systems.

This approach converts an uncontrolled obsolescence risk into a managed, budgeted maintenance program. The cost of two SPAU130C-AA spare units is a fraction of a single unplanned production outage.

Condition & Reliability Assurance

DriveKNMS applies a 5-step quality process to all discontinued relay inventory before dispatch review:

Step 1 – Visual and mechanical inspection: Full external inspection for physical damage, terminal corrosion, case integrity, and label legibility. Units with pin corrosion or terminal oxidation are rejected at this stage.

Step 2 – Electrolytic capacitor assessment: Electrolytic capacitors are the primary age-related failure mode in numerical relays of this generation. Each unit undergoes capacitor ESR measurement. Units showing elevated ESR indicative of capacitor degradation are quarantined.

Step 3 – Firmware version verification: The firmware revision is read and documented. Customers are informed of the exact firmware version prior to shipment so compatibility with their existing protection scheme can be confirmed.

Step 4 – Functional power-on test: The unit is powered and basic operational status is verified. Relay output contacts and LED indicators are checked for correct response.

Step 5 – Documentation and traceability: Each unit is assigned a DriveKNMS inspection record with test date, technician ID, and findings. This record ships with the unit.

Key Features for System Maintenance

Drop-in replacement: The SPAU130C-AA installs directly into the existing relay panel without mechanical modification. Terminal assignments, case dimensions, and mounting format are identical to the original installation.

No reprogramming required: Protection settings are stored in the relay's non-volatile memory. When replacing a failed unit, settings are re-entered from the archived settings file — a procedure that takes minutes, not days, and requires no specialist engineering contractor.

No protection scheme re-approval: Because the replacement relay is the same model and firmware generation as the original, the existing protection coordination study and grid authority approval remain valid. This is the single most significant cost avoidance factor in the entire replacement decision.

Q: How do I know the unit is genuine ABB and not a counterfeit?
A: All units are sourced from documented industrial decommissioning projects, licensed distributors, or verified surplus dealers. ABB SPAU relays carry internal serial number structures and firmware signatures that are checked during our inspection process. Counterfeit risk for this product class is low due to the specialized nature of the market, but our sourcing documentation is available for customer review on request.

Q: Can DriveKNMS source other SPAU-series variants?
A: Yes. DriveKNMS specializes in the full ABB SPAU, SPAC, SPAD, and SPACOM relay families. Contact us with your full part number and quantity requirement.
