ABB TB810 Modules

Technical Dossier

Product Details And Specifications

ABB TB810 Series: Comprehensive Module Range and Technical Overview

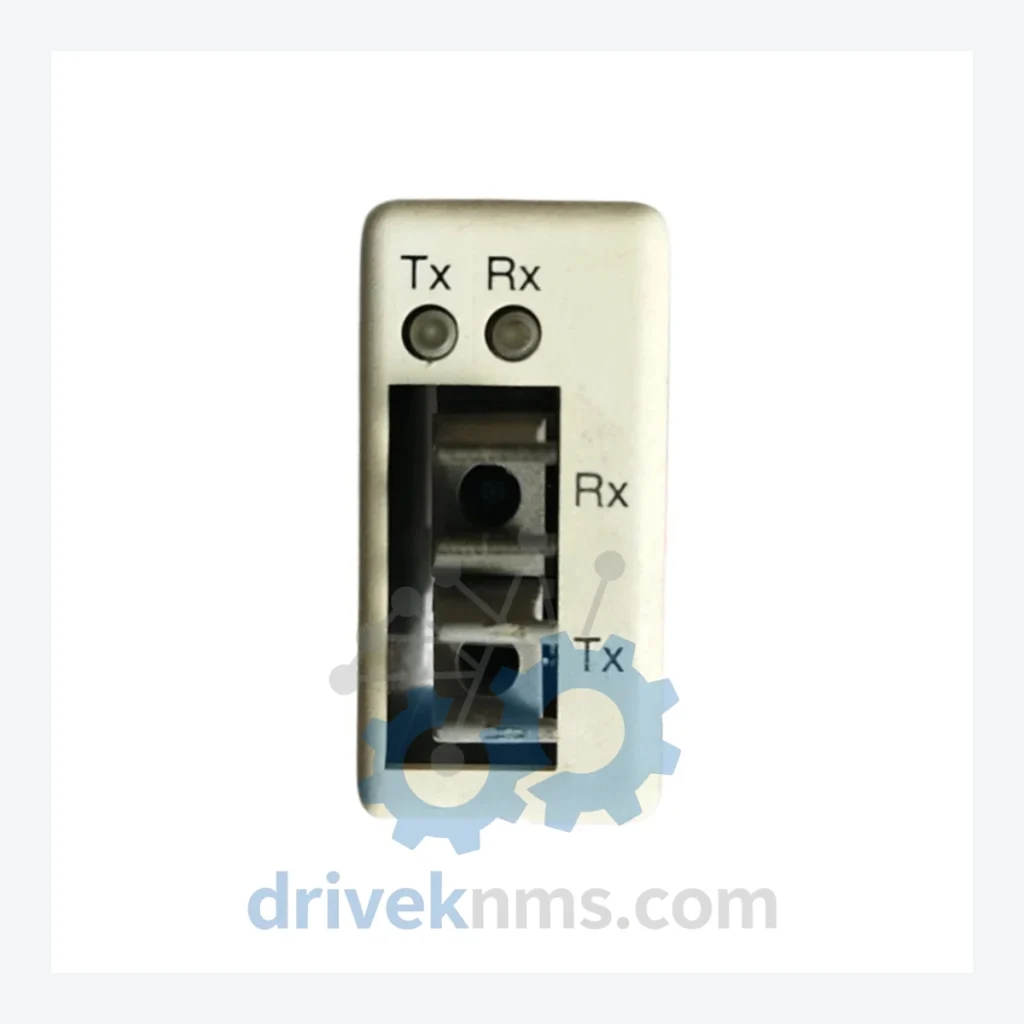

The ABB TB810 (3BSE008560R1) is a Modulebus Optical Port unit belonging to ABB's S800 I/O system, which operates as the distributed I/O backbone for the AC800M process automation controller platform. This series holds a significant installed base across global heavy industry sectors including petrochemical refineries, nuclear power auxiliary systems, pulp and paper mills, and offshore oil and gas platforms. The S800 I/O system — of which the TB810 is a critical communication interface component — was engineered for high-availability process control environments where bus redundancy, deterministic scan cycles, and long-term vendor support are non-negotiable procurement criteria. The TB810 specifically provides the optical Modulebus interface between the AC800M controller and remote S800 I/O clusters, enabling electrically isolated, noise-immune fiber-optic communication in environments with high electromagnetic interference.

The Evolution of TB810 Architecture

The TB810 belongs to the second-generation S800 I/O architecture introduced by ABB in the late 1990s as a successor to the earlier Advant I/O (AI810, AO810 generation tied to the Advant Controller 110/450 platform). The S800 system was designed around a modular, rail-mounted cluster concept where I/O modules connect to a Modulebus — a proprietary high-speed serial bus — via TB820 or TB840 bus terminators, with the TB810 serving as the optical port adapter that extends this bus over fiber to the AC800M CPU rack.

Key architectural milestones:

• 1997–2002 (Introduction Phase): TB810 deployed alongside AC800M v1.x firmware. Modulebus operated at fixed scan rates; no redundancy at the optical port level.
• 2003–2010 (Maturity Phase): Integration with AC800M v5.x and later v6.x. TB810 used in conjunction with TB820V2 and TB840A terminators. Redundant Modulebus configurations became standard in SIL-rated loops.
• 2011–2018 (Stabilization Phase): ABB continued firmware support but ceased hardware design revisions. TB810 remained the standard optical port for all S800 I/O clusters not migrated to the newer S800+ or S900 platforms.
• 2019–Present (Extended Lifecycle Phase): ABB has transitioned active development to the AC800M High Integrity and S900 I/O platforms. TB810 is classified as a mature/end-of-active-development product. ABB continues to supply spare units through its service channels, but lead times have extended significantly, making third-party MRO suppliers a critical sourcing channel for plant maintenance teams.

Compatibility note: TB810 is not directly interchangeable with TB811 (redundant optical port) or TB820 (Modulebus terminator). Substitution requires engineering review of the cluster topology and AC800M configuration tool (Control Builder M) settings.

TB810 Full Catalog & Functionalities (SKU List)

The following SKUs represent the verified S800 I/O module range commonly deployed alongside the TB810 in AC800M-based DCS architectures. All part numbers are ABB-issued. Classification follows functional role within the I/O cluster.

Optical Port & Bus Interface

• TB810 / 3BSE008560R1: Modulebus optical port, single channel, fiber-optic interface for S800 I/O cluster to AC800M.
• TB811 / 3BSE008566R1: Redundant Modulebus optical port; dual-channel fiber for high-availability cluster configurations.
• TB820 / 3BSE013208R1: Modulebus terminator unit; terminates the Modulebus at the end of an S800 I/O cluster rail.
• TB840 / 3BSE037760R1: Modulebus terminator with redundancy support; used in TB811-based redundant bus topologies.
• TB840A / 3BSE037760R1: Updated revision of TB840 with improved bus diagnostics.

Analog Input Modules (AI)

• AI810 / 3BSE008516R1: 8-channel analog input, 4–20 mA / 0–10 V, HART-transparent, 12-bit resolution.
• AI820 / 3BSE008544R1: 8-channel analog input with HART communication, 16-bit resolution, loop-powered.
• AI830A / 3BSE040662R1: 8-channel RTD/thermocouple input module, supports Pt100, Pt1000, J, K, T type sensors.
• AI835A / 3BSE052604R1: 8-channel HART analog input, SIL 2 capable, used in safety-instrumented loop monitoring.

Analog Output Modules (AO)

• AO810 / 3BSE008522R1: 8-channel analog output, 4–20 mA, 12-bit, loop-powered with short-circuit protection.
• AO810V2 / 3BSE038415R1: Revised AO810 with enhanced diagnostics and extended temperature range.
• AO820 / 3BSE008546R1: 8-channel analog output with HART, 16-bit resolution, field device parameterization support.

Digital Input Modules (DI)

• DI810 / 3BSE008508R1: 16-channel digital input, 24 VDC, sink/source configurable, 3 ms filter time.
• DI820 / 3BSE008536R1: 16-channel digital input, 120 VAC, optically isolated, for high-voltage field signals.
• DI830 / 3BSE013228R1: 16-channel digital input, 24 VDC, with SOE (Sequence of Events) timestamping, 1 ms resolution.

Digital Output Modules (DO)

• DO810 / 3BSE008510R1: 16-channel digital output, 24 VDC, 0.5 A per channel, short-circuit protected.
• DO820 / 3BSE013234R1: 8-channel relay output, 250 VAC / 30 VDC, SPDT contacts, for motor starter and valve actuator control.

Power Supply & Cluster Infrastructure

• SD821 / 3BSE018106R1: 24 VDC power supply unit for S800 I/O cluster, 5 A output, DIN rail mount.
• SD822 / 3BSE018107R1: 24 VDC redundant power supply, 10 A, for high-availability cluster power architectures.

Sourcing Hard-to-Find & Obsolete TB810 Series Parts

As the TB810 and associated S800 I/O modules enter the extended lifecycle phase, procurement teams at refineries, power utilities, and chemical plants face two primary supply challenges: extended OEM lead times (often 16–26 weeks for new units) and the complete discontinuation of certain early-revision modules such as the original TB820 and AI810 first-generation variants.

DriveKNMS maintains a dedicated inventory of tested S800 I/O spare parts, including TB810 (3BSE008560R1), TB811, AI810, AO810, DI810, and DO810 units sourced from decommissioned plant assets and authorized surplus channels. All units are inspected against ABB's published hardware revision matrices to ensure firmware compatibility with the target AC800M controller version.

For plants operating AC800M controllers on firmware v5.1 through v6.1, DriveKNMS can cross-reference the required TB810 hardware revision (R1 through R3) against the controller's Modulebus protocol version to prevent bus initialization failures — a common failure mode when mixing hardware revisions in a cluster.

DriveKNMS also supports lifecycle extension planning: if your plant is evaluating a migration from S800 I/O to S800+ or S900, our technical team can provide a module-by-module substitution map and identify which existing TB810-based clusters can be retained without controller replacement.

Quality Control for the TB810 Range

The TB810 optical port module presents specific test challenges due to its role as the physical-layer interface between the AC800M controller and the Modulebus. Standard power-on tests are insufficient to validate optical port integrity. DriveKNMS applies the following test protocol to all TB810 units processed through its facility:

• Optical Power Budget Test: Each TB810 fiber transmitter and receiver is measured using an optical power meter. Transmit power must fall within ABB's specified range of −15 dBm to −8 dBm at 660 nm wavelength. Units outside this range are rejected regardless of visual condition.
• Modulebus Loopback Test: The TB810 is installed in a live S800 test rack connected to a reference AC800M controller running Control Builder M. A full Modulebus scan cycle is initiated and bus error counters are monitored over a 30-minute soak period. Zero bus errors is the acceptance criterion.
• Backplane Connector Inspection: The 48-pin DIN connector on the TB810 rear is inspected under 10× magnification for bent pins, oxidation, and mechanical deformation — the primary cause of intermittent Modulebus faults in field-returned units.
• Firmware Revision Verification: The TB810 EEPROM firmware revision is read via the AC800M diagnostic interface and logged against the unit's serial number for traceability documentation provided with each shipment.
• Thermal Cycling: Units destined for high-ambient-temperature installations (refineries, compressor stations) are subjected to a 0°C to 55°C thermal cycle prior to final acceptance.
