ABB TKS Modules

Technical Dossier

Product Details And Specifications

ABB TKS Series: Comprehensive Module Range and Technical Overview

The ABB TKS series is a family of embedded controller and I/O modules deployed extensively across global heavy industry, including petrochemical refineries, nuclear power facilities, offshore platforms, and large-scale chemical processing plants. Built on ABB's industrial automation architecture, TKS modules serve as the computational and signal-conditioning backbone within distributed control system (DCS) and programmable logic controller (PLC) environments. Their ruggedized design meets the continuous-duty requirements of facilities operating under IEC 61511 and IEC 61508 functional safety standards. Installed base spans multiple decades, making lifecycle parts management a critical operational concern for plant engineers and maintenance teams worldwide.

The Evolution of TKS Architecture

The TKS platform originated as part of ABB's modular embedded controller strategy, designed to provide deterministic real-time processing within rack-mounted backplane assemblies. Early-generation TKS modules used parallel backplane buses with proprietary ABB communication protocols, limiting interoperability to same-generation hardware. Mid-generation revisions introduced dual-redundancy support and expanded I/O channel density, addressing the reliability requirements of safety-instrumented systems (SIS). Later variants incorporated fieldbus interfaces (PROFIBUS-DP, HART) and Ethernet-based diagnostics, enabling integration with modern SCADA and asset management platforms. As of 2026, the TKS series is in a mature-to-end-of-life phase. ABB has transitioned new project specifications toward the AC500 and System 800xA platforms. However, the installed base of TKS hardware in brownfield facilities remains substantial, and direct hardware replacement is not economically viable for most operators. Long-term maintenance support — including spare module sourcing, repair, and functional testing — is the primary operational requirement for TKS-equipped plants.

TKS Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly traded modules within the ABB TKS series. Each entry reflects the module's primary function within a TKS rack assembly.

Embedded Controllers / CPU Modules

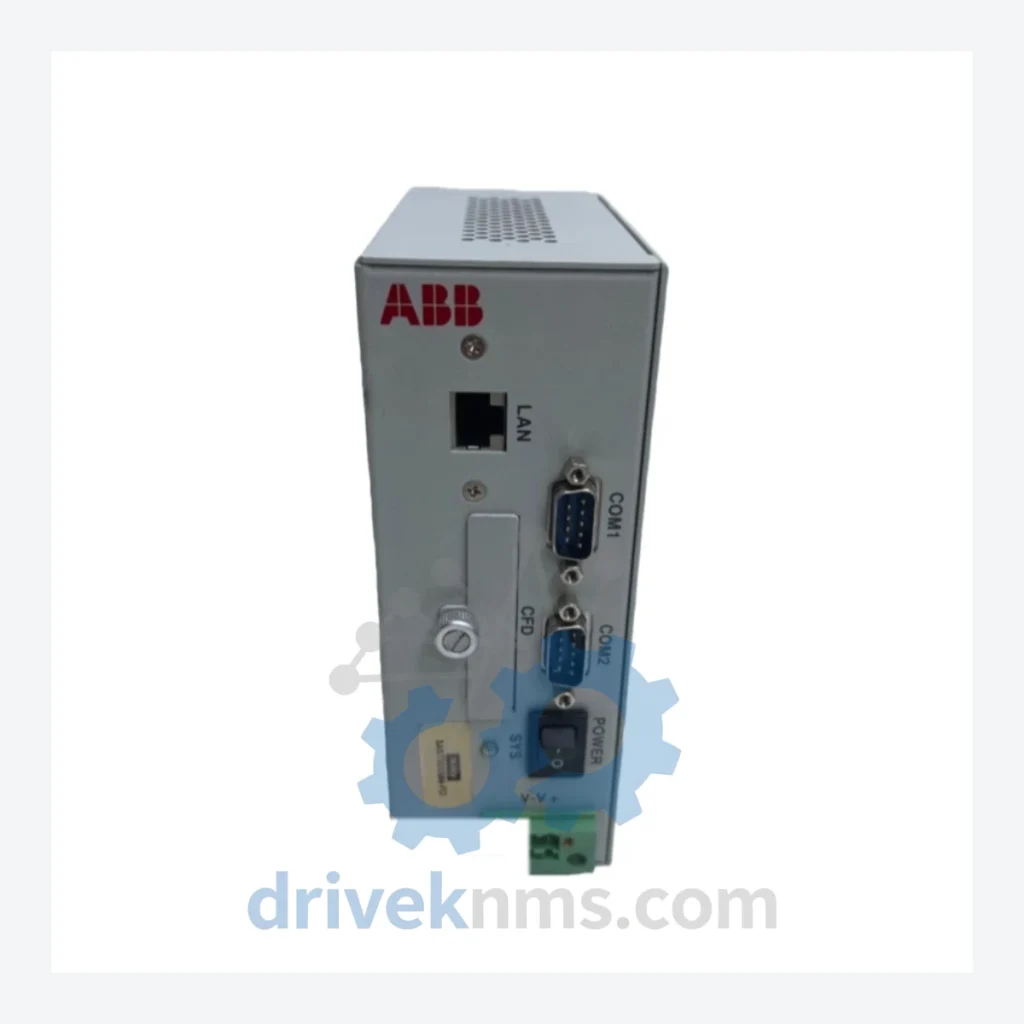

• TKS-P20-541I-N001: Embedded controller module, rack-mount, real-time processing core
• TKS-P20-541I-N002: Embedded controller variant, extended memory configuration
• TKS-P20-521I-N001: Mid-range CPU module, single-slot backplane interface
• TKS-P20-511I-N001: Entry-level embedded controller, reduced I/O capacity

Analog Input (AI) Modules

• TKS-AI-810: 8-channel analog input, 4–20 mA, HART-enabled per channel
• TKS-AI-820: 8-channel analog input, ±10 V / 0–10 V configurable range
• TKS-AI-840: 16-channel analog input, high-density rack card, 4–20 mA
• TKS-AI-850: 8-channel thermocouple/RTD input, multi-sensor type support

Analog Output (AO) Modules

• TKS-AO-810: 8-channel analog output, 4–20 mA, loop-powered
• TKS-AO-820: 4-channel analog output, high-resolution 16-bit DAC

Digital Input (DI) Modules

• TKS-DI-810: 16-channel digital input, 24 VDC, sink/source configurable
• TKS-DI-820: 32-channel digital input, high-density, optically isolated

Digital Output (DO) Modules

• TKS-DO-810: 16-channel digital output, 24 VDC, 0.5 A per channel
• TKS-DO-820: 8-channel relay output, SPDT contacts, 2 A rated

Communication & Fieldbus Adapters

• TKS-COM-PB: PROFIBUS-DP master/slave communication adapter
• TKS-COM-ETH: Ethernet TCP/IP communication module, Modbus TCP support
• TKS-COM-HART: Dedicated HART multiplexer interface module

Power Supply Modules

• TKS-PS-24V: 24 VDC rack power supply, 10 A output, redundancy-capable
• TKS-PS-RDN: Redundant power supply module, hot-swap, N+1 configuration

Sourcing Hard-to-Find & Obsolete TKS Parts

ABB has formally discontinued active production of the majority of TKS series modules. Standard ABB distribution channels no longer carry new stock for most SKUs in this family. DriveKNMS maintains a dedicated inventory of TKS spare parts sourced through verified industrial surplus channels, decommissioned plant buybacks, and authorized secondary market suppliers. For operators managing TKS-equipped systems through extended plant lifecycles — typically 15 to 30 years in refinery and nuclear applications — DriveKNMS provides a structured lifecycle extension service. This includes: identification of functional equivalents where direct replacements are unavailable; cross-referencing of legacy part numbers against current ABB catalog revisions; and provision of tested, serialized modules with full traceability documentation. Requests for obsolete or low-availability TKS SKUs are processed within one business day. Emergency procurement support is available for unplanned outage scenarios.

Quality Control for the TKS Range

TKS modules present specific testing challenges due to their proprietary backplane communication protocol and multi-layer PCB construction. DriveKNMS applies a structured inspection and functional verification process to all TKS inventory prior to dispatch. Each module undergoes visual inspection for physical damage, corrosion, and component integrity. Backplane connector pins are inspected under magnification and cleaned to IPC-A-610 Class 2 standards. Functional testing is performed using ABB-compatible rack test fixtures that replicate live backplane bus conditions, verifying correct module initialization, channel-level I/O response, and communication handshake with the controller. Modules with onboard firmware are verified against the last known stable revision. All tested units are assigned a unique inspection record and shipped with a test certificate. Modules that fail any stage of the test protocol are quarantined and not returned to saleable inventory.
