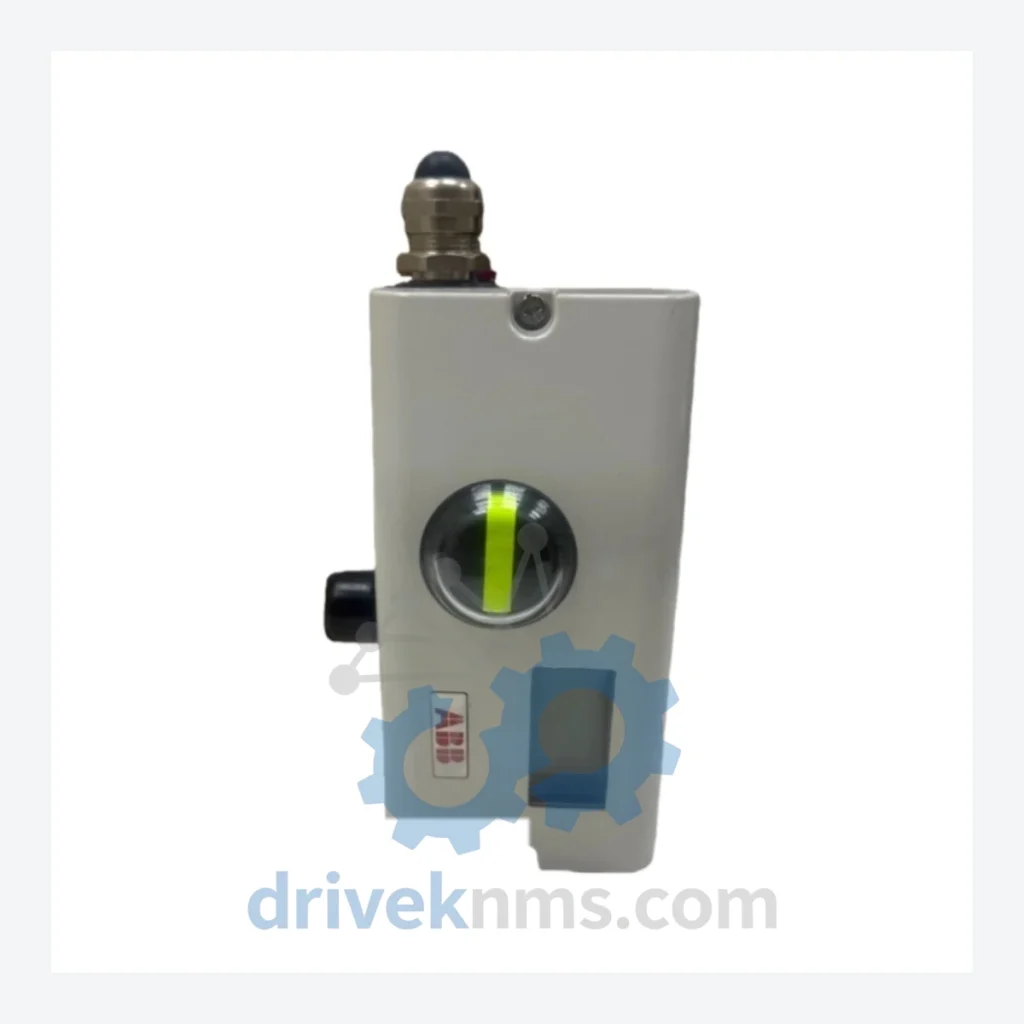

ABB TZIDC-110 Digital Positioner – Obsolete TZID Series Spare Part

When an ABB TZIDC-110 digital positioner fails in a running process plant, the consequences extend far beyond the cost of the component itself. This unit is a core element of valve control loops in facilities built around ABB's legacy automation infrastructure — systems that were engineered for decades of service but are no longer supported by the OEM. A single failed positioner can halt a critical control loop. In a continuous process environment — refining, chemical, pulp and paper, or power generation — an unplanned shutdown triggered by an obsolete, irreplaceable component can cost hundreds of thousands to millions of dollars per day in lost production. The alternative that plant management is often pressured toward is a full system migration: new DCS, new field instruments, new engineering hours, new commissioning. That path routinely exceeds USD 2–5 million for a mid-size facility, with 12–24 months of project risk. DriveKNMS holds verified stock of the TZIDC-110. Securing a spare now is not a procurement exercise — it is asset protection.

Technical Specifications

Note: Only confirmed specifications are listed above. Parameters not independently verified have been intentionally omitted to protect equipment safety.

Solving the Discontinued Hardware Crisis

The TZIDC-110 was deployed extensively across process industries throughout the 1990s and 2000s as part of ABB's TZID positioner family. It provided digital valve positioning with HART communication at a time when fieldbus integration was becoming standard in process automation. Many facilities that installed these units built their entire valve control strategy around the TZIDC platform — calibration routines, diagnostic workflows, and maintenance procedures are all written for this specific hardware.

ABB has since transitioned to the TZIDC-200 and later TZID-C variants, and the TZIDC-110 is no longer available through standard distribution channels. For plant managers operating facilities with 50, 100, or 200+ of these positioners in service, the discontinuation creates a compounding risk: each unit that fails without a verified replacement in stock forces an emergency procurement process with no guaranteed outcome. Sourcing from unverified channels introduces the risk of counterfeit or improperly refurbished units entering safety-critical valve loops.

The practical maintenance strategy for facilities still running TZIDC-110 positioners is straightforward: identify the installed base, calculate the statistical failure rate based on unit age and service hours, and hold a calculated buffer stock. A facility running 80 units with an average age of 15 years should hold a minimum of 3–5 verified spares at all times. The cost of that buffer is a fraction of one day's unplanned downtime. DriveKNMS specializes in sourcing and verifying exactly this category of obsolete field instrumentation.

Condition & Reliability Assurance

Every TZIDC-110 unit processed by DriveKNMS passes a structured 5-step inspection protocol before it is offered for sale. This process is designed specifically for aging electropneumatic instrumentation where component degradation is not always visible externally.

• Step 1 – Electrolytic Capacitor Assessment: Internal capacitors are inspected for signs of electrolyte leakage, bulging, or ESR drift. Aged capacitors are the primary cause of intermittent electronic failure in positioners of this generation.
• Step 2 – Firmware Version Verification: The installed firmware version is documented and cross-referenced against known stable releases for the TZIDC-110. Units with corrupted or unverifiable firmware are quarantined.
• Step 3 – Pin and Terminal Corrosion Inspection: All electrical connectors, terminal blocks, and pneumatic ports are inspected under magnification for oxidation, corrosion, or mechanical damage that could cause intermittent contact or air leakage.
• Step 4 – Pneumatic Integrity Test: Supply and output ports are pressure-tested to confirm there are no internal leaks in the pneumatic circuit.
• Step 5 – Functional Bench Test: Where test equipment is available, units are bench-tested for basic input/output response and HART communication integrity before dispatch.

Units are classified as New Old Stock (NOS), Tested Refurbished, or Inspected Used, and this classification is disclosed in full at the time of quotation.

Key Features for System Maintenance

• Drop-in replacement: The TZIDC-110 installs directly into existing valve actuator mounting arrangements without mechanical modification, preserving the original installation geometry.
• No reprogramming required: HART configuration parameters from the failed unit can be transferred to the replacement using standard HART communicators (e.g., Emerson 475, Beamex MC6). No DCS engineering changes are required.
• Avoids engineering reconstruction costs: Replacing a like-for-like positioner eliminates the need for loop re-engineering, P&ID revision, and re-commissioning — costs that routinely reach USD 15,000–50,000 per loop when a non-equivalent replacement is used.
• Maintains existing maintenance procedures: Technicians already trained on TZIDC-110 calibration and diagnostics can service the replacement unit without retraining.
• Preserves regulatory compliance documentation: In regulated industries (pharmaceutical, food processing, nuclear), substituting an equivalent part avoids the change control and revalidation burden associated with introducing a new instrument type.

FAQ

Q: What warranty applies to an obsolete part like the TZIDC-110?
A: DriveKNMS provides a 90-day warranty against defects in materials and workmanship on all tested and refurbished units. New Old Stock units are sold with a 30-day inspection warranty. Warranty terms are confirmed in writing at the time of order.

Q: How do I know the unit is genuine ABB and not a counterfeit?
A: All units are inspected for ABB part markings, serial number format, and internal construction consistent with known genuine TZIDC-110 hardware. Units that cannot be positively identified as genuine ABB manufacture are not offered for sale.

Q: Should we hold long-term spare stock of the TZIDC-110?
A: For any facility with more than 10 TZIDC-110 units in active service, holding a minimum buffer of 2–3 spares is a defensible maintenance strategy. As global stock of this model continues to deplete, sourcing lead times will increase and unit costs will rise. Procurement decisions made today carry significantly lower risk than emergency sourcing during an unplanned outage.

Q: Can DriveKNMS source multiple units for a planned maintenance program?
A: Yes. Contact us with your required quantity and delivery schedule. We will provide a sourcing assessment and, where possible, reserve stock against a purchase order.
