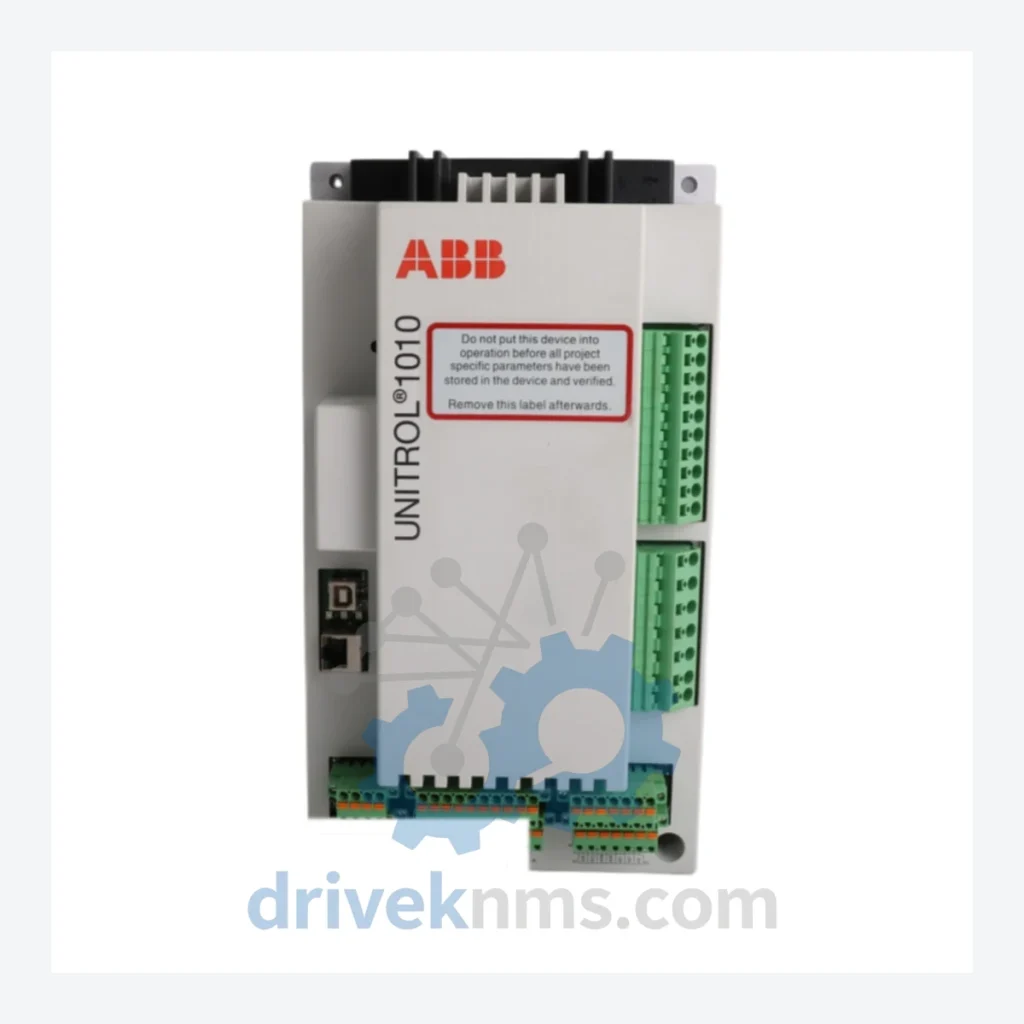

ABB UNS0121 Voltage Regulator Modules

Technical Dossier

Product Details And Specifications

ABB UNS0121 Series: Comprehensive Module Range and Technical Overview

The ABB UNS0121 series is a family of automatic voltage regulator (AVR) and excitation control modules developed under ABB's UNITROL platform. These units are deployed in synchronous generator excitation systems across heavy industrial sectors including petrochemical refineries, nuclear power stations, offshore platforms, and large-scale hydroelectric facilities. The UNS0121 architecture is designed to interface directly with ABB's UNITROL 1000, UNITROL 5000, and UNITROL 6000 excitation control systems, providing closed-loop voltage regulation, reactive power control (Q-regulation), and power factor correction (PF-regulation) in a modular, rack-mounted format.

Installed base spans multiple continents, with documented deployments in European grid-connected power plants, Middle Eastern desalination facilities, and Asian industrial co-generation units. The series operates within a defined voltage and frequency envelope, supporting both brushless and static excitation topologies. Its modular design allows field replacement of individual function boards without full system shutdown, a critical requirement in continuous-process industries where unplanned outages carry significant financial and safety consequences.

The Evolution of UNS0121 Architecture

The UNS0121 series traces its lineage to ABB's earlier UNITROL analog excitation controllers of the 1980s. The transition to digital signal processing in the mid-1990s produced the first generation of UNS0121 boards, which retained analog I/O interfaces while introducing microprocessor-based PID regulation loops. This hybrid architecture created a compatibility layer that allowed UNS0121 modules to be retrofitted into legacy excitation panels originally designed for purely analog regulators.

The second-generation UNS0121 variants, introduced in the early 2000s, incorporated expanded communication interfaces including PROFIBUS-DP and Modbus RTU, enabling integration with plant-level SCADA and DCS platforms. Firmware versioning (denoted by the suffix codes such as A-Z, V1, V2) tracks incremental changes to regulation algorithms, protection thresholds, and communication stack implementations. Compatibility between firmware versions and hardware revisions is strictly defined in ABB's technical bulletins; cross-version substitution requires validation against the site-specific excitation system configuration.

By the 2010s, ABB began transitioning new installations toward the UNITROL 6800 and UNITROL 6000 platforms, which offer IEC 61850 GOOSE messaging, enhanced cybersecurity features, and expanded redundancy options. The UNS0121 series entered a maintenance-only lifecycle phase, meaning no new hardware revisions are being developed. However, the installed base remains substantial, and demand for replacement modules continues from operators committed to long-term asset management strategies rather than full system replacement.

UNS0121 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified components within the ABB UNS0121 and directly associated UNITROL excitation module ecosystem. Each entry reflects a distinct hardware function within the excitation control architecture.

Voltage Regulator & AVR Boards

• 3BHE035301R0410 UNS0121 A-Z,V1: Main AVR regulation board, closed-loop voltage control, V1 firmware revision, standard excitation topology.
• 3BHE035301R0101 UNS0121 A-Z,V0: First-release AVR board, baseline firmware, compatible with early UNITROL 1000 panel configurations.
• 3BHE035301R0210 UNS0121 A-Z,V2: Second-revision AVR board with updated PID coefficients and expanded protection relay outputs.
• 3BHE035301R0310 UNS0121 A-Z,V3: Third-revision board incorporating enhanced EMC filtering and revised analog input scaling for high-impedance CT circuits.

Measurement & Signal Conditioning Modules

• 3BHE024577R0101 UNS0110A: Generator terminal voltage measurement module, 3-phase RMS acquisition, direct interface to UNS0121 regulation loop.
• 3BHE024577R0201 UNS0110B: Auxiliary voltage measurement board, field voltage and field current analog inputs, isolated signal conditioning.
• 3BHE022294R0101 UNS0115: Current transformer input module, configurable scaling for stator current feedback in Q-regulation mode.
• 3BHE022294R0201 UNS0116: Reactive power measurement board, calculates Q from V and I inputs, feeds power factor regulation loop.

Communication & Interface Adapters

• 3BHE013084R0001 UFC760BE101: PROFIBUS-DP communication adapter, connects UNS0121 system to plant DCS, supports DP-V0 and DP-V1 services.
• 3BHE013084R0002 UFC760BE102: Modbus RTU interface card, RS-485 physical layer, configurable baud rate and parity for SCADA integration.
• 3BHE013084R0003 UFC760BE103: Ethernet TCP/IP adapter, Modbus TCP protocol, enables remote parameter access and event logging retrieval.

Power Supply Modules

• 3BHE009681R0001 UNS0130: Primary 24 VDC internal power supply for UNS0121 rack, input range 85–264 VAC, redundancy-capable with hot-swap support.
• 3BHE009681R0002 UNS0131: Redundant power supply module, parallel operation with UNS0130, automatic load sharing and fault isolation.
• 3BHE009681R0101 UNS0132: Field excitation power interface board, bridges internal logic supply to high-voltage field winding driver stage.

I/O Expansion & Protection Modules

• 3BHE022294R0301 UNS0120: Digital I/O expansion module, 16 DI / 8 DO, configurable for protection relay interlocking and remote start/stop commands.
• 3BHE022294R0401 UNS0125: Analog output module, 4–20 mA isolated outputs for field current setpoint transmission to external thyristor bridge controllers.
• 3BHE035301R0501 UNS0128: Overvoltage and underexcitation protection board, hardware-enforced limits independent of main AVR firmware state.

Sourcing Hard-to-Find & Obsolete UNS0121 Parts

The UNS0121 series has been in a maintenance lifecycle for over a decade. ABB's official spare parts program for this series is subject to lead times that frequently exceed 26 weeks for low-volume boards, and certain firmware-specific variants (e.g., V1, V2 suffix revisions) are no longer manufactured to order. This creates a documented supply gap for operators running continuous-process facilities where a failed AVR board cannot wait for a standard procurement cycle.

DriveKNMS maintains a dedicated inventory of UNS0121 series modules sourced through verified industrial surplus channels, decommissioned plant asset recovery, and authorized distributor overstock. Each unit in inventory is catalogued by full part number including firmware suffix, hardware revision marking, and date code where visible. This granularity is necessary because substituting a V1 board for a V3 board without firmware validation can produce regulation instability in certain generator configurations.

For operators managing multi-unit power stations with standardized UNS0121 installations, DriveKNMS offers bulk availability checks against a submitted BOM (Bill of Materials). Requests specifying full part numbers, required quantities, and acceptable hardware revision ranges receive priority processing. Emergency same-day dispatch is available for in-stock units to major logistics hubs in Europe, the Middle East, and Asia-Pacific.

Quality Control for the UNS0121 Range

The UNS0121 board architecture presents specific test challenges due to its mixed analog-digital signal path and its dependence on firmware state for correct functional behavior. DriveKNMS applies a structured test protocol developed specifically for UNITROL-family excitation modules.

Each board undergoes incoming inspection covering physical condition assessment (connector pin integrity, PCB trace inspection under magnification, capacitor ESR measurement on known aging-prone components), followed by powered functional verification. Functional testing uses a dedicated UNITROL test bench that replicates the backplane signal environment of the UNS0121 rack, including simulated generator terminal voltage inputs, field current feedback signals, and communication bus traffic. The AVR regulation loop is exercised across its full setpoint range, and protection trip thresholds are verified against the published factory specification.

For communication adapter modules (UFC760 series), protocol-layer testing confirms correct frame construction, address resolution, and error-handling behavior under simulated bus fault conditions. Power supply modules are load-tested at 100% rated output for a minimum burn-in period before release. All test results are documented and accompany the unit shipment as a test certificate, providing the receiving engineer with objective evidence of functional status prior to installation.

Units that fail any test stage are quarantined, clearly marked as non-functional, and are not offered for sale. DriveKNMS does not sell untested or as-is UNS0121 modules.
