ABB XZC825A102 3BHE036346R0102 Circuit Board – Obsolete ACS/DCS Drive Spare Part

Technical Dossier

Product Details And Specifications

ABB XZC825A102 3BHE036346R0102 Circuit Board – Obsolete ACS/DCS Drive Spare Part

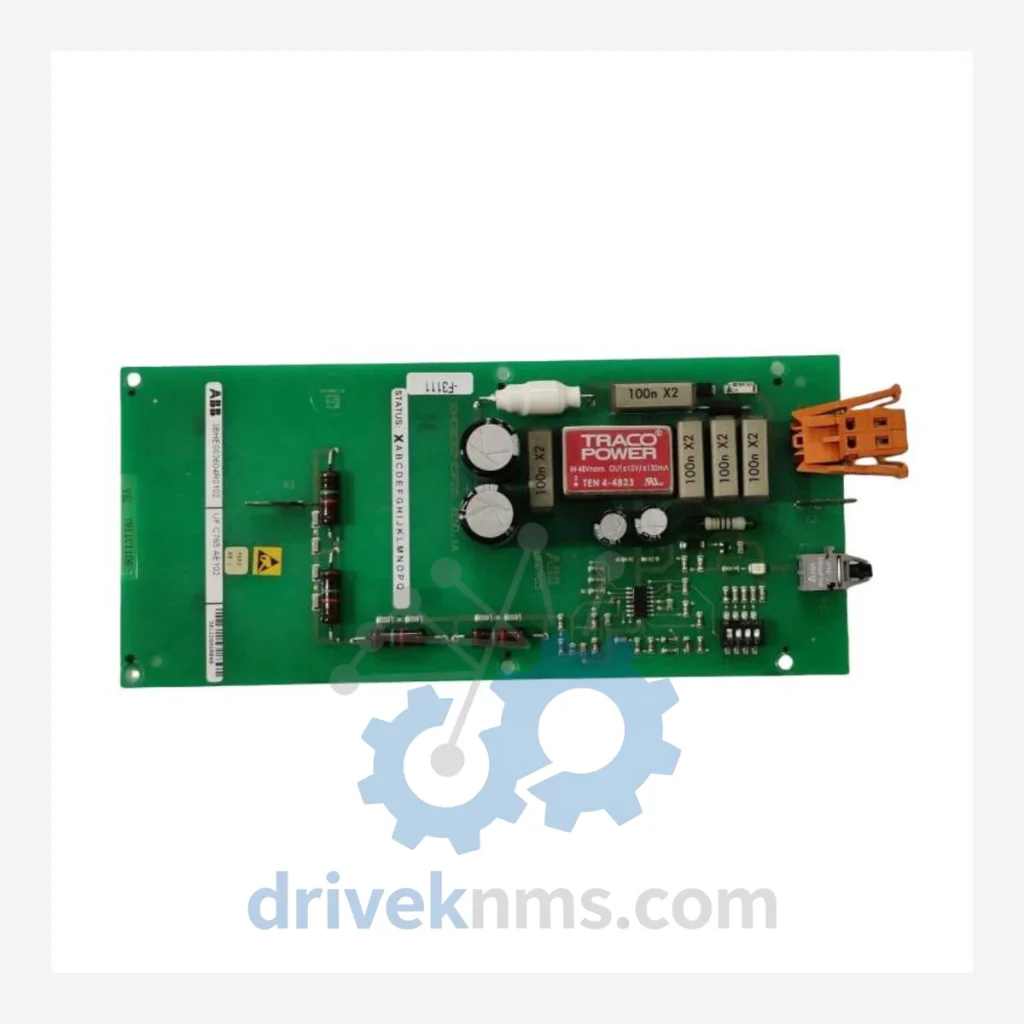

When a circuit board fails inside an aging ABB drive system, the immediate question is not where to find the part — it is whether the entire production line must stop. For facilities still operating ABB ACS or DCS series variable frequency drives, the XZC825A102 (reference: 3BHE036346R0102) is a core control or power interface board whose failure can render the drive inoperable. A single unplanned line shutdown in a continuous-process environment — chemical, paper, metals, or water treatment — can cost tens of thousands of dollars per hour. A forced system upgrade, driven solely by the unavailability of one circuit board, can escalate into a capital project measured in the millions. DriveKNMS maintains verified stock of this discontinued board specifically to prevent that outcome.

Technical Specifications

Note: Electrical parameters specific to this board variant are not published here to prevent misapplication. Contact our technical team for confirmation against your drive serial number and firmware revision before ordering.

Solving the Discontinued Hardware Crisis

ABB's ACS and DCS drive families were installed across global industrial infrastructure throughout the 1990s and 2000s. Many of these systems remain in active service, embedded in process lines where the cost and disruption of replacement far outweigh the cost of maintenance. ABB has progressively discontinued spare parts support for older drive generations, leaving plant engineers with a narrowing window to source critical boards through the aftermarket.

The XZC825A102 / 3BHE036346R0102 board sits within the drive's control or power conversion architecture. There is no direct modern equivalent that installs without engineering intervention. Substituting a newer drive generation requires new cabling, parameter re-commissioning, potential PLC interface changes, and in many cases, updated safety certifications — a process that routinely takes 3 to 6 months and carries six-figure costs. Sourcing the original board eliminates all of that.

For plant managers facing pressure to retire aging automation assets, the arithmetic is straightforward: a verified spare board at a fraction of the cost of a drive replacement extends the operational life of the existing system by 5 to 10 years, preserving capital budget for planned upgrades rather than emergency replacements. Facilities that maintain a buffer stock of two to three critical boards for each aging drive model have consistently avoided unplanned downtime events tied to parts obsolescence. This is not a workaround — it is a documented asset protection strategy used by maintenance teams in refining, utilities, and heavy manufacturing worldwide.

Condition & Reliability Assurance

Sourcing a discontinued circuit board from the aftermarket carries legitimate risk. DriveKNMS applies a five-step quality process to every board before it leaves our facility:

• Visual and mechanical inspection: Full examination of the PCB surface, solder joints, connector pins, and mounting hardware. Boards with physical damage, corrosion tracks, or burn marks are rejected at this stage.
• Electrolytic capacitor assessment: Aged electrolytic capacitors are the most common failure point in boards stored beyond their original service life. Each capacitor is tested for capacitance, ESR, and leakage. Boards with out-of-specification capacitors are either recapped or rejected.
• Pin and connector integrity check: All edge connectors and pin headers are inspected for oxidation, bending, and contact resistance. Corroded contacts are cleaned to IPC standards or the board is rejected.
• Firmware and hardware revision verification: Where applicable, the board's hardware revision marking is confirmed against the reference number 3BHE036346R0102 to ensure compatibility with the target drive generation.
• Functional burn-in test: Boards are powered and monitored under controlled conditions before being cleared for shipment.

Key Features for System Maintenance

• Drop-in replacement: The XZC825A102 installs directly into the original drive chassis using the existing mounting points and connectors. No mechanical modification is required.
• No reprogramming required: Drive parameters stored in the control unit are not affected by a board swap. Commissioning time is limited to standard post-replacement verification checks.
• No engineering redesign: Unlike a drive generation upgrade, replacing this board does not trigger changes to the surrounding electrical infrastructure, PLC interface, or safety interlock wiring.
• Immediate operational restoration: With a verified spare on hand, mean time to repair (MTTR) for a board failure is measured in hours, not weeks.
• Capital budget protection: Deferring a forced drive replacement by 5 to 10 years through targeted spare parts management preserves capital expenditure for planned, budgeted upgrades.

FAQ

What warranty applies to a discontinued board?
DriveKNMS provides a 12-month warranty on all boards that pass our full five-step QA process. New Old Stock units carry the same warranty period. Warranty covers functional failure under normal operating conditions and excludes damage caused by incorrect installation or electrical overstress.

How do I confirm this is a genuine ABB board and not a counterfeit?
Every board we supply carries its original ABB part markings and reference labels. We provide documentation of the inspection process and, where available, original packaging. We do not supply boards that cannot be positively identified by manufacturer markings.

Should I buy more than one unit?
For any drive system where this board is a single point of failure, holding a minimum of one verified spare on-site is standard maintenance practice. For facilities operating multiple drives of the same generation, a buffer of two to three units is advisable. Once aftermarket stock of a discontinued part is exhausted, no further supply is available at any price.

Can you source this board if I need it urgently?
Contact us directly with your drive serial number and required quantity. We will confirm availability and lead time within one business day.
