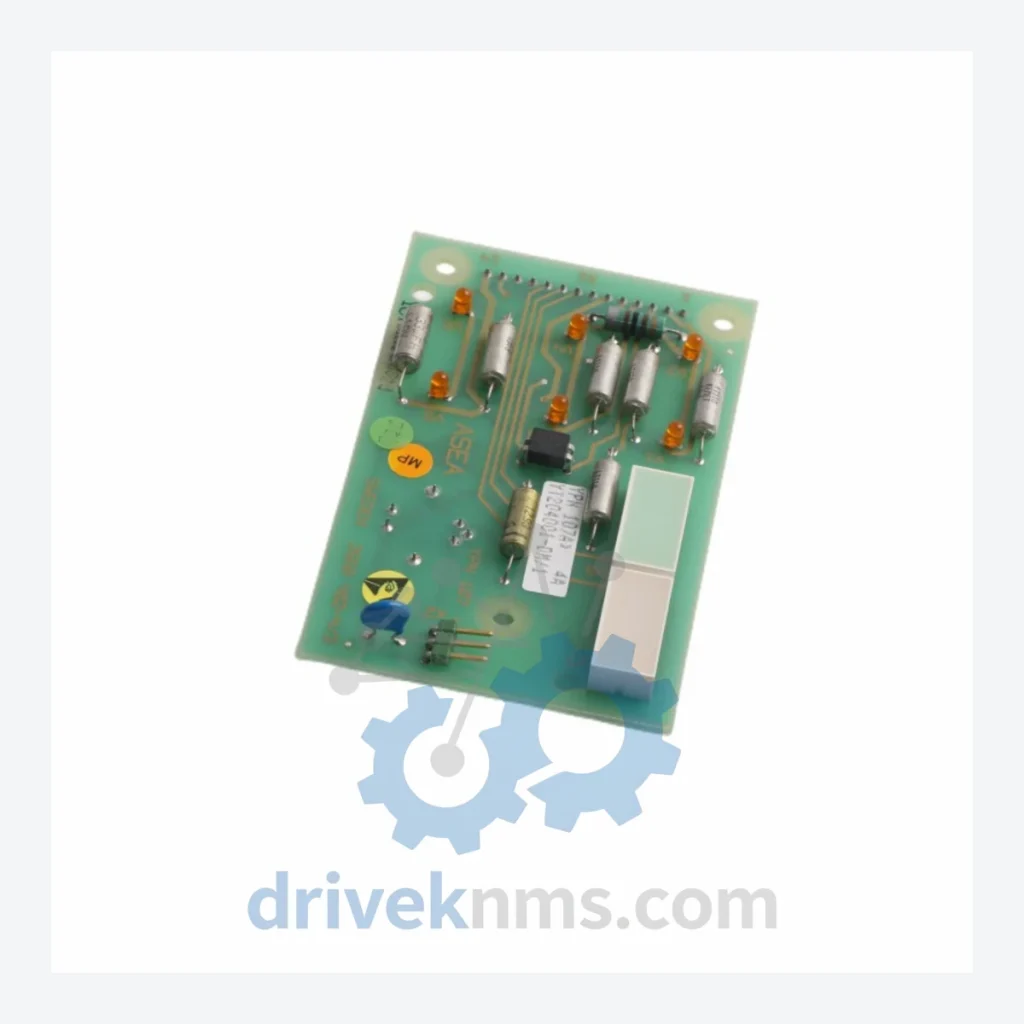

ABB YPM102E YT204001-FL Analog Output Module

Technical Dossier

Product Details And Specifications

ABB YPM102E Series: Comprehensive Module Range and Technical Overview

The ABB YPM102E series is a family of analog output modules developed for the ABB Advant Controller (AC) and Master DCS platforms — distributed control systems that have been deployed extensively in global heavy industry since the 1980s. Installations span petrochemical refineries, nuclear power stations, offshore platforms, pulp and paper mills, and large-scale chemical processing facilities. The YPM102E module, specifically the YPM102E YT204001-FL, functions as a field-interface analog output card, converting digital control signals from the controller backplane into 4–20 mA or 0–10 V analog signals for final control elements such as control valves, variable-speed drives, and positioners. Its continued presence in active plant environments — many of which operate on 20–40 year maintenance cycles — makes it one of the most consistently sourced spare parts in the ABB Advant ecosystem.

The Evolution of YPM102E Architecture

The YPM102E belongs to the ABB Advant OCS (Open Control System) hardware generation, which succeeded the earlier ASEA MASTER and Novatune platforms. The Advant architecture introduced a modular, rack-based I/O philosophy where analog, digital, and communication modules share a common S100 or S800 backplane bus. Early-generation analog output modules in this lineage — such as the YT204 and YT205 base variants — used discrete component signal conditioning. The YPM102E generation introduced improved galvanic isolation per channel, enhanced EMC shielding, and tighter output accuracy tolerances (±0.1% of full scale). The suffix YT204001-FL denotes the specific hardware revision and factory configuration code used in ABB's internal part numbering system, distinguishing it from field-retrofit variants. As ABB transitioned its DCS portfolio toward the System 800xA platform (AC800M controllers, S800 I/O), the YPM102E series entered end-of-production status. However, the installed base remains substantial, and ABB's long-term parts support policy does not guarantee availability beyond the standard 10-year post-discontinuation window. Plants operating legacy Advant systems must therefore maintain independent spare parts inventories or source from specialist distributors.

YPM102E Full Catalog & Functionalities (SKU List)

The following SKUs represent verified components within the ABB Advant / YPM-series analog output module ecosystem. Each entry is classified by functional role:

Analog Output Modules

• YPM102E YT204001-FL: 4-channel analog output, 4–20 mA, S100 bus, galvanic isolation per channel
• YPM102A YT204001-AA: 4-channel analog output, early hardware revision, non-isolated outputs
• YPM102B YT204001-BA: 4-channel analog output, revised signal conditioning, improved linearity
• YPM102C YT204001-CA: 4-channel analog output, enhanced EMC version for high-noise environments
• YPM102D YT204001-DA: 4-channel analog output, extended temperature range variant (-20°C to +70°C)
• YPM112E YT214001-FL: 8-channel analog output, dual-density I/O card, 4–20 mA per channel
• YPM112A YT214001-AA: 8-channel analog output, early revision, shared power rail

Analog Input Modules (companion cards)

• YPM101E YT203001-FL: 8-channel analog input, 4–20 mA, S100 bus, paired with YPM102E in control loops
• YPM101A YT203001-AA: 8-channel analog input, early revision, no HART support
• YPM111E YT213001-FL: 16-channel analog input, high-density, thermocouple/RTD compatible

Digital Output Modules

• YPM202E YT304001-FL: 16-channel digital output, 24 VDC, relay-isolated, S100 bus
• YPM202A YT304001-AA: 16-channel digital output, early revision, transistor output

Digital Input Modules

• YPM201E YT303001-FL: 16-channel digital input, 24 VDC, S100 bus
• YPM201A YT303001-AA: 16-channel digital input, early revision, no diagnostics

Communication & CPU Modules

• DSPC110 57310001-P: Advant Controller CPU module, paired with YPM I/O in AC110/AC160 racks
• DSPC172 57360001-P: Enhanced CPU module, supports expanded I/O addressing for large YPM arrays
• DSSB110 57340001-P: S100 bus extender, enables multi-rack YPM I/O expansion
• DSAI130 57120001-P: Analog input module, S100 bus, alternative to YPM101 in mixed installations
• DSAO110 57130001-P: Analog output module, S100 bus, functional equivalent to YPM102 in some rack configurations

Sourcing Hard-to-Find & Obsolete YPM102E Parts

The YPM102E YT204001-FL and related Advant I/O modules are classified as end-of-life (EOL) by ABB. New production units are no longer available through standard ABB distribution channels. DriveKNMS maintains a dedicated inventory of tested, pull-out, and refurbished YPM102E series modules sourced from decommissioned Advant systems globally. Our procurement network covers Europe, North America, and Asia-Pacific, enabling us to fulfill both single-unit emergency orders and bulk spare parts packages for planned maintenance shutdowns. For plants operating under long-term service agreements (LTSA) or asset integrity programs, DriveKNMS can provide consignment stock arrangements and multi-year supply contracts to ensure continuity of spare parts availability beyond ABB's standard support window. All sourced units are catalogued by hardware revision, firmware version (where applicable), and physical condition grade prior to listing.

Quality Control for the YPM102E Range

Analog output modules such as the YPM102E present specific test challenges due to their multi-channel architecture, galvanic isolation barriers, and backplane bus interface logic. DriveKNMS applies the following test protocol to all YPM102E series units prior to dispatch:

• Backplane bus continuity test: Verification of S100 bus connector pin integrity and signal path resistance using a dedicated Advant rack test fixture.
• Channel-by-channel output calibration: Each of the 4 output channels is driven across the full 4–20 mA range and measured against a calibrated reference meter. Output accuracy must be within ±0.15% of full scale.
• Isolation resistance test: Channel-to-channel and channel-to-chassis isolation resistance verified at 500 VDC, minimum 100 MΩ.
• Thermal soak test: Units are operated at 55°C for 4 hours under full output load to screen for latent component failures.
• Visual and mechanical inspection: PCB examined for corrosion, cold solder joints, damaged components, and connector wear. Front panel label and revision markings verified against part number.

Units that fail any stage of this protocol are either repaired to specification or quarantined and not offered for sale.
