ABB YPQ Series: Comprehensive Module Range and Technical Overview

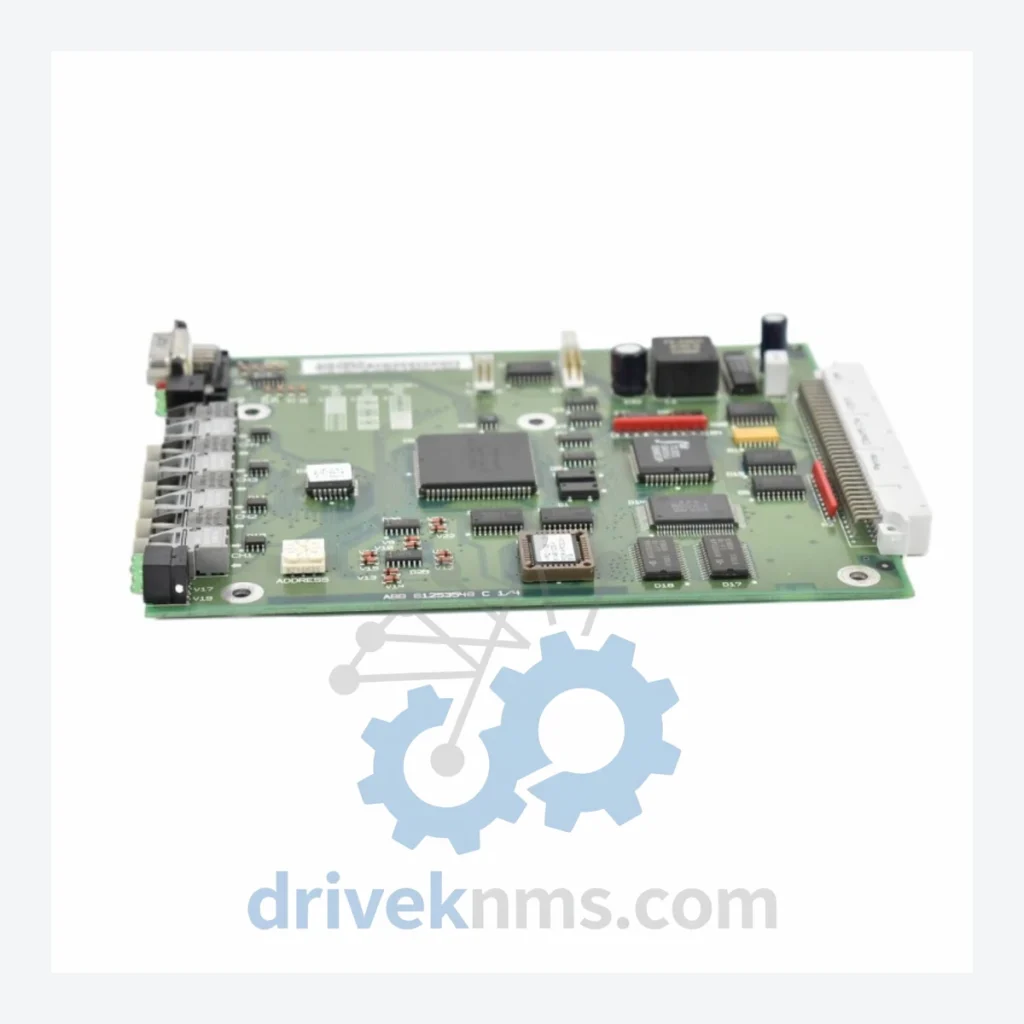

The ABB YPQ series represents a core family of control and I/O boards deployed within ABB's DCS (Distributed Control System) architecture, most notably within the DDCS (Distributed Drive Control System) and AC800M/AC500 ecosystem environments. These modules have accumulated significant installed base across global heavy industry sectors including petrochemical refineries, nuclear power auxiliary systems, pulp and paper mills, offshore platforms, and large-scale water treatment facilities. The YPQ-112B DDCS63986780 specifically functions as a control board interfacing with DDCS fiber-optic communication networks, providing deterministic real-time control signaling between drive units and supervisory controllers. The series is characterized by its ruggedized PCB construction, conformal coating for industrial environments, and compatibility with ABB's proprietary DDCS protocol stack.

The Evolution of YPQ Architecture

The YPQ board family originated as an integral component of ABB's drive control communication infrastructure, designed to bridge the gap between high-power drive hardware and supervisory DCS layers. Early iterations were engineered for compatibility with ABB's RDCO (DDCS Communication Option) modules and the ACS600/ACS800 drive platforms. As ABB transitioned its drive portfolio through successive generations—ACS600 → ACS800 → ACS880—the YPQ series underwent parallel revisions to maintain backward compatibility while supporting expanded fiber-optic channel counts and faster DDCS polling cycles.

The DDCS63986780 board revision introduced enhanced EMI shielding and revised firmware addressing timing synchronization issues identified in earlier field deployments. Compatibility constraints are a critical consideration: YPQ boards are revision-specific in many installations, and substituting a later hardware revision without corresponding firmware alignment can result in communication faults (fault code 7.xx series on ACS800 platforms). Engineers maintaining legacy ACS600 installations must verify the DDCS channel configuration (CH0–CH3) matches the original board's jumper settings before replacement.

As of 2026, the YPQ series has entered the mature/end-of-active-production phase for several sub-variants. ABB's official spare parts program continues to list select models, but lead times from the OEM channel have extended significantly. Third-party MRO suppliers and certified refurbishers have become the primary sourcing channel for time-critical maintenance scenarios.

YPQ Full Catalog & Functionalities (SKU List)

Control & Communication Boards

• YPQ-112B DDCS63986780: DDCS fiber-optic control board, ACS800 drive series, CH0–CH3 configuration
• YPQ-110A DDCS63986750: Earlier revision control board, ACS600/ACS800 compatible, single DDCS channel
• YPQ-112A DDCS63986760: Intermediate revision, dual DDCS channel, revised EMI layout
• YPQ-113B DDCS63986800: Extended channel variant, supports up to 4 DDCS nodes per board
• YPQ-114C DDCS63986820: High-density communication board, ACS880 compatible retrofit
• YPQ-115A DDCS63986840: Latest active revision, enhanced fiber-optic transceiver, extended temperature range

I/O Interface Modules

• YPQ-210A DDCS64100010: Digital input module, 16-channel DI, 24 VDC, DDCS backplane interface
• YPQ-211B DDCS64100020: Digital output module, 16-channel DO, relay output, 2A per channel
• YPQ-220A DDCS64100030: Analog input module, 8-channel AI, 4–20 mA / 0–10 V selectable
• YPQ-221A DDCS64100040: Analog output module, 4-channel AO, 4–20 mA, 12-bit resolution
• YPQ-230B DDCS64100050: Mixed I/O module, 8DI + 4DO + 2AI, compact form factor
• YPQ-231A DDCS64100060: High-speed digital I/O, 32-channel, 1 ms scan time

Power Supply Modules

• YPQ-310A DDCS64200010: 24 VDC power supply module, 5A output, DIN rail mount, DDCS rack compatible
• YPQ-311B DDCS64200020: Redundant power supply module, hot-swap capable, 10A combined output
• YPQ-312A DDCS64200030: Wide-input power module, 85–264 VAC input, 24 VDC/5A output

CPU / Controller Modules

• YPQ-410A DDCS64300010: Embedded CPU module, 32-bit processor, 512 KB program memory, DDCS master
• YPQ-411B DDCS64300020: Enhanced CPU module, dual-core, 2 MB memory, Ethernet + DDCS dual interface
• YPQ-412A DDCS64300030: Redundant CPU module, hot-standby failover, <50 ms switchover time

Sourcing Hard-to-Find & Obsolete YPQ Series Parts

DriveKNMS maintains a dedicated inventory program for ABB YPQ series boards that have exited ABB's active production schedule. For installations where the original YPQ-112B DDCS63986780 or earlier revisions remain in service, replacement sourcing through the OEM channel is increasingly constrained by extended lead times (12–52 weeks in documented cases) and minimum order quantity requirements that are impractical for single-unit maintenance needs.

DriveKNMS sources YPQ series boards through a combination of decommissioned plant asset recovery, authorized distributor excess stock, and certified refurbishment of returned units. All sourced boards are cross-referenced against ABB's revision history database to ensure hardware revision compatibility with the target installation. For customers operating ACS600 or early ACS800 platforms where the YPQ-110A or YPQ-112A variants are required, DriveKNMS maintains a dedicated obsolete parts register updated on a rolling 90-day basis.

Lifecycle extension contracts are available for facilities requiring guaranteed spare parts availability over a 3–10 year horizon, covering the full YPQ board family including DDCS communication boards, I/O modules, and power supply units.

Quality Control for the YPQ Range

The YPQ series presents specific quality verification challenges due to its role in DDCS fiber-optic communication, where board-level faults can manifest as intermittent communication errors rather than hard failures—making standard power-on testing insufficient for release certification.

DriveKNMS applies a multi-stage test protocol to all YPQ boards prior to shipment. Visual inspection covers PCB trace integrity, solder joint condition, capacitor ESR measurement, and fiber-optic transceiver lens condition. Functional testing is conducted on a dedicated ABB DDCS test bench replicating the CH0–CH3 polling environment of an ACS800 drive system, verifying correct frame transmission, error rate below 10⁻⁹ BER, and response latency within ABB's specified timing window. Boards exhibiting any DDCS synchronization fault during a 72-hour burn-in cycle are rejected and flagged for component-level repair before re-test. Firmware revision is verified and documented on the test certificate accompanying each shipped unit.
