ABB ZPOW Series: Comprehensive Module Range and Technical Overview

The ABB ZPOW series represents a dedicated family of power supply boards and power conditioning modules engineered for deployment within ABB's Advant, Master, and MOD 300 distributed control system (DCS) architectures. These modules occupy a critical position in the power distribution hierarchy of process control cabinets, providing regulated DC voltage rails to backplane-mounted I/O, controller, and communication modules.

In global heavy industry — including petrochemical refineries, nuclear power stations, offshore platforms, and large-scale chemical processing facilities — ABB DCS installations routinely span decades of operational life. The ZPOW series has been a foundational power supply component in these environments since the 1980s and 1990s, with installed base units still active in facilities across Europe, the Middle East, Asia-Pacific, and the Americas. The criticality of these power supply boards means that a single failed unit can trigger a full cabinet shutdown, making reliable spare parts availability a direct operational risk factor.

The Evolution of ZPOW Architecture

The ZPOW series was introduced as part of ABB's Advant Controller and MOD 300 platform ecosystem during the late 1980s. Early variants such as the ZPOW-101 and ZPOW-201 provided basic 24 VDC and 48 VDC regulated outputs for first-generation Advant cabinets, using linear regulation topologies with limited short-circuit protection.

Through the 1990s, ABB transitioned the ZPOW line to switch-mode power supply (SMPS) designs, improving efficiency and thermal performance. Mid-generation units including the ZPOW-401 and ZPOW-501 introduced redundancy support, allowing hot-standby configurations via parallel bus connections — a critical feature for continuous-process industries where planned shutdowns are measured in years, not weeks.

The ZPOW-591 represents a mature iteration within this lineage, designed for compatibility with the Advant OCS (Open Control System) and AC 450/AC 460 controller families. It delivers stabilized DC power to the S100 and S800 I/O backplanes, with built-in over-voltage, over-current, and thermal protection circuits.

As ABB migrated its DCS portfolio toward the System 800xA platform in the 2000s, the ZPOW series entered a maintenance-only lifecycle phase. ABB ceased active production of most ZPOW variants by the mid-2010s. Facilities running legacy Advant or MOD 300 systems must now source ZPOW modules through specialist industrial spare parts suppliers, as OEM channels no longer carry stock.

Compatibility note: ZPOW modules are backplane-specific. Cross-series substitution (e.g., replacing a ZPOW-591 with a ZPOW-401) requires engineering verification of voltage rail specifications, connector pinout, and firmware compatibility with the host controller.

ABB ZPOW Full Catalog & Functionalities (SKU List)

The following SKUs represent confirmed members of the ABB ZPOW power supply board series, classified by function and output specification:

Power Supply Boards — Primary DC Output

ZPOW-101: 24 VDC regulated output, linear topology, for early Advant S100 cabinets
ZPOW-201: 48 VDC regulated output, single-rail, MOD 300 backplane compatible
ZPOW-301: Dual-rail 24/48 VDC output, enhanced ripple suppression, Advant OCS
ZPOW-401: Switch-mode 24 VDC, redundancy-ready, parallel bus support
ZPOW-501: Switch-mode 48 VDC, hot-standby capable, over-current protection
ZPOW-511: 24 VDC SMPS with extended input voltage range (85–264 VAC universal input)
ZPOW-521: 48 VDC SMPS, high-efficiency variant, reduced thermal dissipation
ZPOW-531: Dual-output 24/5 VDC, logic and field power combined, S800 I/O compatible
ZPOW-541: 24 VDC with integrated EMC filter, for high-interference industrial environments
ZPOW-551: 48 VDC high-current output (up to 20 A), for large I/O node configurations
ZPOW-561: Redundant power module with automatic failover relay, Advant AC 450
ZPOW-571: 24 VDC with diagnostics output, fault signal relay for SCADA integration
ZPOW-581: Low-profile 24 VDC board, compact cabinet installations, reduced footprint

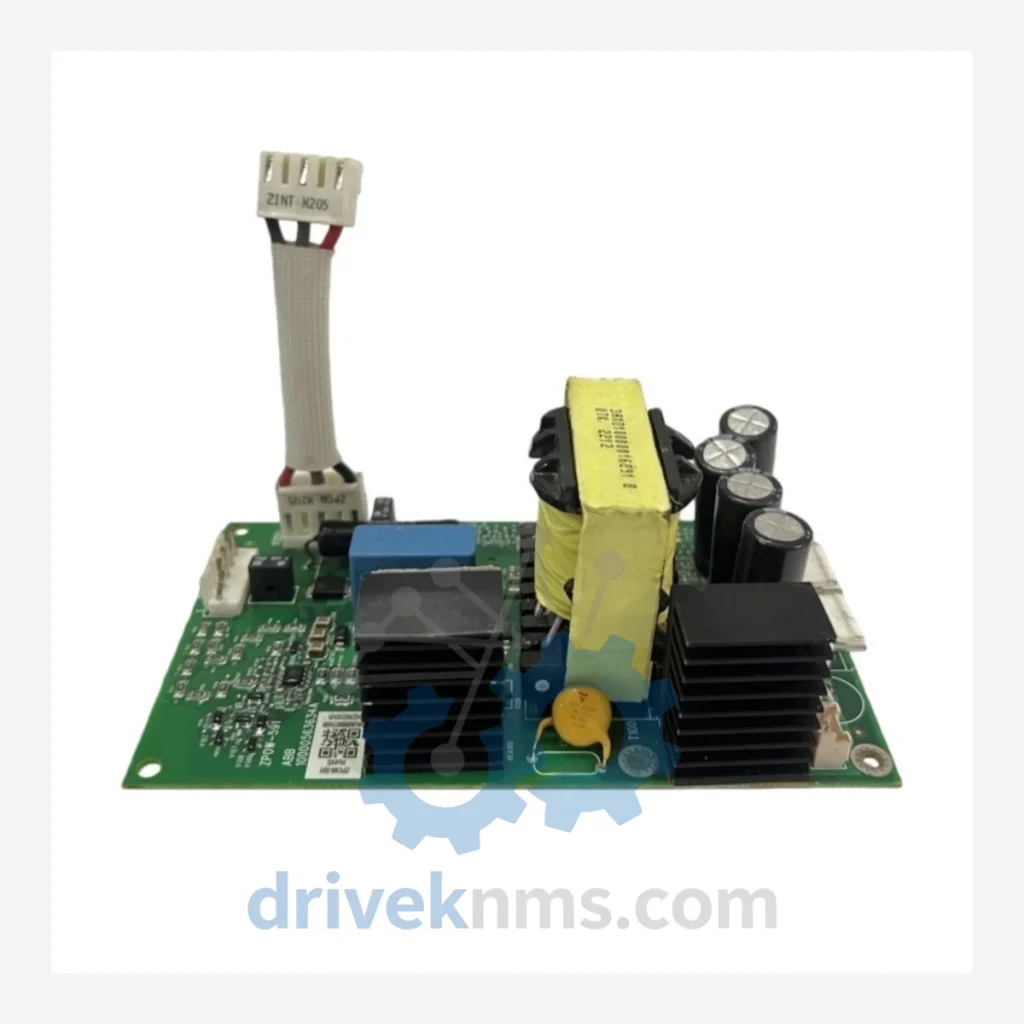

ZPOW-591: Stabilized DC power supply board, Advant OCS / AC 460 backplane, multi-rail protection
ZPOW-601: Next-generation SMPS, 24 VDC, System 800xA transitional compatibility layer

Sourcing Hard-to-Find & Obsolete ZPOW Parts

The majority of the ABB ZPOW series has been formally discontinued by ABB. OEM replacement parts are no longer available through standard ABB distribution channels. For facilities operating legacy Advant, MOD 300, or AC 450/460 systems, this creates a direct procurement challenge: power supply board failures cannot be resolved through the original equipment manufacturer.

DriveKNMS maintains a dedicated inventory of ZPOW series modules sourced through verified industrial surplus channels, decommissioned plant asset recovery, and long-term storage stock. Our procurement process covers:

— Exact-match OEM units (tested, cleaned, and re-certified)
— Functional equivalents where direct replacements are unavailable
— Emergency same-week dispatch for critical process shutdowns
— Long-term supply agreements for facilities with multi-year maintenance schedules

All ZPOW units in our inventory are catalogued by part number, hardware revision, and manufacturing date code. Customers requiring specific revision levels (e.g., for firmware compatibility with a particular AC 460 controller version) can specify requirements at the time of inquiry.

Quality Control for the ZPOW Range

ABB ZPOW power supply boards present specific testing challenges due to their backplane-interface architecture and multi-rail DC output design. DriveKNMS applies the following verification procedures to all ZPOW units prior to dispatch:

1. Visual and Physical Inspection: Board-level inspection for capacitor bulge, PCB trace damage, corrosion on edge connectors, and component substitution indicators. Backplane connector pins are measured for dimensional compliance.

2. Powered Bench Test: Each unit is energized under controlled load conditions replicating the target backplane environment. Output voltage rails are measured at no-load, 50% load, and full-rated load. Ripple and noise are measured against ABB's published specifications.

3. Protection Circuit Verification: Over-voltage, over-current, and thermal shutdown circuits are individually triggered and verified to respond within specification. Automatic recovery behavior is confirmed where applicable.

4. Backplane Communication Test: For ZPOW variants with diagnostic output relays (e.g., ZPOW-571), fault signal outputs are verified under simulated fault conditions.

5. Burn-In Cycle: Units are operated at rated load for a minimum of 24 hours in a temperature-controlled environment to screen for early-life component failures before shipment.

Test records are retained per unit and are available to customers on request.
