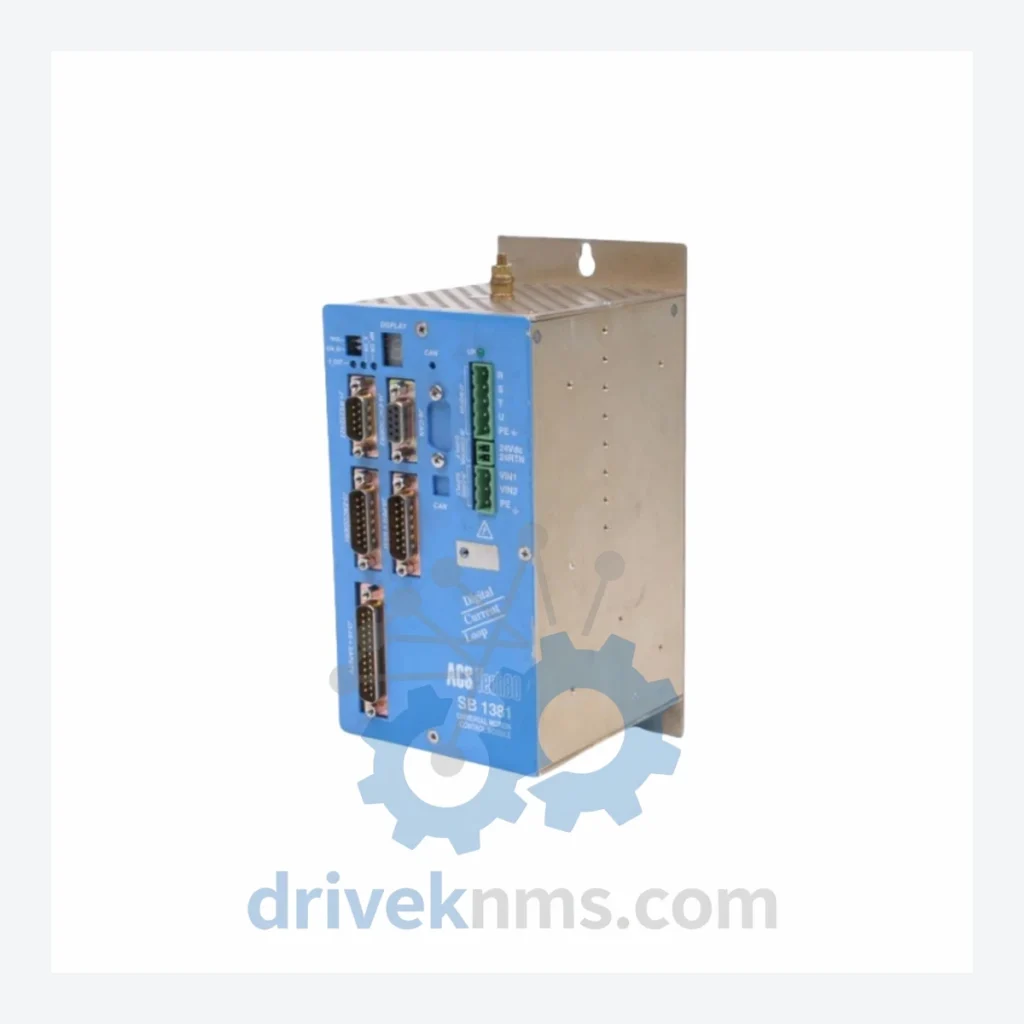

ACS SB1381-B-E-R-A-PM2 Motion Control Module – Obsolete ACS Spare Part

Technical Dossier

Product Details And Specifications

ACS SB1381-B-E-R-A-PM2 Motion Control Module – Obsolete ACS Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters such as voltage ratings, current capacity, and communication interfaces are not published here to avoid inaccurate specifications. Confirmed technical datasheets are provided upon request with order inquiry.

Solving the Discontinued Hardware Crisis

The ACS SB1381-B-E-R-A-PM2 was designed for high-precision, multi-axis motion coordination in demanding industrial environments. ACS motion control platforms built around this module generation are still operating in facilities that cannot justify a full controls upgrade — not because the systems are underperforming, but because the capital expenditure and production risk of replacement are prohibitive.

The discontinuation of this module creates a specific operational risk: a single unit failure with no replacement available forces a system-wide retrofit. For plant managers operating on maintenance budgets rather than capital budgets, this is not a theoretical risk — it is a budget-breaking event that arrives without warning.

Facilities running ACS-based motion control systems in applications such as pick-and-place automation, CNC coordination, or multi-axis servo control should treat the SB1381-B-E-R-A-PM2 as a critical single point of failure. Holding one or two verified spare units eliminates that risk entirely at a fraction of the cost of any alternative.

How to extend your automation asset life by 5–10 years with strategic spare parts management:

Condition & Reliability Assurance

Every SB1381-B-E-R-A-PM2 unit processed through DriveKNMS undergoes a structured 5-step quality verification protocol before dispatch review:

1. Electrolytic Capacitor Aging Inspection: Capacitors are the primary failure point in stored legacy electronics. Each unit is inspected for capacitor bulging, leakage, and ESR degradation. Units with compromised capacitors are either recapped with equivalent-spec components or rejected.
2. Firmware Version Verification: The installed firmware version is confirmed and documented. Compatibility with the target system version is verified where system information is provided by the customer.
3. Pin and Connector Corrosion Audit: All edge connectors, backplane pins, and I/O interfaces are inspected under magnification for oxidation, corrosion, and mechanical damage. Affected contacts are cleaned or the unit is rejected.
4. Functional Power-On Test: Where test fixtures are available for this module type, units are powered and tested for basic operational response prior to shipment.
5. Packaging for Long-Term Storage: Units are packaged in anti-static bags with desiccant, sealed, and labeled with inspection date and condition grade. This supports shelf storage for facilities building a spare parts reserve.

Key Features for System Maintenance

How do I know the unit is genuine and not counterfeit?
All units are sourced through documented supply channels. Physical inspection includes verification of OEM markings, PCB revision codes, and component date codes consistent with the original production period. We do not source from unverified brokers.

Should I buy more than one unit?
For any system where the SB1381-B-E-R-A-PM2 is a critical component and no modern replacement exists, holding a minimum of one cold spare is strongly recommended. Facilities with multiple identical systems or high uptime requirements should consider two units. The cost of a second spare is negligible relative to the cost of a production stoppage while sourcing a replacement under emergency conditions.
